#include <Xpetra_TpetraCrsMatrix_decl.hpp>

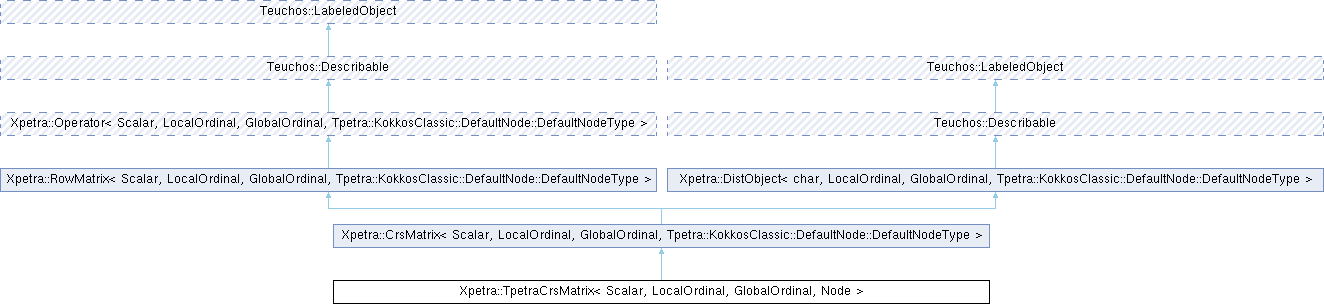

Inheritance diagram for Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Types
typedef TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >	TpetraCrsMatrixClass

typedef TpetraVector	TpetraVectorClass

typedef TpetraImport< LocalOrdinal, GlobalOrdinal, Node >	TpetraImportClass

typedef TpetraExport< LocalOrdinal, GlobalOrdinal, Node >	TpetraExportClass

using	local_matrix_type = typename Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_type

using	local_matrix_device_type = typename Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_device_type

using	local_matrix_host_type = typename Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_host_type

using	ATS = KokkosKernels::ArithTraits< Scalar >

using	impl_scalar_type = typename ATS::val_type

Public Types inherited from Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

using	impl_scalar_type = typename KokkosKernels::ArithTraits< Scalar >::val_type

using	execution_space = typename node_type::device_type

using	local_graph_type = KokkosSparse::StaticCrsGraph< LocalOrdinal, Kokkos::LayoutLeft, execution_space, void, size_t >

using	local_graph_device_type = KokkosSparse::StaticCrsGraph< LocalOrdinal, Kokkos::LayoutLeft, execution_space, void, size_t >

using	local_graph_host_type = typename local_graph_device_type::host_mirror_type

using	local_matrix_type = KokkosSparse::CrsMatrix< impl_scalar_type, LocalOrdinal, execution_space, void, typename local_graph_type::size_type >
	The specialization of Kokkos::CrsMatrix that represents the part of the sparse matrix on each MPI process. The same as for Tpetra.

using	local_matrix_device_type = KokkosSparse::CrsMatrix< impl_scalar_type, LocalOrdinal, execution_space, void, typename local_graph_type::size_type >

using	local_matrix_host_type = typename local_matrix_device_type::host_mirror_type

Public Types inherited from Xpetra::RowMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

using	impl_scalar_type = typename KokkosKernels::ArithTraits< Scalar >::val_type

Public Types inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type
	The type of the entries of the input and output multivectors.

typedef LocalOrdinal	local_ordinal_type
	The local index type.

typedef GlobalOrdinal	global_ordinal_type
	The global index type.

typedef Node	node_type
	The Kokkos Node type.

Xpetra specific
RCP< Tpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	mtx_

bool	hasMatrix () const
	Does this have an underlying matrix.

	TpetraCrsMatrix (const Teuchos::RCP< Tpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &mtx)
	TpetraCrsMatrix constructor to wrap a Tpetra::CrsMatrix object.

RCP< const Tpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getTpetra_CrsMatrix () const
	Get the underlying Tpetra matrix.

RCP< Tpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getTpetra_CrsMatrixNonConst () const
	Get the underlying Tpetra matrix.

local_matrix_type::host_mirror_type	getLocalMatrixHost () const
	Access the local Kokkos::CrsMatrix data.

local_matrix_type	getLocalMatrixDevice () const
	Access the local Kokkos::CrsMatrix data.

void	setAllValues (const typename local_matrix_type::row_map_type &ptr, const typename local_matrix_type::StaticCrsGraphType::entries_type::non_const_type &ind, const typename local_matrix_type::values_type &val)

LocalOrdinal	GetStorageBlockSize () const
	Returns the block size of the storage mechanism, which is usually 1, except for Tpetra::BlockCrsMatrix.

void	residual (const MultiVector &X, const MultiVector &B, MultiVector &R) const
	Compute a residual R = B - (this) X.

Constructor/Destructor Methods
	TpetraCrsMatrix (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, size_t maxNumEntriesPerRow, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying fixed number of entries for each row.

	TpetraCrsMatrix (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying (possibly different) number of entries in each row.

	TpetraCrsMatrix (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, size_t maxNumEntriesPerRow, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and fixed number of entries for each row.

	TpetraCrsMatrix (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying column Map and number of entries in each row.

	TpetraCrsMatrix (const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &graph, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying a previously constructed graph.

	TpetraCrsMatrix (const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &graph, typename Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_type::values_type &values, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor specifying a previously constructed graph and values array.

	TpetraCrsMatrix (const Teuchos::RCP< const CrsMatrix > &sourceMatrix, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor for a fused import.

	TpetraCrsMatrix (const Teuchos::RCP< const CrsMatrix > &sourceMatrix, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor for a fused export.

	TpetraCrsMatrix (const Teuchos::RCP< const CrsMatrix > &sourceMatrix, const Import< LocalOrdinal, GlobalOrdinal, Node > &RowImporter, const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > DomainImporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Constructor for a fused import.

	TpetraCrsMatrix (const Teuchos::RCP< const CrsMatrix > &sourceMatrix, const Export< LocalOrdinal, GlobalOrdinal, Node > &RowExporter, const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > DomainExporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Constructor for a fused export.

	TpetraCrsMatrix (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const local_matrix_type &lclMatrix, const Teuchos::RCP< Teuchos::ParameterList > &params=null)
	Constructor specifying column Map and a local matrix, which the resulting CrsMatrix views.

	TpetraCrsMatrix (const local_matrix_type &lclMatrix, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=null)
	Constructor specifying local matrix and 4 maps.

	TpetraCrsMatrix (const local_matrix_type &lclMatrix, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &importer, const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &exporter, const Teuchos::RCP< Teuchos::ParameterList > &params=null)
	Constructor specifying local matrix, four maps, import and export objects.

virtual	~TpetraCrsMatrix ()
	Destructor.

Insertion/Removal Methods
void	insertGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Insert matrix entries, using global IDs.

void	insertLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Insert matrix entries, using local IDs.

void	replaceGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Replace matrix entries, using global IDs.

void	replaceLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Replace matrix entries, using local IDs.

void	setAllToScalar (const Scalar &alpha)
	Set all matrix entries equal to scalarThis.

void	scale (const Scalar &alpha)
	Scale the current values of a matrix, this = alpha*this.

void	allocateAllValues (size_t numNonZeros, ArrayRCP< size_t > &rowptr, ArrayRCP< LocalOrdinal > &colind, ArrayRCP< Scalar > &values)
	Allocates and returns ArrayRCPs of the Crs arrays — This is an Xpetra-only routine.

void	setAllValues (const ArrayRCP< size_t > &rowptr, const ArrayRCP< LocalOrdinal > &colind, const ArrayRCP< Scalar > &values)
	Sets the 1D pointer arrays of the graph.

void	getAllValues (ArrayRCP< const size_t > &rowptr, ArrayRCP< const LocalOrdinal > &colind, ArrayRCP< const Scalar > &values) const
	Gets the 1D pointer arrays of the graph.

void	getAllValues (ArrayRCP< Scalar > &values)
	Gets the 1D pointer arrays of the graph.

bool	haveGlobalConstants () const
	Returns true if globalConstants have been computed; false otherwise.

Transformational Methods
void	resumeFill (const RCP< ParameterList > &params=null)

void	fillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< ParameterList > &params=null)
	Signal that data entry is complete, specifying domain and range maps.

void	fillComplete (const RCP< ParameterList > &params=null)
	Signal that data entry is complete.

void	replaceDomainMapAndImporter (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &newDomainMap, Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &newImporter)
	Replaces the current domainMap and importer with the user-specified objects.

void	expertStaticFillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &importer=Teuchos::null, const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &exporter=Teuchos::null, const RCP< ParameterList > &params=Teuchos::null)
	Expert static fill complete.

Methods implementing RowMatrix
const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getRowMap () const
	Returns the Map that describes the row distribution in this matrix.

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getColMap () const
	Returns the Map that describes the column distribution in this matrix.

RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > >	getCrsGraph () const
	Returns the CrsGraph associated with this matrix.

global_size_t	getGlobalNumRows () const
	Number of global elements in the row map of this matrix.

global_size_t	getGlobalNumCols () const
	Number of global columns in the matrix.

size_t	getLocalNumRows () const
	Returns the number of matrix rows owned on the calling node.

size_t	getLocalNumCols () const
	Returns the number of columns connected to the locally owned rows of this matrix.

global_size_t	getGlobalNumEntries () const
	Returns the global number of entries in this matrix.

size_t	getLocalNumEntries () const
	Returns the local number of entries in this matrix.

size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const
	Returns the current number of entries on this node in the specified local row.

size_t	getNumEntriesInGlobalRow (GlobalOrdinal globalRow) const
	Returns the current number of entries in the (locally owned) global row.

size_t	getGlobalMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on all nodes.

size_t	getLocalMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on this node.

bool	isLocallyIndexed () const
	If matrix indices are in the local range, this function returns true. Otherwise, this function returns false.

bool	isGloballyIndexed () const
	If matrix indices are in the global range, this function returns true. Otherwise, this function returns false.

bool	isFillComplete () const
	Returns true if the matrix is in compute mode, i.e. if fillComplete() has been called.

bool	isFillActive () const
	Returns true if the matrix is in edit mode.

ScalarTraits< Scalar >::magnitudeType	getFrobeniusNorm () const
	Returns the Frobenius norm of the matrix.

bool	supportsRowViews () const
	Returns true if getLocalRowView() and getGlobalRowView() are valid for this class.

void	getLocalRowCopy (LocalOrdinal LocalRow, const ArrayView< LocalOrdinal > &Indices, const ArrayView< Scalar > &Values, size_t &NumEntries) const
	Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine.

void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &indices, ArrayView< const Scalar > &values) const
	Extract a const, non-persisting view of global indices in a specified row of the matrix.

void	getGlobalRowCopy (GlobalOrdinal GlobalRow, const ArrayView< GlobalOrdinal > &indices, const ArrayView< Scalar > &values, size_t &numEntries) const
	Extract a list of entries in a specified global row of this matrix. Put into pre-allocated storage.

void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices, ArrayView< const Scalar > &values) const
	Extract a const, non-persisting view of local indices in a specified row of the matrix.

Methods implementing Operator
void	apply (const MultiVector &X, MultiVector &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=ScalarTraits< Scalar >::one(), Scalar beta=ScalarTraits< Scalar >::zero()) const
	Computes the sparse matrix-multivector multiplication.

void	apply (const MultiVector &X, MultiVector &Y, Teuchos::ETransp mode, Scalar alpha, Scalar beta, bool sumInterfaceValues, const RCP< Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node > > &regionInterfaceImporter, const Teuchos::ArrayRCP< LocalOrdinal > &regionInterfaceLIDs) const
	Computes the matrix-multivector multiplication for region layout matrices.

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getDomainMap () const
	Returns the Map associated with the domain of this operator. This will be null until fillComplete() is called.

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getRangeMap () const
	Returns the Map associated with the range of this operator, which must be compatible with Y.getMap().

Overridden from Teuchos::Describable
std::string	description () const
	A simple one-line description of this object.

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object.

Overridden from Teuchos::LabeledObject
void	setObjectLabel (const std::string &objectLabel)

	TpetraCrsMatrix (const TpetraCrsMatrix &matrix)
	Deep copy constructor.

void	getLocalDiagCopy (Vector &diag) const
	Get a copy of the diagonal entries owned by this node, with local row indices.

void	getLocalDiagOffsets (Teuchos::ArrayRCP< size_t > &offsets) const
	Get offsets of the diagonal entries in the matrix.

void	getLocalDiagCopy (Vector &diag, const Teuchos::ArrayView< const size_t > &offsets) const
	Get a copy of the diagonal entries owned by this node, with local row indices.

void	getLocalDiagCopy (Vector &diag, const Kokkos::View< const size_t *, typename Node::device_type, Kokkos::MemoryUnmanaged > &offsets) const
	Get a copy of the diagonal entries owned by this node, with local row indices, using row offsets.

void	replaceDiag (const Vector &diag)
	Replace the diagonal entries of the matrix.

void	leftScale (const Vector &x)
	Left scale operator with given vector values.

void	rightScale (const Vector &x)
	Right scale operator with given vector values.

Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getMap () const
	Implements DistObject interface.

void	doImport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import.

void	doExport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &dest, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export.

void	doImport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import (using an Exporter).

void	doExport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &dest, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export (using an Importer).

void	removeEmptyProcessesInPlace (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &newMap)

Additional Inherited Members
Public Member Functions inherited from Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual void	setAllValues (const typename local_matrix_type::row_map_type &ptr, const typename local_graph_type::entries_type::non_const_type &ind, const typename local_matrix_type::values_type &val)=0

virtual	~CrsMatrix ()
	Destructor.

Public Member Functions inherited from Xpetra::RowMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~RowMatrix ()
	Destructor.

Public Member Functions inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~Operator ()

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose.

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()

virtual	~LabeledObject ()

virtual std::string	getObjectLabel () const

Public Member Functions inherited from Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >
virtual	~DistObject ()
	Destructor.

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Import data into this object using an Import object ("forward mode").

virtual void	beginImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import data into this object using an Import object ("forward mode").

virtual void	endImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import data into this object using an Import object ("forward mode").

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Export data into this object using an Export object ("forward mode").

virtual void	beginExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export data into this object using an Export object ("forward mode").

virtual void	endExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export data into this object using an Export object ("forward mode").

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Import data into this object using an Export object ("reverse mode").

virtual void	beginImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import data into this object using an Export object ("reverse mode").

virtual void	endImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import data into this object using an Export object ("reverse mode").

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Export data into this object using an Import object ("reverse mode").

virtual void	beginExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export data into this object using an Import object ("reverse mode").

virtual void	endExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export data into this object using an Import object ("reverse mode").

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 40 of file Xpetra_TpetraCrsMatrix_decl.hpp.

Member Typedef Documentation

◆ TpetraCrsMatrixClass

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef TpetraCrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node> Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrixClass

Definition at line 48 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ TpetraVectorClass

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef TpetraVector Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraVectorClass

Definition at line 49 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ TpetraImportClass

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef TpetraImport<LocalOrdinal, GlobalOrdinal, Node> Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraImportClass

Definition at line 50 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ TpetraExportClass

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef TpetraExport<LocalOrdinal, GlobalOrdinal, Node> Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraExportClass

Definition at line 51 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ local_matrix_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

using Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_type = typename Xpetra::CrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node>::local_matrix_type

Definition at line 54 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ local_matrix_device_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

using Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_device_type = typename Xpetra::CrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node>::local_matrix_device_type

Definition at line 55 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ local_matrix_host_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

using Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_host_type = typename Xpetra::CrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node>::local_matrix_host_type

Definition at line 56 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ ATS

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

using Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ATS = KokkosKernels::ArithTraits<Scalar>

Definition at line 58 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ impl_scalar_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

using Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::impl_scalar_type = typename ATS::val_type

Definition at line 59 of file Xpetra_TpetraCrsMatrix_decl.hpp.

Constructor & Destructor Documentation

◆ TpetraCrsMatrix() [1/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		size_t	maxNumEntriesPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

Constructor specifying fixed number of entries for each row.

Definition at line 20 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [2/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const ArrayRCP< const size_t > &	NumEntriesPerRowToAlloc,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

Constructor specifying (possibly different) number of entries in each row.

Definition at line 24 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [3/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		size_t	maxNumEntriesPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

Constructor specifying column Map and fixed number of entries for each row.

Definition at line 28 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [4/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		const ArrayRCP< const size_t > &	NumEntriesPerRowToAlloc,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

Constructor specifying column Map and number of entries in each row.

Definition at line 32 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [5/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &	graph,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

Constructor specifying a previously constructed graph.

Definition at line 36 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [6/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &	graph,
		typename Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_type::values_type &	values,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

Constructor specifying a previously constructed graph and values array.

Definition at line 40 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [7/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const CrsMatrix > &	sourceMatrix,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap = `Teuchos::null`,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

Constructor for a fused import.

Definition at line 44 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [8/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const CrsMatrix > &	sourceMatrix,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap = `Teuchos::null`,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

Constructor for a fused export.

Definition at line 62 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [9/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const CrsMatrix > &	sourceMatrix,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	RowImporter,
		const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > >	DomainImporter,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

Constructor for a fused import.

Definition at line 77 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [10/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const CrsMatrix > &	sourceMatrix,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	RowExporter,
		const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > >	DomainExporter,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

Constructor for a fused export.

Definition at line 97 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [11/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		const local_matrix_type &	lclMatrix,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `null`
	)

Constructor specifying column Map and a local matrix, which the resulting CrsMatrix views.

Unlike most other CrsMatrix constructors, successful completion of this constructor will result in a fill-complete matrix.

Parameters

rowMap	[in] Distribution of rows of the matrix.
colMap	[in] Distribution of columns of the matrix.
lclMatrix	[in] A local CrsMatrix containing all local matrix values as well as a local graph. The graph's local row indices must come from the specified row Map, and its local column indices must come from the specified column Map.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 116 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [12/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const local_matrix_type &	lclMatrix,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap = `Teuchos::null`,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `null`
	)

Constructor specifying local matrix and 4 maps.

Definition at line 123 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [13/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix	(	const local_matrix_type &	lclMatrix,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &	importer,
		const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &	exporter,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `null`
	)

Constructor specifying local matrix, four maps, import and export objects.

Definition at line 133 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ ~TpetraCrsMatrix()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~TpetraCrsMatrix ( )

virtual

Destructor.

Definition at line 145 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [14/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix ( const TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > & matrix )

Deep copy constructor.

Definition at line 499 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ TpetraCrsMatrix() [15/15]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraCrsMatrix ( const Teuchos::RCP< Tpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > & mtx )

TpetraCrsMatrix constructor to wrap a Tpetra::CrsMatrix object.

Definition at line 605 of file Xpetra_TpetraCrsMatrix_def.hpp.

Member Function Documentation

◆ insertGlobalValues()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::insertGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

virtual

Insert matrix entries, using global IDs.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 148 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ insertLocalValues()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::insertLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

virtual

Insert matrix entries, using local IDs.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 154 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ replaceGlobalValues()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

virtual

Replace matrix entries, using global IDs.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 160 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ replaceLocalValues()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

virtual

Replace matrix entries, using local IDs.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 166 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ setAllToScalar()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setAllToScalar ( const Scalar & alpha )

virtual

Set all matrix entries equal to scalarThis.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 179 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ scale()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scale ( const Scalar & alpha )

virtual

Scale the current values of a matrix, this = alpha*this.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 185 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ allocateAllValues()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::allocateAllValues	(	size_t	numNonZeros,
		ArrayRCP< size_t > &	rowptr,
		ArrayRCP< LocalOrdinal > &	colind,
		ArrayRCP< Scalar > &	values
	)

virtual

Allocates and returns ArrayRCPs of the Crs arrays — This is an Xpetra-only routine.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 191 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ setAllValues() [1/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setAllValues	(	const ArrayRCP< size_t > &	rowptr,
		const ArrayRCP< LocalOrdinal > &	colind,
		const ArrayRCP< Scalar > &	values
	)

virtual

Sets the 1D pointer arrays of the graph.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 199 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getAllValues() [1/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getAllValues	(	ArrayRCP< const size_t > &	rowptr,
		ArrayRCP< const LocalOrdinal > &	colind,
		ArrayRCP< const Scalar > &	values
	)		const

virtual

Gets the 1D pointer arrays of the graph.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 205 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getAllValues() [2/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getAllValues ( ArrayRCP< Scalar > & values )

virtual

Gets the 1D pointer arrays of the graph.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 218 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ haveGlobalConstants()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::haveGlobalConstants ( ) const

virtual

Returns true if globalConstants have been computed; false otherwise.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 228 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ resumeFill()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::resumeFill ( const RCP< ParameterList > & params = null )

virtual

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 231 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ fillComplete() [1/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fillComplete	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const RCP< ParameterList > &	params = `null`
	)

virtual

Signal that data entry is complete, specifying domain and range maps.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 237 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ fillComplete() [2/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fillComplete ( const RCP< ParameterList > & params = null )

virtual

Signal that data entry is complete.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 243 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ replaceDomainMapAndImporter()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceDomainMapAndImporter	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	newDomainMap,
		Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &	newImporter
	)

virtual

Replaces the current domainMap and importer with the user-specified objects.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 249 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ expertStaticFillComplete()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::expertStaticFillComplete	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &	importer = `Teuchos::null`,
		const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &	exporter = `Teuchos::null`,
		const RCP< ParameterList > &	params = `Teuchos::null`
	)

virtual

Expert static fill complete.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 257 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getRowMap()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRowMap ( ) const

virtual

Returns the Map that describes the row distribution in this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 279 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getColMap()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getColMap ( ) const

virtual

Returns the Map that describes the column distribution in this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 285 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getCrsGraph()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getCrsGraph ( ) const

virtual

Returns the CrsGraph associated with this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 291 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getGlobalNumRows()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

global_size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumRows ( ) const

virtual

Number of global elements in the row map of this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 297 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getGlobalNumCols()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

global_size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumCols ( ) const

virtual

Number of global columns in the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 303 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalNumRows()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalNumRows ( ) const

virtual

Returns the number of matrix rows owned on the calling node.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 309 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalNumCols()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalNumCols ( ) const

virtual

Returns the number of columns connected to the locally owned rows of this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 315 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getGlobalNumEntries()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

global_size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumEntries ( ) const

virtual

Returns the global number of entries in this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 321 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalNumEntries()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalNumEntries ( ) const

virtual

Returns the local number of entries in this matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 327 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getNumEntriesInLocalRow()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInLocalRow ( LocalOrdinal localRow ) const

virtual

Returns the current number of entries on this node in the specified local row.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 333 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getNumEntriesInGlobalRow()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInGlobalRow ( GlobalOrdinal globalRow ) const

virtual

Returns the current number of entries in the (locally owned) global row.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 339 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getGlobalMaxNumRowEntries()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const

virtual

Returns the maximum number of entries across all rows/columns on all nodes.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 345 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalMaxNumRowEntries()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

size_t Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalMaxNumRowEntries ( ) const

virtual

Returns the maximum number of entries across all rows/columns on this node.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 351 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ isLocallyIndexed()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isLocallyIndexed ( ) const

virtual

If matrix indices are in the local range, this function returns true. Otherwise, this function returns false.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 357 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ isGloballyIndexed()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isGloballyIndexed ( ) const

virtual

If matrix indices are in the global range, this function returns true. Otherwise, this function returns false.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 363 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ isFillComplete()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isFillComplete ( ) const

virtual

Returns true if the matrix is in compute mode, i.e. if fillComplete() has been called.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 369 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ isFillActive()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isFillActive ( ) const

virtual

Returns true if the matrix is in edit mode.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 375 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getFrobeniusNorm()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

ScalarTraits< Scalar >::magnitudeType Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getFrobeniusNorm ( ) const

virtual

Returns the Frobenius norm of the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 381 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ supportsRowViews()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::supportsRowViews ( ) const

virtual

Returns true if getLocalRowView() and getGlobalRowView() are valid for this class.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 387 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalRowCopy()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalRowCopy	(	LocalOrdinal	LocalRow,
		const ArrayView< LocalOrdinal > &	Indices,
		const ArrayView< Scalar > &	Values,
		size_t &	NumEntries
	)		const

virtual

Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 393 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getGlobalRowView()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowView	(	GlobalOrdinal	GlobalRow,
		ArrayView< const GlobalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

virtual

Extract a const, non-persisting view of global indices in a specified row of the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 419 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getGlobalRowCopy()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowCopy	(	GlobalOrdinal	GlobalRow,
		const ArrayView< GlobalOrdinal > &	indices,
		const ArrayView< Scalar > &	values,
		size_t &	numEntries
	)		const

virtual

Extract a list of entries in a specified global row of this matrix. Put into pre-allocated storage.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 406 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalRowView()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalRowView	(	LocalOrdinal	LocalRow,
		ArrayView< const LocalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

virtual

Extract a const, non-persisting view of local indices in a specified row of the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 430 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ apply() [1/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const MultiVector &	X,
		MultiVector &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `ScalarTraits<Scalar>::one()`,
		Scalar	beta = `ScalarTraits<Scalar>::zero()`
	)		const

virtual

Computes the sparse matrix-multivector multiplication.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 441 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ apply() [2/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const MultiVector &	X,
		MultiVector &	Y,
		Teuchos::ETransp	mode,
		Scalar	alpha,
		Scalar	beta,
		bool	sumInterfaceValues,
		const RCP< Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node > > &	regionInterfaceImporter,
		const Teuchos::ArrayRCP< LocalOrdinal > &	regionInterfaceLIDs
	)		const

virtual

Computes the matrix-multivector multiplication for region layout matrices.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 447 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getDomainMap()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

virtual

Returns the Map associated with the domain of this operator. This will be null until fillComplete() is called.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 468 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getRangeMap()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

virtual

Returns the Map associated with the range of this operator, which must be compatible with Y.getMap().

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 474 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ description()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

std::string Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

virtual

A simple one-line description of this object.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 480 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ describe()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

virtual

Print the object with some verbosity level to an FancyOStream object.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 486 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ setObjectLabel()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setObjectLabel ( const std::string & objectLabel )

virtual

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 492 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalDiagCopy() [1/3]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagCopy ( Vector & diag ) const

virtual

Get a copy of the diagonal entries owned by this node, with local row indices.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 503 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalDiagOffsets()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagOffsets ( Teuchos::ArrayRCP< size_t > & offsets ) const

virtual

Get offsets of the diagonal entries in the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 510 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalDiagCopy() [2/3]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagCopy	(	Vector &	diag,
		const Teuchos::ArrayView< const size_t > &	offsets
	)		const

virtual

Get a copy of the diagonal entries owned by this node, with local row indices.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 516 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalDiagCopy() [3/3]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagCopy	(	Vector &	diag,
		const Kokkos::View< const size_t *, typename Node::device_type, Kokkos::MemoryUnmanaged > &	offsets
	)		const

virtual

Get a copy of the diagonal entries owned by this node, with local row indices, using row offsets.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 522 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ replaceDiag()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceDiag ( const Vector & diag )

virtual

Replace the diagonal entries of the matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 528 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ leftScale()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::leftScale ( const Vector & x )

virtual

Left scale operator with given vector values.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 534 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ rightScale()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::rightScale ( const Vector & x )

virtual

Right scale operator with given vector values.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 540 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getMap()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getMap ( ) const

virtual

Implements DistObject interface.

Access function for the Tpetra::Map this DistObject was constructed with.

Implements Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 546 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ doImport() [1/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

Import.

Definition at line 552 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ doExport() [1/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

Export.

Definition at line 564 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ doImport() [2/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

Import (using an Exporter).

Definition at line 574 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ doExport() [2/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

Export (using an Importer).

Definition at line 584 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ removeEmptyProcessesInPlace()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::removeEmptyProcessesInPlace ( const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > & newMap )

virtual

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 594 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ hasMatrix()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasMatrix ( ) const

virtual

Does this have an underlying matrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 600 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getTpetra_CrsMatrix()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

RCP< const Tpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getTpetra_CrsMatrix ( ) const

Get the underlying Tpetra matrix.

Definition at line 609 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getTpetra_CrsMatrixNonConst()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

RCP< Tpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getTpetra_CrsMatrixNonConst ( ) const

Get the underlying Tpetra matrix.

Definition at line 613 of file Xpetra_TpetraCrsMatrix_def.hpp.

◆ getLocalMatrixHost()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

local_matrix_type::host_mirror_type Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalMatrixHost ( ) const

inlinevirtual

Access the local Kokkos::CrsMatrix data.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 399 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ getLocalMatrixDevice()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

local_matrix_type Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalMatrixDevice ( ) const

inlinevirtual

Access the local Kokkos::CrsMatrix data.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 403 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ setAllValues() [2/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setAllValues	(	const typename local_matrix_type::row_map_type &	ptr,
		const typename local_matrix_type::StaticCrsGraphType::entries_type::non_const_type &	ind,
		const typename local_matrix_type::values_type &	val
	)

inline

Definition at line 407 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ GetStorageBlockSize()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

LocalOrdinal Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetStorageBlockSize ( ) const

inlinevirtual

Returns the block size of the storage mechanism, which is usually 1, except for Tpetra::BlockCrsMatrix.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 414 of file Xpetra_TpetraCrsMatrix_decl.hpp.

◆ residual()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual	(	const MultiVector &	X,
		const MultiVector &	B,
		MultiVector &	R
	)		const

virtual

Compute a residual R = B - (*this) * X.

Implements Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 617 of file Xpetra_TpetraCrsMatrix_def.hpp.

Member Data Documentation

◆ mtx_

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<Tpetra::CrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::mtx_

private

Definition at line 424 of file Xpetra_TpetraCrsMatrix_decl.hpp.

The documentation for this class was generated from the following files:

Public Types

Xpetra specific

Constructor/Destructor Methods

Insertion/Removal Methods

Transformational Methods

Methods implementing RowMatrix

Methods implementing Operator

Overridden from Teuchos::Describable

Overridden from Teuchos::LabeledObject

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ TpetraCrsMatrixClass

◆ TpetraVectorClass

◆ TpetraImportClass

◆ TpetraExportClass

◆ local_matrix_type

◆ local_matrix_device_type

◆ local_matrix_host_type

◆ ATS

◆ impl_scalar_type

Constructor & Destructor Documentation

◆ TpetraCrsMatrix() [1/15]

◆ TpetraCrsMatrix() [2/15]

◆ TpetraCrsMatrix() [3/15]

◆ TpetraCrsMatrix() [4/15]

◆ TpetraCrsMatrix() [5/15]

◆ TpetraCrsMatrix() [6/15]

◆ TpetraCrsMatrix() [7/15]

◆ TpetraCrsMatrix() [8/15]

◆ TpetraCrsMatrix() [9/15]

◆ TpetraCrsMatrix() [10/15]

◆ TpetraCrsMatrix() [11/15]

◆ TpetraCrsMatrix() [12/15]

◆ TpetraCrsMatrix() [13/15]

◆ ~TpetraCrsMatrix()

◆ TpetraCrsMatrix() [14/15]

◆ TpetraCrsMatrix() [15/15]

Member Function Documentation

◆ insertGlobalValues()

◆ insertLocalValues()

◆ replaceGlobalValues()

◆ replaceLocalValues()

◆ setAllToScalar()

◆ scale()

◆ allocateAllValues()

◆ setAllValues() [1/2]

◆ getAllValues() [1/2]

◆ getAllValues() [2/2]

◆ haveGlobalConstants()

◆ resumeFill()

◆ fillComplete() [1/2]

◆ fillComplete() [2/2]

◆ replaceDomainMapAndImporter()

◆ expertStaticFillComplete()

◆ getRowMap()

◆ getColMap()

◆ getCrsGraph()

◆ getGlobalNumRows()

◆ getGlobalNumCols()

◆ getLocalNumRows()

◆ getLocalNumCols()

◆ getGlobalNumEntries()

◆ getLocalNumEntries()

◆ getNumEntriesInLocalRow()

◆ getNumEntriesInGlobalRow()

◆ getGlobalMaxNumRowEntries()

◆ getLocalMaxNumRowEntries()

◆ isLocallyIndexed()

◆ isGloballyIndexed()

◆ isFillComplete()

◆ isFillActive()

◆ getFrobeniusNorm()

◆ supportsRowViews()

◆ getLocalRowCopy()

◆ getGlobalRowView()

◆ getGlobalRowCopy()

◆ getLocalRowView()

◆ apply() [1/2]

◆ apply() [2/2]
