Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Referenceabstract
#include <Xpetra_Vector.hpp>

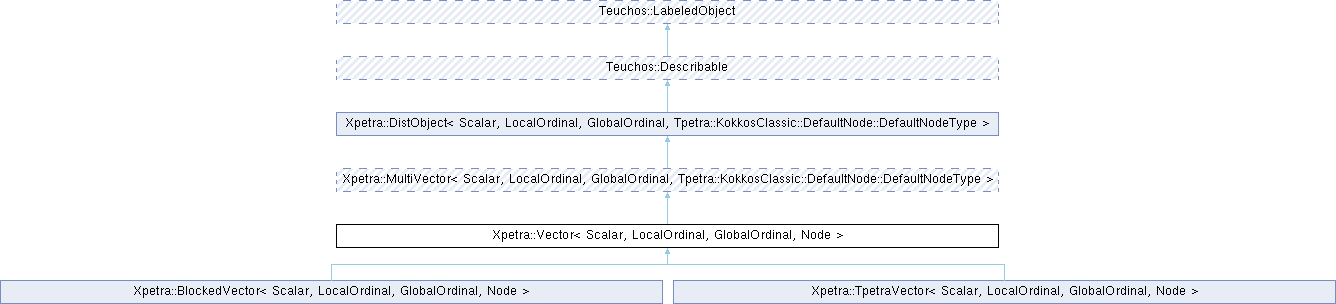

Inheritance diagram for Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
Public Types | |
| using | scalar_type = Scalar |
| using | local_ordinal_type = LocalOrdinal |
| using | global_ordinal_type = GlobalOrdinal |
| using | node_type = Node |
| typedef Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dual_view_type | dual_view_type |
 Public Types inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > | |
| typedef Scalar | scalar_type |
| typedef LocalOrdinal | local_ordinal_type |
| typedef GlobalOrdinal | global_ordinal_type |
| typedef Node | node_type |
| using | impl_scalar_type = typename KokkosKernels::ArithTraits< Scalar >::val_type |
| using | dual_view_type = Kokkos::DualView< impl_scalar_type **, Kokkos::LayoutStride, typename node_type::device_type, Kokkos::MemoryUnmanaged > |
| using | dual_view_type_const = Kokkos::DualView< const impl_scalar_type **, Kokkos::LayoutStride, typename node_type::device_type, Kokkos::MemoryUnmanaged > |
| using | host_execution_space = typename dual_view_type::host_mirror_space |
| using | dev_execution_space = typename dual_view_type::t_dev::execution_space |
Public Member Functions | |
| template<class TargetDeviceType , class AccessType > | |
| std::conditional< std::is_same< typenamedual_view_type::t_dev_um::execution_space::memory_space, typenameTargetDeviceType::memory_space >::value, typenamedual_view_type::t_dev_um, typenamedual_view_type::t_host_um >::type | getLocalView (AccessType access_type) const |
| Public Member Functions inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > | |
| virtual void | setSeed (unsigned int seed)=0 |
| Set seed for Random function. | |
| virtual void | randomize (bool bUseXpetraImplementation=false)=0 |
| Set multi-vector values to random numbers. | |
| virtual void | randomize (const Scalar &minVal, const Scalar &maxVal, bool bUseXpetraImplementation=false)=0 |
| Set multi-vector values to random numbers. | |
| virtual void | Xpetra_randomize () |
| Set multi-vector values to random numbers. XPetra implementation. | |
| virtual void | Xpetra_randomize (const Scalar &minVal, const Scalar &maxVal) |
| Set multi-vector values to random numbers. XPetra implementation. | |
| virtual dual_view_type::t_host_const_um | getLocalViewHost (Tpetra::Access::ReadOnlyStruct) const |
| virtual dual_view_type::t_dev_const_um | getLocalViewDevice (Tpetra::Access::ReadOnlyStruct) const |
| virtual dual_view_type::t_host_um | getLocalViewHost (Tpetra::Access::OverwriteAllStruct) const |
| virtual dual_view_type::t_dev_um | getLocalViewDevice (Tpetra::Access::OverwriteAllStruct) const |
| virtual dual_view_type::t_host_um | getLocalViewHost (Tpetra::Access::ReadWriteStruct) const |
| virtual dual_view_type::t_dev_um | getLocalViewDevice (Tpetra::Access::ReadWriteStruct) const |
| virtual | ~MultiVector () |
| Destructor. | |
| MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & | operator= (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &rhs) |
| Assignment operator: Does a deep copy. | |
| virtual void | replaceGlobalValue (GlobalOrdinal globalRow, size_t vectorIndex, const Scalar &value)=0 |
| Replace value, using global (row) index. | |
| virtual void | sumIntoGlobalValue (GlobalOrdinal globalRow, size_t vectorIndex, const Scalar &value)=0 |
| Add value to existing value, using global (row) index. | |
| virtual void | replaceLocalValue (LocalOrdinal myRow, size_t vectorIndex, const Scalar &value)=0 |
| Replace value, using local (row) index. | |
| virtual void | sumIntoLocalValue (LocalOrdinal myRow, size_t vectorIndex, const Scalar &value)=0 |
| Add value to existing value, using local (row) index. | |
| virtual void | putScalar (const Scalar &value)=0 |
| Set all values in the multivector with the given value. | |
| virtual Teuchos::RCP< const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > > | getVector (size_t j) const =0 |
| Return a Vector which is a const view of column j. | |
| virtual Teuchos::RCP< Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > > | getVectorNonConst (size_t j)=0 |
| Return a Vector which is a nonconst view of column j. | |
| virtual Teuchos::ArrayRCP< const Scalar > | getData (size_t j) const =0 |
| Const view of the local values in a particular vector of this multivector. | |
| virtual Teuchos::ArrayRCP< Scalar > | getDataNonConst (size_t j)=0 |
| View of the local values in a particular vector of this multivector. | |
| virtual void | dot (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const Teuchos::ArrayView< Scalar > &dots) const =0 |
| Compute dot product of each corresponding pair of vectors, dots[i] = this[i].dot(A[i]). | |
| virtual void | abs (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A)=0 |
| Put element-wise absolute values of input Multi-vector in target: A = abs(this). | |
| virtual void | reciprocal (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A)=0 |
| Put element-wise reciprocal values of input Multi-vector in target, this(i,j) = 1/A(i,j). | |
| virtual void | scale (const Scalar &alpha)=0 |
| Scale the current values of a multi-vector, this = alpha*this. | |
| virtual void | scale (Teuchos::ArrayView< const Scalar > alpha)=0 |
| Scale the current values of a multi-vector, this[j] = alpha[j]*this[j]. | |
| virtual void | update (const Scalar &alpha, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const Scalar &beta)=0 |
| Update multi-vector values with scaled values of A, this = beta*this + alpha*A. | |
| virtual void | update (const Scalar &alpha, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const Scalar &beta, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, const Scalar &gamma)=0 |
| Update multi-vector with scaled values of A and B, this = gamma*this + alpha*A + beta*B. | |
| virtual void | norm1 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const =0 |
| Compute 1-norm of each vector in multi-vector. | |
| virtual void | norm2 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const =0 |
| virtual void | normInf (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const =0 |
| Compute Inf-norm of each vector in multi-vector. | |
| virtual void | meanValue (const Teuchos::ArrayView< Scalar > &means) const =0 |
| virtual void | multiply (Teuchos::ETransp transA, Teuchos::ETransp transB, const Scalar &alpha, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, const Scalar &beta)=0 |
| Matrix-matrix multiplication: this = beta*this + alpha*op(A)*op(B). | |
| virtual void | elementWiseMultiply (Scalar scalarAB, const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, Scalar scalarThis)=0 |
| Multiply a Vector A elementwise by a MultiVector B. | |
| virtual size_t | getNumVectors () const =0 |
| Number of columns in the multivector. | |
| virtual size_t | getLocalLength () const =0 |
| Local number of rows on the calling process. | |
| virtual global_size_t | getGlobalLength () const =0 |
| Global number of rows in the multivector. | |
| virtual bool | isSameSize (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &vec) const =0 |
| virtual void | replaceMap (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &map)=0 |
| Public Member Functions inherited from Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > | |
| virtual | ~DistObject () |
| Destructor. | |
| virtual void | doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0 |
| Import data into this object using an Import object ("forward mode"). | |
| virtual void | beginImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM) |
| Import data into this object using an Import object ("forward mode"). | |
| virtual void | endImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM) |
| Import data into this object using an Import object ("forward mode"). | |
| virtual void | doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0 |
| Export data into this object using an Export object ("forward mode"). | |
| virtual void | beginExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM) |
| Export data into this object using an Export object ("forward mode"). | |
| virtual void | endExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM) |
| Export data into this object using an Export object ("forward mode"). | |
| virtual void | doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0 |
| Import data into this object using an Export object ("reverse mode"). | |
| virtual void | beginImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM) |
| Import data into this object using an Export object ("reverse mode"). | |
| virtual void | endImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM) |
| Import data into this object using an Export object ("reverse mode"). | |
| virtual void | doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0 |
| Export data into this object using an Import object ("reverse mode"). | |
| virtual void | beginExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM) |
| Export data into this object using an Import object ("reverse mode"). | |
| virtual void | endExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM) |
| Export data into this object using an Import object ("reverse mode"). | |
| virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > | getMap () const =0 |
| The Map describing the parallel distribution of this object. | |
| Public Member Functions inherited from Teuchos::Describable | |
| void | describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const |
| virtual | ~Describable () |
| DescribableStreamManipulatorState | describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default) |
| std::ostream & | operator<< (std::ostream &os, const DescribableStreamManipulatorState &d) |
| void | describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const |
| virtual | ~Describable () |
| Public Member Functions inherited from Teuchos::LabeledObject | |
| LabeledObject () | |
| virtual | ~LabeledObject () |
| virtual void | setObjectLabel (const std::string &objectLabel) |
| virtual std::string | getObjectLabel () const |
Constructor/Destructor Methods | |
| virtual | ~Vector () |
| Destructor. | |
Post-construction modification routines | |
| virtual void | replaceGlobalValue (GlobalOrdinal globalRow, const Scalar &value)=0 |
| Replace current value at the specified location with specified value. | |
| virtual void | sumIntoGlobalValue (GlobalOrdinal globalRow, const Scalar &value)=0 |
| Adds specified value to existing value at the specified location. | |
| virtual void | replaceLocalValue (LocalOrdinal myRow, const Scalar &value)=0 |
| Replace current value at the specified location with specified values. | |
| virtual void | sumIntoLocalValue (LocalOrdinal myRow, const Scalar &value)=0 |
| Adds specified value to existing value at the specified location. | |
Mathematical methods | |
| virtual Scalar | dot (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &a) const =0 |
| Computes dot product of this Vector against input Vector x. | |
| virtual Teuchos::ScalarTraits< Scalar >::magnitudeType | norm1 () const =0 |
| Return 1-norm of this Vector. | |
| virtual Teuchos::ScalarTraits< Scalar >::magnitudeType | norm2 () const =0 |
| Compute 2-norm of this Vector. | |
| virtual Teuchos::ScalarTraits< Scalar >::magnitudeType | normInf () const =0 |
| Compute Inf-norm of this Vector. | |
| virtual Scalar | meanValue () const =0 |
| Compute mean (average) value of this Vector. | |
Overridden from Teuchos::Describable | |
| virtual std::string | description () const =0 |
| Return a simple one-line description of this object. | |
| virtual void | describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const =0 |
| Print the object with some verbosity level to an FancyOStream object. | |
Additional Inherited Members | |
| Static Public Attributes inherited from Teuchos::Describable | |
| static const EVerbosityLevel | verbLevel_default |
| Protected Member Functions inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > | |
| virtual void | assign (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &rhs)=0 |
| Implementation of the assignment operator (operator=); does a deep copy. | |
Detailed Description
template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
class Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
Definition at line 24 of file Xpetra_Vector.hpp.
Member Typedef Documentation
◆ scalar_type
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
| using Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalar_type = Scalar |
Definition at line 27 of file Xpetra_Vector.hpp.
◆ local_ordinal_type
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
| using Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type = LocalOrdinal |
Definition at line 28 of file Xpetra_Vector.hpp.
◆ global_ordinal_type
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
| using Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type = GlobalOrdinal |
Definition at line 29 of file Xpetra_Vector.hpp.
◆ node_type
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
| using Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::node_type = Node |
Definition at line 30 of file Xpetra_Vector.hpp.
◆ dual_view_type
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
| typedef Xpetra::MultiVector<Scalar,LocalOrdinal,GlobalOrdinal,Node>::dual_view_type Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dual_view_type |
Definition at line 42 of file Xpetra_Vector.hpp.
Constructor & Destructor Documentation
◆ ~Vector()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
inlinevirtual |
Destructor.
Definition at line 59 of file Xpetra_Vector.hpp.
Member Function Documentation
◆ getLocalView()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
template<class TargetDeviceType , class AccessType >
|
inline |
Definition at line 51 of file Xpetra_Vector.hpp.
◆ replaceGlobalValue()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Replace current value at the specified location with specified value.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ sumIntoGlobalValue()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Adds specified value to existing value at the specified location.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ replaceLocalValue()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Replace current value at the specified location with specified values.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ sumIntoLocalValue()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Adds specified value to existing value at the specified location.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ dot()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Computes dot product of this Vector against input Vector x.
Implemented in Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ norm1()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Return 1-norm of this Vector.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ norm2()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Compute 2-norm of this Vector.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ normInf()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Compute Inf-norm of this Vector.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ meanValue()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Compute mean (average) value of this Vector.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ description()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Return a simple one-line description of this object.
Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
◆ describe()
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
|
pure virtual |
Print the object with some verbosity level to an FancyOStream object.
Implements Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
Implemented in Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.
The documentation for this class was generated from the following files:
