This class wraps any ModelEvaluator object along with a NonlinearSolverBase object and eliminates the steady-state equations f(x,...)=0. More...

#include <Thyra_DefaultStateEliminationModelEvaluator.hpp>

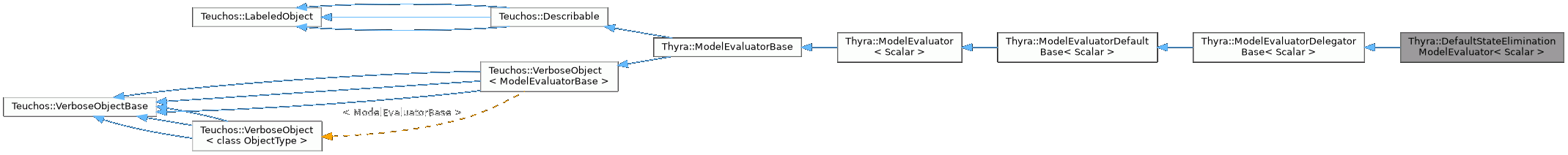

Inheritance diagram for Thyra::DefaultStateEliminationModelEvaluator< Scalar >:

[legend]

Constructors/initializers/accessors/utilities.
	DefaultStateEliminationModelEvaluator ()

	DefaultStateEliminationModelEvaluator (const Teuchos::RCP< ModelEvaluator< Scalar > > &thyraModel, const Teuchos::RCP< NonlinearSolverBase< Scalar > > &stateSolver)

void	initialize (const Teuchos::RCP< ModelEvaluator< Scalar > > &thyraModel, const Teuchos::RCP< NonlinearSolverBase< Scalar > > &stateSolver)

void	uninitialize (Teuchos::RCP< ModelEvaluator< Scalar > > thyraModel=NULL, Teuchos::RCP< NonlinearSolverBase< Scalar > > stateSolver=NULL)

Public functions overridden from Teuchos::Describable.
std::string	description () const

Public functions overridden from ModelEvaulator.
Teuchos::RCP< const VectorSpaceBase< Scalar > >	get_x_space () const

Teuchos::RCP< const VectorSpaceBase< Scalar > >	get_f_space () const

ModelEvaluatorBase::InArgs< Scalar >	getNominalValues () const

ModelEvaluatorBase::InArgs< Scalar >	getLowerBounds () const

ModelEvaluatorBase::InArgs< Scalar >	getUpperBounds () const

Teuchos::RCP< LinearOpWithSolveBase< Scalar > >	create_W () const

Teuchos::RCP< LinearOpBase< Scalar > >	create_W_op () const

ModelEvaluatorBase::InArgs< Scalar >	createInArgs () const

Additional Inherited Members
Public Types inherited from Thyra::ModelEvaluator< Scalar >
typedef Teuchos::ScalarTraits< Scalar >::magnitudeType	ScalarMag

Public Types inherited from Thyra::ModelEvaluatorBase
enum	EInArgsMembers { IN_ARG_x_dot_dot , IN_ARG_x_dot , IN_ARG_x , IN_ARG_x_dot_poly , IN_ARG_x_poly , IN_ARG_x_dot_mp , IN_ARG_x_mp , IN_ARG_t , IN_ARG_alpha , IN_ARG_beta , IN_ARG_W_x_dot_dot_coeff , IN_ARG_step_size , IN_ARG_stage_number }
	. More...

enum	EInArgs_p_mp { IN_ARG_p_mp }
	. More...

enum	EEvalType { }
	The type of an evaluation. More...

enum	EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM , DERIV_MV_GRADIENT_FORM , DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM , DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }

enum	EDerivativeLinearOp { DERIV_LINEAR_OP }

enum	EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN , DERIV_LINEARITY_CONST , DERIV_LINEARITY_NONCONST }

enum	ERankStatus { DERIV_RANK_UNKNOWN , DERIV_RANK_FULL , DERIV_RANK_DEFICIENT }

enum	EOutArgsMembers { OUT_ARG_f , OUT_ARG_W , OUT_ARG_f_mp , OUT_ARG_W_mp , OUT_ARG_W_op , OUT_ARG_W_prec , OUT_ARG_f_poly }
	. More...

enum	EOutArgsDfDp { OUT_ARG_DfDp }

enum	EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum	EOutArgsDgDx { OUT_ARG_DgDx }

enum	EOutArgsDgDp { OUT_ARG_DgDp }

enum	EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum	EOutArgs_g_mp { OUT_ARG_g_mp }

enum	EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum	EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum	EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

Public Member Functions inherited from Thyra::ModelEvaluatorDelegatorBase< Scalar >
	ModelEvaluatorDelegatorBase ()
	Constructs to uninitialized.

	ModelEvaluatorDelegatorBase (const RCP< ModelEvaluator< Scalar > > &model)
	Calls `initialize()`.

	ModelEvaluatorDelegatorBase (const RCP< const ModelEvaluator< Scalar > > &model)
	Calls `initialize()`.

void	initialize (const RCP< ModelEvaluator< Scalar > > &model)
	Initialize given a non-const model evaluator.

void	initialize (const RCP< const ModelEvaluator< Scalar > > &model)
	Initialize given a const model evaluator.

void	uninitialize ()
	Uninitialize.

virtual bool	isUnderlyingModelConst () const

virtual RCP< ModelEvaluator< Scalar > >	getNonconstUnderlyingModel ()

virtual RCP< const ModelEvaluator< Scalar > >	getUnderlyingModel () const

RCP< const VectorSpaceBase< Scalar > >	get_x_space () const

RCP< const VectorSpaceBase< Scalar > >	get_f_space () const

RCP< const VectorSpaceBase< Scalar > >	get_f_multiplier_space () const

RCP< const VectorSpaceBase< Scalar > >	get_p_space (int l) const

RCP< const Teuchos::Array< std::string > >	get_p_names (int l) const

RCP< const VectorSpaceBase< Scalar > >	get_g_space (int j) const

RCP< const VectorSpaceBase< Scalar > >	get_g_multiplier_space (int j) const

Teuchos::ArrayView< const std::string >	get_g_names (int j) const

ModelEvaluatorBase::InArgs< Scalar >	getNominalValues () const

ModelEvaluatorBase::InArgs< Scalar >	getLowerBounds () const

ModelEvaluatorBase::InArgs< Scalar >	getUpperBounds () const

RCP< LinearOpWithSolveBase< Scalar > >	create_W () const

RCP< LinearOpBase< Scalar > >	create_W_op () const

RCP< PreconditionerBase< Scalar > >	create_W_prec () const

RCP< const LinearOpWithSolveFactoryBase< Scalar > >	get_W_factory () const

ModelEvaluatorBase::InArgs< Scalar >	createInArgs () const

void	reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)

Public Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
int	Np () const

int	Ng () const

RCP< LinearOpBase< Scalar > >	create_DfDp_op (int l) const

RCP< LinearOpBase< Scalar > >	create_DgDx_dot_op (int j) const

RCP< LinearOpBase< Scalar > >	create_DgDx_op (int j) const

RCP< LinearOpBase< Scalar > >	create_DgDp_op (int j, int l) const

ModelEvaluatorBase::OutArgs< Scalar >	createOutArgs () const

void	evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const

Public Member Functions inherited from Thyra::ModelEvaluator< Scalar >
Public Member Functions inherited from Thyra::ModelEvaluatorBase
	ModelEvaluatorBase ()
	constructor

Static Public Attributes inherited from Thyra::ModelEvaluatorBase
static const int	NUM_E_IN_ARGS_MEMBERS =13
	.

static const int	NUM_E_OUT_ARGS_MEMBERS =7
	.

Protected Member Functions inherited from Thyra::ModelEvaluatorDelegatorBase< Scalar >
void	setLocalVerbosityLevelValidatedParameter (ParameterList *paramList) const
	Set a valid parameter for reading the local verbosity level.

Teuchos::EVerbosityLevel	readLocalVerbosityLevelValidatedParameter (ParameterList &paramList) const
	Read the local verbosity level parameter.

Protected Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
	ModelEvaluatorDefaultBase ()

void	initializeDefaultBase ()
	Function called by subclasses to fully initialize this object on any important change.

void	resetDefaultBase ()
	Sets the the DefaultBase to an uninitialized state, forcing lazy initialization when needed.

Related Symbols inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
template<class Scalar >
RCP< ModelEvaluatorBase::InArgs< Scalar > >	clone (const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Create a clone of an InArgs object.

template<class Scalar >
void	assertDerivSpaces (const std::string &modelEvalDescription, const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &deriv_name, const VectorSpaceBase< Scalar > &fnc_space, const std::string &fnc_space_name, const VectorSpaceBase< Scalar > &var_space, const std::string &var_space_name)
	Assert that that Thyra objects imbedded in a Derivative object matches its function and variable spaces.

template<class Scalar >
void	assertInArgsOutArgsSetup (const std::string &modelEvalDescription, const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs)
	Assert that an InArgs and OutArgs object are setup consistently.

template<class Scalar >
void	assertInArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Assert that the objects in an InArgs object match a given model.

template<class Scalar >
void	assertOutArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs, const ModelEvaluatorBase::InArgs< Scalar > *inArgs=0)
	Assert that the objects in an OutArgs object match a given model.

Detailed Description

template<class Scalar>
class Thyra::DefaultStateEliminationModelEvaluator< Scalar >

This class wraps any ModelEvaluator object along with a NonlinearSolverBase object and eliminates the steady-state equations f(x,...)=0.

ToDo: Finish documentation!

Definition at line 30 of file Thyra_DefaultStateEliminationModelEvaluator.hpp.

Constructor & Destructor Documentation

◆ DefaultStateEliminationModelEvaluator() [1/2]

template<class Scalar >

Thyra::DefaultStateEliminationModelEvaluator< Scalar >::DefaultStateEliminationModelEvaluator ( )

Definition at line 124 of file Thyra_DefaultStateEliminationModelEvaluator.hpp.

◆ DefaultStateEliminationModelEvaluator() [2/2]

template<class Scalar >

Thyra::DefaultStateEliminationModelEvaluator< Scalar >::DefaultStateEliminationModelEvaluator	(	const Teuchos::RCP< ModelEvaluator< Scalar > > &	thyraModel,
		const Teuchos::RCP< NonlinearSolverBase< Scalar > > &	stateSolver
	)

Definition at line 128 of file Thyra_DefaultStateEliminationModelEvaluator.hpp.

Member Function Documentation

◆ initialize()

template<class Scalar >

void Thyra::DefaultStateEliminationModelEvaluator< Scalar >::initialize	(	const Teuchos::RCP< ModelEvaluator< Scalar > > &	thyraModel,
		const Teuchos::RCP< NonlinearSolverBase< Scalar > > &	stateSolver
	)

Definition at line 137 of file Thyra_DefaultStateEliminationModelEvaluator.hpp.

◆ uninitialize()

template<class Scalar >

void Thyra::DefaultStateEliminationModelEvaluator< Scalar >::uninitialize	(	Teuchos::RCP< ModelEvaluator< Scalar > > *	thyraModel = `NULL`,
		Teuchos::RCP< NonlinearSolverBase< Scalar > > *	stateSolver = `NULL`
	)
