Base subclass for ModelEvaluator that defines some basic types. More...

#include <Thyra_ModelEvaluatorBase_decl.hpp>

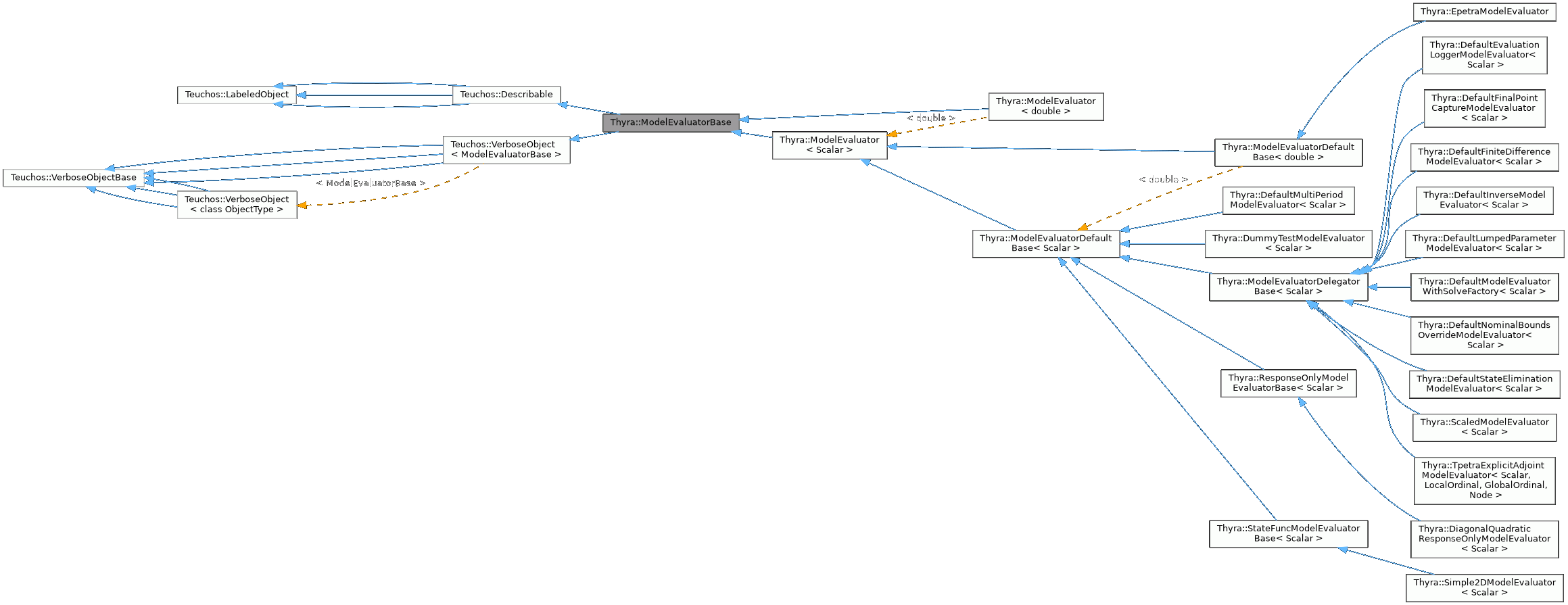

Inheritance diagram for Thyra::ModelEvaluatorBase:

[legend]

Classes
class	Derivative
	Simple aggregate class that stores a derivative object as a general linear operator or as a multi-vector. More...

class	DerivativeMultiVector
	Simple aggregate class for a derivative object represented as a column-wise multi-vector or its transpose as a row-wise multi-vector. More...

struct	DerivativeProperties
	Simple public strict containing properties of a derivative object. More...

class	DerivativeSupport
	Determines the forms of a general derivative that are supported. More...

class	Evaluation
	Type to embed evaluation accuracy with an RCP-managed object. More...

class	InArgs
	Concrete aggregate class for all input arguments computable by a `ModelEvaluator` subclass object. More...

class	InArgsSetup
	Protected subclass of `InArgs` that only `ModelEvaluator` subclasses can access to set up the selection of supported input arguments. More...

class	MPDerivative
	Simple aggregate class that stores a derivative object as a general linear operator or as a multi-vector. More...

class	MPDerivativeMultiVector
	Simple aggregate class for a derivative object represented as a column-wise multi-vector or its transpose as a row-wise multi-vector. More...

class	OutArgs
	Concrete aggregate class for all output arguments computable by a `ModelEvaluator` subclass object. More...

class	OutArgsSetup
	Protected subclass of `OutArgs` that only `ModelEvaluator` subclasses can access to set up the selection of supported input arguments. More...

Public types
enum	EInArgsMembers { IN_ARG_x_dot_dot , IN_ARG_x_dot , IN_ARG_x , IN_ARG_x_dot_poly , IN_ARG_x_poly , IN_ARG_x_dot_mp , IN_ARG_x_mp , IN_ARG_t , IN_ARG_alpha , IN_ARG_beta , IN_ARG_W_x_dot_dot_coeff , IN_ARG_step_size , IN_ARG_stage_number }
	. More...

enum	EInArgs_p_mp { IN_ARG_p_mp }
	. More...

enum	EEvalType { }
	The type of an evaluation. More...

enum	EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM , DERIV_MV_GRADIENT_FORM , DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM , DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }

enum	EDerivativeLinearOp { DERIV_LINEAR_OP }

enum	EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN , DERIV_LINEARITY_CONST , DERIV_LINEARITY_NONCONST }

enum	ERankStatus { DERIV_RANK_UNKNOWN , DERIV_RANK_FULL , DERIV_RANK_DEFICIENT }

enum	EOutArgsMembers { OUT_ARG_f , OUT_ARG_W , OUT_ARG_f_mp , OUT_ARG_W_mp , OUT_ARG_W_op , OUT_ARG_W_prec , OUT_ARG_f_poly }
	. More...

enum	EOutArgsDfDp { OUT_ARG_DfDp }

enum	EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum	EOutArgsDgDx { OUT_ARG_DgDx }

enum	EOutArgsDgDp { OUT_ARG_DgDp }

enum	EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum	EOutArgs_g_mp { OUT_ARG_g_mp }

enum	EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum	EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum	EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

static const int	NUM_E_IN_ARGS_MEMBERS =13
	.

static const int	NUM_E_OUT_ARGS_MEMBERS =7
	.

Protected types
	ModelEvaluatorBase ()
	constructor

Detailed Description

Base subclass for ModelEvaluator that defines some basic types.

This non-templated base class is used for two very important reasons.

First, a non-templated base class holding templated nested classes makes it easier for client to form the names of the nested classes. This also makes it easier to access non-tempated enum types and values as well. While most of these nested types could have been defined outside of a base class, by putting them in a base class, we get better namespace scoping and can therefore use shorter names.

Second, there are some protected nested classes (i.e. InArgsSetup and OutArgsSetup0 that only subclasses should be able to access. This makes the design very secure to help avoid bad usage of the nested classes.

Definition at line 51 of file Thyra_ModelEvaluatorBase_decl.hpp.

Member Enumeration Documentation

◆ EInArgsMembers

enum Thyra::ModelEvaluatorBase::EInArgsMembers

.

Enumerator
IN_ARG_x_dot_dot
IN_ARG_x_dot
IN_ARG_x
IN_ARG_x_dot_poly
IN_ARG_x_poly
IN_ARG_x_dot_mp
IN_ARG_x_mp
IN_ARG_t
IN_ARG_alpha
IN_ARG_beta
IN_ARG_W_x_dot_dot_coeff
IN_ARG_step_size
IN_ARG_stage_number

Definition at line 61 of file Thyra_ModelEvaluatorBase_decl.hpp.

◆ EInArgs_p_mp

enum Thyra::ModelEvaluatorBase::EInArgs_p_mp

.

Enumerator
IN_ARG_p_mp

Definition at line 80 of file Thyra_ModelEvaluatorBase_decl.hpp.

◆ EEvalType

enum Thyra::ModelEvaluatorBase::EEvalType

The type of an evaluation.

Enumerator

EVAL_TYPE_APPROX_DERIV

Do an exact evaluation (default)

EVAL_TYPE_VERY_APPROX_DERIV

An approx. eval. for a F.D. deriv.

An approx. eval. for a F.D. prec.

Definition at line 313 of file Thyra_ModelEvaluatorBase_decl.hpp.

◆ EDerivativeMultiVectorOrientation

enum Thyra::ModelEvaluatorBase::EDerivativeMultiVectorOrientation

Enumerator
DERIV_MV_JACOBIAN_FORM	Jacobian form DhDz (nz columns of h_space vectors)
DERIV_MV_GRADIENT_FORM	Gradient form DhDz^T (nh columns of z_space vectors)
DERIV_MV_BY_COL	Deprecated!
DERIV_TRANS_MV_BY_ROW	Deprecated!
