Thyra::DefaultEvaluationLoggerModelEvaluator< Scalar > Class Template Reference
Thyra support » Thyra nonlinear support » Thyra nonlinear model-evaluator support

This class wraps any ModelEvaluator object and logs the evaluation of various functions. More...

#include <Thyra_DefaultEvaluationLoggerModelEvaluator.hpp>

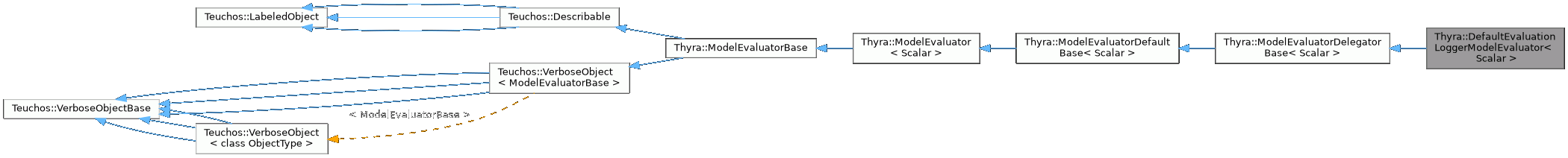

Inheritance diagram for Thyra::DefaultEvaluationLoggerModelEvaluator< Scalar >:
Inheritance graph
[legend]

Constructors/initializers/accessors/utilities.

 DefaultEvaluationLoggerModelEvaluator ()

 DefaultEvaluationLoggerModelEvaluator (const RCP< ModelEvaluator< Scalar > > &thyraModel, const RCP< std::ostream > &tableOut)

void initialize (const RCP< ModelEvaluator< Scalar > > &thyraModel, const RCP< std::ostream > &tableOut)
 Initalize.


Public functions overridden from Teuchos::Describable.

std::string description () const


Additional Inherited Members

- Public Types inherited from Thyra::ModelEvaluator< Scalar >
typedef Teuchos::ScalarTraits< Scalar >::magnitudeType ScalarMag

- Public Types inherited from Thyra::ModelEvaluatorBase
enum  EInArgsMembers {
  IN_ARG_x_dot_dot , IN_ARG_x_dot , IN_ARG_x , IN_ARG_x_dot_poly ,
  IN_ARG_x_poly , IN_ARG_x_dot_mp , IN_ARG_x_mp , IN_ARG_t ,
  IN_ARG_alpha , IN_ARG_beta , IN_ARG_W_x_dot_dot_coeff , IN_ARG_step_size ,
  IN_ARG_stage_number
}
 .
More...

enum  EInArgs_p_mp { IN_ARG_p_mp }
 .
More...

enum  EEvalType { }
 The type of an evaluation. More...

enum  EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM , DERIV_MV_GRADIENT_FORM , DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM , DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }

enum  EDerivativeLinearOp { DERIV_LINEAR_OP }

enum  EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN , DERIV_LINEARITY_CONST , DERIV_LINEARITY_NONCONST }

enum  ERankStatus { DERIV_RANK_UNKNOWN , DERIV_RANK_FULL , DERIV_RANK_DEFICIENT }

enum  EOutArgsMembers {
  OUT_ARG_f , OUT_ARG_W , OUT_ARG_f_mp , OUT_ARG_W_mp ,
  OUT_ARG_W_op , OUT_ARG_W_prec , OUT_ARG_f_poly
}
 .
More...

enum  EOutArgsDfDp { OUT_ARG_DfDp }

enum  EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum  EOutArgsDgDx { OUT_ARG_DgDx }

enum  EOutArgsDgDp { OUT_ARG_DgDp }

enum  EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum  EOutArgs_g_mp { OUT_ARG_g_mp }

enum  EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum  EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum  EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

- Public Member Functions inherited from Thyra::ModelEvaluatorDelegatorBase< Scalar >
 ModelEvaluatorDelegatorBase ()
 Constructs to uninitialized.

 ModelEvaluatorDelegatorBase (const RCP< ModelEvaluator< Scalar > > &model)
 Calls initialize().

 ModelEvaluatorDelegatorBase (const RCP< const ModelEvaluator< Scalar > > &model)
 Calls initialize().

void initialize (const RCP< ModelEvaluator< Scalar > > &model)
 Initialize given a non-const model evaluator.

void initialize (const RCP< const ModelEvaluator< Scalar > > &model)
 Initialize given a const model evaluator.

void uninitialize ()
 Uninitialize.

virtual bool isUnderlyingModelConst () const

virtual RCP< ModelEvaluator< Scalar > > getNonconstUnderlyingModel ()

virtual RCP< const ModelEvaluator< Scalar > > getUnderlyingModel () const

RCP< const VectorSpaceBase< Scalar > > get_x_space () const

RCP< const VectorSpaceBase< Scalar > > get_f_space () const

RCP< const VectorSpaceBase< Scalar > > get_f_multiplier_space () const

RCP< const VectorSpaceBase< Scalar > > get_p_space (int l) const

RCP< const Teuchos::Array< std::string > > get_p_names (int l) const

RCP< const VectorSpaceBase< Scalar > > get_g_space (int j) const

RCP< const VectorSpaceBase< Scalar > > get_g_multiplier_space (int j) const

Teuchos::ArrayView< const std::string > get_g_names (int j) const

ModelEvaluatorBase::InArgs< Scalar > getNominalValues () const

ModelEvaluatorBase::InArgs< Scalar > getLowerBounds () const

ModelEvaluatorBase::InArgs< Scalar > getUpperBounds () const

RCP< LinearOpWithSolveBase< Scalar > > create_W () const

RCP< LinearOpBase< Scalar > > create_W_op () const

RCP< PreconditionerBase< Scalar > > create_W_prec () const

RCP< const LinearOpWithSolveFactoryBase< Scalar > > get_W_factory () const

ModelEvaluatorBase::InArgs< Scalar > createInArgs () const

void reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)

- Public Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
int Np () const

int Ng () const

RCP< LinearOpBase< Scalar > > create_DfDp_op (int l) const

RCP< LinearOpBase< Scalar > > create_DgDx_dot_op (int j) const

RCP< LinearOpBase< Scalar > > create_DgDx_op (int j) const

RCP< LinearOpBase< Scalar > > create_DgDp_op (int j, int l) const

ModelEvaluatorBase::OutArgs< Scalar > createOutArgs () const

void evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const

- Public Member Functions inherited from Thyra::ModelEvaluator< Scalar >
- Public Member Functions inherited from Thyra::ModelEvaluatorBase
 ModelEvaluatorBase ()
 constructor

- Static Public Attributes inherited from Thyra::ModelEvaluatorBase
static const int NUM_E_IN_ARGS_MEMBERS =13
 .


static const int NUM_E_OUT_ARGS_MEMBERS =7
 .


- Protected Member Functions inherited from Thyra::ModelEvaluatorDelegatorBase< Scalar >
void setLocalVerbosityLevelValidatedParameter (ParameterList *paramList) const
 Set a valid parameter for reading the local verbosity level.

Teuchos::EVerbosityLevel readLocalVerbosityLevelValidatedParameter (ParameterList &paramList) const
 Read the local verbosity level parameter.

- Protected Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
 ModelEvaluatorDefaultBase ()

void initializeDefaultBase ()
 Function called by subclasses to fully initialize this object on any important change.

void resetDefaultBase ()
 Sets the the DefaultBase to an uninitialized state, forcing lazy initialization when needed.

- Related Symbols inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
RCP< ModelEvaluatorBase::InArgs< Scalar > > clone (const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
 Create a clone of an InArgs object.

void assertDerivSpaces (const std::string &modelEvalDescription, const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &deriv_name, const VectorSpaceBase< Scalar > &fnc_space, const std::string &fnc_space_name, const VectorSpaceBase< Scalar > &var_space, const std::string &var_space_name)
 Assert that that Thyra objects imbedded in a Derivative object matches its function and variable spaces.

void assertInArgsOutArgsSetup (const std::string &modelEvalDescription, const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs)
 Assert that an InArgs and OutArgs object are setup consistently.

void assertInArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
 Assert that the objects in an InArgs object match a given model.

void assertOutArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs, const ModelEvaluatorBase::InArgs< Scalar > *inArgs=0)
 Assert that the objects in an OutArgs object match a given model.


Detailed Description

template<class Scalar>
class Thyra::DefaultEvaluationLoggerModelEvaluator< Scalar >

This class wraps any ModelEvaluator object and logs the evaluation of various functions.

ToDo: Finish documentation!

Definition at line 28 of file Thyra_DefaultEvaluationLoggerModelEvaluator.hpp.

Constructor & Destructor Documentation

◆ DefaultEvaluationLoggerModelEvaluator() [1/2]

template<class Scalar >
Thyra::DefaultEvaluationLoggerModelEvaluator< Scalar >::DefaultEvaluationLoggerModelEvaluator ( )

Definition at line 125 of file Thyra_DefaultEvaluationLoggerModelEvaluator.hpp.

◆ DefaultEvaluationLoggerModelEvaluator() [2/2]

template<class Scalar >
Thyra::DefaultEvaluationLoggerModelEvaluator< Scalar >::DefaultEvaluationLoggerModelEvaluator ( const RCP< ModelEvaluator< Scalar > > &  thyraModel,
const RCP< std::ostream > &  tableOut
)

Definition at line 130 of file Thyra_DefaultEvaluationLoggerModelEvaluator.hpp.

Member Function Documentation

◆ initialize()

template<class Scalar >
void Thyra::DefaultEvaluationLoggerModelEvaluator< Scalar >::initialize ( const RCP< ModelEvaluator< Scalar > > &  thyraModel,
const RCP< std::ostream > &  tableOut
)

Initalize.

Parameters
thyraModel[in] Model being wrapped.

Preconditions:

  • thyraModel.get()!=NULL

Postconditions:

  • this->getUnderlyingModel.get() == thyraModel.get()

Definition at line 140 of file Thyra_DefaultEvaluationLoggerModelEvaluator.hpp.

◆ description()

template<class Scalar >
std::string Thyra::DefaultEvaluationLoggerModelEvaluator< Scalar >::description ( ) const
virtual

Reimplemented from Teuchos::Describable.

Definition at line 157 of file Thyra_DefaultEvaluationLoggerModelEvaluator.hpp.

The documentation for this class was generated from the following file:
