Time integrator suitable for pseudotransient adjoint sensitivity analysis. More...

#include <Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp>

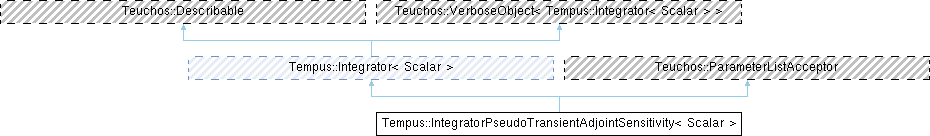

Inheritance diagram for Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >:

Public Member Functions
	IntegratorPseudoTransientAdjointSensitivity (Teuchos::RCP< Teuchos::ParameterList > pList, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_residual_model, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_solve_model)
	Constructor with ParameterList and model, and will be fully initialized.
	IntegratorPseudoTransientAdjointSensitivity (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_residual_model, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_solve_model, std::string stepperType)
	Constructor with model and "Stepper Type" and is fully initialized with default settings.
	IntegratorPseudoTransientAdjointSensitivity (Teuchos::RCP< Teuchos::ParameterList > pList, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_model)
	Version of the constructor taking a single adjoint model evaluator.
	IntegratorPseudoTransientAdjointSensitivity (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_model, std::string stepperType)
	Version of the constructor taking a single adjoint model evaluator.
	IntegratorPseudoTransientAdjointSensitivity (Teuchos::RCP< Teuchos::ParameterList > pList, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model)
	Version of the constructor taking a single model evaluator.
	IntegratorPseudoTransientAdjointSensitivity (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, std::string stepperType)
	Version of the constructor taking a single model evaluator.
	IntegratorPseudoTransientAdjointSensitivity ()
	Destructor.
virtual	~IntegratorPseudoTransientAdjointSensitivity ()
	Destructor.

Overridden from Teuchos::Describable
typedef Thyra::DefaultMultiVectorProductVector< Scalar >	DMVPV
Teuchos::RCP< Thyra::ModelEvaluator< Scalar > >	model_
Teuchos::RCP< Thyra::ModelEvaluator< Scalar > >	adjoint_residual_model_
Teuchos::RCP< Thyra::ModelEvaluator< Scalar > >	adjoint_solve_model_
Teuchos::RCP< AdjointSensitivityModelEvaluator< Scalar > >	sens_model_
Teuchos::RCP< IntegratorBasic< Scalar > >	state_integrator_
Teuchos::RCP< IntegratorBasic< Scalar > >	sens_integrator_
Teuchos::RCP< SolutionHistory< Scalar > >	solutionHistory_
Teuchos::RCP< Thyra::VectorBase< Scalar > >	g_
Teuchos::RCP< DMVPV >	dgdp_
SensitivityStepMode	stepMode_
bool	do_forward_integration_
bool	do_adjoint_integration_
std::string	description () const override
void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const override
SensitivityStepMode	getStepMode () const
	What mode the current time integration step is in.
void	setDoForwardIntegration (const bool f)
	Set/get whether to do the forward integration.
bool	getDoForwardIntegration () const
void	setDoAdjointIntegration (const bool f)
	Set/get whether to do the adjoint integration.
bool	getDoAdjointIntegration () const
Teuchos::RCP< AdjointSensitivityModelEvaluator< Scalar > >	createSensitivityModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_residual_model, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_solve_model, const Teuchos::RCP< Teuchos::ParameterList > &inputPL)
void	buildSolutionHistory ()
static Teuchos::RCP< Teuchos::ParameterList >	adjointParameters (const Teuchos::RCP< Teuchos::ParameterList > &inputPL)

Basic integrator methods
virtual bool	advanceTime ()
	Advance the solution to timeMax, and return true if successful.
virtual bool	advanceTime (const Scalar timeFinal) override
	Advance the solution to timeFinal, and return true if successful.
virtual Scalar	getTime () const override
	Get current time.
virtual int	getIndex () const override
	Get current index.
virtual Status	getStatus () const override
	Get Status.
virtual void	setStatus (const Status st) override
	Set Status.
virtual Teuchos::RCP< Stepper< Scalar > >	getStepper () const override
	Get the Stepper.
Teuchos::RCP< Stepper< Scalar > >	getStateStepper () const
Teuchos::RCP< Stepper< Scalar > >	getSensStepper () const
virtual Teuchos::RCP< const SolutionHistory< Scalar > >	getSolutionHistory () const override
	Get the SolutionHistory.
Teuchos::RCP< const SolutionHistory< Scalar > >	getStateSolutionHistory () const
Teuchos::RCP< const SolutionHistory< Scalar > >	getSensSolutionHistory () const
virtual Teuchos::RCP< SolutionHistory< Scalar > >	getNonConstSolutionHistory () override
	Get the SolutionHistory.
virtual Teuchos::RCP< const TimeStepControl< Scalar > >	getTimeStepControl () const override
	Get the TimeStepControl.
virtual Teuchos::RCP< TimeStepControl< Scalar > >	getNonConstTimeStepControl () override
Teuchos::RCP< TimeStepControl< Scalar > >	getStateNonConstTimeStepControl ()
Teuchos::RCP< TimeStepControl< Scalar > >	getSensNonConstTimeStepControl ()
virtual Teuchos::RCP< IntegratorObserver< Scalar > >	getObserver ()
	Get the Observer.
virtual void	setObserver (Teuchos::RCP< IntegratorObserver< Scalar > > obs=Teuchos::null)
	Set the Observer.
virtual Teuchos::RCP< Teuchos::Time >	getIntegratorTimer () const override
	Returns the IntegratorTimer_ for this Integrator.
virtual Teuchos::RCP< Teuchos::Time >	getStepperTimer () const override
virtual void	initializeSolutionHistory (Scalar t0, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x0, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xdot0=Teuchos::null, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xdotdot0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > y0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > ydot0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > ydotdot0=Teuchos::null)
	Set the initial state from Thyra::VectorBase(s).
virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getX () const
	Get the current solution, x.
virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getXDot () const
	Get the current time derivative of the solution, xdot.
virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getXDotDot () const
	Get the current second time derivative of the solution, xdotdot.
virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getY () const
	Get the current adjoint solution, y.
virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getYDot () const
	Get the current time derivative of the adjoint solution, ydot.
virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getYDotDot () const
	Get the current second time derivative of the adjoint solution, ydotdot.
virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getG () const
	Return response function g.
virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getDgDp () const
	Return adjoint sensitivity stored in gradient format.

Overridden from Teuchos::ParameterListAcceptor
void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &pl) override
Teuchos::RCP< Teuchos::ParameterList >	getNonconstParameterList () override
Teuchos::RCP< Teuchos::ParameterList >	unsetParameterList () override
Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const override

Detailed Description

template<class Scalar>
class Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >

Time integrator suitable for pseudotransient adjoint sensitivity analysis.

For some problems, time integrators are used to compute steady-state solutions (also known as pseudo-transient solvers). When computing sensitivities, it is not necessary in these cases to propagate sensitivities all the way through the forward time integration. Instead the steady-state is first computed as usual, and then the sensitivities are computed using a similar pseudo-transient time integration applied to the adjoint sensitivity equations with the state frozen to the computed steady-state. This integrator specializes the transient sensitivity methods implemented by Tempus::IntegratorAdjointSensitivity to this case.

Consider an implicit ODE f(x_dot,x,p) = 0 with a stable steady-state solution x = x^s, x_dot = 0 where f(0,x^s,p) = 0 and all of the eigenvalues of df/dx(0,x^s,p) are in the right half-plane (for an explicit ODE, the eigenvalues must be in the left half-plane). In the pseudo-transient method a time-integrator is applied to f(x_dot,x,p) = 0 until x_dot is sufficiently small. Now consider the adjoint sensitivity equations for some response function g(x,p): df/dx_dot^T*y_dot + df/dx^T*y - dg/dx^T = 0 after the transformation tau = T - t has been applied, where T is the final time. For pseudo-transient adjoint sensitivities, the above is integrated from y(0) = 0 until y_dot is sufficiently small, in which case y^s = (df/dx)^{-T}*(dg/dx)^T. Then the final sensitivity of g is dg/dp^T - df/dp^T*y^s. One can see that y^s is the only steady-state solution of the adjoint equations, since df/dx and dg/dx are constant, and must be linearly stable (since the eigenvalues of df/dx^T are the same as df/dx).

To extract the final solution x(T) and sensitivity dg/dp one should use the getX() and getDgDp() methods, which return these quantities directly. One can also extract this data for all times from the solution history, however the data is stored in Thyra product vectors which requires knowledge of the internal implementation.

Definition at line 59 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

Member Typedef Documentation

◆ DMVPV

template<class Scalar>

typedef Thyra::DefaultMultiVectorProductVector<Scalar> Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::DMVPV

protected

Definition at line 261 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

Constructor & Destructor Documentation

◆ IntegratorPseudoTransientAdjointSensitivity() [1/7]

template<class Scalar>

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity	(	Teuchos::RCP< Teuchos::ParameterList >	pList,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_residual_model,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_solve_model )

Constructor with ParameterList and model, and will be fully initialized.

In addition to all of the regular integrator options, the supplied parameter list supports the following options contained within a sublist "Sensitivities" from the top-level parameter list:

"Sensitivity Parameter Index", (default: 0) The model evaluator parameter index for which sensitivities will be computed.
"Response Function Index", (default: 0) The model evaluator response index for which sensitivities will be computed.
"Mass Matrix Is Constant" (default: true) Whether the mass matrix df/dx_dot is a constant matrix. As describe above, this is currently required to be true.
"Mass Matrix Is Identity" (default: false) Whether the mass matrix is the identity matrix, in which some computations can be skipped.

To support use-cases with explicitly computed adjoint operators, the constructor takes two additional model evaluators for computing the adjoint W/W_op. It is assumed the operator returned by these model evaluators is the adjoint, and so will not be transposed. It is also assumed these model evaluators accept the same inArgs as the forward model, however they only requires supporting the adjoint W/W_op outArgs. The first adjoint model evaluator will only be used for computing the adjoint residual, whereas the second will produce the operator used in linear solves. The passed RCP's may point to the same model evalutor object in cases where these operators are the same

Definition at line 23 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ IntegratorPseudoTransientAdjointSensitivity() [2/7]

template<class Scalar>

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity	(	const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_residual_model,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_solve_model,
		std::string	stepperType )

Constructor with model and "Stepper Type" and is fully initialized with default settings.

Definition at line 45 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ IntegratorPseudoTransientAdjointSensitivity() [3/7]

template<class Scalar>

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity	(	Teuchos::RCP< Teuchos::ParameterList >	pList,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_model )

Version of the constructor taking a single adjoint model evaluator.

Definition at line 66 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ IntegratorPseudoTransientAdjointSensitivity() [4/7]

template<class Scalar>

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity	(	const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_model,
		std::string	stepperType )

Version of the constructor taking a single adjoint model evaluator.

Definition at line 77 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ IntegratorPseudoTransientAdjointSensitivity() [5/7]

template<class Scalar>

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity	(	Teuchos::RCP< Teuchos::ParameterList >	pList,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model )

Version of the constructor taking a single model evaluator.

This version takes a single model evaluator for the case when the adjoint is implicitly determined from the forward operator by the (conjugate) transpose.

Definition at line 88 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ IntegratorPseudoTransientAdjointSensitivity() [6/7]

template<class Scalar>

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity	(	const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		std::string	stepperType )

Version of the constructor taking a single model evaluator.

This version takes a single model evaluator for the case when the adjoint is implicitly determined from the forward operator by the (conjugate) transpose.

Definition at line 98 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ IntegratorPseudoTransientAdjointSensitivity() [7/7]

template<class Scalar>

Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::IntegratorPseudoTransientAdjointSensitivity ( )

Destructor.

Constructor that requires a subsequent setParameterList, setStepper, and initialize calls.

Definition at line 109 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ ~IntegratorPseudoTransientAdjointSensitivity()

template<class Scalar>

virtual Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::~IntegratorPseudoTransientAdjointSensitivity ( )

inlinevirtual

Destructor.

Definition at line 148 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

Member Function Documentation

◆ advanceTime() [1/2]

template<class Scalar>

bool Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::advanceTime ( )

virtual

Advance the solution to timeMax, and return true if successful.

Definition at line 117 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ advanceTime() [2/2]

template<class Scalar>

bool Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::advanceTime ( const Scalar timeFinal )

overridevirtual

Advance the solution to timeFinal, and return true if successful.

Implements Tempus::Integrator< Scalar >.

Definition at line 124 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getTime()

template<class Scalar>

Scalar Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getTime ( ) const

overridevirtual

Get current time.

Implements Tempus::Integrator< Scalar >.

Definition at line 196 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getIndex()

template<class Scalar>

int Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getIndex ( ) const

overridevirtual

Get current index.

Implements Tempus::Integrator< Scalar >.

Definition at line 202 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getStatus()

template<class Scalar>

Status Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStatus ( ) const

overridevirtual

Get Status.

Implements Tempus::Integrator< Scalar >.

Definition at line 208 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ setStatus()

template<class Scalar>

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::setStatus ( const Status st )

overridevirtual

Set Status.

Implements Tempus::Integrator< Scalar >.

Definition at line 218 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getStepper()

template<class Scalar>

Teuchos::RCP< Stepper< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStepper ( ) const

overridevirtual

Get the Stepper.

Implements Tempus::Integrator< Scalar >.

Definition at line 227 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getStateStepper()

template<class Scalar>

Teuchos::RCP< Stepper< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStateStepper ( ) const

Definition at line 234 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getSensStepper()

template<class Scalar>

Teuchos::RCP< Stepper< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getSensStepper ( ) const

Definition at line 241 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getSolutionHistory()

template<class Scalar>

Teuchos::RCP< const SolutionHistory< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getSolutionHistory ( ) const

overridevirtual

Get the SolutionHistory.

Implements Tempus::Integrator< Scalar >.

Definition at line 248 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getStateSolutionHistory()

template<class Scalar>

Teuchos::RCP< const SolutionHistory< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStateSolutionHistory ( ) const

Definition at line 255 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getSensSolutionHistory()

template<class Scalar>

Teuchos::RCP< const SolutionHistory< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getSensSolutionHistory ( ) const

Definition at line 263 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getNonConstSolutionHistory()

template<class Scalar>

Teuchos::RCP< SolutionHistory< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getNonConstSolutionHistory ( )

overridevirtual

Get the SolutionHistory.

Implements Tempus::Integrator< Scalar >.

Definition at line 272 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getTimeStepControl()

template<class Scalar>

Teuchos::RCP< const TimeStepControl< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getTimeStepControl ( ) const

overridevirtual

Get the TimeStepControl.

Implements Tempus::Integrator< Scalar >.

Definition at line 279 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getNonConstTimeStepControl()

template<class Scalar>

Teuchos::RCP< TimeStepControl< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getNonConstTimeStepControl ( )

overridevirtual

Implements Tempus::Integrator< Scalar >.

Definition at line 287 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getStateNonConstTimeStepControl()

template<class Scalar>

Teuchos::RCP< TimeStepControl< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStateNonConstTimeStepControl ( )

Definition at line 295 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getSensNonConstTimeStepControl()

template<class Scalar>

Teuchos::RCP< TimeStepControl< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getSensNonConstTimeStepControl ( )

Definition at line 303 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getObserver()

template<class Scalar>

Teuchos::RCP< IntegratorObserver< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getObserver ( )

virtual

Get the Observer.

Definition at line 310 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ setObserver()

template<class Scalar>

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::setObserver ( Teuchos::RCP< IntegratorObserver< Scalar > > obs = Teuchos::null )

virtual

Set the Observer.

Definition at line 316 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getIntegratorTimer()

template<class Scalar>

virtual Teuchos::RCP< Teuchos::Time > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getIntegratorTimer ( ) const

inlineoverridevirtual

Returns the IntegratorTimer_ for this Integrator.

Implements Tempus::Integrator< Scalar >.

Definition at line 190 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

◆ getStepperTimer()

template<class Scalar>

virtual Teuchos::RCP< Teuchos::Time > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStepperTimer ( ) const

inlineoverridevirtual

Implements Tempus::Integrator< Scalar >.

Definition at line 194 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

◆ initializeSolutionHistory()

template<class Scalar>

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::initializeSolutionHistory	(	Scalar	t0,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	x0,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	xdot0 = Teuchos::null,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	xdotdot0 = Teuchos::null,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	y0 = Teuchos::null,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	ydot0 = Teuchos::null,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	ydotdot0 = Teuchos::null )

virtual

Set the initial state from Thyra::VectorBase(s).

Definition at line 324 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getX()

template<class Scalar>

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getX ( ) const

virtual

Get the current solution, x.

Definition at line 372 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getXDot()

template<class Scalar>

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getXDot ( ) const

virtual

Get the current time derivative of the solution, xdot.

Definition at line 379 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getXDotDot()

template<class Scalar>

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getXDotDot ( ) const

virtual

Get the current second time derivative of the solution, xdotdot.

Definition at line 386 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getY()

template<class Scalar>

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getY ( ) const

virtual

Get the current adjoint solution, y.

Definition at line 393 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getYDot()

template<class Scalar>

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getYDot ( ) const

virtual

Get the current time derivative of the adjoint solution, ydot.

Definition at line 404 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getYDotDot()

template<class Scalar>

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getYDotDot ( ) const

virtual

Get the current second time derivative of the adjoint solution, ydotdot.

Definition at line 415 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getG()

template<class Scalar>

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getG ( ) const

virtual

Return response function g.

Definition at line 426 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getDgDp()

template<class Scalar>

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getDgDp ( ) const

virtual

Return adjoint sensitivity stored in gradient format.

Definition at line 433 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ setParameterList()

template<class Scalar>

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > & pl )

override

Definition at line 460 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getNonconstParameterList()

template<class Scalar>

Teuchos::RCP< Teuchos::ParameterList > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getNonconstParameterList ( )

override

Definition at line 533 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ unsetParameterList()

template<class Scalar>

Teuchos::RCP< Teuchos::ParameterList > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::unsetParameterList ( )

override

Definition at line 495 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getValidParameters()

template<class Scalar>

Teuchos::RCP< const Teuchos::ParameterList > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getValidParameters ( ) const

override

Definition at line 517 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ description()

template<class Scalar>

std::string Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::description ( ) const

override

Definition at line 439 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ describe()

template<class Scalar>

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel ) const

override

Definition at line 447 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ getStepMode()

template<class Scalar>

SensitivityStepMode Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getStepMode ( ) const

What mode the current time integration step is in.

Definition at line 542 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ setDoForwardIntegration()

template<class Scalar>

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::setDoForwardIntegration ( const bool f )

inline

Set/get whether to do the forward integration.

Definition at line 253 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

◆ getDoForwardIntegration()

template<class Scalar>

bool Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getDoForwardIntegration ( ) const

inline

Definition at line 254 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

◆ setDoAdjointIntegration()

template<class Scalar>

void Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::setDoAdjointIntegration ( const bool f )

inline

Set/get whether to do the adjoint integration.

Definition at line 257 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

◆ getDoAdjointIntegration()

template<class Scalar>

bool Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::getDoAdjointIntegration ( ) const

inline

Definition at line 258 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_decl.hpp.

◆ createSensitivityModel()

template<class Scalar>

Teuchos::RCP< AdjointSensitivityModelEvaluator< Scalar > > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::createSensitivityModel	(	const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_residual_model,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_solve_model,
		const Teuchos::RCP< Teuchos::ParameterList > &	inputPL )

protected

Definition at line 549 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.

◆ adjointParameters()

template<class Scalar>

Teuchos::RCP< Teuchos::ParameterList > Tempus::IntegratorPseudoTransientAdjointSensitivity< Scalar >::adjointParameters ( const Teuchos::RCP< Teuchos::ParameterList > & inputPL )

staticprotected

Definition at line 480 of file Tempus_IntegratorPseudoTransientAdjointSensitivity_impl.hpp.
