Time integrator suitable for adjoint sensitivity analysis. More...

#include <Tempus_IntegratorAdjointSensitivity_decl.hpp>

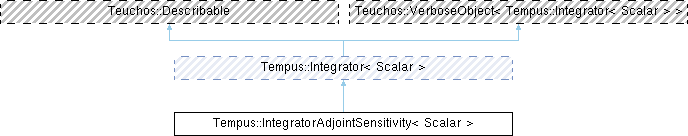

Inheritance diagram for Tempus::IntegratorAdjointSensitivity< Scalar >:

Public Member Functions
	IntegratorAdjointSensitivity (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, const Teuchos::RCP< IntegratorBasic< Scalar > > &state_integrator, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_model, const Teuchos::RCP< AdjointAuxSensitivityModelEvaluator< Scalar > > &adjoint_aux_model, const Teuchos::RCP< IntegratorBasic< Scalar > > &adjoint_integrator, const Teuchos::RCP< SolutionHistory< Scalar > > &solution_history, const int p_index, const int g_index, const bool g_depends_on_p, const bool f_depends_on_p, const bool ic_depends_on_p, const bool mass_matrix_is_identity, const AdjointResponseType response_type=AdjointResponseType::FinalTime, const std::vector< Scalar > &response_times=std::vector< Scalar >(), const Teuchos::RCP< const DAEStructure< Scalar > > &dae_structure=Teuchos::null, const Teuchos::RCP< const Teuchos::ParameterList > &dae_jump_solver_pl=Teuchos::null)
	Full Constructor with model, and will be fully initialized.
	IntegratorAdjointSensitivity ()
	Constructor that requires a subsequent setParameterList, setStepper, and initialize calls.
virtual	~IntegratorAdjointSensitivity ()
	Destructor.

Overridden from Teuchos::Describable
Teuchos::RCP< Thyra::ModelEvaluator< Scalar > >	model_
Teuchos::RCP< IntegratorBasic< Scalar > >	state_integrator_
Teuchos::RCP< Thyra::ModelEvaluator< Scalar > >	adjoint_model_
Teuchos::RCP< AdjointAuxSensitivityModelEvaluator< Scalar > >	adjoint_aux_model_
Teuchos::RCP< IntegratorBasic< Scalar > >	adjoint_integrator_
Teuchos::RCP< SolutionHistory< Scalar > >	solutionHistory_
int	p_index_
int	g_index_
bool	g_depends_on_p_
bool	f_depends_on_p_
bool	ic_depends_on_p_
bool	mass_matrix_is_identity_
AdjointResponseType	response_type_
std::vector< Scalar >	response_times_
Teuchos::RCP< SolutionHistory< Scalar > >	adjoint_solution_history_
Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	dxdp_init_
Teuchos::RCP< Thyra::MultiVectorBase< Scalar > >	dgdp_
SensitivityStepMode	stepMode_
Teuchos::RCP< const DAEStructure< Scalar > >	dae_structure_
	Structure of the index-1 DAE (null for an ODE).
Teuchos::RCP< const AdjointDAEJumpSolver< Scalar > >	dae_jump_solver_
	Solver of the adjoint jumps of the index-1 DAE (null for an ODE).
Teuchos::RCP< Thyra::LinearOpBase< Scalar > >	dfdp_op_
	df/dp work objects for the algebraic contributions of the jumps
Teuchos::RCP< Thyra::MultiVectorBase< Scalar > >	dfdp_mv_
std::string	description () const override
void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const override
SensitivityStepMode	getStepMode () const
	What mode the current time integration step is in.
Teuchos::RCP< AdjointAuxSensitivityModelEvaluator< Scalar > >	createAdjointModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &model, const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &adjoint_model, const Teuchos::RCP< Teuchos::ParameterList > &inputPL)
void	buildSolutionHistory (const Teuchos::RCP< const SolutionHistory< Scalar > > &state_solution_history, const Teuchos::RCP< const SolutionHistory< Scalar > > &adjoint_solution_history)
Teuchos::RCP< Thyra::LinearOpWithSolveBase< Scalar > >	createAdjointMassMatrixSolver (const Thyra::ModelEvaluatorBase::InArgs< Scalar > &inArgs) const
	Solver for df/dx_dot^T, computed with the adjoint model at inArgs.
Teuchos::RCP< const SolutionState< Scalar > >	findForwardState (const SolutionHistory< Scalar > &state_solution_history, const Scalar t, const Scalar tol) const
	Forward state at time t, which must be the time of a stored time step.
bool	integrateAdjoint (const Scalar tau_begin, const Scalar tau_end, Thyra::VectorBase< Scalar > &adjoint_state, int &index)
void	appendAdjointSolutionHistory (const Scalar tol)

Basic integrator methods
virtual bool	advanceTime ()
	Advance the solution to timeMax, and return true if successful.
virtual bool	advanceTime (const Scalar timeFinal) override
	Advance the solution to timeFinal, and return true if successful.
virtual Scalar	getTime () const override
	Get current time.
virtual int	getIndex () const override
	Get current index.
virtual Status	getStatus () const override
	Get Status.
virtual void	setStatus (const Status st) override
	Set Status.
virtual Teuchos::RCP< Stepper< Scalar > >	getStepper () const override
	Get the Stepper.
virtual Teuchos::RCP< const SolutionHistory< Scalar > >	getSolutionHistory () const override
	Get the SolutionHistory.
Teuchos::RCP< const SolutionHistory< Scalar > >	getStateSolutionHistory () const
Teuchos::RCP< const SolutionHistory< Scalar > >	getSensSolutionHistory () const
virtual Teuchos::RCP< SolutionHistory< Scalar > >	getNonConstSolutionHistory () override
	Get the SolutionHistory.
virtual Teuchos::RCP< const TimeStepControl< Scalar > >	getTimeStepControl () const override
	Get the TimeStepControl.
virtual Teuchos::RCP< TimeStepControl< Scalar > >	getNonConstTimeStepControl () override
Teuchos::RCP< TimeStepControl< Scalar > >	getStateNonConstTimeStepControl ()
Teuchos::RCP< TimeStepControl< Scalar > >	getSensNonConstTimeStepControl ()
virtual Teuchos::RCP< Teuchos::Time >	getIntegratorTimer () const override
	Returns the IntegratorTimer_ for this Integrator.
virtual Teuchos::RCP< Teuchos::Time >	getStepperTimer () const override
virtual void	initializeSolutionHistory (Scalar t0, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x0, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xdot0=Teuchos::null, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xdotdot0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > DxDp0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > DxdotDp0=Teuchos::null, Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > DxdotdotDp0=Teuchos::null)
	Set the initial state from Thyra::VectorBase(s).
virtual Teuchos::RCP< IntegratorObserver< Scalar > >	getObserver ()
	Get the Observer.
virtual void	setObserver (Teuchos::RCP< IntegratorObserver< Scalar > > obs=Teuchos::null)
	Set the Observer.
virtual void	initialize ()
	Initializes the Integrator after set* function calls.
virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getX () const
	Get the current solution, x.
virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getXDot () const
	Get the current time derivative of the solution, xdot.
virtual Teuchos::RCP< const Thyra::VectorBase< Scalar > >	getXDotDot () const
	Get the current second time derivative of the solution, xdotdot.
virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getY () const
	Get the current adjoint solution, y.
virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getYDot () const
	Get the current time derivative of the adjoint solution, ydot.
virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getYDotDot () const
	Get the current second time derivative of the adjoint solution, ydotdot.
virtual Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	getDgDp () const
	Return adjoint sensitivity stored in gradient format.
Teuchos::RCP< Thyra::ModelEvaluator< Scalar > >	getAdjointModel () const
Teuchos::RCP< const DAEStructure< Scalar > >	getDAEStructure () const
	Structure of the index-1 DAE (null for an ODE).

Detailed Description

template<class Scalar>
class Tempus::IntegratorAdjointSensitivity< Scalar >

Time integrator suitable for adjoint sensitivity analysis.

This integrator implements transient adjoint sensitivities. Given a model evaluator encapsulating the equations f(x_dot,x,p) = 0, and a response function g(x,p), these equations are integrated forward in time to some final time T. Then the adjoint equations F(y) = d/dt( df/dx_dot^T*y ) - df/dx^T*y = 0 are integrated backward in time starting at t = T where y is the adjoint variable. Nominally y is a multi-vector belonging to the vector space of f and the number of columns given by the number of entries in the response g. The initial conditions for y at t = T are given by y(T) = df/dx_dot(x_dot(T),x(T),p)^{-T} * dg/dx(x(T),p)^T. Then the final sensitivity of g is dg/dp(T) - int_{0}^T(df/dp^T*y)dt + dx/dp(0)^T*df/dx_dot(0)^T*y(0).

This integrator supports both implicit and explicit steppers, and provides a method to compute dg/dp as described above after the reverse integration. The solution history contains solutions stored as product vectors (x,y), with y further stored as a product vector for each component of g.

Because of limitations on the steppers, the implementation currently assumes df/dxdot is a constant matrix.

Besides the final-time response above, two more responses are supported through the "Response Type" option of the "Sensitivities" sublist:

"Time Integral": J = int_{0}^T g(x(t),p,t) dt. The adjoint equations get the source term dg/dx^T, y(T) = 0, and the sensitivity is int_{0}^T(dg/dp^T - df/dp^T*y)dt + dx/dp(0)^T*df/dx_dot(0)^T*y(0).
"Sum Over Times": J = sum_k g(x(t_k),p,t_k), with the times t_k given by "Response Time List". Between the times t_k the adjoint equations are homogeneous, and at each t_k the adjoint jumps by df/dx_dot^{-T}*dg/dx(t_k)^T. The sensitivity is sum_k dg/dp(t_k)^T - int_{0}^T(df/dp^T*y)dt
- dx/dp(0)^T*df/dx_dot(0)^T*y(0). The adjoint integration is restarted at every t_k, so no time step crosses a jump. The forward time steps must end at the times t_k: with "Step Type" = "Variable" the times t_k are added as time events on which the time steps land exactly, with "Step Type" = "Constant" they must be on the time grid.

In both cases the response must not depend on x_dot. If the model supports dg/dx_dot, it is checked to be zero.

Index-1 DAEs. If some equations do not depend on x_dot (algebraic equations, e.g. constraints, or Dirichlet conditions written as f_i = x_i - d_i(p,t)), df/dx_dot is singular and the jumps above are not defined. For an index-1 DAE, the "Algebraic Equations Mask" option gives the algebraic equations, the rows of df/dx_dot that are zero (see DAEStructure). With E = df/dx_dot, A = df/dx, and P_a, P_d the masks of the algebraic and differential equations, the adjoint jump at a response time t_k is then given by the solution z of C^T z = dg/dx(t_k)^T, C = P_a A + P_d E (at the state at t_k):

the jump of the adjoint is P_d z (its differential components);
the algebraic adjoint unknowns are determined by the adjoint equations, which are a DAE as well, and the algebraic components of z add -df/dp(t_k)^T (P_a z) to the sensitivity.

This accounts for the dependence of the response on the algebraic unknowns x_a: for a semi-explicit DAE, ordering the algebraic equations and unknowns first, C = [A_aa A_ad; 0 E_dd], so P_a z = A_aa^{-T} dg/dx_a^T and P_d z = E_dd^{-T} (dg/dx_d^T - A_ad^T P_a z). C^T z = dg/dx^T is solved with AdjointDAEJumpSolver (options in the "Algebraic Jump Solver" sublist of "Sensitivities"), using only evaluations of the adjoint model: the model must return the true df/dx_dot and df/dx for any alpha and beta. The "Time Integral" response has no jumps and does not need this option. The steppers must be suited to index-1 DAEs (e.g. Backward Euler), and must not compute consistent initial conditions ("Initial Condition Consistency" = "Consistent"), which requires a nonsingular df/dx_dot.

To extract the final solution x(T) and sensitivity dg/dp(T) one should use the getX() and getDgDp() methods, which return these quantities directly. One can also extract this data for all times from the solution history, however the data is stored in Thyra product vectors which requires knowledge of the internal implementation.

Definition at line 107 of file Tempus_IntegratorAdjointSensitivity_decl.hpp.

Constructor & Destructor Documentation

◆ IntegratorAdjointSensitivity() [1/2]

template<class Scalar>

Tempus::IntegratorAdjointSensitivity< Scalar >::IntegratorAdjointSensitivity	(	const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		const Teuchos::RCP< IntegratorBasic< Scalar > > &	state_integrator,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_model,
		const Teuchos::RCP< AdjointAuxSensitivityModelEvaluator< Scalar > > &	adjoint_aux_model,
		const Teuchos::RCP< IntegratorBasic< Scalar > > &	adjoint_integrator,
		const Teuchos::RCP< SolutionHistory< Scalar > > &	solution_history,
		const int	p_index,
		const int	g_index,
		const bool	g_depends_on_p,
		const bool	f_depends_on_p,
		const bool	ic_depends_on_p,
		const bool	mass_matrix_is_identity,
		const AdjointResponseType	response_type = AdjointResponseType::FinalTime,
		const std::vector< Scalar > &	response_times = std::vector<Scalar>(),
		const Teuchos::RCP< const DAEStructure< Scalar > > &	dae_structure = Teuchos::null,
		const Teuchos::RCP< const Teuchos::ParameterList > &	dae_jump_solver_pl = Teuchos::null )

Full Constructor with model, and will be fully initialized.

Parameters

[in]	model	The forward physics ModelEvaluator
[in]	state_integrator	Forward state Integrator for the forward problem
[in]	adjoint_model	ModelEvaluator for the adjoint physics/problem
[in]	adjoint_aux_model	ModelEvaluator for the auxiliary adjoint physics/problem
[in]	adjoint_integrator	Time integrator for the adjoint problem
[in]	solution_history	The forward state solution history
[in]	p_index	Sensitivity parameter index
[in]	g_index	Response function index
[in]	g_depends_on_p	Does response depends on parameters?
[in]	f_depends_on_p	Does residual depends on parameters?
[in]	ic_depends_on_p	Does the initial condition depends on parameters?
	adjoint_model	ModelEvaluator for the adjoint problem. Optional. Default value is null.
[in]	mass_matrix_is_identity	Is the mass matrix an identity matrix?

In addition to all of the regular integrator options, the supplied parameter list supports the following options contained within a sublist "Sensitivities" from the top-level parameter list:

"Sensitivity Parameter Index", (default: 0) The model evaluator parameter index for which sensitivities will be computed.
"Response Function Index", (default: 0) The model evaluator response index for which sensitivities will be computed.
"Response Depends on Parameters", (default: true) Whether the response function depends on the parameter vector p for which sensitivities will be computed. If set to false, the dg/dp term in the sensitivity formula will not be computed.
"Residual Depends on Parameters", (default: true) Whether the model residual f depends on the parameter vector p for which sensitivities will be computed. If set to false, its contribution to the sensitivities will not be computed.
"IC Depends on Parameters", (default: true) Whether the initial conditions depend on the parameter vector p for which sensitivities will be computed. If set to false, its contribution to the sensitivities will not be computed.
"Mass Matrix Is Constant" (default: true) Whether the mass matrix df/dx_dot is a constant matrix. As describe above, this is currently required to be true.
"Mass Matrix Is Identity" (default: false) Whether the mass matrix is the identity matrix, in which some computations can be skipped.
"Response Type" (default: "Final Time") "Final Time" for g(x(T),p), "Time Integral" for int_{0}^T g(x(t),p,t) dt, or "Sum Over Times" for sum_k g(x(t_k),p,t_k).
"Response Time List" (default: "") Comma-separated list of the times t_k of the "Sum Over Times" response.
"Algebraic Equations Mask" (default: null) A Teuchos::RCP<const Thyra::VectorBase<Scalar> > in the residual space, equal to 1 on the algebraic equations of an index-1 DAE and 0 elsewhere (see the class description and DAEStructure).
"Algebraic Jump Solver" (sublist) Options of the solver of the adjoint jumps of an index-1 DAE (see AdjointDAEJumpSolver).

To support use-cases with explicitly computed adjoint operators, the constructor takes an additional model evaluator for computing the adjoint W/W_op. It is assumed the operator returned by this model evaluator is the adjoint, and so will not be transposed. It is also assumed this model evaluator accepts the same inArgs as the forward model, however it only requires supporting the adjoint W/W_op outArgs.

Version of the constructor taking a single model evaluator.

This version takes a single model evaluator for the case when the adjoint is implicitly determined from the forward operator by the (conjugate) transpose.

Definition at line 31 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ IntegratorAdjointSensitivity() [2/2]

template<class Scalar>

Tempus::IntegratorAdjointSensitivity< Scalar >::IntegratorAdjointSensitivity ( )

Constructor that requires a subsequent setParameterList, setStepper, and initialize calls.

Definition at line 88 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ ~IntegratorAdjointSensitivity()

template<class Scalar>

virtual Tempus::IntegratorAdjointSensitivity< Scalar >::~IntegratorAdjointSensitivity ( )

inlinevirtual

Destructor.

Definition at line 202 of file Tempus_IntegratorAdjointSensitivity_decl.hpp.

Member Function Documentation

◆ advanceTime() [1/2]

template<class Scalar>

bool Tempus::IntegratorAdjointSensitivity< Scalar >::advanceTime ( )

virtual

Advance the solution to timeMax, and return true if successful.

Definition at line 97 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ advanceTime() [2/2]

template<class Scalar>

bool Tempus::IntegratorAdjointSensitivity< Scalar >::advanceTime ( const Scalar timeFinal )

overridevirtual

Advance the solution to timeFinal, and return true if successful.

Implements Tempus::Integrator< Scalar >.

Definition at line 104 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getTime()

template<class Scalar>

Scalar Tempus::IntegratorAdjointSensitivity< Scalar >::getTime ( ) const

overridevirtual

Get current time.

Implements Tempus::Integrator< Scalar >.

Definition at line 449 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getIndex()

template<class Scalar>

int Tempus::IntegratorAdjointSensitivity< Scalar >::getIndex ( ) const

overridevirtual

Get current index.

Implements Tempus::Integrator< Scalar >.

Definition at line 458 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getStatus()

template<class Scalar>

Status Tempus::IntegratorAdjointSensitivity< Scalar >::getStatus ( ) const

overridevirtual

Get Status.

Implements Tempus::Integrator< Scalar >.

Definition at line 466 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ setStatus()

template<class Scalar>

void Tempus::IntegratorAdjointSensitivity< Scalar >::setStatus ( const Status st )

overridevirtual

Set Status.

Implements Tempus::Integrator< Scalar >.

Definition at line 476 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getStepper()

template<class Scalar>

Teuchos::RCP< Stepper< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getStepper ( ) const

overridevirtual

Get the Stepper.

Implements Tempus::Integrator< Scalar >.

Definition at line 483 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getSolutionHistory()

template<class Scalar>

Teuchos::RCP< const SolutionHistory< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getSolutionHistory ( ) const

overridevirtual

Get the SolutionHistory.

Implements Tempus::Integrator< Scalar >.

Definition at line 491 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getStateSolutionHistory()

template<class Scalar>

Teuchos::RCP< const SolutionHistory< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getStateSolutionHistory ( ) const

Definition at line 498 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getSensSolutionHistory()

template<class Scalar>

Teuchos::RCP< const SolutionHistory< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getSensSolutionHistory ( ) const

Definition at line 505 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getNonConstSolutionHistory()

template<class Scalar>

Teuchos::RCP< SolutionHistory< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getNonConstSolutionHistory ( )

overridevirtual

Get the SolutionHistory.

Implements Tempus::Integrator< Scalar >.

Definition at line 517 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getTimeStepControl()

template<class Scalar>

Teuchos::RCP< const TimeStepControl< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getTimeStepControl ( ) const

overridevirtual

Get the TimeStepControl.

Implements Tempus::Integrator< Scalar >.

Definition at line 524 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getNonConstTimeStepControl()

template<class Scalar>

Teuchos::RCP< TimeStepControl< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getNonConstTimeStepControl ( )

overridevirtual

Implements Tempus::Integrator< Scalar >.

Definition at line 531 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getStateNonConstTimeStepControl()

template<class Scalar>

Teuchos::RCP< TimeStepControl< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getStateNonConstTimeStepControl ( )

Definition at line 538 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getSensNonConstTimeStepControl()

template<class Scalar>

Teuchos::RCP< TimeStepControl< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getSensNonConstTimeStepControl ( )

Definition at line 545 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getIntegratorTimer()

template<class Scalar>

virtual Teuchos::RCP< Teuchos::Time > Tempus::IntegratorAdjointSensitivity< Scalar >::getIntegratorTimer ( ) const

inlineoverridevirtual

Returns the IntegratorTimer_ for this Integrator.

Implements Tempus::Integrator< Scalar >.

Definition at line 237 of file Tempus_IntegratorAdjointSensitivity_decl.hpp.

◆ getStepperTimer()

template<class Scalar>

virtual Teuchos::RCP< Teuchos::Time > Tempus::IntegratorAdjointSensitivity< Scalar >::getStepperTimer ( ) const

inlineoverridevirtual

Implements Tempus::Integrator< Scalar >.

Definition at line 241 of file Tempus_IntegratorAdjointSensitivity_decl.hpp.

◆ initializeSolutionHistory()

template<class Scalar>

void Tempus::IntegratorAdjointSensitivity< Scalar >::initializeSolutionHistory	(	Scalar	t0,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	x0,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	xdot0 = Teuchos::null,
		Teuchos::RCP< const Thyra::VectorBase< Scalar > >	xdotdot0 = Teuchos::null,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	DxDp0 = Teuchos::null,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	DxdotDp0 = Teuchos::null,
		Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > >	DxdotdotDp0 = Teuchos::null )

virtual

Set the initial state from Thyra::VectorBase(s).

Definition at line 551 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getObserver()

template<class Scalar>

Teuchos::RCP< IntegratorObserver< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getObserver ( )

virtual

Get the Observer.

Definition at line 565 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ setObserver()

template<class Scalar>

void Tempus::IntegratorAdjointSensitivity< Scalar >::setObserver ( Teuchos::RCP< IntegratorObserver< Scalar > > obs = Teuchos::null )

virtual

Set the Observer.

Definition at line 571 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ initialize()

template<class Scalar>

void Tempus::IntegratorAdjointSensitivity< Scalar >::initialize ( )

virtual

Initializes the Integrator after set* function calls.

Definition at line 581 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getX()

template<class Scalar>

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getX ( ) const

virtual

Get the current solution, x.

Definition at line 589 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getXDot()

template<class Scalar>

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getXDot ( ) const

virtual

Get the current time derivative of the solution, xdot.

Definition at line 596 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getXDotDot()

template<class Scalar>

Teuchos::RCP< const Thyra::VectorBase< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getXDotDot ( ) const

virtual

Get the current second time derivative of the solution, xdotdot.

Definition at line 603 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getY()

template<class Scalar>

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getY ( ) const

virtual

Get the current adjoint solution, y.

Definition at line 610 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getYDot()

template<class Scalar>

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getYDot ( ) const

virtual

Get the current time derivative of the adjoint solution, ydot.

Definition at line 623 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getYDotDot()

template<class Scalar>

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getYDotDot ( ) const

virtual

Get the current second time derivative of the adjoint solution, ydotdot.

Definition at line 637 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getDgDp()

template<class Scalar>

Teuchos::RCP< const Thyra::MultiVectorBase< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getDgDp ( ) const

virtual

Return adjoint sensitivity stored in gradient format.

Definition at line 651 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getAdjointModel()

template<class Scalar>

Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getAdjointModel ( ) const

inline

Definition at line 284 of file Tempus_IntegratorAdjointSensitivity_decl.hpp.

◆ getDAEStructure()

template<class Scalar>

Teuchos::RCP< const DAEStructure< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::getDAEStructure ( ) const

inline

Structure of the index-1 DAE (null for an ODE).

Definition at line 290 of file Tempus_IntegratorAdjointSensitivity_decl.hpp.

◆ description()

template<class Scalar>

std::string Tempus::IntegratorAdjointSensitivity< Scalar >::description ( ) const

override

Definition at line 657 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ describe()

template<class Scalar>

void Tempus::IntegratorAdjointSensitivity< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel ) const

override

Definition at line 664 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ getStepMode()

template<class Scalar>

SensitivityStepMode Tempus::IntegratorAdjointSensitivity< Scalar >::getStepMode ( ) const

What mode the current time integration step is in.

Definition at line 677 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ createAdjointModel()

template<class Scalar>

Teuchos::RCP< AdjointAuxSensitivityModelEvaluator< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::createAdjointModel	(	const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	model,
		const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &	adjoint_model,
		const Teuchos::RCP< Teuchos::ParameterList > &	inputPL )

protected

Definition at line 684 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ buildSolutionHistory()

template<class Scalar>

void Tempus::IntegratorAdjointSensitivity< Scalar >::buildSolutionHistory	(	const Teuchos::RCP< const SolutionHistory< Scalar > > &	state_solution_history,
		const Teuchos::RCP< const SolutionHistory< Scalar > > &	adjoint_solution_history )

protected

Definition at line 709 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ createAdjointMassMatrixSolver()

template<class Scalar>

Teuchos::RCP< Thyra::LinearOpWithSolveBase< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::createAdjointMassMatrixSolver ( const Thyra::ModelEvaluatorBase::InArgs< Scalar > & inArgs ) const

protected

Solver for df/dx_dot^T, computed with the adjoint model at inArgs.

Definition at line 376 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ findForwardState()

template<class Scalar>

Teuchos::RCP< const SolutionState< Scalar > > Tempus::IntegratorAdjointSensitivity< Scalar >::findForwardState	(	const SolutionHistory< Scalar > &	state_solution_history,
		const Scalar	t,
		const Scalar	tol ) const

protected

Forward state at time t, which must be the time of a stored time step.

Definition at line 385 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.

◆ integrateAdjoint()

template<class Scalar>

bool Tempus::IntegratorAdjointSensitivity< Scalar >::integrateAdjoint	(	const Scalar	tau_begin,
		const Scalar	tau_end,
		Thyra::VectorBase< Scalar > &	adjoint_state,
		int &	index )

protected

Integrate the adjoint problem from tau_begin to tau_end, starting from adjoint_state, which is overwritten with the adjoint state at tau_end. index is the time step index at tau_begin (negative for the initial index of the time step control), and it is overwritten with the index at tau_end.

Definition at line 410 of file Tempus_IntegratorAdjointSensitivity_impl.hpp.
