RK Explicit 3 Stage 3rd order. More...

#include <Tempus_StepperRKButcherTableau.hpp>

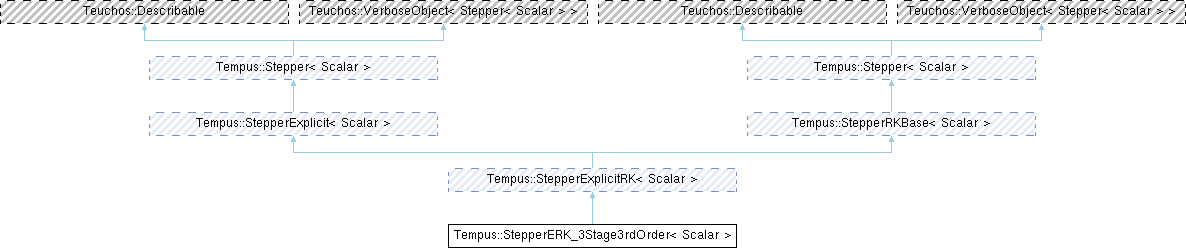

Inheritance diagram for Tempus::StepperERK_3Stage3rdOrder< Scalar >:

Public Member Functions
	StepperERK_3Stage3rdOrder ()
	Default constructor.

	StepperERK_3Stage3rdOrder (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool useEmbedded, const Teuchos::RCP< StepperRKAppAction< Scalar > > &stepperRKAppAction)

std::string	getDescription () const

Public Member Functions inherited from Tempus::StepperExplicitRK< Scalar >
virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

virtual bool	isValidSetup (Teuchos::FancyOStream &out) const

virtual void	initialize ()
	Initialize during construction and after changing input parameters.

virtual void	setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)
	Set model.

virtual void	setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
	Set the initial conditions and make them consistent.

virtual void	takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
	Take the specified timestep, dt, and return true if successful.

virtual Teuchos::RCP< Tempus::StepperState< Scalar > >	getDefaultStepperState ()
	Get a default (initial) StepperState.

virtual Scalar	getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory) const

virtual bool	isExplicit () const

virtual bool	isImplicit () const

virtual bool	isExplicitImplicit () const

virtual bool	isOneStepMethod () const

virtual bool	isMultiStepMethod () const

virtual OrderODE	getOrderODE () const

virtual Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const

Teuchos::RCP< Teuchos::ParameterList >	getValidParametersBasicERK () const

Public Member Functions inherited from Tempus::StepperExplicit< Scalar >
void	setStepperExplicitValues (Teuchos::RCP< Teuchos::ParameterList > pl)
	Set StepperExplicit member data from the ParameterList.

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getModel () const
	Return the application ModelEvaluator.

virtual void	setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
	Set solver.

virtual Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > >	getSolver () const
	Get solver.

virtual void	setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > >)
	Pass initial guess to Newton solver (only relevant for implicit solvers)

virtual void	evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
	Evaluate xDot = f(x,t).

virtual void	evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xDot, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
	Evaluate xDotDot = f(x, xDot, t).

Public Member Functions inherited from Tempus::Stepper< Scalar >
virtual std::string	description () const

void	setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
	Set Stepper member data from ParameterList.

Teuchos::RCP< Teuchos::ParameterList >	getValidParametersBasic () const
	Add basic parameters to Steppers ParameterList.

virtual bool	isInitialized ()
	True if stepper's member data is initialized.

virtual void	checkInitialized ()
	Check initialization, and error out on failure.

void	setStepperName (std::string s)
	Set the stepper name.

std::string	getStepperName () const
	Get the stepper name.

std::string	getStepperType () const
	Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class.

virtual void	setUseFSAL (bool a)

void	setUseFSALTrueOnly (bool a)

void	setUseFSALFalseOnly (bool a)

bool	getUseFSAL () const

void	setICConsistency (std::string s)

std::string	getICConsistency () const

void	setICConsistencyCheck (bool c)

bool	getICConsistencyCheck () const

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > >	getStepperX ()
	Get Stepper x.

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > >	getStepperXDot ()
	Get Stepper xDot.

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > >	getStepperXDotDot ()
	Get Stepper xDotDot.

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > >	getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
	Get xDotDot from SolutionState or Stepper storage.

Public Member Functions inherited from Tempus::StepperRKBase< Scalar >
virtual Teuchos::RCP< const RKButcherTableau< Scalar > >	getTableau () const

virtual Scalar	getOrder () const

virtual Scalar	getOrderMin () const

virtual Scalar	getOrderMax () const

virtual int	getNumberOfStages () const

virtual int	getStageNumber () const

virtual void	setStageNumber (int s)

virtual void	setUseEmbedded (bool a)

virtual bool	getUseEmbedded () const

virtual void	setErrorNorm (const Teuchos::RCP< Stepper_ErrorNorm< Scalar > > &errCalculator=Teuchos::null)

virtual void	setAppAction (Teuchos::RCP< StepperRKAppAction< Scalar > > appAction)

virtual Teuchos::RCP< StepperRKAppAction< Scalar > >	getAppAction () const

virtual void	setStepperRKValues (Teuchos::RCP< Teuchos::ParameterList > pl)
	Set StepperRK member data from the ParameterList.

virtual Teuchos::RCP< RKButcherTableau< Scalar > >	createTableau (Teuchos::RCP< Teuchos::ParameterList > pl)

Protected Member Functions
void	setupTableau ()

Protected Member Functions inherited from Tempus::StepperExplicitRK< Scalar >
virtual void	setupDefault ()
	Default setup for constructor.

virtual void	setup (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool useEmbedded, const Teuchos::RCP< StepperRKAppAction< Scalar > > &stepperRKAppAction)
	Setup for constructor.

virtual void	setEmbeddedMemory ()

Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void	setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
	Set x for Stepper storage.

virtual void	setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
	Set xDot for Stepper storage.

virtual void	setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
	Set x for Stepper storage.

void	setStepperType (std::string s)
	Set the stepper type.

Additional Inherited Members
Protected Attributes inherited from Tempus::StepperExplicitRK< Scalar >
std::vector< Teuchos::RCP< Thyra::VectorBase< Scalar > > >	stageXDot_

Protected Attributes inherited from Tempus::StepperExplicit< Scalar >
Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	appModel_
	Explicit ODE ModelEvaluator.

Thyra::ModelEvaluatorBase::InArgs< Scalar >	inArgs_

Thyra::ModelEvaluatorBase::OutArgs< Scalar >	outArgs_

Protected Attributes inherited from Tempus::Stepper< Scalar >
bool	useFSAL_ = false
	Use First-Same-As-Last (FSAL) principle.

bool	isInitialized_
	True if stepper's member data is initialized.

Protected Attributes inherited from Tempus::StepperRKBase< Scalar >
Teuchos::RCP< RKButcherTableau< Scalar > >	tableau_

bool	useEmbedded_

Teuchos::RCP< Thyra::VectorBase< Scalar > >	ee_

Teuchos::RCP< Thyra::VectorBase< Scalar > >	abs_u0

Teuchos::RCP< Thyra::VectorBase< Scalar > >	abs_u

Teuchos::RCP< Thyra::VectorBase< Scalar > >	sc

Teuchos::RCP< Stepper_ErrorNorm< Scalar > >	stepperErrorNormCalculator_

int	stageNumber_

Teuchos::RCP< StepperRKAppAction< Scalar > >	stepperRKAppAction_

Detailed Description

template<class Scalar>
class Tempus::StepperERK_3Stage3rdOrder< Scalar >

RK Explicit 3 Stage 3rd order.

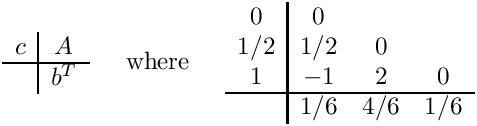

The tableau (order=3) is

$\begin{array}{c|c} c & A \\ \hline & b^T \end{array} \;\;\;\;\mbox{ where }\;\;\;\; \begin{array}{c|ccc} 0 & 0 & & \\ 1/2 & 1/2 & 0 & \\ 1 & -1 & 2 & 0 \\ \hline & 1/6 & 4/6 & 1/6 \end{array}$

See StepperExplicitRK for additional details.

Definition at line 1047 of file Tempus_StepperRKButcherTableau.hpp.

Constructor & Destructor Documentation

◆ StepperERK_3Stage3rdOrder() [1/2]

template<class Scalar >

Tempus::StepperERK_3Stage3rdOrder< Scalar >::StepperERK_3Stage3rdOrder ( )

inline

Default constructor.

Requires subsequent setModel() and initialize() calls before calling takestep().

Definition at line 1054 of file Tempus_StepperRKButcherTableau.hpp.

◆ StepperERK_3Stage3rdOrder() [2/2]

template<class Scalar >

Tempus::StepperERK_3Stage3rdOrder< Scalar >::StepperERK_3Stage3rdOrder	(	const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	appModel,
		bool	useFSAL,
		std::string	ICConsistency,
		bool	ICConsistencyCheck,
		bool	useEmbedded,
		const Teuchos::RCP< StepperRKAppAction< Scalar > > &	stepperRKAppAction
	)
