Tempus::StepperExplicit< Scalar > Class Template Reference

Thyra Base interface for implicit time steppers. More...

#include <Tempus_StepperExplicit_decl.hpp>

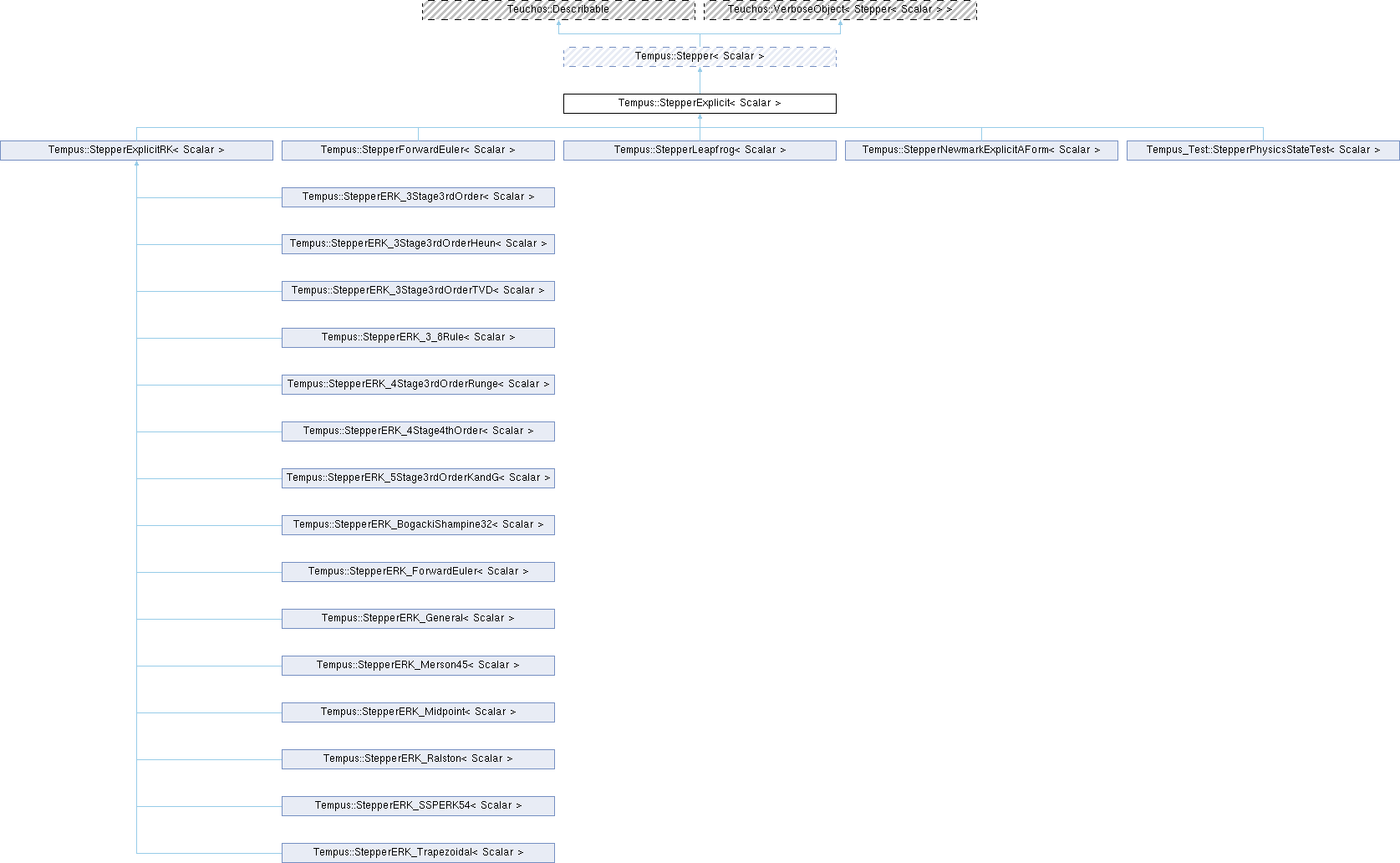

Inheritance diagram for Tempus::StepperExplicit< Scalar >:
Tempus::Stepper< Scalar > Tempus::StepperExplicitRK< Scalar > Tempus::StepperForwardEuler< Scalar > Tempus::StepperLeapfrog< Scalar > Tempus::StepperNewmarkExplicitAForm< Scalar > Tempus_Test::StepperPhysicsStateTest< Scalar > Tempus::StepperERK_3Stage3rdOrder< Scalar > Tempus::StepperERK_3Stage3rdOrderHeun< Scalar > Tempus::StepperERK_3Stage3rdOrderTVD< Scalar > Tempus::StepperERK_3_8Rule< Scalar > Tempus::StepperERK_4Stage3rdOrderRunge< Scalar > Tempus::StepperERK_4Stage4thOrder< Scalar > Tempus::StepperERK_5Stage3rdOrderKandG< Scalar > Tempus::StepperERK_BogackiShampine32< Scalar > Tempus::StepperERK_ForwardEuler< Scalar > Tempus::StepperERK_General< Scalar > Tempus::StepperERK_Merson45< Scalar > Tempus::StepperERK_Midpoint< Scalar > Tempus::StepperERK_Ralston< Scalar > Tempus::StepperERK_SSPERK54< Scalar > Tempus::StepperERK_Trapezoidal< Scalar >

Overridden from Teuchos::Describable

Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > appModel_
 Explicit ODE ModelEvaluator.

Thyra::ModelEvaluatorBase::InArgs< Scalar > inArgs_

Thyra::ModelEvaluatorBase::OutArgs< Scalar > outArgs_

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

virtual bool isValidSetup (Teuchos::FancyOStream &out) const

void setStepperExplicitValues (Teuchos::RCP< Teuchos::ParameterList > pl)
 Set StepperExplicit member data from the ParameterList.


Basic explicit stepper methods

virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)
 Set model.

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > getModel () const
 Return the application ModelEvaluator.

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions, make them consistent, and set needed memory.

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
 Set solver.

virtual Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > getSolver () const
 Get solver.

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > >)
 Pass initial guess to Newton solver (only relevant for implicit solvers)

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual void evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
 Evaluate xDot = f(x,t).

virtual void evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xDot, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
 Evaluate xDotDot = f(x, xDot, t).


Additional Inherited Members

- Public Member Functions inherited from Tempus::Stepper< Scalar >
virtual std::string description () const

void setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
 Set Stepper member data from ParameterList.

virtual Teuchos::RCP< const Teuchos::ParameterList > getValidParameters () const

Teuchos::RCP< Teuchos::ParameterList > getValidParametersBasic () const
 Add basic parameters to Steppers ParameterList.

virtual void initialize ()
 Initialize after construction and changing input parameters.

virtual bool isInitialized ()
 True if stepper's member data is initialized.

virtual void checkInitialized ()
 Check initialization, and error out on failure.

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)=0
 Take the specified timestep, dt, and return true if successful.

virtual Teuchos::RCP< Tempus::StepperState< Scalar > > getDefaultStepperState ()=0

virtual Scalar getOrder () const =0

virtual Scalar getOrderMin () const =0

virtual Scalar getOrderMax () const =0

void setStepperName (std::string s)
 Set the stepper name.

std::string getStepperName () const
 Get the stepper name.

std::string getStepperType () const
 Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class.

virtual void setUseFSAL (bool a)

void setUseFSALTrueOnly (bool a)

void setUseFSALFalseOnly (bool a)

bool getUseFSAL () const

void setICConsistency (std::string s)

std::string getICConsistency () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual OrderODE getOrderODE () const =0

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > > getStepperX ()
 Get Stepper x.

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > > getStepperXDot ()
 Get Stepper xDot.

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > > getStepperXDotDot ()
 Get Stepper xDotDot.

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > > getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage.

- Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage.

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage.

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage.

void setStepperType (std::string s)
 Set the stepper type.

- Protected Attributes inherited from Tempus::Stepper< Scalar >
bool useFSAL_ = false
 Use First-Same-As-Last (FSAL) principle.

bool isInitialized_
 True if stepper's member data is initialized.


Detailed Description

template<class Scalar>
class Tempus::StepperExplicit< Scalar >

Thyra Base interface for implicit time steppers.

Definition at line 39 of file Tempus_StepperExplicit_decl.hpp.

Member Function Documentation

◆ setModel()

template<class Scalar >
void Tempus::StepperExplicit< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel)
virtual

Set model.

Reimplemented from Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >.

Definition at line 18 of file Tempus_StepperExplicit_impl.hpp.

◆ getModel()

template<class Scalar >
virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > Tempus::StepperExplicit< Scalar >::getModel ( ) const
inlinevirtual

Return the application ModelEvaluator.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 48 of file Tempus_StepperExplicit_decl.hpp.

◆ getInitTimeStep()

template<class Scalar >
virtual Scalar Tempus::StepperExplicit< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperLeapfrog< Scalar >, Tempus::StepperNewmarkExplicitAForm< Scalar >, and Tempus::StepperExplicitRK< Scalar >.

Definition at line 53 of file Tempus_StepperExplicit_decl.hpp.

◆ setInitialConditions()

template<class Scalar >
void Tempus::StepperExplicit< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions, make them consistent, and set needed memory.

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperForwardEuler< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 29 of file Tempus_StepperExplicit_impl.hpp.

◆ setSolver()

template<class Scalar >
void Tempus::StepperExplicit< Scalar >::setSolver ( Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > >  solver)
virtual

Set solver.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 268 of file Tempus_StepperExplicit_impl.hpp.

◆ getSolver()

template<class Scalar >
virtual Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > Tempus::StepperExplicit< Scalar >::getSolver ( ) const
inlinevirtual

Get solver.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 66 of file Tempus_StepperExplicit_decl.hpp.

◆ setInitialGuess()

template<class Scalar >
virtual void Tempus::StepperExplicit< Scalar >::setInitialGuess ( Teuchos::RCP< const Thyra::VectorBase< Scalar > >  )
inlinevirtual

Pass initial guess to Newton solver (only relevant for implicit solvers)

Implements Tempus::Stepper< Scalar >.

Definition at line 73 of file Tempus_StepperExplicit_decl.hpp.

◆ isExplicit()

template<class Scalar >
virtual bool Tempus::StepperExplicit< Scalar >::isExplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 78 of file Tempus_StepperExplicit_decl.hpp.

◆ isImplicit()

template<class Scalar >
virtual bool Tempus::StepperExplicit< Scalar >::isImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 79 of file Tempus_StepperExplicit_decl.hpp.

◆ isExplicitImplicit()

template<class Scalar >
virtual bool Tempus::StepperExplicit< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 80 of file Tempus_StepperExplicit_decl.hpp.

◆ isOneStepMethod()

template<class Scalar >
virtual bool Tempus::StepperExplicit< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 84 of file Tempus_StepperExplicit_decl.hpp.

◆ isMultiStepMethod()

template<class Scalar >
virtual bool Tempus::StepperExplicit< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 85 of file Tempus_StepperExplicit_decl.hpp.

◆ evaluateExplicitODE() [1/2]

template<class Scalar >
void Tempus::StepperExplicit< Scalar >::evaluateExplicitODE ( Teuchos::RCP< Thyra::VectorBase< Scalar > >  xDot,
Teuchos::RCP< const Thyra::VectorBase< Scalar > >  x,
const Scalar  time,
const Teuchos::RCP< ExplicitODEParameters< Scalar > > &  p
)
virtual

Evaluate xDot = f(x,t).

Definition at line 279 of file Tempus_StepperExplicit_impl.hpp.

◆ evaluateExplicitODE() [2/2]

template<class Scalar >
void Tempus::StepperExplicit< Scalar >::evaluateExplicitODE ( Teuchos::RCP< Thyra::VectorBase< Scalar > >  xDotDot,
Teuchos::RCP< const Thyra::VectorBase< Scalar > >  x,
Teuchos::RCP< const Thyra::VectorBase< Scalar > >  xDot,
const Scalar  time,
const Teuchos::RCP< ExplicitODEParameters< Scalar > > &  p
)
virtual

Evaluate xDotDot = f(x, xDot, t).

Definition at line 306 of file Tempus_StepperExplicit_impl.hpp.

◆ describe()

template<class Scalar >
void Tempus::StepperExplicit< Scalar >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Reimplemented from Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperForwardEuler< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 336 of file Tempus_StepperExplicit_impl.hpp.

◆ isValidSetup()

template<class Scalar >
bool Tempus::StepperExplicit< Scalar >::isValidSetup ( Teuchos::FancyOStream &  out) const
virtual

Reimplemented from Tempus::Stepper< Scalar >.

Reimplemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperForwardEuler< Scalar >, Tempus::StepperLeapfrog< Scalar >, and Tempus::StepperNewmarkExplicitAForm< Scalar >.

Definition at line 350 of file Tempus_StepperExplicit_impl.hpp.

◆ setStepperExplicitValues()

template<class Scalar >
void Tempus::StepperExplicit< Scalar >::setStepperExplicitValues ( Teuchos::RCP< Teuchos::ParameterList >  pl)

Set StepperExplicit member data from the ParameterList.

Definition at line 364 of file Tempus_StepperExplicit_impl.hpp.

Member Data Documentation

◆ appModel_

template<class Scalar >
Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::StepperExplicit< Scalar >::appModel_
protected

Explicit ODE ModelEvaluator.

Definition at line 114 of file Tempus_StepperExplicit_decl.hpp.

◆ inArgs_

template<class Scalar >
Thyra::ModelEvaluatorBase::InArgs<Scalar> Tempus::StepperExplicit< Scalar >::inArgs_
protected

Definition at line 116 of file Tempus_StepperExplicit_decl.hpp.

◆ outArgs_

template<class Scalar >
Thyra::ModelEvaluatorBase::OutArgs<Scalar> Tempus::StepperExplicit< Scalar >::outArgs_
protected

Definition at line 117 of file Tempus_StepperExplicit_decl.hpp.

The documentation for this class was generated from the following files:
