A panzer::ClosureModelFactory decorator that provides evaluators for writing fields to exodus files. Wraps a user closure model factory. buildClosureModels() delegates to the wrapped factory for every evaluation type; the panzer::Traits::Residual specialization additionally builds the scatter evaluators needed to write selected nodal/cell fields out to the STK mesh for visualization/output, since output only needs to happen once per workset regardless of evaluation type. More...

#include <Panzer_STK_IOClosureModel_Factory_decl.hpp>

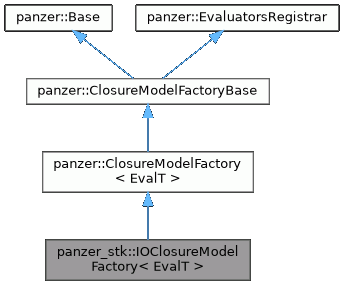

Inheritance diagram for panzer_stk::IOClosureModelFactory< EvalT >:

[legend]

Public Member Functions
	IOClosureModelFactory (const Teuchos::RCP< const panzer::ClosureModelFactory< EvalT > > userCMF_, const Teuchos::RCP< STK_Interface > &mesh, const Teuchos::ParameterList &outputList)
	Construct with the fields to write specified via an output ParameterList (parsed with parseOutputList()).

	IOClosureModelFactory (const Teuchos::RCP< const panzer::ClosureModelFactory< EvalT > > userCMF_, const Teuchos::RCP< STK_Interface > &mesh, const std::map< std::string, std::vector< std::string > > &nodalFields, const std::map< std::string, std::vector< std::string > > &cellFields)
	Construct with the fields to write specified explicitly, split into nodal and cell fields per element block.

Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > >	buildClosureModels (const std::string &model_id, const Teuchos::ParameterList &models, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const Teuchos::ParameterList &default_params, const Teuchos::ParameterList &user_data, const Teuchos::RCP< panzer::GlobalData > &global_data, PHX::FieldManager< panzer::Traits > &fm) const
	Delegates to the wrapped factory's buildClosureModels() for the named model.

Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > >	buildClosureModels (const std::string &model_id, const Teuchos::ParameterList &models, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const Teuchos::ParameterList &default_params, const Teuchos::ParameterList &user_data, const Teuchos::RCP< panzer::GlobalData > &global_data, PHX::FieldManager< panzer::Traits > &fm) const

Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > >	buildClosureModels (const std::string &model_id, const Teuchos::ParameterList &models, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const Teuchos::ParameterList &default_params, const Teuchos::ParameterList &user_data, const Teuchos::RCP< panzer::GlobalData > &global_data, PHX::FieldManager< panzer::Traits > &fm) const
	Delegates to the wrapped factory's buildClosureModels() for the named model, then adds the scatter-to-mesh evaluators needed for the fields requested at construction.

Public Member Functions inherited from panzer::ClosureModelFactory< EvalT >
	ClosureModelFactory (bool throw_if_model_not_found=true)

virtual	~ClosureModelFactory ()

virtual Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > >	buildClosureModels (const std::string &model_id, const Teuchos::ParameterList &models, const panzer::FieldLayoutLibrary &fl, const Teuchos::RCP< panzer::IntegrationRule > &ir, const Teuchos::ParameterList &equation_set_params, const Teuchos::ParameterList &user_data, const Teuchos::RCP< panzer::GlobalData > &global_data, PHX::FieldManager< panzer::Traits > &fm) const =0

virtual void	registerEvaluators (const std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > &evaluators, PHX::FieldManager< panzer::Traits > &fm) const

virtual void	setThrowOnModelNotFound (bool do_throw)

Public Member Functions inherited from panzer::ClosureModelFactoryBase
	ClosureModelFactoryBase ()

virtual	~ClosureModelFactoryBase ()

Public Member Functions inherited from panzer::Base
	Base ()

virtual	~Base ()

Public Member Functions inherited from panzer::EvaluatorsRegistrar
int	setDetailsIndex (const int details_index)

int	getDetailsIndex () const
	Get the WorksetDetails index.

Private Member Functions
void	parseOutputList (const Teuchos::ParameterList &pl, std::map< std::string, std::vector< std::string > > &blockIdToFields) const

Private Attributes
Teuchos::RCP< STK_Interface >	mesh_
	Mesh pointer, will be passed around.

std::map< std::string, std::vector< std::string > >	blockIdToCellAvgFields_
	Map showing which cell averaged fields need to be written out for each element block.

std::map< std::string, std::vector< std::string > >	blockIdToCellAvgVectors_
	Map showing which cell averaged vector fields need to be written out for each element block.

std::map< std::string, std::vector< std::string > >	blockIdToCellFields_
	Map showing which cell fields need to be written out for each element block.

std::map< std::string, std::vector< std::string > >	blockIdToNodalFields_
	Map showing which nodal fields need to be written out for each element block.

std::map< std::string, bool >	blockIdEvaluated_

Teuchos::RCP< const panzer::ClosureModelFactory< EvalT > >	userCMF_
	we will reuse the drekar closure model factory

Additional Inherited Members
Protected Member Functions inherited from panzer::EvaluatorsRegistrar
	EvaluatorsRegistrar ()
	Default ctor initializes WorksetDetails index to 0.

virtual	~EvaluatorsRegistrar ()

template<typename EvalT >
void	registerEvaluator (PHX::FieldManager< panzer::Traits > &fm, const Teuchos::RCP< PHX::Evaluator< panzer::Traits > > &op) const

Protected Attributes inherited from panzer::ClosureModelFactory< EvalT >
bool	m_throw_if_model_not_found

Detailed Description

template<typename EvalT>
class panzer_stk::IOClosureModelFactory< EvalT >

A panzer::ClosureModelFactory decorator that provides evaluators for writing fields to exodus files. Wraps a user closure model factory. buildClosureModels() delegates to the wrapped factory for every evaluation type; the panzer::Traits::Residual specialization additionally builds the scatter evaluators needed to write selected nodal/cell fields out to the STK mesh for visualization/output, since output only needs to happen once per workset regardless of evaluation type.

Definition at line 39 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

Constructor & Destructor Documentation

◆ IOClosureModelFactory() [1/2]

template<typename EvalT >

panzer_stk::IOClosureModelFactory< EvalT >::IOClosureModelFactory	(	const Teuchos::RCP< const panzer::ClosureModelFactory< EvalT > >	userCMF_,
		const Teuchos::RCP< STK_Interface > &	mesh,
		const Teuchos::ParameterList &	outputList
	)

Construct with the fields to write specified via an output ParameterList (parsed with parseOutputList()).

Parameters

[in]	userCMF_	the wrapped closure model factory to delegate buildClosureModels() calls to.
[in]	mesh	the STK mesh to write output fields to.
[in]	outputList	ParameterList naming the fields to write out.

Definition at line 22 of file Panzer_STK_IOClosureModel_Factory_impl.hpp.

◆ IOClosureModelFactory() [2/2]

template<typename EvalT >

panzer_stk::IOClosureModelFactory< EvalT >::IOClosureModelFactory	(	const Teuchos::RCP< const panzer::ClosureModelFactory< EvalT > >	userCMF_,
		const Teuchos::RCP< STK_Interface > &	mesh,
		const std::map< std::string, std::vector< std::string > > &	nodalFields,
		const std::map< std::string, std::vector< std::string > > &	cellFields
	)

Construct with the fields to write specified explicitly, split into nodal and cell fields per element block.

Parameters

[in]	userCMF_	the wrapped closure model factory to delegate buildClosureModels() calls to.
[in]	mesh	the STK mesh to write output fields to.
[in]	nodalFields	nodal field names to write out, keyed by element block ID.
[in]	cellFields	cell (element-averaged) field names to write out, keyed by element block ID.

Definition at line 37 of file Panzer_STK_IOClosureModel_Factory_impl.hpp.

Member Function Documentation

◆ buildClosureModels() [1/3]

template<typename EvalT >

Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > > panzer_stk::IOClosureModelFactory< EvalT >::buildClosureModels	(	const std::string &	model_id,
		const Teuchos::ParameterList &	models,
		const panzer::FieldLayoutLibrary &	fl,
		const Teuchos::RCP< panzer::IntegrationRule > &	ir,
		const Teuchos::ParameterList &	default_params,
		const Teuchos::ParameterList &	user_data,
		const Teuchos::RCP< panzer::GlobalData > &	global_data,
		PHX::FieldManager< panzer::Traits > &	fm
	)		const

Delegates to the wrapped factory's buildClosureModels() for the named model.

Parameters

[in]	model_id	the closure model ID to build; selects which sublist of models to use.
[in]	models	ParameterList of named closure model sublists, keyed by model ID.
[in]	fl	the field layouts available for the current physics block.
[in]	ir	the integration rule the built evaluators should evaluate on.
[in]	default_params	equation-set-level parameters used as defaults when building closures.
[in]	user_data	user-supplied parameters passed through to closures that need additional application data.
[in]	global_data	global data (parameter library, output stream) shared across the problem.
[in]	fm	the field manager the built evaluators will be registered into.

Definition at line 79 of file Panzer_STK_IOClosureModel_Factory_impl.hpp.

◆ parseOutputList()

template<typename EvalT >

void panzer_stk::IOClosureModelFactory< EvalT >::parseOutputList	(	const Teuchos::ParameterList &	pl,
		std::map< std::string, std::vector< std::string > > &	blockIdToFields
	)		const

private

Definition at line 58 of file Panzer_STK_IOClosureModel_Factory_impl.hpp.

◆ buildClosureModels() [2/3]

Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > > panzer_stk::IOClosureModelFactory< panzer::Traits::Residual >::buildClosureModels	(	const std::string &	model_id,
		const Teuchos::ParameterList &	models,
		const panzer::FieldLayoutLibrary &	fl,
		const Teuchos::RCP< panzer::IntegrationRule > &	ir,
		const Teuchos::ParameterList &	default_params,
		const Teuchos::ParameterList &	user_data,
		const Teuchos::RCP< panzer::GlobalData > &	global_data,
		PHX::FieldManager< panzer::Traits > &	fm
	)		const

Definition at line 21 of file Panzer_STK_IOClosureModel_Factory.cpp.

◆ buildClosureModels() [3/3]

Teuchos::RCP< std::vector< Teuchos::RCP< PHX::Evaluator< panzer::Traits > > > > panzer_stk::IOClosureModelFactory< panzer::Traits::Residual >::buildClosureModels	(	const std::string &	model_id,
		const Teuchos::ParameterList &	models,
		const panzer::FieldLayoutLibrary &	fl,
		const Teuchos::RCP< panzer::IntegrationRule > &	ir,
		const Teuchos::ParameterList &	default_params,
		const Teuchos::ParameterList &	user_data,
		const Teuchos::RCP< panzer::GlobalData > &	global_data,
		PHX::FieldManager< panzer::Traits > &	fm
	)		const

Delegates to the wrapped factory's buildClosureModels() for the named model, then adds the scatter-to-mesh evaluators needed for the fields requested at construction.

Parameters

[in]	model_id	the closure model ID to build; selects which sublist of models to use.
[in]	models	ParameterList of named closure model sublists, keyed by model ID.
[in]	fl	the field layouts available for the current physics block.
[in]	ir	the integration rule the built evaluators should evaluate on.
[in]	default_params	equation-set-level parameters used as defaults when building closures.
[in]	user_data	user-supplied parameters passed through to closures that need additional application data.
[in]	global_data	global data (parameter library, output stream) shared across the problem.
[in]	fm	the field manager the built evaluators will be registered into.

Member Data Documentation

◆ mesh_

template<typename EvalT >

Teuchos::RCP<STK_Interface> panzer_stk::IOClosureModelFactory< EvalT >::mesh_

private

Mesh pointer, will be passed around.

Definition at line 90 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

◆ blockIdToCellAvgFields_

template<typename EvalT >

std::map<std::string,std::vector<std::string> > panzer_stk::IOClosureModelFactory< EvalT >::blockIdToCellAvgFields_

private

Map showing which cell averaged fields need to be written out for each element block.

Definition at line 93 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

◆ blockIdToCellAvgVectors_

template<typename EvalT >

std::map<std::string,std::vector<std::string> > panzer_stk::IOClosureModelFactory< EvalT >::blockIdToCellAvgVectors_

private

Map showing which cell averaged vector fields need to be written out for each element block.

Definition at line 96 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

◆ blockIdToCellFields_

template<typename EvalT >

std::map<std::string,std::vector<std::string> > panzer_stk::IOClosureModelFactory< EvalT >::blockIdToCellFields_

private

Map showing which cell fields need to be written out for each element block.

Definition at line 99 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

◆ blockIdToNodalFields_

template<typename EvalT >

std::map<std::string,std::vector<std::string> > panzer_stk::IOClosureModelFactory< EvalT >::blockIdToNodalFields_

private

Map showing which nodal fields need to be written out for each element block.

Definition at line 102 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

◆ blockIdEvaluated_

template<typename EvalT >

std::map<std::string,bool> panzer_stk::IOClosureModelFactory< EvalT >::blockIdEvaluated_

mutableprivate

Map stating if an evaluator for a particular block ID has been included.

This is a bit of hack that is done to gurantee only one evaluator is added to each field manager. However, if an instantiation of this closure model factory is used in multiple places then the appropriate evaluator will be added and required only once. So its likely that not every field manager will have (and require) the scatter cell evaluators.

Definition at line 112 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.

◆ userCMF_

template<typename EvalT >

Teuchos::RCP<const panzer::ClosureModelFactory<EvalT> > panzer_stk::IOClosureModelFactory< EvalT >::userCMF_

private

we will reuse the drekar closure model factory

Definition at line 115 of file Panzer_STK_IOClosureModel_Factory_decl.hpp.
