panzer_stk::GatherExodusCellDataToIP< EvalT, Traits > Class Template Reference

#include <Panzer_STK_GatherExodusCellDataToIP.hpp>

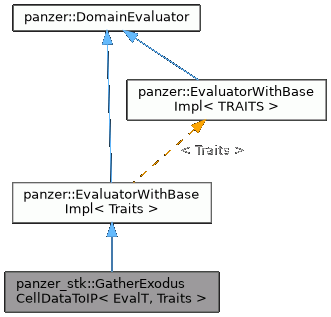

Inheritance diagram for panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >:

Public Member Functions
	GatherExodusCellDataToIP (const Teuchos::RCP< const panzer_stk::STK_Interface > &mesh, const std::vector< std::string > &fieldNames, const std::vector< std::string > &exodusNames, const Teuchos::RCP< panzer::IntegrationRule > &integrationRule)
void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)
	Looks up the STK field pointers needed by evaluateFields(). Called once before the first evaluation.
void	evaluateFields (typename Traits::EvalData d)
	Gathers this workset's field values from the STK mesh at the restart time index, per the class description.
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index.
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor.
virtual	~DomainEvaluator ()=default
	Default destructor.
void	setDomain (const DomainType domain)
	Set the domain for the evaluator.
DomainType	getDomain ()
	Get the domain for the evaluator.
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset.
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset.

Private Types
typedef EvalT::ScalarT	ScalarT
typedef panzer_stk::STK_Interface::SolutionFieldType	VariableField

Private Attributes
const Teuchos::RCP< const STK_Interface >	mesh_
const std::vector< std::string >	exodusNames_
std::vector< PHX::MDField< ScalarT, panzer::Cell, panzer::IP > >	gatherFields_
std::vector< VariableField * >	stkFields_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 ,   EXTERNAL =4 , ALL =5 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >

This class is a gathers a cell-based field from a STK Mesh

Definition at line 31 of file Panzer_STK_GatherExodusCellDataToIP.hpp.

Member Typedef Documentation

ScalarT

template<typename EvalT , typename Traits >

typedef EvalT::ScalarT panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >::ScalarT

private

Definition at line 60 of file Panzer_STK_GatherExodusCellDataToIP.hpp.

VariableField

template<typename EvalT , typename Traits >

typedef panzer_stk::STK_Interface::SolutionFieldType panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >::VariableField

private

Definition at line 61 of file Panzer_STK_GatherExodusCellDataToIP.hpp.

Constructor & Destructor Documentation

GatherExodusCellDataToIP()

template<typename EvalT , typename Traits >

panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >::GatherExodusCellDataToIP	(	const Teuchos::RCP< const panzer_stk::STK_Interface > &	mesh,
		const std::vector< std::string > &	fieldNames,
		const std::vector< std::string > &	exodusNames,
		const Teuchos::RCP< panzer::IntegrationRule > &	integrationRule
	)

Loads a set of fields from an exodus file into the field manager. The list of exodus names are mapped to the field names. The time index from the exodus file for these fields corresponds to the restart value in the exodus mesh reader.

Parameters

mesh	STK mesh to read value from
fieldNames	Names of all fields in the field manager
exodusNames	Names of the fields in the exodus file

Definition at line 25 of file Panzer_STK_GatherExodusCellDataToIP_impl.hpp.

Member Function Documentation

postRegistrationSetup()

template<typename EvalT , typename Traits >

void panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	vm
	)

Looks up the STK field pointers needed by evaluateFields(). Called once before the first evaluation.

Definition at line 59 of file Panzer_STK_GatherExodusCellDataToIP_impl.hpp.

evaluateFields()

template<typename EvalT , typename Traits >

void panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >::evaluateFields

(

typename Traits::EvalData

d

)

Gathers this workset's field values from the STK mesh at the restart time index, per the class description.

Definition at line 80 of file Panzer_STK_GatherExodusCellDataToIP_impl.hpp.

Member Data Documentation

mesh_

template<typename EvalT , typename Traits >

const Teuchos::RCP<const STK_Interface> panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >::mesh_

private

Definition at line 63 of file Panzer_STK_GatherExodusCellDataToIP.hpp.

exodusNames_

template<typename EvalT , typename Traits >

const std::vector<std::string> panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >::exodusNames_

private

Definition at line 64 of file Panzer_STK_GatherExodusCellDataToIP.hpp.

gatherFields_

template<typename EvalT , typename Traits >

std::vector<PHX::MDField<ScalarT,panzer::Cell,panzer::IP> > panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >::gatherFields_

private

Definition at line 65 of file Panzer_STK_GatherExodusCellDataToIP.hpp.

stkFields_

template<typename EvalT , typename Traits >

std::vector<VariableField*> panzer_stk::GatherExodusCellDataToIP< EvalT, Traits >::stkFields_

private

Definition at line 66 of file Panzer_STK_GatherExodusCellDataToIP.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_STK_GatherExodusCellDataToIP.hpp
• Panzer_STK_GatherExodusCellDataToIP_impl.hpp
