#include <Panzer_ScatterDirichletResidual_BlockedTpetra.hpp>

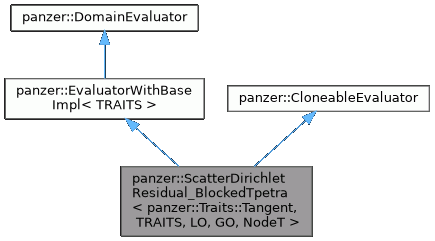

Inheritance diagram for panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >:

[legend]

Public Member Functions
	ScatterDirichletResidual_BlockedTpetra (const Teuchos::RCP< const BlockedDOFManager > &indexer)

	ScatterDirichletResidual_BlockedTpetra (const Teuchos::RCP< const BlockedDOFManager > &indexer, const Teuchos::ParameterList &p)

void	postRegistrationSetup (typename TRAITS::SetupData d, PHX::FieldManager< TRAITS > &vm)

void	preEvaluate (typename TRAITS::PreEvalData d)

void	evaluateFields (typename TRAITS::EvalData workset)

virtual Teuchos::RCP< CloneableEvaluator >	clone (const Teuchos::ParameterList &pl) const

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index.

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor.

virtual	~DomainEvaluator ()=default
	Default destructor.

void	setDomain (const DomainType domain)
	Set the domain for the evaluator.

DomainType	getDomain ()
	Get the domain for the evaluator.

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset.

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset.

Public Member Functions inherited from panzer::CloneableEvaluator
	CloneableEvaluator ()

virtual	~CloneableEvaluator ()

Private Types
typedef panzer::Traits::Tangent::ScalarT	ScalarT

typedef TRAITS::RealType	RealType

typedef BlockedTpetraLinearObjContainer< RealType, LO, GO, NodeT >	ContainerType

typedef Tpetra::Vector< RealType, LO, GO, NodeT >	VectorType

typedef Tpetra::CrsMatrix< RealType, LO, GO, NodeT >	CrsMatrixType

typedef Tpetra::CrsGraph< LO, GO, NodeT >	CrsGraphType

typedef Tpetra::Map< LO, GO, NodeT >	MapType

typedef Tpetra::Import< LO, GO, NodeT >	ImportType

typedef Tpetra::Export< LO, GO, NodeT >	ExportType

Private Member Functions
	ScatterDirichletResidual_BlockedTpetra ()

Private Attributes
Teuchos::RCP< PHX::FieldTag >	scatterHolder_

std::vector< PHX::MDField< const ScalarT, Cell, NODE > >	scatterFields_

Teuchos::RCP< const panzer::BlockedDOFManager >	globalIndexer_

std::vector< Teuchos::RCP< const panzer::GlobalIndexer > >	fieldGlobalIndexers_

std::vector< int >	fieldIds_
	Field IDs in the local product vector block (not global field id)

std::vector< int >	productVectorBlockIndex_

Teuchos::RCP< const std::map< std::string, std::string > >	fieldMap_

PHX::View< LO ** >	worksetLIDs_
	Local indices for unknowns.

std::vector< PHX::View< int * > >	fieldOffsets_
	Offset into the cell lids for each field.

std::vector< PHX::View< int * > >	basisIndexForMDFieldOffsets_

std::size_t	side_subcell_dim_

std::size_t	local_side_id_

Teuchos::RCP< Thyra::ProductVectorBase< double > >	dirichletCounter_

std::string	globalDataKey_

Teuchos::RCP< const BlockedTpetraLinearObjContainer< RealType, LO, GO, NodeT > >	blockedContainer_

bool	checkApplyBC_
	If set to true, allows runtime disabling of dirichlet BCs on node-by-node basis.

bool	scatterIC_

std::vector< PHX::MDField< const bool, Cell, NODE > >	applyBC_

PHX::ViewOfViews< 2, Kokkos::View< RealType **, Kokkos::LayoutLeft, PHX::Device > >	dfdpFieldsVoV_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 , EXTERNAL =4 , ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
WorksetDetailsAccessor	wda

Detailed Description

template<typename TRAITS, typename LO, typename GO, typename NodeT>
class panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >

Definition at line 268 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

Member Typedef Documentation

◆ ScalarT

template<typename TRAITS , typename LO , typename GO , typename NodeT >

typedef panzer::Traits::Tangent::ScalarT panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::ScalarT

private

Definition at line 291 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ RealType

template<typename TRAITS , typename LO , typename GO , typename NodeT >

typedef TRAITS::RealType panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::RealType

private

Definition at line 292 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ ContainerType

template<typename TRAITS , typename LO , typename GO , typename NodeT >

typedef BlockedTpetraLinearObjContainer<RealType,LO,GO,NodeT> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::ContainerType

private

Definition at line 294 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ VectorType

template<typename TRAITS , typename LO , typename GO , typename NodeT >

typedef Tpetra::Vector<RealType,LO,GO,NodeT> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::VectorType

private

Definition at line 295 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ CrsMatrixType

template<typename TRAITS , typename LO , typename GO , typename NodeT >

typedef Tpetra::CrsMatrix<RealType,LO,GO,NodeT> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::CrsMatrixType

private

Definition at line 296 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ CrsGraphType

template<typename TRAITS , typename LO , typename GO , typename NodeT >

typedef Tpetra::CrsGraph<LO,GO,NodeT> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::CrsGraphType

private

Definition at line 297 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ MapType

template<typename TRAITS , typename LO , typename GO , typename NodeT >

typedef Tpetra::Map<LO,GO,NodeT> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::MapType

private

Definition at line 298 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ ImportType

template<typename TRAITS , typename LO , typename GO , typename NodeT >

typedef Tpetra::Import<LO,GO,NodeT> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::ImportType

private

Definition at line 299 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ ExportType

template<typename TRAITS , typename LO , typename GO , typename NodeT >

typedef Tpetra::Export<LO,GO,NodeT> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::ExportType

private

Definition at line 300 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

Constructor & Destructor Documentation

◆ ScatterDirichletResidual_BlockedTpetra() [1/3]

template<typename TRAITS , typename LO , typename GO , typename NodeT >

panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::ScatterDirichletResidual_BlockedTpetra ( const Teuchos::RCP< const BlockedDOFManager > & indexer )

inline

Definition at line 274 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ ScatterDirichletResidual_BlockedTpetra() [2/3]

template<typename TRAITS , typename LO , typename GO , typename NodeT >

panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::ScatterDirichletResidual_BlockedTpetra	(	const Teuchos::RCP< const BlockedDOFManager > &	indexer,
		const Teuchos::ParameterList &	p
	)

Definition at line 627 of file Panzer_ScatterDirichletResidual_BlockedTpetra_impl.hpp.

◆ ScatterDirichletResidual_BlockedTpetra() [3/3]

template<typename TRAITS , typename LO , typename GO , typename NodeT >

panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::ScatterDirichletResidual_BlockedTpetra ( )

inlineprivate

Definition at line 360 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

Member Function Documentation

◆ postRegistrationSetup()

template<typename TRAITS , typename LO , typename GO , typename NodeT >

void panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::postRegistrationSetup	(	typename TRAITS::SetupData	d,
		PHX::FieldManager< TRAITS > &	vm
	)

Definition at line 684 of file Panzer_ScatterDirichletResidual_BlockedTpetra_impl.hpp.

◆ preEvaluate()

template<typename TRAITS , typename LO , typename GO , typename NodeT >

void panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::preEvaluate ( typename TRAITS::PreEvalData d )

Definition at line 749 of file Panzer_ScatterDirichletResidual_BlockedTpetra_impl.hpp.

◆ evaluateFields()

template<typename TRAITS , typename LO , typename GO , typename NodeT >

void panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::evaluateFields ( typename TRAITS::EvalData workset )

Definition at line 788 of file Panzer_ScatterDirichletResidual_BlockedTpetra_impl.hpp.

◆ clone()

template<typename TRAITS , typename LO , typename GO , typename NodeT >

virtual Teuchos::RCP< CloneableEvaluator > panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::clone ( const Teuchos::ParameterList & pl ) const

inlinevirtual

Implements panzer::CloneableEvaluator.

Definition at line 287 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

Member Data Documentation

◆ scatterHolder_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

Teuchos::RCP<PHX::FieldTag> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::scatterHolder_

private

Definition at line 303 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ scatterFields_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

std::vector< PHX::MDField<const ScalarT,Cell,NODE> > panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::scatterFields_

private

Definition at line 306 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ globalIndexer_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

Teuchos::RCP<const panzer::BlockedDOFManager> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::globalIndexer_

private

Definition at line 310 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ fieldGlobalIndexers_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

std::vector<Teuchos::RCP<const panzer::GlobalIndexer> > panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::fieldGlobalIndexers_

private

Vector of global indexers, one for each scattered field respectively. This is the global indexer for the Thyra ProductVector sub-block.

Definition at line 315 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ fieldIds_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

std::vector<int> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::fieldIds_

private

Field IDs in the local product vector block (not global field id)

Definition at line 318 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ productVectorBlockIndex_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

std::vector<int> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::productVectorBlockIndex_

private

Returns the index into the Thyra ProductVector sub-block. Size of number of fields to scatter.

Definition at line 322 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ fieldMap_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

Teuchos::RCP<const std::map<std::string,std::string> > panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::fieldMap_

private

Definition at line 328 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ worksetLIDs_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

PHX::View<LO**> panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::worksetLIDs_

private

Local indices for unknowns.

Definition at line 331 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ fieldOffsets_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

std::vector<PHX::View<int*> > panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::fieldOffsets_

private

Offset into the cell lids for each field.

Definition at line 334 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

◆ basisIndexForMDFieldOffsets_

template<typename TRAITS , typename LO , typename GO , typename NodeT >

std::vector<PHX::View<int*> > panzer::ScatterDirichletResidual_BlockedTpetra< panzer::Traits::Tangent, TRAITS, LO, GO, NodeT >::basisIndexForMDFieldOffsets_

private

The local basis index corresponding to the fieldOffset_. Used to index into the basis index of MDFields. This is only required for tangent/normal BCs.

Definition at line 339 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.
