Computes $\int (a(x)\cdots\vec{s}(x))\cdot\vec{\phi}(x)\,dx$ . More...

#include <Panzer_Integrator_BasisTimesTensorTimesVector.hpp>

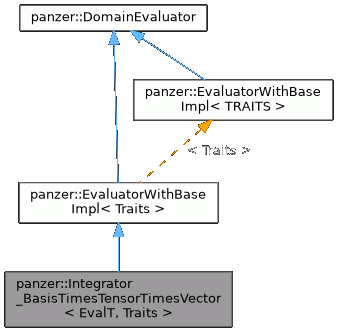

Inheritance diagram for panzer::Integrator_BasisTimesTensorTimesVector< EvalT, Traits >:

[legend]

Public Member Functions
	Integrator_BasisTimesTensorTimesVector (const panzer::EvaluatorStyle &evalStyle, const std::string &resName, const std::string &valName, const panzer::BasisIRLayout &basis, const panzer::IntegrationRule &ir, const std::string &tensorName)
	Main Constructor.

	Integrator_BasisTimesTensorTimesVector (const Teuchos::ParameterList &p)
	`ParameterList` Constructor.

	Integrator_BasisTimesTensorTimesVector (const panzer::EvaluatorStyle &evalStyle, const PHX::FieldTag &resTag, const PHX::FieldTag &valTag, const BasisDescriptor &bd, const IntegrationDescriptor &id, const PHX::FieldTag &tensorTag)
	Descriptor Constructor.

void	postRegistrationSetup (typename Traits::SetupData sd, PHX::FieldManager< Traits > &fm)
	Post-Registration Setup.

void	evaluateFields (typename Traits::EvalData workset)
	Evaluate Fields.

KOKKOS_INLINE_FUNCTION void	operator() (const std::size_t &cell) const
	Perform the integration.

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index.

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor.

virtual	~DomainEvaluator ()=default
	Default destructor.

void	setDomain (const DomainType domain)
	Set the domain for the evaluator.

DomainType	getDomain ()
	Get the domain for the evaluator.

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset.

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset.

Private Types
using	ScalarT = typename EvalT::ScalarT
	The scalar type.

Private Member Functions
Teuchos::RCP< Teuchos::ParameterList >	getValidParameters () const
	Get Valid Parameters.

Private Attributes
const panzer::EvaluatorStyle	evalStyle_
	An `enum` determining the behavior of this `Evaluator`.

bool	useDescriptors_
	A flag indicating whether or not to use the descriptor interface.

BasisDescriptor	bd_
	The `BasisDescriptor` for the basis to use.

IntegrationDescriptor	id_
	The `IntegrationDescriptor` for the quadrature to use.

PHX::MDField< ScalarT, panzer::Cell, panzer::BASIS >	field_
	A field to which we'll contribute, or in which we'll store, the result of computing this integral.

PHX::MDField< const ScalarT, panzer::Cell, panzer::IP, panzer::Dim >	vector_
	A field representing the vector-valued function we're integrating ( $\vec{s}$ ).

PHX::MDField< const ScalarT, panzer::Cell, panzer::IP, panzer::Dim, panzer::Dim >	tensor_
	The tensor field( ).

PHX::View< const ScalarT **** >	kokkosTensor_
	The `PHX::View` representation of the tensor fields that are multiplied out in front of the integral ( ).

int	numQP_
	The number of quadrature points for each cell.

int	numDim_
	The dimensionality of our vector-valued fields.

std::string	basisName_
	The name of the basis we're using.

std::size_t	basisIndex_
	The index in the `Workset` bases for our particular `BasisIRLayout` name.

PHX::MDField< const double, panzer::Cell, panzer::BASIS, panzer::IP, panzer::Dim >	basis_
	The vector basis information necessary for integration.

PHX::View< ScalarT * >	tmp_
	Scratch space for caching temporary values in the kokkos kernel.

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 , EXTERNAL =4 , ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::Integrator_BasisTimesTensorTimesVector< EvalT, Traits >

Computes $\int (a(x)\cdots\vec{s}(x))\cdot\vec{\phi}(x)\,dx$ .

Evaluates the integral

$\int (a(x)\cdots\vec{s}(x))\cdot\vec{\phi}(x)\,dx,$

where is a tensor valued field that depends on position, $\vec{s}$ is some vector- valued function, and $\vec{\phi}$ is some vector basis.

Definition at line 49 of file Panzer_Integrator_BasisTimesTensorTimesVector.hpp.

Member Typedef Documentation

◆ ScalarT

template<typename EvalT , typename Traits >

using panzer::Integrator_BasisTimesTensorTimesVector< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

The scalar type.

Definition at line 233 of file Panzer_Integrator_BasisTimesTensorTimesVector.hpp.

Constructor & Destructor Documentation

◆ Integrator_BasisTimesTensorTimesVector() [1/3]

template<typename EvalT , typename Traits >

panzer::Integrator_BasisTimesTensorTimesVector< EvalT, Traits >::Integrator_BasisTimesTensorTimesVector	(	const panzer::EvaluatorStyle &	evalStyle,
		const std::string &	resName,
		const std::string &	valName,
		const panzer::BasisIRLayout &	basis,
		const panzer::IntegrationRule &	ir,
		const std::string &	tensorName
	)

Main Constructor.

Creates an Evaluator to evaluate the integral

$\int (a(x)\cdots\vec{s}(x))\cdot\vec{\phi}(x)\,dx,$

where is a tensor valued field that depends on position, $\vec{s}$ is some vector- valued function, and $\vec{\phi}$ is some vector basis.

Parameters

[in]	evalStyle	An `enum` declaring the behavior of this `Evaluator`, which is to either: compute and contribute (`CONTRIBUTES`), or compute and store (`EVALUATES`).
[in]	resName	The name of either the contributed or evaluated field, depending on `evalStyle`.
[in]	valName	The name of the vector value being integrated ( $\vec{s}$ ).
[in]	basis	The vector basis that you'd like to use ( $\vec{\phi}$ ).
[in]	ir	The integration rule that you'd like to use.
[in]	tensorName	The tensors name ( ).

Exceptions

std::invalid_argument	If any of the inputs are invalid.
std::logic_error	If the `basis` supplied is not a vector basis, or if it doesn't require orientations.

Definition at line 33 of file Panzer_Integrator_BasisTimesTensorTimesVector_impl.hpp.

◆ Integrator_BasisTimesTensorTimesVector() [2/3]

template<typename EvalT , typename Traits >

panzer::Integrator_BasisTimesTensorTimesVector< EvalT, Traits >::Integrator_BasisTimesTensorTimesVector ( const Teuchos::ParameterList & p )

ParameterList Constructor.

Creates an Evaluator to evaluate the integral

$\int (a(x)\cdots\vec{s}(x))\cdot\vec{\phi}(x)\,dx,$

where is a tensor valued field that depends on position, $\vec{s}$ is some vector- valued function, and $\vec{\phi}$ is some vector basis.

Note: This constructor exists to preserve the older way of creating an Evaluator with a ParameterList; however, it is strongly advised that you not use this ParameterList Constructor, but rather that you favor the Main Constructor with its compile-time argument checking instead.

Parameters

[in]

p

A ParameterList of the form

<ParameterList>
  <Parameter name = "Residual Name"     type = "std::string"                         value = (required)    />
  <Parameter name = "Value Name"        type = "std::string"                         value = (required)    />
  <Parameter name = "Basis"             type = "RCP<panzer::BasisIRLayout>"          value = (required)    />
  <Parameter name = "IR"                type = "RCP<panzer::IntegrationRule>"        value = (required)    />
  <Parameter name = "Tensor Name"       type = "std::string"                         value = (required)    />
</ParameterList>

where

"Residual Name" is the name for the term this Evaluator is evaluating,
"Value Name" is the name of the vector value being integrated ( $\vec{s}$ ),
"Basis" is the vector basis that you'd like to use ( $\vec{\phi}$ ),
"IR" is the integration rule that you'd like to use, and
"Tensor Name" is the name of the tensor field ( ).

Definition at line 170 of file Panzer_Integrator_BasisTimesTensorTimesVector_impl.hpp.

◆ Integrator_BasisTimesTensorTimesVector() [3/3]

template<typename EvalT , typename Traits >

panzer::Integrator_BasisTimesTensorTimesVector< EvalT, Traits >::Integrator_BasisTimesTensorTimesVector	(	const panzer::EvaluatorStyle &	evalStyle,
		const PHX::FieldTag &	resTag,
		const PHX::FieldTag &	valTag,
		const BasisDescriptor &	bd,
		const IntegrationDescriptor &	id,
		const PHX::FieldTag &	tensorTag
	)

Descriptor Constructor.

Creates an Evaluator to evaluate the integral

$\int (a(x)\cdots\vec{s}(x))\cdot\vec{\phi}(x)\,dx,$

where is a tensor valued field that depends on position, $\vec{s}$ is some vector- valued function, and $\vec{\phi}$ is some vector basis.

Parameters

[in]	evalStyle	An `enum` declaring the behavior of this `Evaluator`, which is to either: compute and contribute (`CONTRIBUTES`), or compute and store (`EVALUATES`).
[in]	resTag	The tag of either the contributed or evaluated field, depending on `evalStyle`.
[in]	valTag	The tag of the vector value being integrated ( $\vec{s}$ ).
[in]	bd	The vector basisdescripotr that you'd like to use ( $\vec{\phi}$ ).
[in]	id	The integration descriptor that you'd like to use.
[in]	tensorTag	The tag of the tensor ( ).

Exceptions

std::invalid_argument	If any of the inputs are invalid.
std::logic_error	If the `basis` supplied is not a vector basis, or if it doesn't require orientations.

Definition at line 105 of file Panzer_Integrator_BasisTimesTensorTimesVector_impl.hpp.

Member Function Documentation

◆ postRegistrationSetup()

template<typename EvalT , typename Traits >

void panzer::Integrator_BasisTimesTensorTimesVector< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	sd,
		PHX::FieldManager< Traits > &	fm
	)

Post-Registration Setup.

Sets the PHX::Views for all the of the field multipliers, sets the number of quadrature points and dimensions in our vector field, and sets the basis index.

Parameters

[in]	sd	Essentially a list of `Workset`s, which are collections of cells (elements) that all live on a single process.
[in]	fm	This is unused, though part of the interface.

Definition at line 197 of file Panzer_Integrator_BasisTimesTensorTimesVector_impl.hpp.

◆ evaluateFields()

template<typename EvalT , typename Traits >

void panzer::Integrator_BasisTimesTensorTimesVector< EvalT, Traits >::evaluateFields ( typename Traits::EvalData workset )

Evaluate Fields.

This actually performs the integration by calling operator()() in a Kokkos::parallel_for over the cells in the Workset.

Parameters

[in] workeset The Workset on which you're going to do the integration.

Definition at line 269 of file Panzer_Integrator_BasisTimesTensorTimesVector_impl.hpp.

◆ operator()()

template<typename EvalT , typename Traits >

KOKKOS_INLINE_FUNCTION void panzer::Integrator_BasisTimesTensorTimesVector< EvalT, Traits >::operator() ( const std::size_t & cell ) const

Perform the integration.

Generally speaking, for a given cell in the Workset, this routine loops over quadrature points, vector dimensions, and bases to perform the integration, scaling the vector field to be integrated by the tensor ( ).

Parameters

[in]	tag	An indication of the number of field multipliers we have; either 0, 1, or something else.
[in]	cell	The cell in the `Workset` over which to integrate.

Definition at line 234 of file Panzer_Integrator_BasisTimesTensorTimesVector_impl.hpp.
