#include <Panzer_IntegrationRule.hpp>

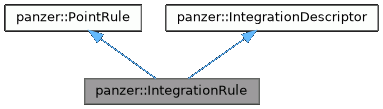

Inheritance diagram for panzer::IntegrationRule:

[legend]

Public Member Functions
	IntegrationRule (int cubature_degree, const panzer::CellData &cell_data)
	if side = -1 then we use the cell volume integration rule.

	IntegrationRule (const panzer::CellData &cell_data, const std::string &cv_type)

	IntegrationRule (const panzer::IntegrationDescriptor &description, const Teuchos::RCP< const shards::CellTopology > &cell_topology, const int num_cells, const int num_faces=-1)

void	setup (int cubature_degree, const panzer::CellData &cell_data)

void	setup_cv (const panzer::CellData &cell_data, std::string cv_type)

int	order () const
	Returns the order of integration (cubature degree in intrepid lingo)

virtual void	print (std::ostream &os)
	print information about the integration rule

void	referenceCoordinates (Kokkos::DynRankView< double, PHX::Device > &container)
	Construct an array containing the reference coordinates.

int	getPointOffset (const int subcell_index) const
	Returns the integration point offset for a given subcell_index (i.e. local face index)

Public Member Functions inherited from panzer::PointRule
	PointRule (const std::string &ptName, int np, const panzer::CellData &cell_data)

	PointRule (const std::string &point_rule_name, const int num_cells, const int num_points_per_cell, const int num_faces, const int num_points_per_face, const Teuchos::RCP< const shards::CellTopology > &cell_topology)

	PointRule (const panzer::PointDescriptor &description, const Teuchos::RCP< const shards::CellTopology > &cell_topology, const int num_cells)

virtual	~PointRule ()
	Destructor (Satisfying the compiler)

void	setup (const std::string &ptName, int np, const panzer::CellData &cell_data)

bool	isSide () const

const std::string &	getName () const

Teuchos::RCP< PHX::DataLayout >	getCellDataLayout () const

Teuchos::RCP< PHX::DataLayout >	getCellDataLayout (const int dim0) const

Teuchos::RCP< PHX::DataLayout >	getCellDataLayout (const int dim0, const int dim1) const

Teuchos::RCP< PHX::DataLayout >	getCellPointDataLayout () const

Teuchos::RCP< PHX::DataLayout >	getCellPointDataLayout (const int dim0) const

Teuchos::RCP< PHX::DataLayout >	getCellPointDataLayout (const int dim0, const int dim1) const

Teuchos::RCP< PHX::DataLayout >	getFaceDataLayout () const

Teuchos::RCP< PHX::DataLayout >	getFaceDataLayout (const int dim0) const

Teuchos::RCP< PHX::DataLayout >	getFaceDataLayout (const int dim0, const int dim1) const

Teuchos::RCP< PHX::DataLayout >	getFacePointDataLayout () const

Teuchos::RCP< PHX::DataLayout >	getFacePointDataLayout (const int dim0) const

Teuchos::RCP< PHX::DataLayout >	getFacePointDataLayout (const int dim0, const int dim1) const

Public Member Functions inherited from panzer::IntegrationDescriptor
	IntegrationDescriptor ()
	Constructor for empty integrator.

virtual	~IntegrationDescriptor ()=default
	Destructor.

	IntegrationDescriptor (const int cubature_order, const int integration_type, const int side=-1)
	Constructor for integrator description.

const int &	getType () const
	Get type of integrator.

const int &	getOrder () const
	Get order of integrator.

const int &	getSide () const
	Get side associated with integration - this is for backward compatibility.

std::size_t	getKey () const
	Get unique key associated with integrator of this order and type The key is used to sort through a map of IntegrationDescriptors.

Public Attributes
int	cubature_degree

std::string	cv_type

Public Attributes inherited from panzer::PointRule
Teuchos::RCP< const shards::CellTopology >	topology

Teuchos::RCP< shards::CellTopology >	side_topology

Teuchos::RCP< PHX::DataLayout >	dl_scalar
	Data layout for scalar fields.

Teuchos::RCP< PHX::DataLayout >	dl_vector
	Data layout for vector fields.

Teuchos::RCP< PHX::DataLayout >	dl_tensor
	Data layout for rank-2 tensor fields.

Teuchos::RCP< PHX::DataLayout >	dl_vector3
	Data layout for vector fields - full (x,y,z)

Teuchos::RCP< PHX::DataLayout >	dl_tensor3x3
	Data layout for vector fields - full ((xx,xy,xz),(yx,yy,yz),(zx,zy,zz)) (or transpose?)

int	spatial_dimension

int	workset_size

int	num_points

int	side
	Defaults to -1 if this is volume and not sideset.

Protected Member Functions
void	setup_surface (const Teuchos::RCP< const shards::CellTopology > &cell_topology, const int num_cells, const int num_faces)
	Setup a surface integration.

Protected Member Functions inherited from panzer::PointRule
	PointRule ()

void	setup (const std::string &point_rule_name, const int num_cells, const int num_points_per_cell, const int num_faces, const int num_points_per_face, const Teuchos::RCP< const shards::CellTopology > &cell_topology)

Protected Member Functions inherited from panzer::IntegrationDescriptor
void	setup (const int cubature_order, const int integration_type, const int side=-1)
	Setup function.

Protected Attributes
std::vector< int >	_point_offsets

Protected Attributes inherited from panzer::PointRule
int	_num_faces

int	_num_points_per_face

Protected Attributes inherited from panzer::IntegrationDescriptor
int	_integration_type
	Type of integration.

int	_cubature_order
	Order of integration (Order of polynomial this integrator is designed for)

int	_side
	Side associated with integration - this is for backward compatibility.

std::size_t	_key
	Unique key associated with integrator.

Additional Inherited Members
Public Types inherited from panzer::IntegrationDescriptor
enum	{ NONE , VOLUME , SURFACE , SIDE , CV_VOLUME , CV_SIDE , CV_BOUNDARY }
	Possible integration types. More...

Static Protected Member Functions inherited from panzer::PointRule
static Teuchos::RCP< shards::CellTopology >	getSideTopology (const CellData &cell_data)

Detailed Description

Derived class for building a point rule based on a finite element integration rule.

Parameters

[in]	cubature_degree	Order of the cubature integration.
[in]	cell_data	Description of the cell.

Definition at line 40 of file Panzer_IntegrationRule.hpp.

Constructor & Destructor Documentation

◆ IntegrationRule() [1/3]

panzer::IntegrationRule::IntegrationRule	(	int	cubature_degree,
		const panzer::CellData &	cell_data
	)

if side = -1 then we use the cell volume integration rule.

Definition at line 24 of file Panzer_IntegrationRule.cpp.

◆ IntegrationRule() [2/3]

panzer::IntegrationRule::IntegrationRule	(	const panzer::CellData &	cell_data,
		const std::string &	cv_type
	)

Definition at line 36 of file Panzer_IntegrationRule.cpp.

◆ IntegrationRule() [3/3]

panzer::IntegrationRule::IntegrationRule	(	const panzer::IntegrationDescriptor &	description,
		const Teuchos::RCP< const shards::CellTopology > &	cell_topology,
		const int	num_cells,
		const int	num_faces = `-1`
	)

Definition at line 58 of file Panzer_IntegrationRule.cpp.

Member Function Documentation

◆ setup()

void panzer::IntegrationRule::setup	(	int	cubature_degree,
		const panzer::CellData &	cell_data
	)

Definition at line 97 of file Panzer_IntegrationRule.cpp.

◆ setup_cv()

void panzer::IntegrationRule::setup_cv	(	const panzer::CellData &	cell_data,
		std::string	cv_type
	)

Definition at line 188 of file Panzer_IntegrationRule.cpp.

◆ order()

int panzer::IntegrationRule::order ( ) const

Returns the order of integration (cubature degree in intrepid lingo)

Definition at line 232 of file Panzer_IntegrationRule.cpp.

◆ print()

void panzer::IntegrationRule::print ( std::ostream & os )

virtual

print information about the integration rule

Reimplemented from panzer::PointRule.

Definition at line 244 of file Panzer_IntegrationRule.cpp.

◆ referenceCoordinates()

void panzer::IntegrationRule::referenceCoordinates ( Kokkos::DynRankView< double, PHX::Device > & container )

Construct an array containing the reference coordinates.

Definition at line 256 of file Panzer_IntegrationRule.cpp.

◆ getPointOffset()

int panzer::IntegrationRule::getPointOffset ( const int subcell_index ) const

Returns the integration point offset for a given subcell_index (i.e. local face index)

Definition at line 236 of file Panzer_IntegrationRule.cpp.

◆ setup_surface()

void panzer::IntegrationRule::setup_surface	(	const Teuchos::RCP< const shards::CellTopology > &	cell_topology,
		const int	num_cells,
		const int	num_faces
	)

protected

Setup a surface integration.

Definition at line 135 of file Panzer_IntegrationRule.cpp.

Member Data Documentation

◆ cubature_degree

int panzer::IntegrationRule::cubature_degree

Definition at line 68 of file Panzer_IntegrationRule.hpp.

◆ cv_type

std::string panzer::IntegrationRule::cv_type

Definition at line 72 of file Panzer_IntegrationRule.hpp.

◆ _point_offsets

std::vector<int> panzer::IntegrationRule::_point_offsets
