Public Member Functions | List of all members
LOCA::Pitchfork::MinimallyAugmented::Constraint Class Reference

Implementation of LOCA::MultiContinuation::ConstraintInterfaceMVDX for computing pitchforks for the minimally augmented pitchfork formulation. More...

#include <LOCA_Pitchfork_MinimallyAugmented_Constraint.H>

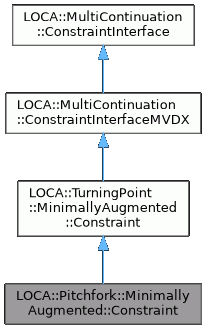

Inheritance diagram for LOCA::Pitchfork::MinimallyAugmented::Constraint:
Inheritance graph
[legend]
Collaboration diagram for LOCA::Pitchfork::MinimallyAugmented::Constraint:
Collaboration graph
[legend]

Public Member Functions

 Constraint (const Teuchos::RCP< LOCA::GlobalData > &global_data, const Teuchos::RCP< LOCA::Parameter::SublistParser > &topParams, const Teuchos::RCP< Teuchos::ParameterList > &pfParams, const Teuchos::RCP< LOCA::Pitchfork::MinimallyAugmented::AbstractGroup > &g, const Teuchos::RCP< const NOX::Abstract::Vector > &psi, int bif_param)
 Constructor.

 Constraint (const Constraint &source, NOX::CopyType type=NOX::DeepCopy)
 Copy constructor.

virtual ~Constraint ()
 Destructor.

virtual void setGroup (const Teuchos::RCP< LOCA::TurningPoint::MinimallyAugmented::AbstractGroup > &g)
 Set the group pointer.

- Public Member Functions inherited from LOCA::TurningPoint::MinimallyAugmented::Constraint
 Constraint (const Teuchos::RCP< LOCA::GlobalData > &global_data, const Teuchos::RCP< LOCA::Parameter::SublistParser > &topParams, const Teuchos::RCP< Teuchos::ParameterList > &tpParams, const Teuchos::RCP< LOCA::TurningPoint::MinimallyAugmented::AbstractGroup > &g, int bif_param)
 Constructor.

 Constraint (const Constraint &source, NOX::CopyType type=NOX::DeepCopy)
 Copy constructor.

virtual void setGroup (const Teuchos::RCP< LOCA::TurningPoint::MinimallyAugmented::AbstractGroup > &g)
 Set the group pointer.

virtual Teuchos::RCP< const NOX::Abstract::Vector > getLeftNullVec () const
 Returns left null vector w.

virtual Teuchos::RCP< const NOX::Abstract::Vector > getRightNullVec () const
 Returns right null vector v.

virtual Teuchos::RCP< const NOX::Abstract::Vector > getAVec () const
 Returns a vector.

virtual Teuchos::RCP< const NOX::Abstract::Vector > getBVec () const
 Returns b vector.

virtual double getSigma () const
 Returns sigma.

virtual void setX (const NOX::Abstract::Vector &y)
 Set the solution vector to y.

virtual void setParam (int paramID, double val)
 Sets parameter indexed by paramID.

virtual void setParams (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)
 Sets parameters indexed by paramIDs.

virtual bool isConstraints () const
 Return true if constraint residuals are valid.

virtual bool isDX () const
 Return true if derivatives of constraints w.r.t. x are valid.

virtual bool isDXZero () const
 Return true if solution component of constraint derivatives is zero.

virtual void postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus stepStatus)
 Perform any postprocessing after a continuation step finishes.

- Public Member Functions inherited from LOCA::MultiContinuation::ConstraintInterfaceMVDX
 ConstraintInterfaceMVDX ()
 Constructor.

virtual ~ConstraintInterfaceMVDX ()
 Destructor.

virtual NOX::Abstract::Group::ReturnType multiplyDX (double alpha, const NOX::Abstract::MultiVector &input_x, NOX::Abstract::MultiVector::DenseMatrix &result_p) const
 Compute result_p = alpha * dg/dx * input_x.

virtual NOX::Abstract::Group::ReturnType addDX (Teuchos::ETransp transb, double alpha, const NOX::Abstract::MultiVector::DenseMatrix &b, double beta, NOX::Abstract::MultiVector &result_x) const
 Compute result_x = alpha * dg/dx^T * op(b) + beta * result_x.

- Public Member Functions inherited from LOCA::MultiContinuation::ConstraintInterface
 ConstraintInterface ()
 Constructor.

virtual ~ConstraintInterface ()
 Destructor.

virtual void preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus)
 Perform any preprocessing before a continuation step starts.


Implementation of LOCA::MultiContinuation::ConstraintInterface

virtual methods

Teuchos::RCP< LOCA::Pitchfork::MinimallyAugmented::AbstractGroup > pf_grp
 Pointer to pitchfork group.

Teuchos::RCP< const NOX::Abstract::Vector > psi_vector
 Vector for $\psi$.

Teuchos::RCP< NOX::Abstract::MultiVector > dgdx
 Stores dg/dx.

NOX::Abstract::MultiVector::DenseMatrix pf_constraints
 Constraint values.

virtual void copy (const LOCA::MultiContinuation::ConstraintInterface &source)
 Copy.

virtual Teuchos::RCP< LOCA::MultiContinuation::ConstraintInterface > clone (NOX::CopyType type=NOX::DeepCopy) const
 Cloning function.

virtual int numConstraints () const
 Return number of constraints.

virtual NOX::Abstract::Group::ReturnType computeConstraints ()
 Compute continuation constraint equations.

virtual NOX::Abstract::Group::ReturnType computeDX ()
 Compute derivative of constraints w.r.t. solution vector x.

virtual NOX::Abstract::Group::ReturnType computeDP (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector::DenseMatrix &dgdp, bool isValidG)
 Compute derivative of constraints w.r.t. supplied parameters.

virtual const NOX::Abstract::MultiVector::DenseMatrix & getConstraints () const
 Return constraint residuals.

virtual const NOX::Abstract::MultiVector * getDX () const
 Return solution component of constraint derivatives.


Additional Inherited Members

- Protected Types inherited from LOCA::TurningPoint::MinimallyAugmented::Constraint
enum  NullVectorScaling { NVS_None , NVS_OrderOne , NVS_OrderN }
 Enumerated type determining type of scaling. More...

- Protected Member Functions inherited from LOCA::TurningPoint::MinimallyAugmented::Constraint
virtual void scaleNullVectors (NOX::Abstract::Vector &a, NOX::Abstract::Vector &b)
 Scale a & b vectors.

virtual void getInitialVectors (NOX::Abstract::Vector &a, NOX::Abstract::Vector &b)
 Get initial a & b vectors.

- Protected Attributes inherited from LOCA::TurningPoint::MinimallyAugmented::Constraint
Teuchos::RCP< LOCA::GlobalData > globalData
 Pointer LOCA global data object.

Teuchos::RCP< LOCA::Parameter::SublistParser > parsedParams
 Parsed top-level parameters.

Teuchos::RCP< Teuchos::ParameterList > turningPointParams
 Bifurcation parameter list.

Teuchos::RCP< LOCA::TurningPoint::MinimallyAugmented::AbstractGroup > grpPtr
 Pointer to base group that defines $F$.

Teuchos::RCP< NOX::Abstract::MultiVector > a_vector
 Vector for $a$.

Teuchos::RCP< NOX::Abstract::MultiVector > b_vector
 Vector for $b$.

Teuchos::RCP< NOX::Abstract::MultiVector > w_vector
 Stores left null vector.

Teuchos::RCP< NOX::Abstract::MultiVector > v_vector
 Stores right null vector.

Teuchos::RCP< NOX::Abstract::MultiVector > Jv_vector
 Stores J*v.

Teuchos::RCP< NOX::Abstract::MultiVector > Jtw_vector
 Stores J^T*w.

Teuchos::RCP< NOX::Abstract::MultiVector > sigma_x
 Stores sigma_x.

NOX::Abstract::MultiVector::DenseMatrix constraints
 Constraint values.

Teuchos::RCP< LOCA::BorderedSolver::AbstractStrategy > borderedSolver
 Stores bordered solver strategy.

double dn
 Stores vector length as a double.

double sigma_scale
 Stores scale factor on sigma.

bool isSymmetric
 Flag indicating whether Jacobian is symmetric.

bool isValidConstraints
 Flag indicating whether constraints are valid.

bool isValidDX
 Flag indicating whether sigma_x is valid.

std::vector< int > bifParamID
 Stores the bifurcation parameter index.

bool updateVectorsEveryContinuationStep
 Flag indicating whether to update $a$ and $b$ every continuation step.

bool updateVectorsEveryIteration
 Flag indicating whether to update $a$ and $b$ every nonlinear iteration.

NullVectorScaling nullVecScaling
 Null vector scaling method.

bool multiplyMass
 Multiply null vectors by mass matrix.

Teuchos::RCP< LOCA::TimeDependent::AbstractGroup > tdGrp
 Time dependent group interface for multiplying by mass matrix.

Teuchos::RCP< NOX::Abstract::Vector > tmp_mass
 Temporary vector for mulplying null vectors by mass matrix.


Detailed Description

Implementation of LOCA::MultiContinuation::ConstraintInterfaceMVDX for computing pitchforks for the minimally augmented pitchfork formulation.

This class implements the pitchfork constraint equations $\sigma(x,p) = 0$, $\langle \psi,x \rangle = 0$ for the minimally augmented pitchfork formulation where $\sigma$ is defined via

\[ \begin{bmatrix} J & a \\ b^T & 0 \end{bmatrix} \begin{bmatrix} v \\ \sigma_1 \end{bmatrix} = \begin{bmatrix} 0 \\ n \end{bmatrix}, \]

\[ \begin{bmatrix} J^T & b \\ a^T & 0 \end{bmatrix} \begin{bmatrix} w \\ \sigma_2 \end{bmatrix} = \begin{bmatrix} 0 \\ n \end{bmatrix}, \]

\[ \sigma = -w^T J v/n \]

for any vectors $a$ and $b$ in $\Re^n$. Using these relationships, it is easy to show

\[ \begin{split} \sigma_x &= -(w^T J v)_x/n = -w^T J_x v/n \\ \sigma_p &= -(w^T J v)_p/n = -w^T J_p v/n \end{split} \]

The class is derived from LOCA::TurningPoint::MinimallyAugmented::Constraint. See this class for a description of available parameters.

Constructor & Destructor Documentation

◆ ~Constraint()

LOCA::Pitchfork::MinimallyAugmented::Constraint::~Constraint ( )
virtual

Destructor.

Reimplemented from LOCA::TurningPoint::MinimallyAugmented::Constraint.

Member Function Documentation

◆ clone()

Teuchos::RCP< LOCA::MultiContinuation::ConstraintInterface > LOCA::Pitchfork::MinimallyAugmented::Constraint::clone ( NOX::CopyType  type = NOX::DeepCopy) const
virtual

Cloning function.

Reimplemented from LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ computeConstraints()

NOX::Abstract::Group::ReturnType LOCA::Pitchfork::MinimallyAugmented::Constraint::computeConstraints ( )
virtual

Compute continuation constraint equations.

Reimplemented from LOCA::TurningPoint::MinimallyAugmented::Constraint.

References LOCA::TurningPoint::MinimallyAugmented::Constraint::computeConstraints(), and NOX::Abstract::Group::Ok.

◆ computeDP()

NOX::Abstract::Group::ReturnType LOCA::Pitchfork::MinimallyAugmented::Constraint::computeDP ( const std::vector< int > &  paramIDs,
NOX::Abstract::MultiVector::DenseMatrix &  dgdp,
bool  isValidG
)
virtual

Compute derivative of constraints w.r.t. supplied parameters.

The first column of dgdp should be filled with the constraint residuals $g$ if isValidG is false. If isValidG is true, then the dgdp contains $g$ on input.

Reimplemented from LOCA::TurningPoint::MinimallyAugmented::Constraint.

References LOCA::TurningPoint::MinimallyAugmented::Constraint::computeDP().

◆ computeDX()

NOX::Abstract::Group::ReturnType LOCA::Pitchfork::MinimallyAugmented::Constraint::computeDX ( )
virtual

Compute derivative of constraints w.r.t. solution vector x.

Reimplemented from LOCA::TurningPoint::MinimallyAugmented::Constraint.

References LOCA::TurningPoint::MinimallyAugmented::Constraint::computeDX(), and NOX::Abstract::Group::Ok.

◆ copy()

void LOCA::Pitchfork::MinimallyAugmented::Constraint::copy ( const LOCA::MultiContinuation::ConstraintInterface &  source)
virtual

Copy.

Reimplemented from LOCA::TurningPoint::MinimallyAugmented::Constraint.

References LOCA::TurningPoint::MinimallyAugmented::Constraint::copy(), dgdx, pf_constraints, and psi_vector.

◆ getConstraints()

const NOX::Abstract::MultiVector::DenseMatrix & LOCA::Pitchfork::MinimallyAugmented::Constraint::getConstraints ( ) const
virtual

Return constraint residuals.

Reimplemented from LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ getDX()

const NOX::Abstract::MultiVector * LOCA::Pitchfork::MinimallyAugmented::Constraint::getDX ( ) const
virtual

Return solution component of constraint derivatives.

Reimplemented from LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ numConstraints()

int LOCA::Pitchfork::MinimallyAugmented::Constraint::numConstraints ( ) const
virtual

Return number of constraints.

Reimplemented from LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ setGroup()

void LOCA::Pitchfork::MinimallyAugmented::Constraint::setGroup ( const Teuchos::RCP< LOCA::TurningPoint::MinimallyAugmented::AbstractGroup > &  g)
virtual

Set the group pointer.

This method should be called when ever the constrained group is copied, since we don't explicitly copy the underlying group here.

References LOCA::TurningPoint::MinimallyAugmented::Constraint::setGroup().

The documentation for this class was generated from the following files:
