Abstract interface for the constraint portion of a constrained nonlinear system. More...

#include <LOCA_MultiContinuation_ConstraintInterface.H>

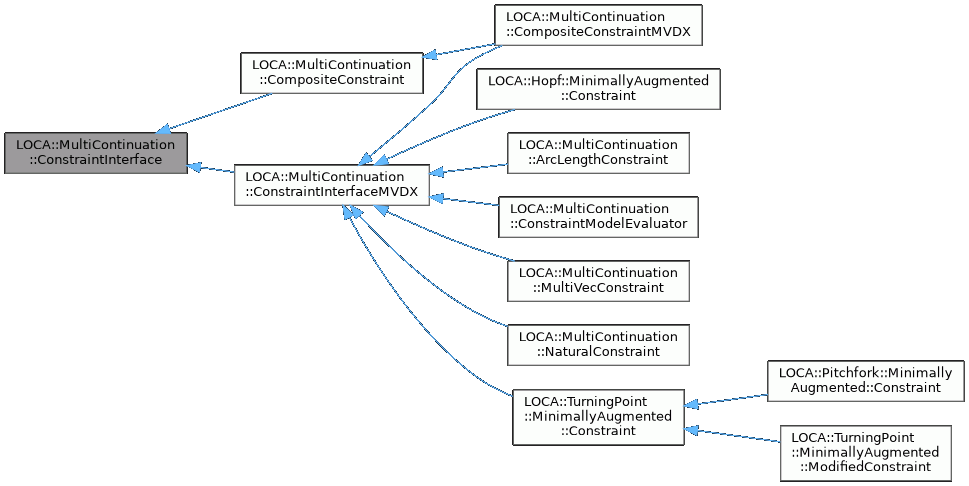

Inheritance diagram for LOCA::MultiContinuation::ConstraintInterface:

[legend]

Public Member Functions
	ConstraintInterface ()
	Constructor.

virtual	~ConstraintInterface ()
	Destructor.

virtual void	copy (const ConstraintInterface &source)=0
	Copy.

virtual Teuchos::RCP< LOCA::MultiContinuation::ConstraintInterface >	clone (NOX::CopyType type=NOX::DeepCopy) const =0
	Cloning function.

virtual int	numConstraints () const =0
	Return number of constraints.

virtual void	setX (const NOX::Abstract::Vector &x)=0
	Set the solution vector to x.

virtual void	setParam (int paramID, double val)=0
	Sets parameter indexed by paramID.

virtual void	setParams (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)=0
	Sets parameters indexed by paramIDs.

virtual NOX::Abstract::Group::ReturnType	computeConstraints ()=0
	Compute constraint residuals.

virtual NOX::Abstract::Group::ReturnType	computeDX ()=0
	Compute derivative of constraints w.r.t. solution vector x.

virtual NOX::Abstract::Group::ReturnType	computeDP (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector::DenseMatrix &dgdp, bool isValidG)=0
	Compute derivative of constraints w.r.t. supplied parameters.

virtual bool	isConstraints () const =0
	Return `true` if constraint residuals are valid.

virtual bool	isDX () const =0
	Return `true` if derivative of constraint w.r.t. x is valid.

virtual const NOX::Abstract::MultiVector::DenseMatrix &	getConstraints () const =0
	Return constraint residuals.

virtual NOX::Abstract::Group::ReturnType	multiplyDX (double alpha, const NOX::Abstract::MultiVector &input_x, NOX::Abstract::MultiVector::DenseMatrix &result_p) const =0
	Compute result_p = alpha * dg/dx * input_x.

virtual NOX::Abstract::Group::ReturnType	addDX (Teuchos::ETransp transb, double alpha, const NOX::Abstract::MultiVector::DenseMatrix &b, double beta, NOX::Abstract::MultiVector &result_x) const =0
	Compute result_x = alpha * dg/dx^T * op(b) + beta * result_x.

virtual bool	isDXZero () const =0
	Return `true` if solution component of constraint derivatives is zero.

virtual void	preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus)
	Perform any preprocessing before a continuation step starts.

virtual void	postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus)
	Perform any postprocessing after a continuation step finishes.

Detailed Description

Abstract interface for the constraint portion of a constrained nonlinear system.

This class is used in conjunction with LOCA::MultiContinuation::ConstrainedGroup to represent a constrained nonlinear system:

$f(x,y) = 0 g(x,y) = 0$

where is represented by a concrete implementation of a LOCA::MultiContinuation::AbstractGroup and (the constraint) is represented by an implementation of this class. Here it is assumed the resulting system is square, i.e., $x\in\Re^n$ , $y\in\Re^m$ , $f(x,y)\in\Re^n$ and $g(x,y)\in\Re^m$ .

This class provides an interface to evaluate , compute the derivatives and , and apply the derivative to arbitrary multi-vectors (the implementation is never required to explicitly store which is impractical in many situations).

Member Function Documentation

◆ addDX()

virtual NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterface::addDX	(	Teuchos::ETransp	transb,
		double	alpha,
		const NOX::Abstract::MultiVector::DenseMatrix &	b,
		double	beta,
		NOX::Abstract::MultiVector &	result_x
	)		const

pure virtual

Compute result_x = alpha * dg/dx^T * op(b) + beta * result_x.

Note that this should be equivalent to

result_x.update(transb, alpha, dgdx, b, beta);

Implemented in LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::CompositeConstraintMVDX, and LOCA::MultiContinuation::ConstraintInterfaceMVDX.

◆ clone()

virtual Teuchos::RCP< LOCA::MultiContinuation::ConstraintInterface > LOCA::MultiContinuation::ConstraintInterface::clone ( NOX::CopyType type = NOX::DeepCopy ) const

pure virtual

Cloning function.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::CompositeConstraintMVDX, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, LOCA::Pitchfork::MinimallyAugmented::Constraint, LOCA::TurningPoint::MinimallyAugmented::Constraint, and LOCA::TurningPoint::MinimallyAugmented::ModifiedConstraint.

◆ computeConstraints()

virtual NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterface::computeConstraints ( )

pure virtual

Compute constraint residuals.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, LOCA::Pitchfork::MinimallyAugmented::Constraint, LOCA::TurningPoint::MinimallyAugmented::Constraint, and LOCA::TurningPoint::MinimallyAugmented::ModifiedConstraint.

◆ computeDP()

virtual NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterface::computeDP	(	const std::vector< int > &	paramIDs,
		NOX::Abstract::MultiVector::DenseMatrix &	dgdp,
		bool	isValidG
	)

pure virtual

Compute derivative of constraints w.r.t. supplied parameters.

The first column of dgdp should be filled with the constraint residuals if isValidG is false. If isValidG is true, then the dgdp contains on input.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, LOCA::Pitchfork::MinimallyAugmented::Constraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ computeDX()

virtual NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterface::computeDX ( )

pure virtual

Compute derivative of constraints w.r.t. solution vector x.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::CompositeConstraintMVDX, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, LOCA::Pitchfork::MinimallyAugmented::Constraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ copy()

virtual void LOCA::MultiContinuation::ConstraintInterface::copy ( const ConstraintInterface & source )

pure virtual

Copy.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::CompositeConstraintMVDX, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::Pitchfork::MinimallyAugmented::Constraint, LOCA::TurningPoint::MinimallyAugmented::Constraint, and LOCA::TurningPoint::MinimallyAugmented::ModifiedConstraint.

◆ getConstraints()

virtual const NOX::Abstract::MultiVector::DenseMatrix & LOCA::MultiContinuation::ConstraintInterface::getConstraints ( ) const

pure virtual

Return constraint residuals.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, LOCA::Pitchfork::MinimallyAugmented::Constraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ isConstraints()

virtual bool LOCA::MultiContinuation::ConstraintInterface::isConstraints ( ) const

pure virtual

Return true if constraint residuals are valid.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ isDX()

virtual bool LOCA::MultiContinuation::ConstraintInterface::isDX ( ) const

pure virtual

Return true if derivative of constraint w.r.t. x is valid.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ isDXZero()

virtual bool LOCA::MultiContinuation::ConstraintInterface::isDXZero ( ) const

pure virtual

Return true if solution component of constraint derivatives is zero.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

Referenced by LOCA::MultiContinuation::ConstraintInterfaceMVDX::multiplyDX(), LOCA::BorderedSolver::LowerTriangularBlockElimination::solve(), and LOCA::BorderedSolver::LowerTriangularBlockElimination::solveTranspose().

◆ multiplyDX()

virtual NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterface::multiplyDX	(	double	alpha,
		const NOX::Abstract::MultiVector &	input_x,
		NOX::Abstract::MultiVector::DenseMatrix &	result_p
	)		const

pure virtual

Compute result_p = alpha * dg/dx * input_x.

Note that if there are n constraints and input_x has m columns, result_p should be a n by m matrix and is equivalent to

input_x.multiply(alpha, dgdx, result_p).

Implemented in LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::CompositeConstraintMVDX, and LOCA::MultiContinuation::ConstraintInterfaceMVDX.

Referenced by LOCA::BorderedSolver::LowerTriangularBlockElimination::solve(), LOCA::BorderedSolver::Bordering::solveContiguous(), LOCA::BorderedSolver::Bordering::solveFZero(), and LOCA::BorderedSolver::LowerTriangularBlockElimination::solveTranspose().

◆ numConstraints()

virtual int LOCA::MultiContinuation::ConstraintInterface::numConstraints ( ) const

pure virtual

Return number of constraints.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, LOCA::Pitchfork::MinimallyAugmented::Constraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

Referenced by LOCA::BorderedSolver::Bordering::solveContiguous(), and LOCA::BorderedSolver::Bordering::solveFZero().

◆ postProcessContinuationStep()

virtual void LOCA::MultiContinuation::ConstraintInterface::postProcessContinuationStep ( LOCA::Abstract::Iterator::StepStatus )

inlinevirtual

Perform any postprocessing after a continuation step finishes.

The stepStatus argument indicates whether the step was successful. The default implementation is empty.

Reimplemented in LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::TurningPoint::MinimallyAugmented::Constraint, and LOCA::TurningPoint::MinimallyAugmented::ModifiedConstraint.

◆ preProcessContinuationStep()

virtual void LOCA::MultiContinuation::ConstraintInterface::preProcessContinuationStep ( LOCA::Abstract::Iterator::StepStatus )

inlinevirtual

Perform any preprocessing before a continuation step starts.

The stepStatus argument indicates whether the previous step was successful. The default implementation is empty.

Reimplemented in LOCA::MultiContinuation::CompositeConstraint, and LOCA::TurningPoint::MinimallyAugmented::ModifiedConstraint.

Referenced by LOCA::TurningPoint::MinimallyAugmented::ModifiedConstraint::preProcessContinuationStep().

◆ setParam()

virtual void LOCA::MultiContinuation::ConstraintInterface::setParam	(	int	paramID,
		double	val
	)

pure virtual

Sets parameter indexed by paramID.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ setParams()

virtual void LOCA::MultiContinuation::ConstraintInterface::setParams	(	const std::vector< int > &	paramIDs,
		const NOX::Abstract::MultiVector::DenseMatrix &	vals
	)

pure virtual

Sets parameters indexed by paramIDs.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

◆ setX()

virtual void LOCA::MultiContinuation::ConstraintInterface::setX ( const NOX::Abstract::Vector & x )

pure virtual

Set the solution vector to x.

Implemented in LOCA::MultiContinuation::ConstraintModelEvaluator, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::CompositeConstraint, LOCA::MultiContinuation::MultiVecConstraint, LOCA::MultiContinuation::NaturalConstraint, and LOCA::TurningPoint::MinimallyAugmented::Constraint.

The documentation for this class was generated from the following file:

LOCA_MultiContinuation_ConstraintInterface.H
