Interprets a matrix as an operator that acts on a vector of nonzeros via SpGEMM. More...

#include <MueLu_FlatOperator_decl.hpp>

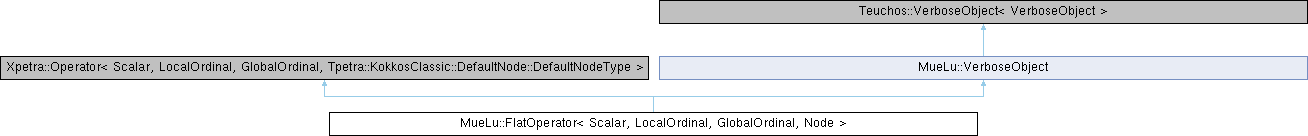

Inheritance diagram for MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Member Functions
virtual const Teuchos::RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > >	getDomainMap () const
	The Map associated with the domain of this operator, which must be compatible with X.getMap().

virtual const Teuchos::RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > >	getRangeMap () const
	The Map associated with the range of this operator, which must be compatible with Y.getMap().

virtual void	apply (const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const
	Computes the operator-multivector application.

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose.

Public Member Functions inherited from MueLu::VerboseObject
	VerboseObject ()

virtual	~VerboseObject ()
	Destructor.

VerbLevel	GetVerbLevel () const
	Get the verbosity level.

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object.

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose.

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing.

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type.

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type.

Teuchos::FancyOStream &	GetBlackHole () const

Xpetra specific
RCP< Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	mat_

RCP< MueLu::Constraint< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	constraint_

RCP< Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > >	map_

RCP< Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	tempMat_

	FlatOperator ()=default

	FlatOperator (const Teuchos::RCP< Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > mat, const Teuchos::RCP< MueLu::Constraint< Scalar, LocalOrdinal, GlobalOrdinal, Node > > constraint)
	TpetraOperator constructor to wrap a Tpetra::Operator object.

void	CheckMaps ()

void	AllocateTemporaryMatrix () const

void	residual (const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &R) const
	Compute a residual R = B - (this) X.

Overridden from Teuchos::Describable
std::string	description () const
	A simple one-line description of this object.

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with the given verbosity level to a FancyOStream.

Additional Inherited Members
Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level.

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level.

static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void	SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP< Teuchos::FancyOStream >	GetMueLuOStream ()

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Interprets a matrix as an operator that acts on a vector of nonzeros via SpGEMM.

This class takes a matrix A and a constraint object. The constraint specifies a sparsity pattern. The FlatOperator applies A via

Y = flat(A*operator(X))

Here, operator(X) takes a vector X and interpretes it as a matrix with given sparsity pattern. Then a SpGEMM is performed. The entries corresponding to the sparsity pattern are extracted and returned in the vector Y.

Definition at line 41 of file MueLu_FlatOperator_decl.hpp.

Constructor & Destructor Documentation

◆ FlatOperator() [1/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::FlatOperator ( )

default

◆ FlatOperator() [2/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::FlatOperator	(	const Teuchos::RCP< Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	mat,
		const Teuchos::RCP< MueLu::Constraint< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	constraint
	)

TpetraOperator constructor to wrap a Tpetra::Operator object.

Definition at line 18 of file MueLu_FlatOperator_def.hpp.

Member Function Documentation

◆ getDomainMap()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual const Teuchos::RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

inlinevirtual

The Map associated with the domain of this operator, which must be compatible with X.getMap().

Definition at line 48 of file MueLu_FlatOperator_decl.hpp.

◆ getRangeMap()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual const Teuchos::RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

inlinevirtual

The Map associated with the range of this operator, which must be compatible with Y.getMap().

Definition at line 53 of file MueLu_FlatOperator_decl.hpp.

◆ apply()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `Teuchos::ScalarTraits<Scalar>::one()`,
		Scalar	beta = `Teuchos::ScalarTraits<Scalar>::zero()`
	)		const

virtual

Computes the operator-multivector application.

Loosely, performs \(Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y\). However, the details of operation vary according to the values of alpha and beta. Specifically

if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.

Definition at line 35 of file MueLu_FlatOperator_def.hpp.

◆ hasTransposeApply()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const

inlinevirtual

Whether this operator supports applying the transpose or conjugate transpose.

Definition at line 71 of file MueLu_FlatOperator_decl.hpp.

◆ description()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

std::string MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

inline

A simple one-line description of this object.

Definition at line 81 of file MueLu_FlatOperator_decl.hpp.

◆ describe()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inline

Print the object with the given verbosity level to a FancyOStream.

Definition at line 86 of file MueLu_FlatOperator_decl.hpp.

◆ CheckMaps()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CheckMaps ( )

inline

Definition at line 101 of file MueLu_FlatOperator_decl.hpp.

◆ AllocateTemporaryMatrix()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AllocateTemporaryMatrix ( ) const

inline

Definition at line 104 of file MueLu_FlatOperator_decl.hpp.

◆ residual()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void MueLu::FlatOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual	(	const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	B,
		Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	R
	)		const
