#include <MueLu_DenseConstraint_decl.hpp>

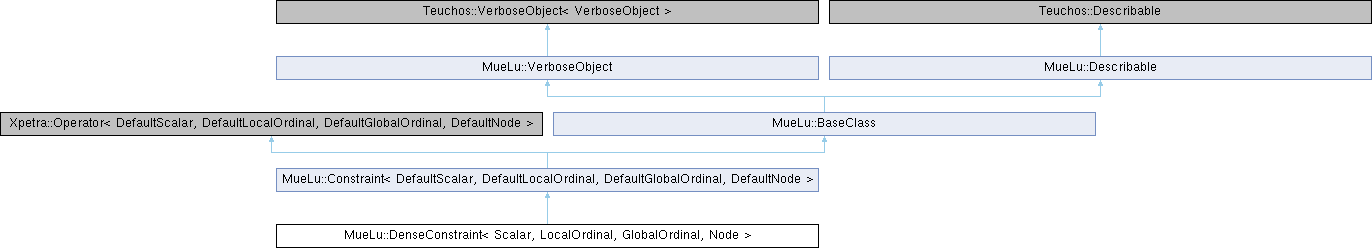

Inheritance diagram for MueLu::DenseConstraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Types
using	MagnitudeType = typename Teuchos::ScalarTraits< Scalar >::magnitudeType

Public Types inherited from MueLu::Constraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >
using	MagnitudeType = typename Teuchos::ScalarTraits< Scalar >::magnitudeType

Constructors
RCP< MultiVector >	B_
	Fine nullspace.

RCP< MultiVector >	Bc_
	Coarse nullspace.

	DenseConstraint ()=default

	DenseConstraint (const RCP< MultiVector > &B, const RCP< MultiVector > &Bc, RCP< const CrsGraph > Ppattern, const std::string &solverType)
	Constructor.

void	Setup ()

CrsGraph::local_graph_type	FindBlocks (RCP< const CrsGraph > &) override

MagnitudeType	ResidualNorm (RCP< const Matrix > P) const override
	Compute norm of residual B - P*Bc.

Additional Inherited Members
Public Member Functions inherited from MueLu::Constraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >
	Constraint ()=default

virtual const RCP< const Map >	getDomainMap () const
	The Map associated with the domain of this operator, which must be compatible with X.getMap().

virtual const RCP< const Map >	getRangeMap () const
	The Map associated with the range of this operator, which must be compatible with Y.getMap().

virtual void	apply (const MultiVector &P, MultiVector &Projected, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const
	Apply constraint.

void	residual (const MultiVector &X, const MultiVector &B, MultiVector &R) const
	Compute a residual R = B - (this) X.

RCP< const CrsGraph >	GetPattern () const

void	SetPattern (RCP< const CrsGraph > &Ppattern)

void	SetConstraintsMatrix (RCP< Matrix > &X)

RCP< Matrix >	GetConstraintMatrix ()

void	AssignMatrixEntriesToVector (const Matrix &P, const RCP< const CrsGraph > &pattern, MultiVector &vecP) const

void	AssignMatrixEntriesToVector (const Matrix &P, MultiVector &vecP) const

RCP< Matrix >	GetMatrixWithEntriesFromVector (MultiVector &vecP) const

void	LeastSquaresSolve (const MultiVector &B, MultiVector &C) const

Public Member Functions inherited from MueLu::BaseClass
virtual	~BaseClass ()
	Destructor.

Public Member Functions inherited from MueLu::VerboseObject
	VerboseObject ()

virtual	~VerboseObject ()
	Destructor.

VerbLevel	GetVerbLevel () const
	Get the verbosity level.

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object.

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose.

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing.

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type.

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type.

Teuchos::FancyOStream &	GetBlackHole () const

Public Member Functions inherited from MueLu::Describable
virtual	~Describable ()
	Destructor.

virtual void	describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string	description () const
	Return a simple one-line description of this object.

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object.

virtual std::string	ShortClassName () const
	Return the class name of the object, without template parameters and without namespace.

Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level.

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level.

static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void	SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP< Teuchos::FancyOStream >	GetMueLuOStream ()

Protected Member Functions inherited from MueLu::Constraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >
void	PrepareLeastSquaresSolve (const std::string &solverType, bool detect_singular_blocks=false)

Detailed Description

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::DenseConstraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 29 of file MueLu_DenseConstraint_decl.hpp.

Member Typedef Documentation

◆ MagnitudeType

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

using MueLu::DenseConstraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MagnitudeType = typename Teuchos::ScalarTraits<Scalar>::magnitudeType

Definition at line 39 of file MueLu_DenseConstraint_decl.hpp.

Constructor & Destructor Documentation

◆ DenseConstraint() [1/2]

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

MueLu::DenseConstraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DenseConstraint ( )

default

◆ DenseConstraint() [2/2]

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

DenseConstraint::DenseConstraint	(	const RCP< MultiVector > &	B,
		const RCP< MultiVector > &	Bc,
		RCP< const CrsGraph >	Ppattern,
		const std::string &	solverType
	)

Constructor.

Parameters

B	– Fine nullspace vectors
Bc	– Coarse nullspace vectors
Ppattern	– Nonzero sparsity pattern for the prolongator

Definition at line 26 of file MueLu_DenseConstraint_def.hpp.

Member Function Documentation

◆ Setup()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void DenseConstraint::Setup ( )

Definition at line 40 of file MueLu_DenseConstraint_def.hpp.

◆ FindBlocks()

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_graph_type DenseConstraint::FindBlocks ( RCP< const CrsGraph > & )

overridevirtual

Reimplemented from MueLu::Constraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 121 of file MueLu_DenseConstraint_def.hpp.

◆ ResidualNorm()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Teuchos::ScalarTraits< Scalar >::magnitudeType DenseConstraint::ResidualNorm ( RCP< const Matrix > P ) const

overridevirtual

Compute norm of residual B - P*Bc.

Implements MueLu::Constraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 153 of file MueLu_DenseConstraint_def.hpp.

Member Data Documentation

◆ B_

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

RCP<MultiVector> MueLu::DenseConstraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >::B_

private

Fine nullspace.

Definition at line 64 of file MueLu_DenseConstraint_decl.hpp.

◆ Bc_

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

RCP<MultiVector> MueLu::DenseConstraint< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Bc_

private

Coarse nullspace.

Definition at line 67 of file MueLu_DenseConstraint_decl.hpp.
