Algorithm for coarsening a graph with uncoupled aggregation. creates aggregates along an interface using specified root nodes. More...

#include <MueLu_InterfaceAggregationAlgorithm_decl.hpp>

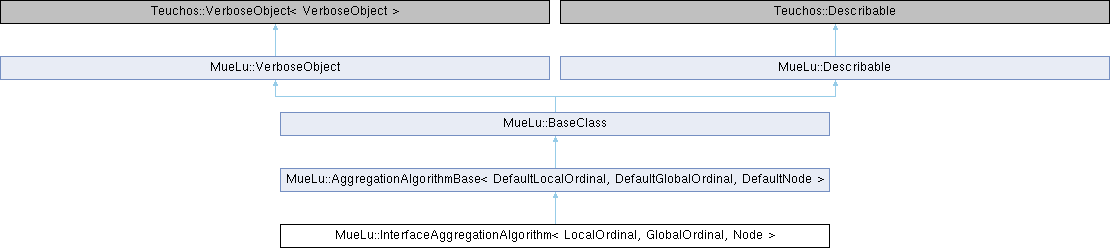

Inheritance diagram for MueLu::InterfaceAggregationAlgorithm< LocalOrdinal, GlobalOrdinal, Node >:

Constructors/Destructors.
	InterfaceAggregationAlgorithm (RCP< const FactoryBase > const &graphFact=Teuchos::null)
	Constructor.

virtual	~InterfaceAggregationAlgorithm ()
	Destructor.

Aggregation methods.
void	BuildAggregatesNonKokkos (Teuchos::ParameterList const &params, LWGraph const &graph, Aggregates &aggregates, typename AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::AggStatHostType &aggStat, LO &numNonAggregatedNodes) const
	Local aggregation.

void	BuildAggregates (const Teuchos::ParameterList &params, const LWGraph_kokkos &graph, Aggregates &aggregates, typename AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::AggStatType &aggStat, LO &numNonAggregatedNodes) const

Additional Inherited Members
Public Types inherited from MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >
using	LWGraphHostType = LWGraph

using	AggStatHostType = Kokkos::View< unsigned *, typename LWGraphHostType::device_type >

using	LWGraphType = LWGraph_kokkos

using	AggStatType = Kokkos::View< unsigned *, typename LWGraphType::device_type >

Public Member Functions inherited from MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >
virtual	~AggregationAlgorithmBase ()
	Destructor.

virtual void	SetupPhase (const ParameterList &params, Teuchos::RCP< const Teuchos::Comm< int > > &comm, LO &numLocalNodes, LO &numNonAggregatedNodes)

virtual void	BuildAggregatesNonKokkos (const Teuchos::ParameterList &params, const LWGraphHostType &graph, Aggregates &aggregates, AggStatHostType &aggStat, LO &numNonAggregatedNodes) const =0
	BuildAggregatesNonKokkos routine.

virtual void	BuildAggregates (const Teuchos::ParameterList &params, const LWGraphType &graph, Aggregates &aggregates, AggStatType &aggStat, LO &numNonAggregatedNodes) const =0
	BuildAggregates routine.

Public Member Functions inherited from MueLu::BaseClass
virtual	~BaseClass ()
	Destructor.

Public Member Functions inherited from MueLu::VerboseObject
	VerboseObject ()

virtual	~VerboseObject ()
	Destructor.

VerbLevel	GetVerbLevel () const
	Get the verbosity level.

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object.

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose.

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing.

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type.

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type.

Teuchos::FancyOStream &	GetBlackHole () const

Public Member Functions inherited from MueLu::Describable
virtual	~Describable ()
	Destructor.

virtual void	describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string	description () const
	Return a simple one-line description of this object.

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object.

virtual std::string	ShortClassName () const
	Return the class name of the object, without template parameters and without namespace.

Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level.

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level.

static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void	SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP< Teuchos::FancyOStream >	GetMueLuOStream ()

Detailed Description

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::InterfaceAggregationAlgorithm< LocalOrdinal, GlobalOrdinal, Node >

Algorithm for coarsening a graph with uncoupled aggregation. creates aggregates along an interface using specified root nodes.

Idea

The user can mark some nodes as INTERFACE to build aggregates across an interface. This can be very useful for certain applications. We build aggregates for nodes with the state INTERFACE. Then, the state is changed to AGGREGATED. The InterfaceAggregationAlgorithm should run before the Phase1AggregationAlgorithm.

Definition at line 48 of file MueLu_InterfaceAggregationAlgorithm_decl.hpp.

Constructor & Destructor Documentation

◆ InterfaceAggregationAlgorithm()

template<class LocalOrdinal , class GlobalOrdinal , class Node >

MueLu::InterfaceAggregationAlgorithm< LocalOrdinal, GlobalOrdinal, Node >::InterfaceAggregationAlgorithm ( RCP< const FactoryBase > const & graphFact = Teuchos::null )

Constructor.

Definition at line 35 of file MueLu_InterfaceAggregationAlgorithm_def.hpp.

◆ ~InterfaceAggregationAlgorithm()

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

virtual MueLu::InterfaceAggregationAlgorithm< LocalOrdinal, GlobalOrdinal, Node >::~InterfaceAggregationAlgorithm ( )

inlinevirtual

Destructor.

Definition at line 60 of file MueLu_InterfaceAggregationAlgorithm_decl.hpp.

Member Function Documentation

◆ BuildAggregatesNonKokkos()

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::InterfaceAggregationAlgorithm< LocalOrdinal, GlobalOrdinal, Node >::BuildAggregatesNonKokkos	(	Teuchos::ParameterList const &	params,
		LWGraph const &	graph,
		Aggregates &	aggregates,
		typename AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::AggStatHostType &	aggStat,
		LO &	numNonAggregatedNodes
	)		const

Local aggregation.

Definition at line 39 of file MueLu_InterfaceAggregationAlgorithm_def.hpp.

◆ BuildAggregates()

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::InterfaceAggregationAlgorithm< LocalOrdinal, GlobalOrdinal, Node >::BuildAggregates	(	const Teuchos::ParameterList &	params,
		const LWGraph_kokkos &	graph,
		Aggregates &	aggregates,
		typename AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::AggStatType &	aggStat,
		LO &	numNonAggregatedNodes
	)		const

Definition at line 87 of file MueLu_InterfaceAggregationAlgorithm_def.hpp.

The documentation for this class was generated from the following files:
