Pure virtual base class for all MueLu aggregation algorithms. More...

#include <MueLu_AggregationAlgorithmBase.hpp>

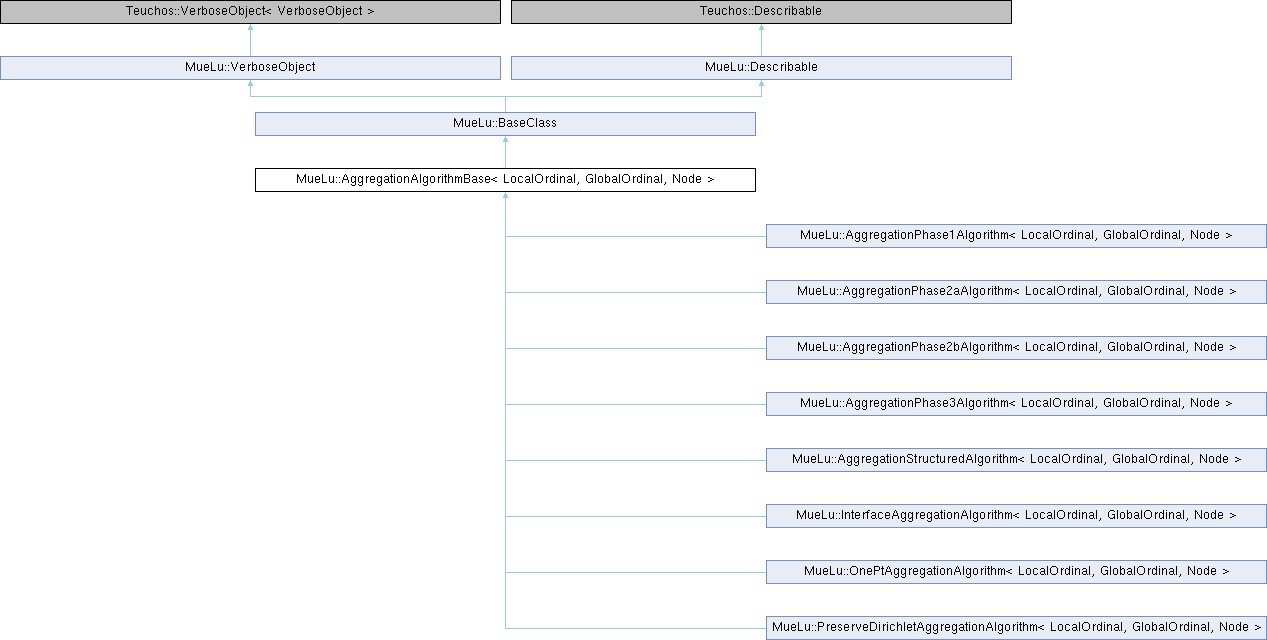

Inheritance diagram for MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >:

Public Types
using	LWGraphHostType = LWGraph

using	AggStatHostType = Kokkos::View< unsigned *, typename LWGraphHostType::device_type >

using	LWGraphType = LWGraph_kokkos

using	AggStatType = Kokkos::View< unsigned *, typename LWGraphType::device_type >

Constructors/Destructors
virtual	~AggregationAlgorithmBase ()
	Destructor.

Build routines
virtual void	SetupPhase (const ParameterList &params, Teuchos::RCP< const Teuchos::Comm< int > > &comm, LO &numLocalNodes, LO &numNonAggregatedNodes)

virtual void	BuildAggregatesNonKokkos (const Teuchos::ParameterList &params, const LWGraphHostType &graph, Aggregates &aggregates, AggStatHostType &aggStat, LO &numNonAggregatedNodes) const =0
	BuildAggregatesNonKokkos routine.

virtual void	BuildAggregates (const Teuchos::ParameterList &params, const LWGraphType &graph, Aggregates &aggregates, AggStatType &aggStat, LO &numNonAggregatedNodes) const =0
	BuildAggregates routine.

Additional Inherited Members
Public Member Functions inherited from MueLu::BaseClass
virtual	~BaseClass ()
	Destructor.

Public Member Functions inherited from MueLu::VerboseObject
	VerboseObject ()

virtual	~VerboseObject ()
	Destructor.

VerbLevel	GetVerbLevel () const
	Get the verbosity level.

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object.

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose.

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing.

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type.

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type.

Teuchos::FancyOStream &	GetBlackHole () const

Public Member Functions inherited from MueLu::Describable
virtual	~Describable ()
	Destructor.

virtual void	describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string	description () const
	Return a simple one-line description of this object.

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object.

virtual std::string	ShortClassName () const
	Return the class name of the object, without template parameters and without namespace.

Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level.

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level.

static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void	SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP< Teuchos::FancyOStream >	GetMueLuOStream ()

Detailed Description

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >

Pure virtual base class for all MueLu aggregation algorithms.

Definition at line 32 of file MueLu_AggregationAlgorithmBase.hpp.

Member Typedef Documentation

◆ LWGraphHostType

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

using MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::LWGraphHostType = LWGraph

Definition at line 36 of file MueLu_AggregationAlgorithmBase.hpp.

◆ AggStatHostType

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

using MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::AggStatHostType = Kokkos::View<unsigned*, typename LWGraphHostType::device_type>

Definition at line 37 of file MueLu_AggregationAlgorithmBase.hpp.

◆ LWGraphType

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

using MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::LWGraphType = LWGraph_kokkos

Definition at line 39 of file MueLu_AggregationAlgorithmBase.hpp.

◆ AggStatType

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

using MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::AggStatType = Kokkos::View<unsigned*, typename LWGraphType::device_type>

Definition at line 40 of file MueLu_AggregationAlgorithmBase.hpp.

Constructor & Destructor Documentation

◆ ~AggregationAlgorithmBase()

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

virtual MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::~AggregationAlgorithmBase ( )

inlinevirtual

Destructor.

Definition at line 46 of file MueLu_AggregationAlgorithmBase.hpp.

Member Function Documentation

◆ SetupPhase()

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

virtual void MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::SetupPhase	(	const ParameterList &	params,
		Teuchos::RCP< const Teuchos::Comm< int > > &	comm,
		LO &	numLocalNodes,
		LO &	numNonAggregatedNodes
	)

inlinevirtual

Perform necessary communication among procs even if a proc might skip a phase

SetupPhase routine gets executed on all ranks, even if all nodes are already aggregated If communication is required by the phase it needs to take place here.

Reimplemented in MueLu::AggregationPhase2aAlgorithm< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 58 of file MueLu_AggregationAlgorithmBase.hpp.

◆ BuildAggregatesNonKokkos()

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

virtual void MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::BuildAggregatesNonKokkos	(	const Teuchos::ParameterList &	params,
		const LWGraphHostType &	graph,
		Aggregates &	aggregates,
		AggStatHostType &	aggStat,
		LO &	numNonAggregatedNodes
	)		const

pure virtual

BuildAggregatesNonKokkos routine.

◆ BuildAggregates()

template<class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

virtual void MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >::BuildAggregates	(	const Teuchos::ParameterList &	params,
		const LWGraphType &	graph,
		Aggregates &	aggregates,
		AggStatType &	aggStat,
		LO &	numNonAggregatedNodes
	)		const

pure virtual

BuildAggregates routine.

The documentation for this class was generated from the following file:

MueLu_AggregationAlgorithmBase.hpp
