#include <Xpetra_Operator.hpp>

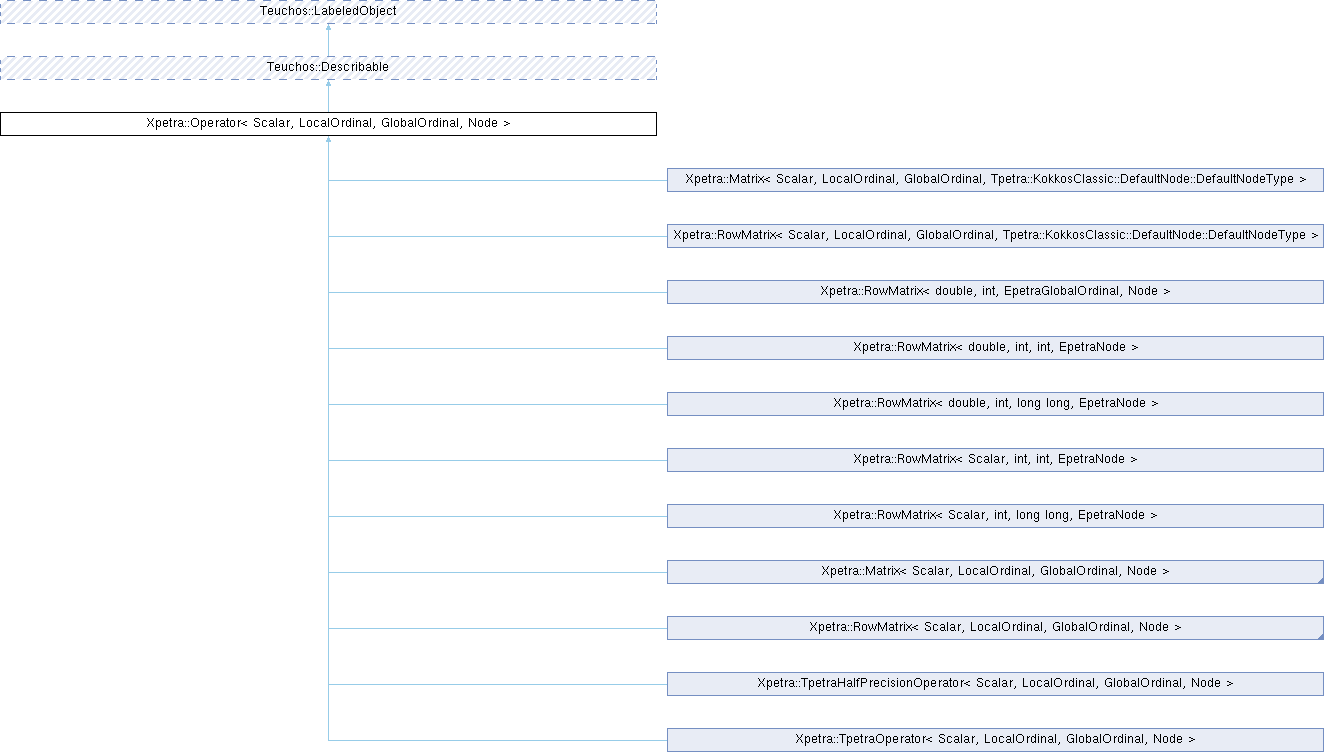

Inheritance diagram for Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Member Functions
virtual	~Operator ()

Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

virtual std::string	description () const

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

Private Types
typedef Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node >	map_type

typedef Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >	mv_type

Typedefs that give access to the template parameters.
typedef Scalar	scalar_type
	The type of the entries of the input and output multivectors.

typedef LocalOrdinal	local_ordinal_type
	The local index type.

typedef GlobalOrdinal	global_ordinal_type
	The global index type.

typedef Node	node_type
	The Kokkos Node type.

Pure virtual functions to be overridden by subclasses.
virtual const Teuchos::RCP< const map_type >	getDomainMap () const =0
	The Map associated with the domain of this operator, which must be compatible with X.getMap().

virtual const Teuchos::RCP< const map_type >	getRangeMap () const =0
	The Map associated with the range of this operator, which must be compatible with Y.getMap().

virtual void	apply (const mv_type &X, mv_type &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const =0
	Computes the operator-multivector application.

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose.

virtual void	removeEmptyProcessesInPlace (const RCP< const map_type > &)

virtual void	residual (const mv_type &X, const mv_type &B, mv_type &R) const =0
	Compute a residual R = B - (this) X.

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 28 of file Xpetra_Operator.hpp.

Member Typedef Documentation

◆ map_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Xpetra::Map<LocalOrdinal, GlobalOrdinal, Node> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::map_type

private

Definition at line 29 of file Xpetra_Operator.hpp.

◆ mv_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Xpetra::MultiVector<Scalar, LocalOrdinal, GlobalOrdinal, Node> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::mv_type

private

Definition at line 30 of file Xpetra_Operator.hpp.

◆ scalar_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Scalar Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalar_type

The type of the entries of the input and output multivectors.

Definition at line 38 of file Xpetra_Operator.hpp.

◆ local_ordinal_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef LocalOrdinal Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

The local index type.

Definition at line 41 of file Xpetra_Operator.hpp.

◆ global_ordinal_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef GlobalOrdinal Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

The global index type.

Definition at line 44 of file Xpetra_Operator.hpp.

◆ node_type

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Node Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::node_type

The Kokkos Node type.

Definition at line 47 of file Xpetra_Operator.hpp.

Constructor & Destructor Documentation

◆ ~Operator()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~Operator ( )

inlinevirtual

Definition at line 33 of file Xpetra_Operator.hpp.

Member Function Documentation

◆ getDomainMap()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual const Teuchos::RCP< const map_type > Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

pure virtual

The Map associated with the domain of this operator, which must be compatible with X.getMap().

◆ getRangeMap()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual const Teuchos::RCP< const map_type > Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

pure virtual

The Map associated with the range of this operator, which must be compatible with Y.getMap().

◆ apply()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const mv_type &	X,
		mv_type &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `Teuchos::ScalarTraits< Scalar >::one()`,
		Scalar	beta = `Teuchos::ScalarTraits< Scalar >::zero()`
	)		const

pure virtual

Computes the operator-multivector application.

Loosely, performs \(Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y\). However, the details of operation vary according to the values of alpha and beta. Specifically

if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.

◆ hasTransposeApply()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const

inlinevirtual

Whether this operator supports applying the transpose or conjugate transpose.

By default, this returns false. Subclasses must override this method if they can support apply() with mode=Teuchos::TRANS or mode=Teuchos::CONJ_TRANS.

Reimplemented in Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >, Xpetra::EpetraInverseOperator< EpetraGlobalOrdinal, Node >, Xpetra::TpetraHalfPrecisionOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraOperator< double, int, int, EpetraNode >, and Xpetra::TpetraOperator< double, int, long long, EpetraNode >.

Definition at line 77 of file Xpetra_Operator.hpp.

◆ removeEmptyProcessesInPlace()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::removeEmptyProcessesInPlace ( const RCP< const map_type > & )

inlinevirtual

Reimplemented in Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Tpetra::KokkosClassic::DefaultNode::DefaultNodeType >, Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::TpetraBlockCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::TpetraCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 81 of file Xpetra_Operator.hpp.

◆ residual()

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual	(	const mv_type &	X,
		const mv_type &	B,
		mv_type &	R
	)		const

pure virtual

Compute a residual R = B - (*this) * X.

The documentation for this class was generated from the following file:

Xpetra_Operator.hpp
