Concrete Thyra::LinearOpBase subclass for Tpetra::Operator. More...

#include <Thyra_TpetraLinearOp_decl.hpp>

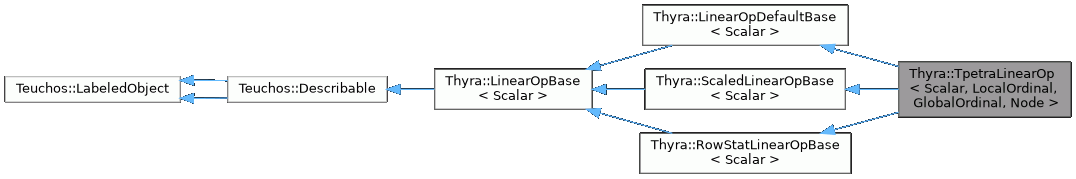

Inheritance diagram for Thyra::TpetraLinearOp< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

[legend]

Related Symbols
(Note that these are not member symbols.)
template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
RCP< TpetraLinearOp< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	tpetraLinearOp (const RCP< const VectorSpaceBase< Scalar > > &rangeSpace, const RCP< const VectorSpaceBase< Scalar > > &domainSpace, const RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &tpetraOperator)
	Nonmmeber constructor for TpetraLinearOp.
template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
RCP< const TpetraLinearOp< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	constTpetraLinearOp (const RCP< const VectorSpaceBase< Scalar > > &rangeSpace, const RCP< const VectorSpaceBase< Scalar > > &domainSpace, const RCP< const Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &tpetraOperator)
	Nonmmeber constructor for TpetraLinearOp.
Related Symbols inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar>
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not.
template<class Scalar>
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not.
template<class Scalar>
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not.
template<class Scalar>
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type.
template<class Scalar>
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for M.apply(...).
void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls apply<double>(...).

Protected member functions overridden from RowStatLinearOpBase.
virtual bool	rowStatIsSupportedImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat) const
virtual void	getRowStatImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const

Constructors/initializers.
	TpetraLinearOp ()
	Construct to uninitialized.
void	initialize (const RCP< const VectorSpaceBase< Scalar > > &rangeSpace, const RCP< const VectorSpaceBase< Scalar > > &domainSpace, const RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &tpetraOperator)
	Initialize.
void	constInitialize (const RCP< const VectorSpaceBase< Scalar > > &rangeSpace, const RCP< const VectorSpaceBase< Scalar > > &domainSpace, const RCP< const Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &tpetraOperator)
	Initialize.
RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getTpetraOperator ()
	Get embedded non-const Tpetra::Operator.
RCP< const Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > >	getConstTpetraOperator () const
	Get embedded const Tpetra::Operator.

Public Overridden functions from LinearOpBase.
RCP< const Thyra::VectorSpaceBase< Scalar > >	range () const
RCP< const Thyra::VectorSpaceBase< Scalar > >	domain () const

Protected Overridden functions from LinearOpBase.
bool	opSupportedImpl (Thyra::EOpTransp M_trans) const
void	applyImpl (const Thyra::EOpTransp M_trans, const Thyra::MultiVectorBase< Scalar > &X_in, const Teuchos::Ptr< Thyra::MultiVectorBase< Scalar > > &Y_inout, const Scalar alpha, const Scalar beta) const

Protected member functions overridden from ScaledLinearOpBase.
virtual bool	supportsScaleLeftImpl () const
virtual bool	supportsScaleRightImpl () const
virtual void	scaleLeftImpl (const VectorBase< Scalar > &row_scaling)
virtual void	scaleRightImpl (const VectorBase< Scalar > &col_scaling)

Additional Inherited Members
std::string	description () const
	Default description that gives the label, type, and dimenstion .
void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const
	Generates a default outputting for all linear operators.
bool	opSupported (EOpTransp M_trans) const
	Return if the M_trans operation of apply() is supported or not.
void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : Y = alphaop(M)X + beta*Y.
virtual RCP< const LinearOpBase< Scalar > >	clone () const
	Clone the linear operator object (if supported).
bool	supportsScaleLeft () const
	Determines if this objects supports left scaling.
bool	supportsScaleRight () const
	Determines if this objects supports right scaling.
void	scaleLeft (const VectorBase< Scalar > &row_scaling)
	Left scales operator with diagonal scaling operator.
void	scaleRight (const VectorBase< Scalar > &col_scaling)
	Right scales operator with diagonal scaling operator.
bool	rowStatIsSupported (const RowStatLinearOpBaseUtils::ERowStat rowStat) const
	Determine if a given row stat is supported.
void	getRowStat (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const
	Get some statistics about a supported row.
virtual bool	opSupportedImpl (EOpTransp M_trans) const =0
	Override in subclass.
virtual void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const =0
	Override in subclass.

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal = LocalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Thyra::TpetraLinearOp< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Concrete Thyra::LinearOpBase subclass for Tpetra::Operator.

Todo: Finish Documentation

Definition at line 42 of file Thyra_TpetraLinearOp_decl.hpp.
