Thyra::DefaultSpmdVector< Scalar > Class Template Reference

Efficient concrete implementation subclass for SPMD vectors. More...

#include <Thyra_DefaultSpmdVector_decl.hpp>

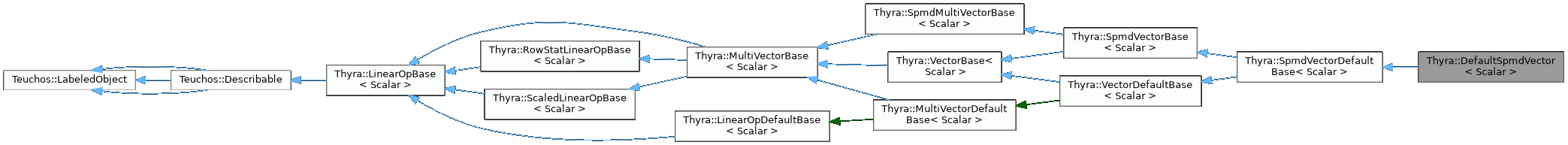

Inheritance diagram for Thyra::DefaultSpmdVector< Scalar >:

Overridden from SpmdVectorBase
void	getNonconstLocalVectorDataImpl (const Ptr< ArrayRCP< Scalar > > &localValues)
void	getLocalVectorDataImpl (const Ptr< ArrayRCP< const Scalar > > &localValues) const

Constructors/initializers
	DefaultSpmdVector ()
	Construct to uninitialized.
	DefaultSpmdVector (const RCP< const SpmdVectorSpaceBase< Scalar > > &spmdSpace, const ArrayRCP< Scalar > &localValues, const Ordinal stride)
	Calls initialize().
void	initialize (const RCP< const SpmdVectorSpaceBase< Scalar > > &spmdSpace, const ArrayRCP< Scalar > &localValues, const Ordinal stride)
	Initialize.
void	uninitialize (RCP< const SpmdVectorSpaceBase< Scalar > > *spmdSpace=NULL, ArrayRCP< Scalar > *localValues=NULL, Ordinal *stride=NULL)
	Set to an uninitialized state.

Accessors (inlined for minimal overhead)
ArrayRCP< Scalar >	getRCPtr ()
ArrayRCP< const Scalar >	getRCPtr () const
Scalar *	getPtr ()
const Scalar *	getPtr () const
Ordinal	getStride () const

Overridden from SpmdMultiVectorBase
RCP< const SpmdVectorSpaceBase< Scalar > >	spmdSpaceImpl () const

Additional Inherited Members
Public Member Functions inherited from Thyra::SpmdVectorDefaultBase< Scalar >
	SpmdVectorDefaultBase ()
virtual void	applyOpImplWithComm (const Ptr< const Teuchos::Comm< Ordinal > > &comm, const RTOpPack::RTOpT< Scalar > &op, const ArrayView< const Ptr< const VectorBase< Scalar > > > &vecs, const ArrayView< const Ptr< VectorBase< Scalar > > > &targ_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal global_offset) const
	Implementation of applyOpImpl(...) that uses an input Comm.
std::string	description () const
Teuchos::RCP< const VectorSpaceBase< Scalar > >	space () const
	Returns this->spmdSpace().
Public Member Functions inherited from Thyra::SpmdVectorBase< Scalar >
RTOpPack::SubVectorView< Scalar >	getNonconstLocalSubVector ()
	Get a non-const generalized view of local vector data.
RTOpPack::ConstSubVectorView< Scalar >	getLocalSubVector () const
	Get a const generalized view of local vector data.
void	getNonconstLocalData (const Ptr< ArrayRCP< Scalar > > &localValues)
	Returns a non-const pointer to the beginning of the local vector data.
void	getLocalData (const Ptr< ArrayRCP< const Scalar > > &localValues) const
	Returns a const pointer to the beginning of the local vector data.
Public Member Functions inherited from Thyra::VectorBase< Scalar >
void	assign (const VectorBase< Scalar > &x)
	Vector assignment:
void	randomize (Scalar l, Scalar u)
	Random vector generation:
void	update (Scalar alpha, const VectorBase< Scalar > &x)
	AXPY:
void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const VectorBase< Scalar > > > &x, const Scalar &beta)
	Linear combination:
Scalar	dot (const VectorBase< Scalar > &x) const
	Euclidean dot product: result = x^H * this.
Teuchos::ScalarTraits< Scalar >::magnitudeType	norm_1 () const
	One (1) norm: result = ||v||1.
Teuchos::ScalarTraits< Scalar >::magnitudeType	norm_2 () const
	Euclidean (2) norm: result = ||v||2.
Teuchos::ScalarTraits< Scalar >::magnitudeType	norm_2 (const VectorBase< Scalar > &x) const
	Weighted Euclidean (2) norm: result = ||v||2.
Teuchos::ScalarTraits< Scalar >::magnitudeType	norm_inf () const
	Infinity norm: result = ||v||inf.
void	applyOp (const RTOpPack::RTOpT< Scalar > &op, const ArrayView< const Ptr< const VectorBase< Scalar > > > &vecs, const ArrayView< const Ptr< VectorBase< Scalar > > > &targ_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal global_offset) const
	Calls applyOpImpl().
void	acquireDetachedView (const Range1D &rng, RTOpPack::ConstSubVectorView< Scalar > *sub_vec) const
	Calls acquireDetachedVectorViewImpl().
void	releaseDetachedView (RTOpPack::ConstSubVectorView< Scalar > *sub_vec) const
	Calls releaseDetachedVectorViewImpl().
void	acquireDetachedView (const Range1D &rng, RTOpPack::SubVectorView< Scalar > *sub_vec)
	Calls acquireNonconstDetachedVectorViewImpl().
void	commitDetachedView (RTOpPack::SubVectorView< Scalar > *sub_vec)
	Calls commitDetachedView().
void	setSubVector (const RTOpPack::SparseSubVectorT< Scalar > &sub_vec)
	Calls setSubVectorImpl().
Public Member Functions inherited from Thyra::MultiVectorBase< Scalar >
void	assign (Scalar alpha)
	V = alpha.
void	assign (const MultiVectorBase< Scalar > &mv)
	V = mv.
void	scale (Scalar alpha)
void	update (Scalar alpha, const MultiVectorBase< Scalar > &mv)
void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &mv, const Scalar &beta)
	Y.col(j)(i) = beta*Y.col(j)(i) + sum( alpha[k]*X[k].col(j)(i),
void	dots (const MultiVectorBase< Scalar > &mv, const ArrayView< Scalar > &prods) const
	Column-wise Euclidean dot product.
void	norms_1 (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise 1-norms.
void	norms_2 (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise 2-norms.
void	norms_inf (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise infinity-norms.
RCP< const VectorBase< Scalar > >	col (Ordinal j) const
	Calls colImpl().
RCP< VectorBase< Scalar > >	col (Ordinal j)
	Calls nonconstColImpl().
RCP< const MultiVectorBase< Scalar > >	subView (const Range1D &colRng) const
	Calls contigSubViewImpl().
RCP< MultiVectorBase< Scalar > >	subView (const Range1D &colRng)
	Calls nonconstContigSubViewImpl().
RCP< const MultiVectorBase< Scalar > >	subView (const ArrayView< const int > &cols) const
	nonContigSubViewImpl().
RCP< MultiVectorBase< Scalar > >	subView (const ArrayView< const int > &cols)
	nonconstNonContigSubViewImpl().
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset) const
	Calls mvMultiReductApplyOpImpl().
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset) const
	mvSingleReductApplyOpImpl().
void	acquireDetachedView (const Range1D &rowRng, const Range1D &colRng, RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Calls acquireDetachedMultiVectorViewImpl().
void	releaseDetachedView (RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Calls releaseDetachedMultiVectorViewImpl().
void	acquireDetachedView (const Range1D &rowRng, const Range1D &colRng, RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Calls acquireNonconstDetachedMultiVectorViewImpl().
void	commitDetachedView (RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Calls commitNonconstDetachedMultiVectorViewImpl().
RCP< const LinearOpBase< Scalar > >	clone () const
	This function is simply overridden to return this->clone_mv().
Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
bool	opSupported (EOpTransp M_trans) const
	Return if the M_trans operation of apply() is supported or not.
void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : Y = alpha*op(M)*X + beta*Y.
Public Member Functions inherited from Thyra::RowStatLinearOpBase< Scalar >
bool	rowStatIsSupported (const RowStatLinearOpBaseUtils::ERowStat rowStat) const
	Determine if a given row stat is supported.
void	getRowStat (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const
	Get some statistics about a supported row.
Public Member Functions inherited from Thyra::ScaledLinearOpBase< Scalar >
bool	supportsScaleLeft () const
	Determines if this objects supports left scaling.
bool	supportsScaleRight () const
	Determines if this objects supports right scaling.
void	scaleLeft (const VectorBase< Scalar > &row_scaling)
	Left scales operator with diagonal scaling operator.
void	scaleRight (const VectorBase< Scalar > &col_scaling)
	Right scales operator with diagonal scaling operator.
Public Member Functions inherited from Thyra::SpmdMultiVectorBase< Scalar >
RCP< const SpmdVectorSpaceBase< Scalar > >	spmdSpace () const
	Returns the SPMD vector space object for the range of *this multi-vector.
RTOpPack::SubMultiVectorView< Scalar >	getNonconstLocalSubMultiVector ()
	Get a non-const generalized view of local multi-vector data.
RTOpPack::ConstSubMultiVectorView< Scalar >	getLocalSubMultiVector () const
	Get a const generalized view of local multi-vector data.
void	getNonconstLocalData (const Ptr< ArrayRCP< Scalar > > &localValues, const Ptr< Ordinal > &leadingDim)
	Returns a non-const pointer to a Fortran-style view of the local multi-vector data.
void	getLocalData (const Ptr< ArrayRCP< const Scalar > > &localValues, const Ptr< Ordinal > &leadingDim) const
	Returns a const pointer to a Fortran-style view of the local multi-vector data.
Public Member Functions inherited from Thyra::VectorDefaultBase< Scalar >
virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const
	Generates a default outputting for all vectors.
virtual RCP< const VectorSpaceBase< Scalar > >	range () const
	Returns this->space().
virtual RCP< const VectorSpaceBase< Scalar > >	domain () const
	Returns a DefaultSerialVectorSpace object with dimension 1.
RCP< MultiVectorBase< Scalar > >	clone_mv () const
	Returns this->clone_v().
RCP< VectorBase< Scalar > >	clone_v () const
	Simply creates a new vector and copies the contents from *this.
Protected Member Functions inherited from Thyra::SpmdVectorDefaultBase< Scalar >
virtual void	updateSpmdSpace ()
	Subclasses must call this function whenever the structure of the VectorSpaceBase changes.
void	applyOpImpl (const RTOpPack::RTOpT< Scalar > &op, const ArrayView< const Ptr< const VectorBase< Scalar > > > &vecs, const ArrayView< const Ptr< VectorBase< Scalar > > > &targ_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal global_offset) const
	Calls applyOpImplWithComm(null,op,...).
void	acquireDetachedVectorViewImpl (const Range1D &rng, RTOpPack::ConstSubVectorView< Scalar > *sub_vec) const
	Implemented through this->getLocalData()
void	releaseDetachedVectorViewImpl (RTOpPack::ConstSubVectorView< Scalar > *sub_vec) const
	Implemented through this->freeLocalData()
void	acquireNonconstDetachedVectorViewImpl (const Range1D &rng, RTOpPack::SubVectorView< Scalar > *sub_vec)
	Implemented through this->getLocalData()
void	commitNonconstDetachedVectorViewImpl (RTOpPack::SubVectorView< Scalar > *sub_vec)
	Implemented through this->commitLocalData()
RTOpPack::SubMultiVectorView< Scalar >	getNonconstLocalSubMultiVectorImpl ()
RTOpPack::ConstSubMultiVectorView< Scalar >	getLocalSubMultiVectorImpl () const
void	getNonconstLocalMultiVectorDataImpl (const Ptr< ArrayRCP< Scalar > > &localValues, const Ptr< Ordinal > &leadingDim)
void	getLocalMultiVectorDataImpl (const Ptr< ArrayRCP< const Scalar > > &localValues, const Ptr< Ordinal > &leadingDim) const
RTOpPack::SubVectorView< Scalar >	getNonconstLocalSubVectorImpl ()
	Virtual implementation for getNonconstLocalSubVector().
RTOpPack::ConstSubVectorView< Scalar >	getLocalSubVectorImpl () const
	Virtual implementation for getLocalSubVector().
Protected Member Functions inherited from Thyra::SpmdVectorBase< Scalar >
Protected Member Functions inherited from Thyra::VectorBase< Scalar >
Protected Member Functions inherited from Thyra::MultiVectorBase< Scalar >
virtual RCP< const VectorBase< Scalar > >	colImpl (Ordinal j) const
	Return a non-changeable view of a constituent column vector.
virtual bool	rowStatIsSupportedImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat) const
virtual void	getRowStatImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const
virtual bool	supportsScaleLeftImpl () const
virtual bool	supportsScaleRightImpl () const
virtual void	scaleLeftImpl (const VectorBase< Scalar > &row_scaling)
virtual void	scaleRightImpl (const VectorBase< Scalar > &col_scaling)
void	absRowSum (const Teuchos::Ptr< Thyra::VectorBase< Scalar > > &output) const
void	absColSum (const Teuchos::Ptr< Thyra::VectorBase< Scalar > > &output) const
Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::RowStatLinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::ScaledLinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::SpmdMultiVectorBase< Scalar >
Protected Member Functions inherited from Thyra::VectorDefaultBase< Scalar >
bool	opSupportedImpl (EOpTransp M_trans) const
	For complex Scalar types returns true for NOTRANS and CONJTRANS and for real types returns true for all values of M_trans.
void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	. Applies vector or its adjoint (transpose) as a linear operator.
virtual void	assignVecImpl (const VectorBase< Scalar > &x)
	Default implementation of assign(vector) using RTOps.
virtual void	randomizeImpl (Scalar l, Scalar u)
	Default implementation of randomize using RTOps.
virtual void	absImpl (const VectorBase< Scalar > &x)
	Default implementation of abs using RTOps.
virtual void	reciprocalImpl (const VectorBase< Scalar > &x)
	Default implementation of reciprocal using RTOps.
virtual void	eleWiseScaleImpl (const VectorBase< Scalar > &x)
	Default implementation of ele_wise_scale using RTOps.
virtual void	updateVecImpl (Scalar alpha, const VectorBase< Scalar > &x)
	Default implementation of update using RTOps.
virtual void	linearCombinationVecImpl (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const VectorBase< Scalar > > > &x, const Scalar &beta)
	Default implementation of linear_combination using RTOps.
virtual Scalar	dotImpl (const VectorBase< Scalar > &x) const
	Default implementation of dot using RTOps.
virtual Teuchos::ScalarTraits< Scalar >::magnitudeType	norm1Impl () const
	Default implementation of norm_1 using RTOps.
virtual Teuchos::ScalarTraits< Scalar >::magnitudeType	norm2Impl () const
	Default implementation of norm_2 using RTOps.
virtual Teuchos::ScalarTraits< Scalar >::magnitudeType	norm2WeightedImpl (const VectorBase< Scalar > &x) const
	Default implementation of norm_2 (weighted) using RTOps.
virtual Teuchos::ScalarTraits< Scalar >::magnitudeType	normInfImpl () const
	Default implementation of norm_inf using RTOps.
virtual RCP< VectorBase< Scalar > >	nonconstColImpl (Ordinal j)
	Returns Teuchos::rcp(this,false).
virtual RCP< const MultiVectorBase< Scalar > >	contigSubViewImpl (const Range1D &col_rng) const
	Returns Teuchos::rcp(this,false).
virtual RCP< MultiVectorBase< Scalar > >	nonconstContigSubViewImpl (const Range1D &col_rng)
	Returns Teuchos::rcp(this,false).
virtual RCP< const MultiVectorBase< Scalar > >	nonContigSubViewImpl (const ArrayView< const int > &cols) const
	Returns Teuchos::rcp(this,false).
virtual RCP< MultiVectorBase< Scalar > >	nonconstNonContigSubViewImpl (const ArrayView< const int > &cols)
	Returns Teuchos::rcp(this,false).
virtual void	acquireDetachedMultiVectorViewImpl (const Range1D &rowRng, const Range1D &colRng, RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Implemented in terms of this->acquireDetachedView().
virtual void	releaseDetachedMultiVectorViewImpl (RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Implemented in terms of this->releaseDetachedView().
virtual void	acquireNonconstDetachedMultiVectorViewImpl (const Range1D &rowRng, const Range1D &colRng, RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Implemented in terms of this->acquireDetachedView().
virtual void	commitNonconstDetachedMultiVectorViewImpl (RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Implemented in terms of this->commitDetachedView().
virtual void	setSubVectorImpl (const RTOpPack::SparseSubVectorT< Scalar > &sub_vec)
Protected Member Functions inherited from Thyra::MultiVectorDefaultBase< Scalar >
virtual void	assignImpl (Scalar alpha)
	Default implementation of assign(scalar) using RTOps.
virtual void	assignMultiVecImpl (const MultiVectorBase< Scalar > &mv)
	Default implementation of assign(MV) using RTOps.
virtual void	scaleImpl (Scalar alpha)
	Default implementation of scale using RTOps.
virtual void	updateImpl (Scalar alpha, const MultiVectorBase< Scalar > &mv)
	Default implementation of update using RTOps.
virtual void	linearCombinationImpl (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &mv, const Scalar &beta)
	Default implementation of linear_combination using RTOps.
virtual void	dotsImpl (const MultiVectorBase< Scalar > &mv, const ArrayView< Scalar > &prods) const
	Default implementation of dots using RTOps.
virtual void	norms1Impl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Default implementation of norms_1 using RTOps.
virtual void	norms2Impl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Default implementation of norms_2 using RTOps.
virtual void	normsInfImpl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Default implementation of norms_inf using RTOps.
virtual void	mvMultiReductApplyOpImpl (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset) const
virtual void	mvSingleReductApplyOpImpl (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset) const
Protected Member Functions inherited from Thyra::LinearOpDefaultBase< Scalar >
Related Symbols inherited from Thyra::VectorBase< Scalar >
template<class Scalar >
void	applyOp (const RTOpPack::RTOpT< Scalar > &op, const ArrayView< const Ptr< const VectorBase< Scalar > > > &vecs, const ArrayView< const Ptr< VectorBase< Scalar > > > &targ_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal global_offset=0)
	Apply a reduction/transformation operator over a set of vectors: op(op(v[0]...v[nv-1],z[0]...z[nz-1]),(*reduct_obj)) -> z[0]...z[nz-1],(*reduct_obj).
template<class Scalar >
Scalar	sum (const VectorBase< Scalar > &v)
	Sum of vector elements: result = sum( v(i), i = 0...v.space()->dim()-1 ).
template<class Scalar >
Scalar	scalarProd (const VectorBase< Scalar > &x, const VectorBase< Scalar > &y)
	Scalar product result = <x,y>.
template<class Scalar >
Scalar	inner (const VectorBase< Scalar > &x, const VectorBase< Scalar > &y)
	Inner/Scalar product result = <x,y>.
template<class Scalar >
Teuchos::ScalarTraits< Scalar >::magnitudeType	norm (const VectorBase< Scalar > &v)
	Natural norm: result = sqrt(<v,v>).
template<class Scalar >
Teuchos::ScalarTraits< Scalar >::magnitudeType	norm_1 (const VectorBase< Scalar > &v)
	One (1) norm: result = ||v||1.
template<class Scalar >
Teuchos::ScalarTraits< Scalar >::magnitudeType	norm_2 (const VectorBase< Scalar > &v)
	Euclidean (2) norm: result = ||v||2.
template<class Scalar >
Teuchos::ScalarTraits< Scalar >::magnitudeType	norm_2 (const VectorBase< Scalar > &w, const VectorBase< Scalar > &v)
	Weighted Euclidean (2) norm: result = sqrt( sum( w(i)*conj(v(i))*v(i)) ).
template<class Scalar >
Teuchos::ScalarTraits< Scalar >::magnitudeType	norm_inf (const VectorBase< Scalar > &v_rhs)
	Infinity norm: result = ||v||inf.
template<class Scalar >
Scalar	dot (const VectorBase< Scalar > &x, const VectorBase< Scalar > &y)
	Dot product: result = conj(x)'*y.
template<class Scalar >
Scalar	get_ele (const VectorBase< Scalar > &v, Ordinal i)
	Get single element: result = v(i).
template<class Scalar >
void	set_ele (Ordinal i, Scalar alpha, const Ptr< VectorBase< Scalar > > &v)
	Set single element: v(i) = alpha.
template<class Scalar >
void	put_scalar (const Scalar &alpha, const Ptr< VectorBase< Scalar > > &y)
	Assign all elements to a scalar: y(i) = alpha, i = 0...y->space()->dim()-1.
template<class Scalar >
void	copy (const VectorBase< Scalar > &x, const Ptr< VectorBase< Scalar > > &y)
	Vector assignment: y(i) = x(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	add_scalar (const Scalar &alpha, const Ptr< VectorBase< Scalar > > &y)
	Add a scalar to all elements: y(i) += alpha, i = 0...y->space()->dim()-1.
template<class Scalar >
void	scale (const Scalar &alpha, const Ptr< VectorBase< Scalar > > &y)
	Scale all elements by a scalar: y(i) *= alpha, i = 0...y->space()->dim()-1.
template<class Scalar >
void	abs (const VectorBase< Scalar > &x, const Ptr< VectorBase< Scalar > > &y)
	Element-wise absolute value: y(i) = abs(x(i)), i = 0...y->space()->dim()-1.
template<class Scalar >
void	reciprocal (const VectorBase< Scalar > &x, const Ptr< VectorBase< Scalar > > &y)
	Element-wise reciprocal: y(i) = 1/x(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	ele_wise_prod (const Scalar &alpha, const VectorBase< Scalar > &x, const VectorBase< Scalar > &v, const Ptr< VectorBase< Scalar > > &y)
	Element-wise product update: y(i) += alpha * x(i) * v(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	pair_wise_max (const Scalar &alpha, const VectorBase< Scalar > &x, const VectorBase< Scalar > &v, const Ptr< VectorBase< Scalar > > &y)
	Element-wise maximum: y(i) = alpha * max(x(i), v(i)), i = 0...y->space()->dim()-1.
template<class Scalar >
void	ele_wise_conj_prod (const Scalar &alpha, const VectorBase< Scalar > &x, const VectorBase< Scalar > &v, const Ptr< VectorBase< Scalar > > &y)
	Element-wise conjugate product update: y(i) += alpha * conj(x(i)) * v(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	ele_wise_scale (const VectorBase< Scalar > &x, const Ptr< VectorBase< Scalar > > &y)
	Element-wise scaling: y(i) *= x(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	Vp_StVtV (const Ptr< VectorBase< Scalar > > &y, const Scalar &alpha, const VectorBase< Scalar > &x, const VectorBase< Scalar > &v)
	Element-wise product update: y(i) += alpha * x(i) * v(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	ele_wise_prod_update (const Scalar &alpha, const VectorBase< Scalar > &x, const Ptr< VectorBase< Scalar > > &y)
	Element-wise product update: y(i) *= alpha * x(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	pair_wise_max_update (const Scalar &alpha, const VectorBase< Scalar > &x, const Ptr< VectorBase< Scalar > > &y)
	Element-wise maximum update: y(i) = alpha * max(x(i), y(i)), i = 0...y->space()->dim()-1.
template<class Scalar >
void	Vt_StV (const Ptr< VectorBase< Scalar > > &y, const Scalar &alpha, const VectorBase< Scalar > &x)
	Element-wise product update: y(i) *= alpha * x(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	ele_wise_divide (const Scalar &alpha, const VectorBase< Scalar > &x, const VectorBase< Scalar > &v, const Ptr< VectorBase< Scalar > > &y)
	Element-wise division update: y(i) += alpha * x(i) / v(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const VectorBase< Scalar > > > &x, const Scalar &beta, const Ptr< VectorBase< Scalar > > &y)
	Linear combination: y(i) = beta*y(i) + sum( alpha[k]*x[k](i), k=0...m-1 ), i = 0...y->space()->dim()-1.
template<class Scalar >
void	seed_randomize (unsigned int s)
	Seed the random number generator used in randomize().
template<class Scalar >
void	randomize (Scalar l, Scalar u, const Ptr< VectorBase< Scalar > > &v)
	Random vector generation: v(i) = rand(l,u), , i = 1...v->space()->dim().
template<class Scalar >
void	assign (const Ptr< VectorBase< Scalar > > &y, const Scalar &alpha)
	Assign all elements to a scalar: y(i) = alpha, i = 0...y->space()->dim()-1.
template<class Scalar >
void	assign (const Ptr< VectorBase< Scalar > > &y, const VectorBase< Scalar > &x)
	Vector assignment: y(i) = x(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	Vp_S (const Ptr< VectorBase< Scalar > > &y, const Scalar &alpha)
	Add a scalar to all elements: y(i) += alpha, i = 0...y->space()->dim()-1.
template<class Scalar >
void	Vt_S (const Ptr< VectorBase< Scalar > > &y, const Scalar &alpha)
	Scale all elements by a scalar: y(i) *= alpha, i = 0...y->space()->dim()-1.
template<class Scalar >
void	V_StV (const Ptr< VectorBase< Scalar > > &y, const Scalar &alpha, const VectorBase< Scalar > &x)
	Assign scaled vector: y(i) = alpha * x(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	Vp_StV (const Ptr< VectorBase< Scalar > > &y, const Scalar &alpha, const VectorBase< Scalar > &x)
	AXPY: y(i) = alpha * x(i) + y(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	Vp_V (const Ptr< VectorBase< Scalar > > &y, const VectorBase< Scalar > &x, const Scalar &beta=static_cast< Scalar >(1.0))
	y(i) = x(i) + beta*y(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	V_V (const Ptr< VectorBase< Scalar > > &y, const VectorBase< Scalar > &x)
	y(i) = x(i), i = 0...y->space()->dim()-1.
template<class Scalar >
void	V_S (const Ptr< VectorBase< Scalar > > &y, const Scalar &alpha)
	y(i) = alpha, i = 0...y->space()->dim()-1.
template<class Scalar >
void	V_VpV (const Ptr< VectorBase< Scalar > > &z, const VectorBase< Scalar > &x, const VectorBase< Scalar > &y)
	z(i) = x(i) + y(i), i = 0...z->space()->dim()-1.
template<class Scalar >
void	V_VmV (const Ptr< VectorBase< Scalar > > &z, const VectorBase< Scalar > &x, const VectorBase< Scalar > &y)
	z(i) = x(i) - y(i), i = 0...z->space()->dim()-1.
template<class Scalar >
void	V_StVpV (const Ptr< VectorBase< Scalar > > &z, const Scalar &alpha, const VectorBase< Scalar > &x, const VectorBase< Scalar > &y)
	z(i) = alpha*x(i) + y(i), i = 0...z->space()->dim()-1.
template<class Scalar >
void	V_VpStV (const Ptr< VectorBase< Scalar > > &z, const VectorBase< Scalar > &x, const Scalar &alpha, const VectorBase< Scalar > &y)
	z(i) = x(i) + alpha*y(i), i = 0...z->space()->dim()-1.
template<class Scalar >
void	V_StVpStV (const Ptr< VectorBase< Scalar > > &z, const Scalar &alpha, const VectorBase< Scalar > &x, const Scalar &beta, const VectorBase< Scalar > &y)
	z(i) = alpha*x(i) + beta*y(i), i = 0...z->space()->dim()-1.
template<class Scalar >
Scalar	min (const VectorBase< Scalar > &x)
	Min element: result = min{ x(i), i = 0...x.space()->dim()-1 } .
template<class Scalar >
void	min (const VectorBase< Scalar > &x, const Ptr< Scalar > &maxEle, const Ptr< Ordinal > &maxIndex)
	Min element and its index: Returns maxEle = x(k) and maxIndex = k such that x(k) <= x(i) for all i = 0...x.space()->dim()-1.
template<class Scalar >
void	minGreaterThanBound (const VectorBase< Scalar > &x, const Scalar &bound, const Ptr< Scalar > &minEle, const Ptr< Ordinal > &minIndex)
	Minimum element greater than some bound and its index: Returns minEle = x(k) and minIndex = k such that x(k) <= x(i) for all i where x(i) > bound.
template<class Scalar >
Scalar	max (const VectorBase< Scalar > &x)
	Max element: result = max{ x(i), i = 1...n } .
template<class Scalar >
void	max (const VectorBase< Scalar > &x, const Ptr< Scalar > &maxEle, const Ptr< Ordinal > &maxIndex)
	Max element and its index: Returns maxEle = x(k) and maxIndex = k such that x(k) >= x(i) for i = 0...x.space()->dim()-1.
template<class Scalar >
void	maxLessThanBound (const VectorBase< Scalar > &x, const Scalar &bound, const Ptr< Scalar > &maxEle, const Ptr< Ordinal > &maxIndex)
	Max element less than bound and its index: Returns maxEle = x(k) and maxIndex = k such that x(k) >= x(i) for all i where x(i) < bound.
Related Symbols inherited from Thyra::MultiVectorBase< Scalar >
template<class Scalar >
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset=0)
	Apply a reduction/transformation operator column by column and return an array of the reduction objects.
template<class Scalar >
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset=0)
	Apply a reduction/transformation operator column by column and reduce the intermediate reduction objects into one reduction object.
template<class Scalar >
void	norms (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector natural norm.
template<class Scalar , class NormOp >
void	reductions (const MultiVectorBase< Scalar > &V, const NormOp &op, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector reductions.
template<class Scalar >
void	norms_1 (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector one norm.
template<class Scalar >
void	norms_2 (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector 2 (Euclidean) norm.
template<class Scalar >
void	norms_inf (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector infinity norm.
template<class Scalar >
Array< typename ScalarTraits< Scalar >::magnitudeType >	norms_inf (const MultiVectorBase< Scalar > &V)
	Column-wise multi-vector infinity norm.
template<class Scalar >
void	dots (const MultiVectorBase< Scalar > &V1, const MultiVectorBase< Scalar > &V2, const ArrayView< Scalar > &dots)
	Multi-vector dot product.
template<class Scalar >
void	sums (const MultiVectorBase< Scalar > &V, const ArrayView< Scalar > &sums)
	Multi-vector column sum.
template<class Scalar >
ScalarTraits< Scalar >::magnitudeType	norm_1 (const MultiVectorBase< Scalar > &V)
	Take the induced matrix one norm of a multi-vector.
template<class Scalar >
void	scale (Scalar alpha, const Ptr< MultiVectorBase< Scalar > > &V)
	V = alpha*V.
template<class Scalar >
void	scaleUpdate (const VectorBase< Scalar > &a, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	A*U + V -> V (where A is a diagonal matrix with diagonal a).
template<class Scalar >
void	assign (const Ptr< MultiVectorBase< Scalar > > &V, Scalar alpha)
	V = alpha.
template<class Scalar >
void	assign (const Ptr< MultiVectorBase< Scalar > > &V, const MultiVectorBase< Scalar > &U)
	V = U.
template<class Scalar >
void	update (Scalar alpha, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	alpha*U + V -> V.
template<class Scalar >
void	update (const ArrayView< const Scalar > &alpha, Scalar beta, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	alpha[j]*beta*U(j) + V(j) - > V(j), for j = 0 ,,,
template<class Scalar >
void	update (const MultiVectorBase< Scalar > &U, const ArrayView< const Scalar > &alpha, Scalar beta, const Ptr< MultiVectorBase< Scalar > > &V)
	U(j) + alpha[j]*beta*V(j) - > V(j), for j = 0 ,,, U.domain()->dim()-1.
template<class Scalar >
void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &X, const Scalar &beta, const Ptr< MultiVectorBase< Scalar > > &Y)
	Y.col(j)(i) = beta*Y.col(j)(i) + sum( alpha[k]*X[k].col(j)(i), k=0...m-1 ), for i = 0...Y->range()->dim()-1, j = 0...Y->domain()->dim()-1.
template<class Scalar >
void	randomize (Scalar l, Scalar u, const Ptr< MultiVectorBase< Scalar > > &V)
	Generate a random multi-vector with elements uniformly distributed elements.
template<class Scalar >
void	Vt_S (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha)
	Z(i,j) *= alpha, i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1.
template<class Scalar >
void	Vp_S (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha)
	Z(i,j) += alpha, i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1.
template<class Scalar >
void	Vp_V (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X)
	Z(i,j) += X(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1.
template<class Scalar >
void	V_VpV (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	Z(i,j) = X(i,j) + Y(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1.
template<class Scalar >
void	V_VmV (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	Z(i,j) = X(i,j) - Y(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1.
template<class Scalar >
void	V_StVpV (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	Z(i,j) = alpha*X(i,j) + Y(i), i = 0...z->space()->dim()-1, , j = 0...Z->domain()->dim()-1.
Related Symbols inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not.
template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not.
template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not.
template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type.
template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for M.apply(...).
void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls apply<double>(...).

Detailed Description

template<class Scalar>
class Thyra::DefaultSpmdVector< Scalar >

Efficient concrete implementation subclass for SPMD vectors.

This subclass provides a very efficient and very general concrete implementation of a Thyra::VectorBase object for any SPMD platform.

Objects of this type generally should not be constructed directly by a client but instead by using the concrete vector space subclass Thyra::DefaultSpmdVectorSpace and using the function Thyra::createMember().

The storage type can be anything since an ArrayRCP is used to pass in the local values pointer into the constructor and initialize().

Definition at line 37 of file Thyra_DefaultSpmdVector_decl.hpp.

Constructor & Destructor Documentation

DefaultSpmdVector() [1/2]

template<class Scalar >

Thyra::DefaultSpmdVector< Scalar >::DefaultSpmdVector

(

)

Construct to uninitialized.

Definition at line 26 of file Thyra_DefaultSpmdVector_def.hpp.

DefaultSpmdVector() [2/2]

template<class Scalar >

Thyra::DefaultSpmdVector< Scalar >::DefaultSpmdVector	(	const RCP< const SpmdVectorSpaceBase< Scalar > > &	spmdSpace,
		const ArrayRCP< Scalar > &	localValues,
		const Ordinal	stride
	)

Calls initialize().

Definition at line 32 of file Thyra_DefaultSpmdVector_def.hpp.

Member Function Documentation

initialize()

template<class Scalar >

void Thyra::DefaultSpmdVector< Scalar >::initialize	(	const RCP< const SpmdVectorSpaceBase< Scalar > > &	spmdSpace,
		const ArrayRCP< Scalar > &	localValues,
		const Ordinal	stride
	)

Initialize.

Parameters

spmdSpace	[in] Smart pointer to SpmdVectorSpaceBase object that defines the data distribution for spmdSpace() and space().
localValues	[in] Smart pointer to beginning of local strided vector data. This array must be at least of dimension mpiRangeSpace->localDim()*stride and (&*localValues)[ i*stride ] gives the local value of the zero-based entry (i) where i=0...spmdSpace()->localSubDim()-1.
stride	[in] Stride between local vector elements.

Preconditions:

• spmdSpace.get()!=NULL
• localValues.get()!=NULL
• stride != 0

Postconditions:

• this->getRCptr().get() == localValues.get()
• this->getPtr() == &*localValues
• this->getStride() == stride

Definition at line 43 of file Thyra_DefaultSpmdVector_def.hpp.

uninitialize()

template<class Scalar >

void Thyra::DefaultSpmdVector< Scalar >::uninitialize	(	RCP< const SpmdVectorSpaceBase< Scalar > > *	spmdSpace = NULL,
		ArrayRCP< Scalar > *	localValues = NULL,
		Ordinal *	stride = NULL
	)

Set to an uninitialized state.

Postconditions:

• this->spmdSpace().get() == NULL.

Definition at line 62 of file Thyra_DefaultSpmdVector_def.hpp.

getRCPtr() [1/2]

template<class Scalar >

ArrayRCP< Scalar > Thyra::DefaultSpmdVector< Scalar >::getRCPtr ( )

inline

Definition at line 150 of file Thyra_DefaultSpmdVector_decl.hpp.

getRCPtr() [2/2]

template<class Scalar >

ArrayRCP< const Scalar > Thyra::DefaultSpmdVector< Scalar >::getRCPtr ( ) const

inline

Definition at line 159 of file Thyra_DefaultSpmdVector_decl.hpp.

getPtr() [1/2]

template<class Scalar >

Scalar * Thyra::DefaultSpmdVector< Scalar >::getPtr ( )

inline

Definition at line 167 of file Thyra_DefaultSpmdVector_decl.hpp.

getPtr() [2/2]

template<class Scalar >

const Scalar * Thyra::DefaultSpmdVector< Scalar >::getPtr ( ) const

inline

Definition at line 175 of file Thyra_DefaultSpmdVector_decl.hpp.

getStride()

template<class Scalar >

Ordinal Thyra::DefaultSpmdVector< Scalar >::getStride ( ) const

inline

Definition at line 183 of file Thyra_DefaultSpmdVector_decl.hpp.

spmdSpaceImpl()

template<class Scalar >

RCP< const SpmdVectorSpaceBase< Scalar > > Thyra::DefaultSpmdVector< Scalar >::spmdSpaceImpl ( ) const

virtual

Implements Thyra::SpmdMultiVectorBase< Scalar >.

Definition at line 85 of file Thyra_DefaultSpmdVector_def.hpp.

getNonconstLocalVectorDataImpl()

template<class Scalar >

void Thyra::DefaultSpmdVector< Scalar >::getNonconstLocalVectorDataImpl ( const Ptr< ArrayRCP< Scalar > > &  localValues )

virtual

Implements Thyra::SpmdVectorBase< Scalar >.

Definition at line 95 of file Thyra_DefaultSpmdVector_def.hpp.

getLocalVectorDataImpl()

template<class Scalar >

void Thyra::DefaultSpmdVector< Scalar >::getLocalVectorDataImpl ( const Ptr< ArrayRCP< const Scalar > > &  localValues ) const

virtual

Implements Thyra::SpmdVectorBase< Scalar >.

Definition at line 103 of file Thyra_DefaultSpmdVector_def.hpp.

---

The documentation for this class was generated from the following files:

• Thyra_DefaultSpmdVector_decl.hpp
• Thyra_DefaultSpmdVector_def.hpp
