Simple concreate subclass of LinearOpWithSolveBase for serial dense matrices implemented using LAPACK. More...

#include <Thyra_DefaultSerialDenseLinearOpWithSolve_decl.hpp>

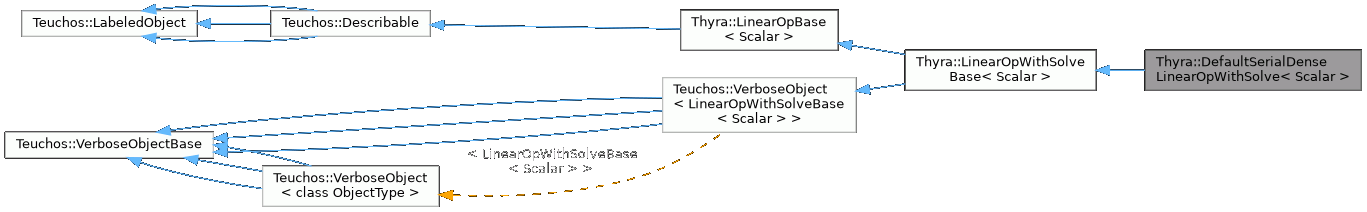

Inheritance diagram for Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >:

[legend]

Related Symbols
(Note that these are not member symbols.)
template<class Scalar >
RCP< DefaultSerialDenseLinearOpWithSolve< Scalar > >	defaultSerialDenseLinearOpWithSolve ()
	Nonmember constructor.

template<class Scalar >
RCP< DefaultSerialDenseLinearOpWithSolve< Scalar > >	defaultSerialDenseLinearOpWithSolve (const RCP< const MultiVectorBase< Scalar > > &M)
	Nonmember constructor.

Related Symbols inherited from Thyra::LinearOpWithSolveBase< Scalar >
template<class Scalar >
bool	solveSupports (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp)
	Call `solveSupports()` as a non-member function.

template<class Scalar >
bool	solveSupports (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp, const Ptr< const SolveCriteria< Scalar > > solveCriteria)
	Call `solveSupports()` as a non-member function.

template<class Scalar >
bool	solveSupportsSolveMeasureType (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp, const SolveMeasureType &solveMeasureType)
	Call `solveSupportsSolveMeasureType()` as a non-member function.

template<class Scalar >
SolveStatus< Scalar >	solve (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp A_trans, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null)
	Call `solve()` as a non-member function.

template<class Scalar >
void	assertSolveSupports (const LinearOpWithSolveBase< Scalar > &lows, const EOpTransp M_trans, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null)
	Assert that a LOWSB object supports a particular solve type.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
SolveStatus< Scalar >	solve (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp A_trans, const RCP< const Tpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &tpetraB, const RCP< Tpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &tpetraX, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null)
	Call `solve()` as a non-member function.

Related Symbols inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not.

template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not.

template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not.

template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type.

template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for `M.apply(...)`.

void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls `apply<double>(...)`.

Overridden from LinearOpWithSolveBase
bool	solveSupportsImpl (EOpTransp M_trans) const

bool	solveSupportsSolveMeasureTypeImpl (EOpTransp M_trans, const SolveMeasureType &solveMeasureType) const

SolveStatus< Scalar >	solveImpl (const EOpTransp transp, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria) const

Constructors/initializers/accessors
	DefaultSerialDenseLinearOpWithSolve ()

void	initialize (const RCP< const MultiVectorBase< Scalar > > &M)

RCP< const LinearOpBase< Scalar > >	getFwdOp () const

Overridden from LinearOpBase
RCP< const VectorSpaceBase< Scalar > >	range () const

RCP< const VectorSpaceBase< Scalar > >	domain () const

bool	opSupportedImpl (EOpTransp M_trans) const

void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const

Additional Inherited Members
Public Member Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
bool	solveSupports (EOpTransp transp) const
	Return if `solve()` supports the argument `transp`.

bool	solveSupports (EOpTransp transp, const Ptr< const SolveCriteria< Scalar > > solveCriteria) const
	Return if `solve()` supports a given transpose and solve criteria specification.

bool	solveSupportsSolveMeasureType (EOpTransp transp, const SolveMeasureType &solveMeasureType) const
	Return if `solve()` supports the given the solve measure type.

SolveStatus< Scalar >	solve (const EOpTransp A_trans, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null) const
	Request the solution of a block linear system.

Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
bool	opSupported (EOpTransp M_trans) const
	Return if the `M_trans` operation of `apply()` is supported or not.

void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : `Y = alphaop(M)X + beta*Y`.

virtual RCP< const LinearOpBase< Scalar > >	clone () const
	Clone the linear operator object (if supported).

Protected Member Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
virtual bool	solveSupportsNewImpl (EOpTransp, const Ptr< const SolveCriteria< Scalar > >) const
	Virtual implementation of `solveSupports()`.

Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >

Detailed Description

template<class Scalar>
class Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >

Simple concreate subclass of LinearOpWithSolveBase for serial dense matrices implemented using LAPACK.

This class uses the helper class DetachedMultiVectorView to extract an explicit view of the matrix elements and then uses Teuchos::LAPACK to factor M = L * U and then do back-solves with the factors L and U.

Even through this class accesses explicit matrix entries and is called SerialDense, it is still considered an ANA subclass since it does not have any direct dependance on a specific computing environment or concreate operator/vector/vectorspace implementation.

ToDo: Finish Documentation!

Definition at line 58 of file Thyra_DefaultSerialDenseLinearOpWithSolve_decl.hpp.

Constructor & Destructor Documentation

◆ DefaultSerialDenseLinearOpWithSolve()

template<class Scalar >

Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::DefaultSerialDenseLinearOpWithSolve ( )

Definition at line 29 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

Member Function Documentation

◆ initialize()

template<class Scalar >

void Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::initialize ( const RCP< const MultiVectorBase< Scalar > > & M )

Definition at line 34 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

◆ getFwdOp()

template<class Scalar >

RCP< const LinearOpBase< Scalar > > Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::getFwdOp ( ) const

Definition at line 50 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

◆ range()

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::range ( ) const

virtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 60 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

◆ domain()

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::domain ( ) const

virtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 70 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

◆ opSupportedImpl()

template<class Scalar >

bool Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::opSupportedImpl ( EOpTransp M_trans ) const

protectedvirtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 85 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

◆ applyImpl()

template<class Scalar >

void Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::applyImpl	(	const EOpTransp	M_trans,
		const MultiVectorBase< Scalar > &	X,
		const Ptr< MultiVectorBase< Scalar > > &	Y,
		const Scalar	alpha,
		const Scalar	beta
	)		const

protectedvirtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 93 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

◆ solveSupportsImpl()

template<class Scalar >

bool Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::solveSupportsImpl ( EOpTransp M_trans ) const

protectedvirtual

Reimplemented from Thyra::LinearOpWithSolveBase< Scalar >.

Definition at line 109 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

◆ solveSupportsSolveMeasureTypeImpl()

template<class Scalar >

bool Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::solveSupportsSolveMeasureTypeImpl	(	EOpTransp	M_trans,
		const SolveMeasureType &	solveMeasureType
	)		const

protectedvirtual

Reimplemented from Thyra::LinearOpWithSolveBase< Scalar >.

Definition at line 118 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

◆ solveImpl()

template<class Scalar >

SolveStatus< Scalar > Thyra::DefaultSerialDenseLinearOpWithSolve< Scalar >::solveImpl	(	const EOpTransp	transp,
		const MultiVectorBase< Scalar > &	B,
		const Ptr< MultiVectorBase< Scalar > > &	X,
		const Ptr< const SolveCriteria< Scalar > >	solveCriteria
	)		const

protectedvirtual

Implements Thyra::LinearOpWithSolveBase< Scalar >.

Definition at line 128 of file Thyra_DefaultSerialDenseLinearOpWithSolve_def.hpp.

Friends And Related Symbol Documentation

◆ defaultSerialDenseLinearOpWithSolve() [1/2]

template<class Scalar >

RCP< DefaultSerialDenseLinearOpWithSolve< Scalar > > defaultSerialDenseLinearOpWithSolve ( )

Definition at line 162 of file Thyra_DefaultSerialDenseLinearOpWithSolve_decl.hpp.

◆ defaultSerialDenseLinearOpWithSolve() [2/2]

template<class Scalar >

RCP< DefaultSerialDenseLinearOpWithSolve< Scalar > > defaultSerialDenseLinearOpWithSolve ( const RCP< const MultiVectorBase< Scalar > > & M )

Definition at line 174 of file Thyra_DefaultSerialDenseLinearOpWithSolve_decl.hpp.

The documentation for this class was generated from the following files:
