TimeStepControlStrategy class for TimeStepControl. More...

#include <Tempus_TimeStepControlStrategy.hpp>

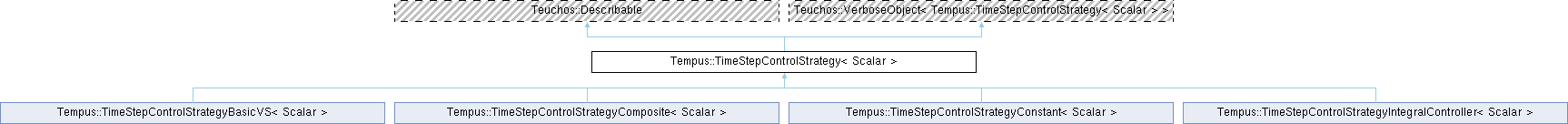

Inheritance diagram for Tempus::TimeStepControlStrategy< Scalar >:

Public Member Functions
	TimeStepControlStrategy ()
	Constructor.

virtual	~TimeStepControlStrategy ()
	Destructor.

virtual void	setNextTimeStep (const TimeStepControl< Scalar > &, Teuchos::RCP< SolutionHistory< Scalar > >, Status &)
	Set the time step size.

virtual void	initialize () const

virtual bool	isInitialized ()

virtual void	checkInitialized ()

virtual void	setName (std::string s)

virtual std::string	getStrategyType () const

virtual std::string	getStepType () const

virtual std::string	getName () const

virtual Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const
	Return ParameterList with current values.

Protected Member Functions
virtual void	setStrategyType (std::string s)

virtual void	setStepType (std::string s)

Protected Attributes
std::string	strategyType_
	Strategy type.

std::string	stepType_
	Step Type - "Constant" or "Variable".

std::string	name_
	Name of strategy.

bool	isInitialized_
	Bool if strategy is initialized.

Detailed Description

template<class Scalar>
class Tempus::TimeStepControlStrategy< Scalar >

TimeStepControlStrategy class for TimeStepControl.

This is the base class for TimeStepControlStrategies. The primary function required from derived classes is setNextTimeStep(), which will

determine the next step from information in the TimeStepControl and SolutionHistory (i.e., SolutionStates)
set the next time step on the workingState in the SolutionHistory If a valid timestep can not be determined the Status is set to FAILED.

Definition at line 32 of file Tempus_TimeStepControlStrategy.hpp.

Constructor & Destructor Documentation

◆ TimeStepControlStrategy()

template<class Scalar >

Tempus::TimeStepControlStrategy< Scalar >::TimeStepControlStrategy ( )

inline

Constructor.

Definition at line 37 of file Tempus_TimeStepControlStrategy.hpp.

◆ ~TimeStepControlStrategy()

template<class Scalar >

virtual Tempus::TimeStepControlStrategy< Scalar >::~TimeStepControlStrategy ( )

inlinevirtual

Destructor.

Definition at line 46 of file Tempus_TimeStepControlStrategy.hpp.

Member Function Documentation

◆ setNextTimeStep()

template<class Scalar >

virtual void Tempus::TimeStepControlStrategy< Scalar >::setNextTimeStep	(	const TimeStepControl< Scalar > &	,
		Teuchos::RCP< SolutionHistory< Scalar > >	,
		Status &
	)

inlinevirtual

Set the time step size.

Reimplemented in Tempus::TimeStepControlStrategyComposite< Scalar >, Tempus::TimeStepControlStrategyBasicVS< Scalar >, Tempus::TimeStepControlStrategyIntegralController< Scalar >, and Tempus::TimeStepControlStrategyConstant< Scalar >.

Definition at line 49 of file Tempus_TimeStepControlStrategy.hpp.

◆ initialize()

template<class Scalar >

virtual void Tempus::TimeStepControlStrategy< Scalar >::initialize ( ) const

inlinevirtual

Reimplemented in Tempus::TimeStepControlStrategyBasicVS< Scalar >, Tempus::TimeStepControlStrategyComposite< Scalar >, Tempus::TimeStepControlStrategyConstant< Scalar >, and Tempus::TimeStepControlStrategyIntegralController< Scalar >.

Definition at line 55 of file Tempus_TimeStepControlStrategy.hpp.

◆ isInitialized()

template<class Scalar >

virtual bool Tempus::TimeStepControlStrategy< Scalar >::isInitialized ( )

inlinevirtual

Definition at line 56 of file Tempus_TimeStepControlStrategy.hpp.

◆ checkInitialized()

template<class Scalar >

virtual void Tempus::TimeStepControlStrategy< Scalar >::checkInitialized ( )

inlinevirtual

Definition at line 57 of file Tempus_TimeStepControlStrategy.hpp.

◆ setName()

template<class Scalar >

virtual void Tempus::TimeStepControlStrategy< Scalar >::setName ( std::string s )

inlinevirtual

Definition at line 67 of file Tempus_TimeStepControlStrategy.hpp.

◆ getStrategyType()

template<class Scalar >

virtual std::string Tempus::TimeStepControlStrategy< Scalar >::getStrategyType ( ) const

inlinevirtual

Definition at line 69 of file Tempus_TimeStepControlStrategy.hpp.

◆ getStepType()

template<class Scalar >

virtual std::string Tempus::TimeStepControlStrategy< Scalar >::getStepType ( ) const

inlinevirtual

Definition at line 70 of file Tempus_TimeStepControlStrategy.hpp.

◆ getName()

template<class Scalar >

virtual std::string Tempus::TimeStepControlStrategy< Scalar >::getName ( ) const

inlinevirtual

Definition at line 71 of file Tempus_TimeStepControlStrategy.hpp.

◆ getValidParameters()

template<class Scalar >

virtual Teuchos::RCP< const Teuchos::ParameterList > Tempus::TimeStepControlStrategy< Scalar >::getValidParameters ( ) const

inlinevirtual

Return ParameterList with current values.

Reimplemented in Tempus::TimeStepControlStrategyBasicVS< Scalar >, Tempus::TimeStepControlStrategyComposite< Scalar >, Tempus::TimeStepControlStrategyConstant< Scalar >, and Tempus::TimeStepControlStrategyIntegralController< Scalar >.

Definition at line 74 of file Tempus_TimeStepControlStrategy.hpp.

◆ setStrategyType()

template<class Scalar >

virtual void Tempus::TimeStepControlStrategy< Scalar >::setStrategyType ( std::string s )

inlineprotectedvirtual

Definition at line 80 of file Tempus_TimeStepControlStrategy.hpp.

◆ setStepType()

template<class Scalar >

virtual void Tempus::TimeStepControlStrategy< Scalar >::setStepType ( std::string s )

inlineprotectedvirtual

Definition at line 81 of file Tempus_TimeStepControlStrategy.hpp.

Member Data Documentation

◆ strategyType_

template<class Scalar >

std::string Tempus::TimeStepControlStrategy< Scalar >::strategyType_

protected

Strategy type.

Definition at line 83 of file Tempus_TimeStepControlStrategy.hpp.

◆ stepType_

template<class Scalar >

std::string Tempus::TimeStepControlStrategy< Scalar >::stepType_

protected

Step Type - "Constant" or "Variable".

Definition at line 84 of file Tempus_TimeStepControlStrategy.hpp.

◆ name_

template<class Scalar >

std::string Tempus::TimeStepControlStrategy< Scalar >::name_

protected

Name of strategy.

Definition at line 85 of file Tempus_TimeStepControlStrategy.hpp.

◆ isInitialized_

template<class Scalar >

bool Tempus::TimeStepControlStrategy< Scalar >::isInitialized_

mutableprotected

Bool if strategy is initialized.

Definition at line 86 of file Tempus_TimeStepControlStrategy.hpp.

The documentation for this class was generated from the following file:

Tempus_TimeStepControlStrategy.hpp
