A stepper implementing staggered forward sensitivity analysis. More...

#include <Tempus_StepperStaggeredForwardSensitivity_decl.hpp>

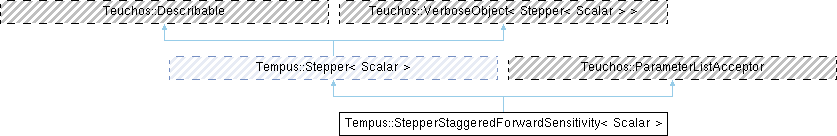

Inheritance diagram for Tempus::StepperStaggeredForwardSensitivity< Scalar >:

Public Member Functions
	StepperStaggeredForwardSensitivity ()
	Default constructor.

	StepperStaggeredForwardSensitivity (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &sens_residual_model, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &sens_solve_model, const Teuchos::RCP< Teuchos::ParameterList > &pList=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &sens_pList=Teuchos::null)
	Constructor.

Public Member Functions inherited from Tempus::Stepper< Scalar >
void	setStepperValues (const Teuchos::RCP< Teuchos::ParameterList > pl)
	Set Stepper member data from ParameterList.

Teuchos::RCP< Teuchos::ParameterList >	getValidParametersBasic () const
	Add basic parameters to Steppers ParameterList.

virtual void	initialize ()
	Initialize after construction and changing input parameters.

virtual bool	isInitialized ()
	True if stepper's member data is initialized.

virtual void	checkInitialized ()
	Check initialization, and error out on failure.

void	setStepperName (std::string s)
	Set the stepper name.

std::string	getStepperName () const
	Get the stepper name.

std::string	getStepperType () const
	Get the stepper type. The stepper type is used as an identifier for the stepper, and can only be set by the derived Stepper class.

void	setUseFSALTrueOnly (bool a)

void	setUseFSALFalseOnly (bool a)

bool	getUseFSAL () const

void	setICConsistency (std::string s)

std::string	getICConsistency () const

void	setICConsistencyCheck (bool c)

bool	getICConsistencyCheck () const

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > >	getStepperX ()
	Get Stepper x.

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > >	getStepperXDot ()
	Get Stepper xDot.

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > >	getStepperXDotDot ()
	Get Stepper xDotDot.

virtual Teuchos::RCP< Thyra::VectorBase< Scalar > >	getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
	Get xDotDot from SolutionState or Stepper storage.

Overridden from Teuchos::Describable
Teuchos::RCP< Teuchos::ParameterList >	stepperPL_

Teuchos::RCP< Teuchos::ParameterList >	sensPL_

Teuchos::RCP< Stepper< Scalar > >	stateStepper_

Teuchos::RCP< Stepper< Scalar > >	sensitivityStepper_

Teuchos::RCP< SensitivityModelEvaluatorBase< Scalar > >	combined_fsa_model_

Teuchos::RCP< SensitivityModelEvaluatorBase< Scalar > >	fsa_model_

Teuchos::RCP< SolutionHistory< Scalar > >	stateSolutionHistory_

Teuchos::RCP< SolutionHistory< Scalar > >	sensSolutionHistory_

bool	reuse_solver_

bool	force_W_update_

SensitivityStepMode	stepMode_

virtual std::string	description () const

virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

virtual bool	isValidSetup (Teuchos::FancyOStream &out) const

Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_x_space () const

virtual Teuchos::RCP< const Teuchos::ParameterList >	getParameterList () const

SensitivityStepMode	getStepMode () const
	What mode the current time integration step is in.

void	setParams (const Teuchos::RCP< Teuchos::ParameterList > &pl, const Teuchos::RCP< Teuchos::ParameterList > &spl)

Basic stepper methods
virtual void	setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual void	setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &sens_residual_model, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &sens_solve_model)

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getModel () const

virtual void	setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver=Teuchos::null)
	Set solver.

virtual Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > >	getSolver () const
	Get solver.

virtual void	setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &)
	Set the initial conditions and make them consistent.

virtual void	takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
	Take the specified timestep, dt, and return true if successful.

virtual Teuchos::RCP< Tempus::StepperState< Scalar > >	getDefaultStepperState ()
	Get a default (initial) StepperState.

virtual Scalar	getOrder () const

virtual Scalar	getOrderMin () const

virtual Scalar	getOrderMax () const

virtual Scalar	getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual bool	isExplicit () const

virtual bool	isImplicit () const

virtual bool	isExplicitImplicit () const

virtual bool	isOneStepMethod () const

virtual bool	isMultiStepMethod () const

virtual OrderODE	getOrderODE () const

virtual void	setUseFSAL (bool a)

virtual bool	getUseFSAL () const

virtual void	setICConsistency (std::string s)

virtual std::string	getICConsistency () const

virtual void	setICConsistencyCheck (bool c)

virtual bool	getICConsistencyCheck () const

virtual void	setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > >)
	Pass initial guess to Newton solver.

ParameterList methods
void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &pl)

Teuchos::RCP< Teuchos::ParameterList >	getNonconstParameterList ()

Teuchos::RCP< Teuchos::ParameterList >	unsetParameterList ()

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const

Teuchos::RCP< Teuchos::ParameterList >	getDefaultParameters () const

Additional Inherited Members
Protected Member Functions inherited from Tempus::Stepper< Scalar >
virtual void	setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
	Set x for Stepper storage.

virtual void	setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
	Set xDot for Stepper storage.

virtual void	setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
	Set x for Stepper storage.

void	setStepperType (std::string s)
	Set the stepper type.

Protected Attributes inherited from Tempus::Stepper< Scalar >
bool	useFSAL_ = false
	Use First-Same-As-Last (FSAL) principle.

bool	isInitialized_
	True if stepper's member data is initialized.

Detailed Description

template<class Scalar>
class Tempus::StepperStaggeredForwardSensitivity< Scalar >

A stepper implementing staggered forward sensitivity analysis.

It constructs two internal steppers, one for the state equations as usual and one for the sensitivity equations using Tempus::StaggeredForwardSensitivityModelEvaluator. It's implementation of takeStep() first takes a step using the state stepper, updates the sensitivity model evaluator with the compute state solution and time derivatives, and then takes a step using the sensitivity stepper. It optionally can reuse the state solver for the sensitivity equations as well.

Definition at line 36 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

Constructor & Destructor Documentation

◆ StepperStaggeredForwardSensitivity() [1/2]

template<class Scalar >

Tempus::StepperStaggeredForwardSensitivity< Scalar >::StepperStaggeredForwardSensitivity ( )

Default constructor.

Requires subsequent setModel() and initialize() calls before calling takeStep().

Definition at line 25 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ StepperStaggeredForwardSensitivity() [2/2]

template<class Scalar >

Tempus::StepperStaggeredForwardSensitivity< Scalar >::StepperStaggeredForwardSensitivity	(	const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	appModel,
		const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	sens_residual_model,
		const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	sens_solve_model,
		const Teuchos::RCP< Teuchos::ParameterList > &	pList = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	sens_pList = `Teuchos::null`
	)

Constructor.

The first parameter list argument supplies supplies regular stepper options, while the second provides sensitivity specific options:

"Reuse State Linear Solver" (default: false) Whether to reuse the model's W matrix, solver, and preconditioner when solving the sensitivity equations. If they can be reused, substantial savings in compute time are possible.
"Force W Update" (default: false) When reusing the solver as above whether to force recomputation of W. This can be necessary when the solver overwrites it during the solve-phase (e.g., by a factorization).
"Use DfDp as Tangent" (default: false) Reinterpret the df/dp out-arg as the tangent vector (df/dx)(x,p) * dx/dp + df/dp(x,p) as described in the Tempus::CombinedForwardSensitivityModelEvaluator documentation.
"Sensitivity Parameter Index" (default: 0) Model evaluator parameter index for which sensitivities will be computed.
"Sensitivity X Tangent Index" (default: 1) If "Use DfDp as Tangent" is true, the model evaluator parameter index for passing dx/dp as a Thyra::DefaultMultiVectorProductVector.
"Sensitivity X-Dot Tangent Index" (default: 2) If "Use DfDp as Tangent" is true, the model evaluator parameter index for passing dx_dot/dp as a Thyra::DefaultMultiVectorProductVector.
"Sensitivity X-Dot-Dot Tangent Index" (default: 3) If "Use DfDp as Tangent" is true, the model evaluator parameter index for passing dx_dot_dot/dp as a Thyra::DefaultMultiVectorProductVector (if the model supports x_dot_dot).

Definition at line 34 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

Member Function Documentation

◆ setModel() [1/2]

template<class Scalar >

virtual void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & appModel )

inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 90 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ setModel() [2/2]

template<class Scalar >

void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setModel	(	const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	appModel,
		const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	sens_residual_model,
		const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &	sens_solve_model
	)

virtual

Definition at line 52 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ getModel()

template<class Scalar >

Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > Tempus::StepperStaggeredForwardSensitivity< Scalar >::getModel ( ) const

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 94 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ setSolver()

template<class Scalar >

void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setSolver ( Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver = Teuchos::null )

virtual

Set solver.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 100 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ getSolver()

template<class Scalar >

virtual Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > Tempus::StepperStaggeredForwardSensitivity< Scalar >::getSolver ( ) const

inlinevirtual

Get solver.

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 105 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ setInitialConditions()

template<class Scalar >

virtual void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > & )

inlinevirtual

Set the initial conditions and make them consistent.

Implements Tempus::Stepper< Scalar >.

Definition at line 111 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ takeStep()

template<class Scalar >

void Tempus::StepperStaggeredForwardSensitivity< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 110 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ getDefaultStepperState()

template<class Scalar >

Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperStaggeredForwardSensitivity< Scalar >::getDefaultStepperState ( )

virtual

Get a default (initial) StepperState.

Implements Tempus::Stepper< Scalar >.

Definition at line 262 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ getOrder()

template<class Scalar >

virtual Scalar Tempus::StepperStaggeredForwardSensitivity< Scalar >::getOrder ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 122 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ getOrderMin()

template<class Scalar >

virtual Scalar Tempus::StepperStaggeredForwardSensitivity< Scalar >::getOrderMin ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 123 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ getOrderMax()

template<class Scalar >

virtual Scalar Tempus::StepperStaggeredForwardSensitivity< Scalar >::getOrderMax ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 124 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ getInitTimeStep()

template<class Scalar >

virtual Scalar Tempus::StepperStaggeredForwardSensitivity< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 125 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ isExplicit()

template<class Scalar >

virtual bool Tempus::StepperStaggeredForwardSensitivity< Scalar >::isExplicit ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 131 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ isImplicit()

template<class Scalar >

virtual bool Tempus::StepperStaggeredForwardSensitivity< Scalar >::isImplicit ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 135 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ isExplicitImplicit()

template<class Scalar >

virtual bool Tempus::StepperStaggeredForwardSensitivity< Scalar >::isExplicitImplicit ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 139 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ isOneStepMethod()

template<class Scalar >

virtual bool Tempus::StepperStaggeredForwardSensitivity< Scalar >::isOneStepMethod ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 144 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ isMultiStepMethod()

template<class Scalar >

virtual bool Tempus::StepperStaggeredForwardSensitivity< Scalar >::isMultiStepMethod ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 149 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ getOrderODE()

template<class Scalar >

virtual OrderODE Tempus::StepperStaggeredForwardSensitivity< Scalar >::getOrderODE ( ) const

inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 151 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ setUseFSAL()

template<class Scalar >

virtual void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setUseFSAL ( bool a )

inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 153 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ getUseFSAL()

template<class Scalar >

virtual bool Tempus::StepperStaggeredForwardSensitivity< Scalar >::getUseFSAL ( ) const

inlinevirtual

Definition at line 154 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ setICConsistency()

template<class Scalar >

virtual void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setICConsistency ( std::string s )

inlinevirtual

Definition at line 159 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ getICConsistency()

template<class Scalar >

virtual std::string Tempus::StepperStaggeredForwardSensitivity< Scalar >::getICConsistency ( ) const

inlinevirtual

Definition at line 163 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ setICConsistencyCheck()

template<class Scalar >

virtual void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setICConsistencyCheck ( bool c )

inlinevirtual

Definition at line 169 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ getICConsistencyCheck()

template<class Scalar >

virtual bool Tempus::StepperStaggeredForwardSensitivity< Scalar >::getICConsistencyCheck ( ) const

inlinevirtual

Definition at line 173 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ setInitialGuess()

template<class Scalar >

virtual void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setInitialGuess ( Teuchos::RCP< const Thyra::VectorBase< Scalar > > )

inlinevirtual

Pass initial guess to Newton solver.

Implements Tempus::Stepper< Scalar >.

Definition at line 180 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ setParameterList()

template<class Scalar >

void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > & pl )

Definition at line 327 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ getNonconstParameterList()

template<class Scalar >

Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperStaggeredForwardSensitivity< Scalar >::getNonconstParameterList ( )

Definition at line 352 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ unsetParameterList()

template<class Scalar >

Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperStaggeredForwardSensitivity< Scalar >::unsetParameterList ( )

Definition at line 359 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ getValidParameters()

template<class Scalar >

Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperStaggeredForwardSensitivity< Scalar >::getValidParameters ( ) const

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 345 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ getDefaultParameters()

template<class Scalar >

Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperStaggeredForwardSensitivity< Scalar >::getDefaultParameters ( ) const

◆ description()

template<class Scalar >

virtual std::string Tempus::StepperStaggeredForwardSensitivity< Scalar >::description ( ) const

inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 196 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ describe()

template<class Scalar >

void Tempus::StepperStaggeredForwardSensitivity< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 272 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ isValidSetup()

template<class Scalar >

bool Tempus::StepperStaggeredForwardSensitivity< Scalar >::isValidSetup ( Teuchos::FancyOStream & out ) const

virtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 295 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ get_x_space()

template<class Scalar >

Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > > Tempus::StepperStaggeredForwardSensitivity< Scalar >::get_x_space ( ) const

Definition at line 391 of file Tempus_StepperStaggeredForwardSensitivity_impl.hpp.

◆ getParameterList()

template<class Scalar >

virtual Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperStaggeredForwardSensitivity< Scalar >::getParameterList ( ) const

inlinevirtual

Definition at line 208 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ getStepMode()

template<class Scalar >

SensitivityStepMode Tempus::StepperStaggeredForwardSensitivity< Scalar >::getStepMode ( ) const

inline

What mode the current time integration step is in.

Definition at line 214 of file Tempus_StepperStaggeredForwardSensitivity_decl.hpp.

◆ setParams()

template<class Scalar >

void Tempus::StepperStaggeredForwardSensitivity< Scalar >::setParams	(	const Teuchos::RCP< Teuchos::ParameterList > &	pl,
		const Teuchos::RCP< Teuchos::ParameterList > &	spl
	)
