#include <Panzer_STK_ScatterFields_decl.hpp>

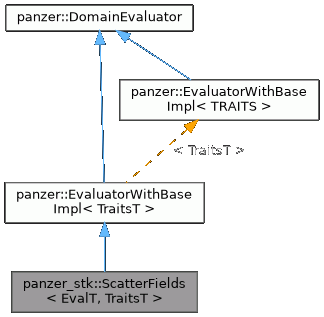

Inheritance diagram for panzer_stk::ScatterFields< EvalT, TraitsT >:
Public Member Functions | |
| ScatterFields (const std::string &scatterName, const Teuchos::RCP< STK_Interface > mesh, const Teuchos::RCP< const panzer::PureBasis > &basis, const std::vector< std::string > &names) | |
| ScatterFields (const std::string &scatterName, const Teuchos::RCP< STK_Interface > mesh, const Teuchos::RCP< const panzer::PureBasis > &basis, const std::vector< std::string > &names, const std::vector< double > &scaling) | |
| void | postRegistrationSetup (typename TraitsT::SetupData d, PHX::FieldManager< TraitsT > &fm) |
| void | evaluateFields (typename TraitsT::EvalData d) |
| void | evaluateFields (panzer::Traits::EvalData workset) |
 Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< TraitsT > | |
| void | setDetailsIndex (const int di) |
| An evaluator builder sets the details index. | |
| Public Member Functions inherited from panzer::DomainEvaluator | |
| DomainEvaluator (DomainType domain=ALL) | |
| Constructor. | |
| virtual | ~DomainEvaluator ()=default |
| Default destructor. | |
| void | setDomain (const DomainType domain) |
| Set the domain for the evaluator. | |
| DomainType | getDomain () |
| Get the domain for the evaluator. | |
| virtual int | cellStartIndex (const panzer::Workset &workset) const |
| Returns the starting cell for the specified domain for a given workset. | |
| virtual int | cellEndIndex (const panzer::Workset &workset) const |
| Returns the non-inclusive end cell for the specified domain for a given workset. | |
Private Types | |
| typedef EvalT::ScalarT | ScalarT |
| typedef panzer_stk::STK_Interface::SolutionFieldType | VariableField |
Private Member Functions | |
| void | initialize (const std::string &scatterName, const Teuchos::RCP< STK_Interface > mesh, const Teuchos::RCP< const panzer::PureBasis > &basis, const std::vector< std::string > &names, const std::vector< double > &scaling) |
Private Attributes | |
| std::vector< PHX::MDField< const ScalarT, panzer::Cell, panzer::NODE > > | scatterFields_ |
| Teuchos::RCP< STK_Interface > | mesh_ |
| std::vector< double > | scaling_ |
| bool | cellFields_ |
Additional Inherited Members | |
| Public Types inherited from panzer::DomainEvaluator | |
| enum | DomainType : int { OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 , EXTERNAL =4 , ALL =5 } |
| Domain types supported by worksets. More... | |
| Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< TraitsT > | |
| WorksetDetailsAccessor | wda |
Detailed Description
template<typename EvalT, typename TraitsT>
class panzer_stk::ScatterFields< EvalT, TraitsT >
class panzer_stk::ScatterFields< EvalT, TraitsT >
This class is a scatter operation to the mesh. It takes a set of field names and basis objects and then writes them to the mesh object. Note that scaling vector must be the same length as the names vector. The scaling is applied to each field.
Definition at line 37 of file Panzer_STK_ScatterFields_decl.hpp.
Member Typedef Documentation
◆ ScalarT
template<typename EvalT , typename TraitsT >
|
private |
Definition at line 39 of file Panzer_STK_ScatterFields_decl.hpp.
◆ VariableField
template<typename EvalT , typename TraitsT >
|
private |
Definition at line 40 of file Panzer_STK_ScatterFields_decl.hpp.
Constructor & Destructor Documentation
◆ ScatterFields() [1/2]
template<typename EvalT , typename TraitsT >
| panzer_stk::ScatterFields< EvalT, TraitsT >::ScatterFields | ( | const std::string & | scatterName, |
| const Teuchos::RCP< STK_Interface > | mesh, | ||
| const Teuchos::RCP< const panzer::PureBasis > & | basis, | ||
| const std::vector< std::string > & | names | ||
| ) |
Definition at line 30 of file Panzer_STK_ScatterFields_impl.hpp.
◆ ScatterFields() [2/2]
template<typename EvalT , typename TraitsT >
| panzer_stk::ScatterFields< EvalT, TraitsT >::ScatterFields | ( | const std::string & | scatterName, |
| const Teuchos::RCP< STK_Interface > | mesh, | ||
| const Teuchos::RCP< const panzer::PureBasis > & | basis, | ||
| const std::vector< std::string > & | names, | ||
| const std::vector< double > & | scaling | ||
| ) |
Definition at line 42 of file Panzer_STK_ScatterFields_impl.hpp.
Member Function Documentation
◆ initialize()
template<typename EvalT , typename TraitsT >
|
private |
Definition at line 53 of file Panzer_STK_ScatterFields_impl.hpp.
◆ postRegistrationSetup()
template<typename EvalT , typename TraitsT >
| void panzer_stk::ScatterFields< EvalT, TraitsT >::postRegistrationSetup | ( | typename TraitsT::SetupData | d, |
| PHX::FieldManager< TraitsT > & | fm | ||
| ) |
Definition at line 90 of file Panzer_STK_ScatterFields_impl.hpp.
◆ evaluateFields() [1/2]
template<typename EvalT , typename TraitsT >
| void panzer_stk::ScatterFields< EvalT, TraitsT >::evaluateFields | ( | typename TraitsT::EvalData | d | ) |
Definition at line 99 of file Panzer_STK_ScatterFields_impl.hpp.
◆ evaluateFields() [2/2]
| void panzer_stk::ScatterFields< panzer::Traits::Residual, panzer::Traits >::evaluateFields | ( | panzer::Traits::EvalData | workset | ) |
Definition at line 106 of file Panzer_STK_ScatterFields_impl.hpp.
Member Data Documentation
◆ scatterFields_
template<typename EvalT , typename TraitsT >
|
private |
Definition at line 42 of file Panzer_STK_ScatterFields_decl.hpp.
◆ mesh_
template<typename EvalT , typename TraitsT >
|
private |
Definition at line 43 of file Panzer_STK_ScatterFields_decl.hpp.
◆ scaling_
template<typename EvalT , typename TraitsT >
|
private |
Definition at line 45 of file Panzer_STK_ScatterFields_decl.hpp.
◆ cellFields_
template<typename EvalT , typename TraitsT >
|
private |
Definition at line 47 of file Panzer_STK_ScatterFields_decl.hpp.
The documentation for this class was generated from the following files:
