#include <Panzer_STK_ScatterCellAvgVector_decl.hpp>

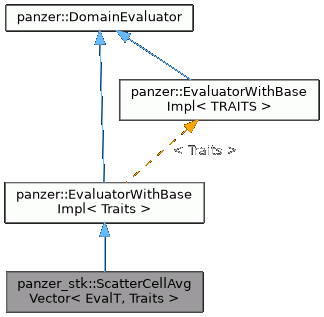

Inheritance diagram for panzer_stk::ScatterCellAvgVector< EvalT, Traits >:

[legend]

Public Member Functions
	ScatterCellAvgVector (const Teuchos::ParameterList &p)

void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)

void	evaluateFields (typename Traits::EvalData d)

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index.

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor.

virtual	~DomainEvaluator ()=default
	Default destructor.

void	setDomain (const DomainType domain)
	Set the domain for the evaluator.

DomainType	getDomain ()
	Get the domain for the evaluator.

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset.

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset.

Private Types
using	ScalarT = typename EvalT::ScalarT

typedef panzer_stk::STK_Interface::VectorFieldType	VariableField

Private Attributes
std::size_t	numValues_

Teuchos::RCP< std::map< std::string, double > >	varScaleFactors_

std::vector< PHX::MDField< const ScalarT, panzer::Cell, panzer::Point, panzer::Dim > >	scatterFields_

Teuchos::RCP< STK_Interface >	mesh_

std::vector< VariableField * >	stkFields_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 , EXTERNAL =4 , ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer_stk::ScatterCellAvgVector< EvalT, Traits >

This class is a scatter operation to the mesh. It takes a set of field names and an integration rule. Those quantities are components of vector fields. They are averaged over the cell and written to the mesh.

The constructor takes a STK_Interface RCP and parameter list that is required to contain the following fields: "Scatter Name" string specifying the name of this evaulator "Field Names" of type this is a comma seperated list of strings, "IR" of type Teuchos::RCP<panzer::IntegrationRule> and "Mesh" of type Teuchos::RCP<const panzer_stk::STK_Interface>.

Definition at line 42 of file Panzer_STK_ScatterCellAvgVector_decl.hpp.
