panzer_stk::STK_MeshFactory Class Reference

#include <Panzer_STK_MeshFactory.hpp>

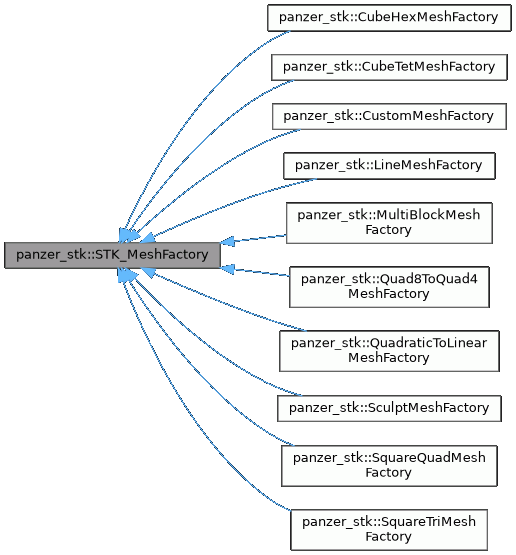

Inheritance diagram for panzer_stk::STK_MeshFactory:

Public Member Functions
	STK_MeshFactory ()
virtual Teuchos::RCP< STK_Interface >	buildMesh (stk::ParallelMachine parallelMach) const =0
virtual Teuchos::RCP< STK_Interface >	buildUncommitedMesh (stk::ParallelMachine parallelMach) const =0
virtual void	completeMeshConstruction (STK_Interface &mesh, stk::ParallelMachine parallelMach) const =0
void	enableRebalance (bool enable, const Teuchos::RCP< const Teuchos::ParameterList > &rebalanceList=Teuchos::null)
void	rebalance (STK_Interface &mesh) const
double	getMeshCoord (const int nx, const double deltaX, const double x0) const

Static Public Member Functions
static void	parsePeriodicBCList (const Teuchos::RCP< Teuchos::ParameterList > &pl, std::vector< Teuchos::RCP< const PeriodicBC_MatcherBase > > &periodicBC, bool &useBBoxSearch)

Protected Attributes
std::vector< Teuchos::RCP< const PeriodicBC_MatcherBase > >	periodicBCVec_
bool	useBBoxSearch_
bool	enableRebalance_
Teuchos::RCP< const Teuchos::ParameterList >	rebalanceList_

Detailed Description

Pure virtual interface that constructs a STK_Mesh interface object.

Definition at line 28 of file Panzer_STK_MeshFactory.hpp.

Constructor & Destructor Documentation

STK_MeshFactory()

panzer_stk::STK_MeshFactory::STK_MeshFactory ( )

inline

Definition at line 30 of file Panzer_STK_MeshFactory.hpp.

Member Function Documentation

buildMesh()

virtual Teuchos::RCP< STK_Interface > panzer_stk::STK_MeshFactory::buildMesh ( stk::ParallelMachine  parallelMach ) const

pure virtual

Construct a STK_Inteface object described by this factory.

Parameters

[in]

parallelMach

Descriptor for machine to build this mesh on.

Returns

Pointer to STK_Interface object with isModifiable()==false.

Implemented in panzer_stk::CubeHexMeshFactory, panzer_stk::CubeTetMeshFactory, panzer_stk::CustomMeshFactory, panzer_stk::LineMeshFactory, panzer_stk::MultiBlockMeshFactory, panzer_stk::Quad8ToQuad4MeshFactory, panzer_stk::QuadraticToLinearMeshFactory, panzer_stk::SculptMeshFactory, panzer_stk::SquareQuadMeshFactory, and panzer_stk::SquareTriMeshFactory.

buildUncommitedMesh()

virtual Teuchos::RCP< STK_Interface > panzer_stk::STK_MeshFactory::buildUncommitedMesh ( stk::ParallelMachine  parallelMach ) const

pure virtual

This builds all the meta data of the mesh. Does not call metaData->commit. Allows user to add solution fields and other pieces. The mesh can be "completed" by calling completeMeshConstruction.

Implemented in panzer_stk::CubeHexMeshFactory, panzer_stk::CubeTetMeshFactory, panzer_stk::CustomMeshFactory, panzer_stk::LineMeshFactory, panzer_stk::MultiBlockMeshFactory, panzer_stk::Quad8ToQuad4MeshFactory, panzer_stk::QuadraticToLinearMeshFactory, panzer_stk::SculptMeshFactory, panzer_stk::SquareQuadMeshFactory, and panzer_stk::SquareTriMeshFactory.

completeMeshConstruction()

virtual void panzer_stk::STK_MeshFactory::completeMeshConstruction ( STK_Interface &  mesh, stk::ParallelMachine  parallelMach  ) const

pure virtual

Finishes building a mesh object started by buildUncommitedMesh.

Implemented in panzer_stk::CubeHexMeshFactory, panzer_stk::CubeTetMeshFactory, panzer_stk::CustomMeshFactory, panzer_stk::LineMeshFactory, panzer_stk::MultiBlockMeshFactory, panzer_stk::Quad8ToQuad4MeshFactory, panzer_stk::QuadraticToLinearMeshFactory, panzer_stk::SculptMeshFactory, panzer_stk::SquareQuadMeshFactory, and panzer_stk::SquareTriMeshFactory.

parsePeriodicBCList()

static void panzer_stk::STK_MeshFactory::parsePeriodicBCList ( const Teuchos::RCP< Teuchos::ParameterList > &  pl, std::vector< Teuchos::RCP< const PeriodicBC_MatcherBase > > &  periodicBC, bool &  useBBoxSearch  )

inlinestatic

Parse the periodic boundary condition parameter list and build a vector of periodic boundary conditions (a convenience function)

Definition at line 55 of file Panzer_STK_MeshFactory.hpp.

enableRebalance()

void panzer_stk::STK_MeshFactory::enableRebalance ( bool  enable, const Teuchos::RCP< const Teuchos::ParameterList > &  rebalanceList = Teuchos::null  )

inline

Definition at line 65 of file Panzer_STK_MeshFactory.hpp.

rebalance()

void panzer_stk::STK_MeshFactory::rebalance ( STK_Interface &  mesh ) const

inline

Definition at line 69 of file Panzer_STK_MeshFactory.hpp.

getMeshCoord()

double panzer_stk::STK_MeshFactory::getMeshCoord ( const int  nx, const double  deltaX, const double  x0  ) const

inline

Definition at line 97 of file Panzer_STK_MeshFactory.hpp.

Member Data Documentation

periodicBCVec_

std::vector<Teuchos::RCP<const PeriodicBC_MatcherBase> > panzer_stk::STK_MeshFactory::periodicBCVec_

protected

Definition at line 108 of file Panzer_STK_MeshFactory.hpp.

useBBoxSearch_

bool panzer_stk::STK_MeshFactory::useBBoxSearch_

protected

Definition at line 110 of file Panzer_STK_MeshFactory.hpp.

enableRebalance_

bool panzer_stk::STK_MeshFactory::enableRebalance_

protected

Definition at line 113 of file Panzer_STK_MeshFactory.hpp.

rebalanceList_

Teuchos::RCP<const Teuchos::ParameterList> panzer_stk::STK_MeshFactory::rebalanceList_

protected

Definition at line 114 of file Panzer_STK_MeshFactory.hpp.

---

The documentation for this class was generated from the following file:

• Panzer_STK_MeshFactory.hpp
