panzer_stk::ProjectField< EvalT, Traits > Class Template Reference

Given a field, perform a local L2 projection onto the desired basis. More...

#include <Panzer_STK_ProjectField_decl.hpp>

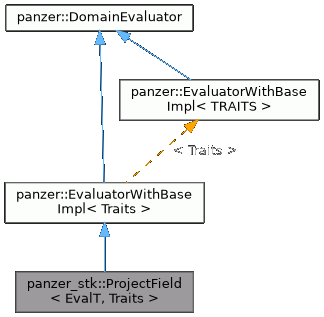

Inheritance diagram for panzer_stk::ProjectField< EvalT, Traits >:

Public Member Functions
	ProjectField (const std::string &inName, Teuchos::RCP< panzer::PureBasis > src, Teuchos::RCP< panzer::PureBasis > dst, std::string outname="")
void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)
void	evaluateFields (typename Traits::EvalData d)
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index.
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor.
virtual	~DomainEvaluator ()=default
	Default destructor.
void	setDomain (const DomainType domain)
	Set the domain for the evaluator.
DomainType	getDomain ()
	Get the domain for the evaluator.
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset.
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset.

Private Types
using	ScalarT = typename EvalT::ScalarT

Private Attributes
const std::string	field_name_
Teuchos::RCP< const panzer::PureBasis >	srcBasis_
Teuchos::RCP< const panzer::PureBasis >	dstBasis_
Teuchos::RCP< const std::vector< Intrepid2::Orientation > >	orientations_
PHX::MDField< double, panzer::Cell, panzer::BASIS >	result_
PHX::MDField< double, panzer::Cell, panzer::BASIS >	source_
Kokkos::DynRankView< Intrepid2::Orientation, PHX::Device >	local_orts_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 ,   EXTERNAL =4 , ALL =5 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer_stk::ProjectField< EvalT, Traits >

Given a field, perform a local L2 projection onto the desired basis.

Note

Requires that orientations be given in the postRegistrationSetup phase.

Definition at line 31 of file Panzer_STK_ProjectField_decl.hpp.

Member Typedef Documentation

ScalarT

template<typename EvalT , typename Traits >

using panzer_stk::ProjectField< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

Definition at line 57 of file Panzer_STK_ProjectField_decl.hpp.

Constructor & Destructor Documentation

ProjectField()

template<typename EvalT , typename Traits >

panzer_stk::ProjectField< EvalT, Traits >::ProjectField	(	const std::string &	inName,
		Teuchos::RCP< panzer::PureBasis >	src,
		Teuchos::RCP< panzer::PureBasis >	dst,
		std::string	outname = ""
	)

Constructor for the ProjectField evaluator.

Parameters

[in]	inName	Name of the source MDField
[in]	src	Basis of the source field
[in]	dst	Target basis
[in]	outname	(Optional) Name for the projected MDField

Definition at line 29 of file Panzer_STK_ProjectField_impl.hpp.

Member Function Documentation

postRegistrationSetup()

template<typename EvalT , typename Traits >

void panzer_stk::ProjectField< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	fm
	)

Definition at line 61 of file Panzer_STK_ProjectField_impl.hpp.

evaluateFields()

template<typename EvalT , typename Traits >

void panzer_stk::ProjectField< EvalT, Traits >::evaluateFields

(

typename Traits::EvalData

d

)

Definition at line 71 of file Panzer_STK_ProjectField_impl.hpp.

Member Data Documentation

field_name_

template<typename EvalT , typename Traits >

const std::string panzer_stk::ProjectField< EvalT, Traits >::field_name_

private

Definition at line 59 of file Panzer_STK_ProjectField_decl.hpp.

srcBasis_

template<typename EvalT , typename Traits >

Teuchos::RCP<const panzer::PureBasis> panzer_stk::ProjectField< EvalT, Traits >::srcBasis_

private

Definition at line 60 of file Panzer_STK_ProjectField_decl.hpp.

dstBasis_

template<typename EvalT , typename Traits >

Teuchos::RCP<const panzer::PureBasis> panzer_stk::ProjectField< EvalT, Traits >::dstBasis_

private

Definition at line 61 of file Panzer_STK_ProjectField_decl.hpp.

orientations_

template<typename EvalT , typename Traits >

Teuchos::RCP<const std::vector<Intrepid2::Orientation> > panzer_stk::ProjectField< EvalT, Traits >::orientations_

private

Definition at line 62 of file Panzer_STK_ProjectField_decl.hpp.

result_

template<typename EvalT , typename Traits >

PHX::MDField<double,panzer::Cell,panzer::BASIS> panzer_stk::ProjectField< EvalT, Traits >::result_

private

Definition at line 64 of file Panzer_STK_ProjectField_decl.hpp.

source_

template<typename EvalT , typename Traits >

PHX::MDField<double,panzer::Cell,panzer::BASIS> panzer_stk::ProjectField< EvalT, Traits >::source_

private

Definition at line 65 of file Panzer_STK_ProjectField_decl.hpp.

local_orts_

template<typename EvalT , typename Traits >

Kokkos::DynRankView<Intrepid2::Orientation,PHX::Device> panzer_stk::ProjectField< EvalT, Traits >::local_orts_

private

Definition at line 67 of file Panzer_STK_ProjectField_decl.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_STK_ProjectField_decl.hpp
• Panzer_STK_ProjectField_impl.hpp
