#include <Panzer_ResponseScatterEvaluator_Probe.hpp>

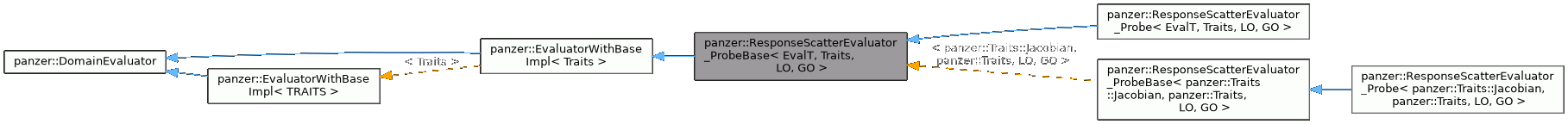

Inheritance diagram for panzer::ResponseScatterEvaluator_ProbeBase< EvalT, Traits, LO, GO >:

[legend]

Public Member Functions
	ResponseScatterEvaluator_ProbeBase (const std::string &responseName, const std::string &fieldName, const int fieldComponent, const Teuchos::Array< double > &point, const IntegrationRule &ir, const Teuchos::RCP< const PureBasis > &basis, const Teuchos::RCP< const panzer::GlobalIndexer > &indexer, const Teuchos::RCP< ProbeScatterBase > &probeScatter)
	A constructor with concrete arguments instead of a parameter list.

void	evaluateFields (typename Traits::EvalData d)

void	postRegistrationSetup (typename Traits::SetupData, PHX::FieldManager< Traits > &)

void	preEvaluate (typename Traits::PreEvalData d)

bool	findCellAndComputeBasisValues (typename Traits::EvalData d)

int	getProductVectorBlockIndex () const

int	getDerivativeOffset (const std::string &blockId) const
	First Fad derivative component belonging to the probed field's product vector block, or 0 when the global indexer is not blocked.

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index.

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor.

virtual	~DomainEvaluator ()=default
	Default destructor.

void	setDomain (const DomainType domain)
	Set the domain for the evaluator.

DomainType	getDomain ()
	Get the domain for the evaluator.

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset.

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset.

Protected Types
typedef EvalT::ScalarT	ScalarT

Protected Attributes
std::string	responseName_

std::string	fieldName_

int	fieldComponent_

Teuchos::Array< double >	point_

Teuchos::RCP< const panzer::PureBasis >	basis_

Teuchos::RCP< Response_Probe< EvalT > >	responseObj_

Teuchos::RCP< const shards::CellTopology >	topology_

Teuchos::RCP< const panzer::GlobalIndexer >	globalIndexer_

Teuchos::RCP< PHX::FieldTag >	scatterHolder_

PHX::MDField< const ScalarT, Cell, BASIS >	field_

Teuchos::RCP< ProbeScatterBase >	scatterObj_

bool	haveProbe_

int	cellIndex_

size_t	workset_id_

size_t	num_basis

size_t	num_dim

Kokkos::DynRankView< double, PHX::Device >	basis_values_

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 , EXTERNAL =4 , ALL =5 }
	Domain types supported by worksets. More...

Detailed Description

template<typename EvalT, typename Traits, typename LO, typename GO>
class panzer::ResponseScatterEvaluator_ProbeBase< EvalT, Traits, LO, GO >

This class handles calculation of a DOF at a single point in space

Definition at line 71 of file Panzer_ResponseScatterEvaluator_Probe.hpp.
