#include <Panzer_Integrator_TransientBasisTimesScalar_decl.hpp>

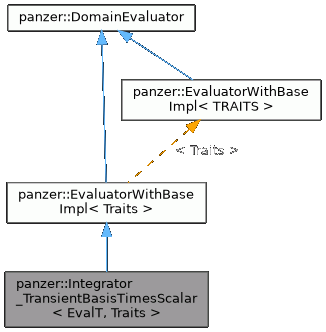

Inheritance diagram for panzer::Integrator_TransientBasisTimesScalar< EvalT, Traits >:

[legend]

Public Member Functions
	Integrator_TransientBasisTimesScalar (const Teuchos::ParameterList &p)
	Construct from a ParameterList specifying the residual field name, integrand name, basis, integration rule, scaling multiplier, and optional field multipliers.

void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)
	Looks up the basis index needed by evaluateFields(). Called once before the first evaluation.

void	evaluateFields (typename Traits::EvalData d)
	Computes the residual field for this workset per the class description, when the workset indicates transient terms should be evaluated.

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index.

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor.

virtual	~DomainEvaluator ()=default
	Default destructor.

void	setDomain (const DomainType domain)
	Set the domain for the evaluator.

DomainType	getDomain ()
	Get the domain for the evaluator.

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset.

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset.

Private Types
using	ScalarT = typename EvalT::ScalarT

Private Member Functions
Teuchos::RCP< Teuchos::ParameterList >	getValidParameters () const
	Returns the ParameterList of valid parameters/defaults for this evaluator's constructor.

Private Attributes
PHX::MDField< ScalarT, Cell, BASIS >	residual

PHX::MDField< const ScalarT, Cell, IP >	scalar

std::vector< PHX::MDField< const ScalarT, Cell, IP > >	field_multipliers

std::size_t	num_nodes

std::size_t	num_qp

double	multiplier

std::string	basis_name

std::size_t	basis_index

Kokkos::DynRankView< ScalarT, typename PHX::DevLayout< ScalarT >::type, PHX::Device >	tmp

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 , EXTERNAL =4 , ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::Integrator_TransientBasisTimesScalar< EvalT, Traits >

This integrates a scalar quantity times a basis function over each cell, contributing to the residual only when the workset indicates transient (time derivative) terms should be evaluated. It is useful for building the mass-matrix-like terms of a time-dependent weak form.

Definition at line 31 of file Panzer_Integrator_TransientBasisTimesScalar_decl.hpp.

Member Typedef Documentation

◆ ScalarT

template<typename EvalT , typename Traits >

using panzer::Integrator_TransientBasisTimesScalar< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

Definition at line 55 of file Panzer_Integrator_TransientBasisTimesScalar_decl.hpp.

Constructor & Destructor Documentation

◆ Integrator_TransientBasisTimesScalar()

template<typename EvalT , typename Traits >

panzer::Integrator_TransientBasisTimesScalar< EvalT, Traits >::Integrator_TransientBasisTimesScalar ( const Teuchos::ParameterList & p )

Construct from a ParameterList specifying the residual field name, integrand name, basis, integration rule, scaling multiplier, and optional field multipliers.

Definition at line 24 of file Panzer_Integrator_TransientBasisTimesScalar_impl.hpp.

Member Function Documentation

◆ postRegistrationSetup()

template<typename EvalT , typename Traits >

void panzer::Integrator_TransientBasisTimesScalar< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	fm
	)
