Interpolates basis DOF values to IP DOF values. More...

#include <Panzer_PointValues_Evaluator_decl.hpp>

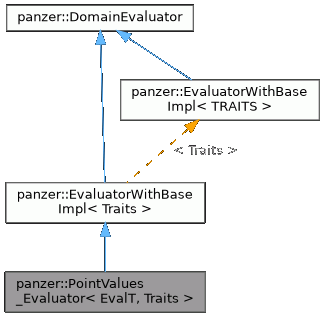

Inheritance diagram for panzer::PointValues_Evaluator< EvalT, Traits >:

[legend]

Public Member Functions
	PointValues_Evaluator (const Teuchos::ParameterList &p)

void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)

void	evaluateFields (typename Traits::EvalData d)

	PointValues_Evaluator (const Teuchos::RCP< const panzer::PointRule > &pointRule, const Kokkos::DynRankView< double, PHX::Device > &userArray)

	PointValues_Evaluator (const Teuchos::RCP< const panzer::PointRule > &pointRule, const PHX::MDField< double, panzer::IP, panzer::Dim > &userArray)

	PointValues_Evaluator (const Teuchos::RCP< const panzer::PointRule > &pointRule, const Teuchos::RCP< const panzer::PureBasis > &pureBasis)
	This builds a point rule from the basis function reference points in the workset.

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index.

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor.

virtual	~DomainEvaluator ()=default
	Default destructor.

void	setDomain (const DomainType domain)
	Set the domain for the evaluator.

DomainType	getDomain ()
	Get the domain for the evaluator.

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset.

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset.

Private Types
using	ScalarT = typename EvalT::ScalarT

Private Member Functions
template<typename ArrayT >
void	initialize (const Teuchos::RCP< const panzer::PointRule > &pointRule, const Teuchos::Ptr< const ArrayT > &userArray, const Teuchos::RCP< const panzer::PureBasis > &pureBasis)
	Initialization method to unify the constructors.

Private Attributes
PointValues2< double >	pointValues

PHX::MDField< double, NODE, Dim >	refPointArray

bool	useBasisValuesRefArray

Teuchos::RCP< const panzer::PureBasis >	basis

std::size_t	basis_index

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 , EXTERNAL =4 , ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::PointValues_Evaluator< EvalT, Traits >

Interpolates basis DOF values to IP DOF values.

Definition at line 24 of file Panzer_PointValues_Evaluator_decl.hpp.

Member Typedef Documentation

◆ ScalarT

template<typename EvalT , typename Traits >

using panzer::PointValues_Evaluator< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

Definition at line 45 of file Panzer_PointValues_Evaluator_decl.hpp.

Constructor & Destructor Documentation

◆ PointValues_Evaluator() [1/4]

template<typename EvalT , typename Traits >

panzer::PointValues_Evaluator< EvalT, Traits >::PointValues_Evaluator ( const Teuchos::ParameterList & p )

Definition at line 23 of file Panzer_PointValues_Evaluator_impl.hpp.

◆ PointValues_Evaluator() [2/4]

template<typename EvalT , typename TRAITST >

panzer::PointValues_Evaluator< EvalT, TRAITST >::PointValues_Evaluator	(	const Teuchos::RCP< const panzer::PointRule > &	pointRule,
		const Kokkos::DynRankView< double, PHX::Device > &	userArray
	)

Definition at line 39 of file Panzer_PointValues_Evaluator_impl.hpp.

◆ PointValues_Evaluator() [3/4]

template<typename EvalT , typename TRAITST >

panzer::PointValues_Evaluator< EvalT, TRAITST >::PointValues_Evaluator	(	const Teuchos::RCP< const panzer::PointRule > &	pointRule,
		const PHX::MDField< double, panzer::IP, panzer::Dim > &	userArray
	)

Definition at line 49 of file Panzer_PointValues_Evaluator_impl.hpp.

◆ PointValues_Evaluator() [4/4]

template<typename EvalT , typename TRAITST >

panzer::PointValues_Evaluator< EvalT, TRAITST >::PointValues_Evaluator	(	const Teuchos::RCP< const panzer::PointRule > &	pointRule,
		const Teuchos::RCP< const panzer::PureBasis > &	pureBasis
	)

This builds a point rule from the basis function reference points in the workset.

Definition at line 59 of file Panzer_PointValues_Evaluator_impl.hpp.

Member Function Documentation

◆ postRegistrationSetup()

template<typename EvalT , typename Traits >

void panzer::PointValues_Evaluator< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	fm
	)

Definition at line 115 of file Panzer_PointValues_Evaluator_impl.hpp.

◆ evaluateFields()

template<typename EvalT , typename Traits >

void panzer::PointValues_Evaluator< EvalT, Traits >::evaluateFields ( typename Traits::EvalData d )

Definition at line 140 of file Panzer_PointValues_Evaluator_impl.hpp.

◆ initialize()

template<typename EvalT , typename TRAITST >

template<typename ArrayT >

void panzer::PointValues_Evaluator< EvalT, TRAITST >::initialize	(	const Teuchos::RCP< const panzer::PointRule > &	pointRule,
		const Teuchos::Ptr< const ArrayT > &	userArray,
		const Teuchos::RCP< const panzer::PureBasis > &	pureBasis
	)
