panzer::InterfaceResidual< EvalT, Traits > Class Template Reference

Evaluates an interface BC residual contribution. More...

#include <Panzer_Interface_Residual_decl.hpp>

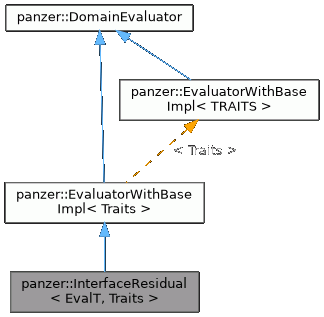

Inheritance diagram for panzer::InterfaceResidual< EvalT, Traits >:

Public Member Functions
	InterfaceResidual (const Teuchos::ParameterList &p)
void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)
void	evaluateFields (typename Traits::EvalData d)
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index.
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor.
virtual	~DomainEvaluator ()=default
	Default destructor.
void	setDomain (const DomainType domain)
	Set the domain for the evaluator.
DomainType	getDomain ()
	Get the domain for the evaluator.
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset.
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset.

Private Types
using	ScalarT = typename EvalT::ScalarT

Private Attributes
PHX::MDField< ScalarT >	residual
PHX::MDField< ScalarT >	normal_dot_flux
PHX::MDField< const ScalarT >	flux
PHX::MDField< const ScalarT >	normal
std::string	basis_name
std::size_t	basis_index
std::size_t	num_ip
std::size_t	num_dim

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 ,   EXTERNAL =4 , ALL =5 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::InterfaceResidual< EvalT, Traits >

Evaluates an interface BC residual contribution.

computes the surface integral term resulting from integration by parts for a particular dof:

int(n \cdot (flux * phi) )

Definition at line 29 of file Panzer_Interface_Residual_decl.hpp.

Member Typedef Documentation

ScalarT

template<typename EvalT , typename Traits >

using panzer::InterfaceResidual< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

Definition at line 50 of file Panzer_Interface_Residual_decl.hpp.

Constructor & Destructor Documentation

InterfaceResidual()

template<typename EvalT , typename Traits >

panzer::InterfaceResidual< EvalT, Traits >::InterfaceResidual

(

const Teuchos::ParameterList &

p

)

Definition at line 26 of file Panzer_Interface_Residual_impl.hpp.

Member Function Documentation

postRegistrationSetup()

template<typename EvalT , typename Traits >

void panzer::InterfaceResidual< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	fm
	)

Definition at line 61 of file Panzer_Interface_Residual_impl.hpp.

evaluateFields()

template<typename EvalT , typename Traits >

void panzer::InterfaceResidual< EvalT, Traits >::evaluateFields

(

typename Traits::EvalData

d

)

Definition at line 78 of file Panzer_Interface_Residual_impl.hpp.

Member Data Documentation

residual

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT> panzer::InterfaceResidual< EvalT, Traits >::residual

private

Definition at line 52 of file Panzer_Interface_Residual_decl.hpp.

normal_dot_flux

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT> panzer::InterfaceResidual< EvalT, Traits >::normal_dot_flux

private

Definition at line 53 of file Panzer_Interface_Residual_decl.hpp.

flux

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT> panzer::InterfaceResidual< EvalT, Traits >::flux

private

Definition at line 54 of file Panzer_Interface_Residual_decl.hpp.

normal

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT> panzer::InterfaceResidual< EvalT, Traits >::normal

private

Definition at line 55 of file Panzer_Interface_Residual_decl.hpp.

basis_name

template<typename EvalT , typename Traits >

std::string panzer::InterfaceResidual< EvalT, Traits >::basis_name

private

Definition at line 57 of file Panzer_Interface_Residual_decl.hpp.

basis_index

template<typename EvalT , typename Traits >

std::size_t panzer::InterfaceResidual< EvalT, Traits >::basis_index

private

Definition at line 58 of file Panzer_Interface_Residual_decl.hpp.

num_ip

template<typename EvalT , typename Traits >

std::size_t panzer::InterfaceResidual< EvalT, Traits >::num_ip

private

Definition at line 59 of file Panzer_Interface_Residual_decl.hpp.

num_dim

template<typename EvalT , typename Traits >

std::size_t panzer::InterfaceResidual< EvalT, Traits >::num_dim

private

Definition at line 60 of file Panzer_Interface_Residual_decl.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_Interface_Residual_decl.hpp
• Panzer_Interface_Residual_impl.hpp
