#include <Panzer_CellExtreme.hpp>

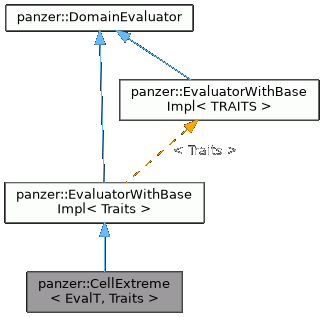

Inheritance diagram for panzer::CellExtreme< EvalT, Traits >:
Public Member Functions | |
| CellExtreme (const Teuchos::ParameterList &p) | |
| void | postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm) |
| void | evaluateFields (typename Traits::EvalData d) |
| const PHX::FieldTag & | getFieldTag () const |
 Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits > | |
| void | setDetailsIndex (const int di) |
| An evaluator builder sets the details index. | |
| Public Member Functions inherited from panzer::DomainEvaluator | |
| DomainEvaluator (DomainType domain=ALL) | |
| Constructor. | |
| virtual | ~DomainEvaluator ()=default |
| Default destructor. | |
| void | setDomain (const DomainType domain) |
| Set the domain for the evaluator. | |
| DomainType | getDomain () |
| Get the domain for the evaluator. | |
| virtual int | cellStartIndex (const panzer::Workset &workset) const |
| Returns the starting cell for the specified domain for a given workset. | |
| virtual int | cellEndIndex (const panzer::Workset &workset) const |
| Returns the non-inclusive end cell for the specified domain for a given workset. | |
Private Types | |
| using | ScalarT = typename EvalT::ScalarT |
Private Member Functions | |
| Teuchos::RCP< Teuchos::ParameterList > | getValidParameters () const |
Private Attributes | |
| PHX::MDField< ScalarT > | extreme |
| PHX::MDField< const ScalarT, Cell, IP > | scalar |
| std::vector< PHX::MDField< const ScalarT, Cell, IP > > | field_multipliers |
| double | multiplier |
| std::size_t | num_qp |
| std::size_t | quad_index |
| int | quad_order |
| bool | use_max |
Additional Inherited Members | |
| Public Types inherited from panzer::DomainEvaluator | |
| enum | DomainType : int { OWNED =0 , GHOST =1 , REAL =2 , VIRTUAL =3 , EXTERNAL =4 , ALL =5 } |
| Domain types supported by worksets. More... | |
| Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits > | |
| WorksetDetailsAccessor | wda |
Detailed Description
template<typename EvalT, typename Traits>
class panzer::CellExtreme< EvalT, Traits >
class panzer::CellExtreme< EvalT, Traits >
This integrates a scalar quanity over each cell. It is useful for comptuing integral responses.
<ParameterList>
<Parameter name="Extreme Name" type="string" value="<Name to give to the extreme field>"/>
<Parameter name="Field Name" type="string" value="<Name of field to find extreme of>"/>
<Parameter name="IR" type="RCP<IntegrationRule>" value="<user specified IntegrationRule>"/>
<Parameter name="Use Max" type="bool" value="<Compute maximum (true - default) or minimum (false)>"/>
<Parameter name="Multiplier" type="double" value="<Scaling factor, default=1>"/>
<Parameter name="Field Multipliers" type="RCP<const vector<string> >" value="<Other scalar multiplier fields>"/>
</ParameterList>
Definition at line 39 of file Panzer_CellExtreme.hpp.
Member Typedef Documentation
◆ ScalarT
template<typename EvalT , typename Traits >
|
private |
Definition at line 60 of file Panzer_CellExtreme.hpp.
Constructor & Destructor Documentation
◆ CellExtreme()
template<typename EvalT , typename Traits >
| panzer::CellExtreme< EvalT, Traits >::CellExtreme | ( | const Teuchos::ParameterList & | p | ) |
Definition at line 25 of file Panzer_CellExtreme_impl.hpp.
Member Function Documentation
◆ postRegistrationSetup()
template<typename EvalT , typename Traits >
| void panzer::CellExtreme< EvalT, Traits >::postRegistrationSetup | ( | typename Traits::SetupData | d, |
| PHX::FieldManager< Traits > & | fm | ||
| ) |
Definition at line 74 of file Panzer_CellExtreme_impl.hpp.
◆ evaluateFields()
template<typename EvalT , typename Traits >
| void panzer::CellExtreme< EvalT, Traits >::evaluateFields | ( | typename Traits::EvalData | d | ) |
Definition at line 86 of file Panzer_CellExtreme_impl.hpp.
◆ getFieldTag()
template<typename EvalT , typename Traits >
|
inline |
Definition at line 77 of file Panzer_CellExtreme.hpp.
◆ getValidParameters()
template<typename EvalT , typename TRAITS >
|
private |
Definition at line 148 of file Panzer_CellExtreme_impl.hpp.
Member Data Documentation
◆ extreme
template<typename EvalT , typename Traits >
|
private |
Definition at line 62 of file Panzer_CellExtreme.hpp.
◆ scalar
template<typename EvalT , typename Traits >
|
private |
Definition at line 64 of file Panzer_CellExtreme.hpp.
◆ field_multipliers
template<typename EvalT , typename Traits >
|
private |
Definition at line 66 of file Panzer_CellExtreme.hpp.
◆ multiplier
template<typename EvalT , typename Traits >
|
private |
Definition at line 67 of file Panzer_CellExtreme.hpp.
◆ num_qp
template<typename EvalT , typename Traits >
|
private |
Definition at line 69 of file Panzer_CellExtreme.hpp.
◆ quad_index
template<typename EvalT , typename Traits >
|
private |
Definition at line 70 of file Panzer_CellExtreme.hpp.
◆ quad_order
template<typename EvalT , typename Traits >
|
private |
Definition at line 71 of file Panzer_CellExtreme.hpp.
◆ use_max
template<typename EvalT , typename Traits >
|
private |
Definition at line 73 of file Panzer_CellExtreme.hpp.
The documentation for this class was generated from the following files:
