#include <Panzer_BlockedTpetraLinearObjFactory.hpp>

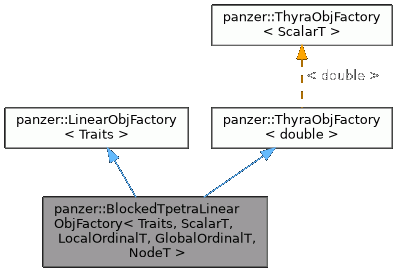

Inheritance diagram for panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >:

[legend]

Public Types
typedef BlockedTpetraLinearObjContainer< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	BTLOC

typedef Tpetra::Vector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	VectorType

typedef Tpetra::CrsMatrix< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	CrsMatrixType

typedef Tpetra::Operator< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	OperatorType

typedef Tpetra::CrsGraph< LocalOrdinalT, GlobalOrdinalT, NodeT >	CrsGraphType

typedef Tpetra::Map< LocalOrdinalT, GlobalOrdinalT, NodeT >	MapType

typedef Tpetra::Import< LocalOrdinalT, GlobalOrdinalT, NodeT >	ImportType

typedef Tpetra::Export< LocalOrdinalT, GlobalOrdinalT, NodeT >	ExportType

typedef Thyra::TpetraVector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	ThyraVector

typedef Thyra::TpetraLinearOp< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >	ThyraLinearOp

Public Member Functions
	BlockedTpetraLinearObjFactory (const Teuchos::RCP< const Teuchos::MpiComm< int > > &comm, const Teuchos::RCP< const BlockedDOFManager > &gidProvider)

	BlockedTpetraLinearObjFactory (const Teuchos::RCP< const Teuchos::MpiComm< int > > &comm, const std::vector< Teuchos::RCP< const panzer::GlobalIndexer > > &gidProviders)
	Ctor that takes a vector of DOFManagers instead of the BlockedDOFManager. Plan is to deprecate the BlockedDOFManager, but for now it is ingrained in all gather/scatter operators.

virtual	~BlockedTpetraLinearObjFactory ()

virtual void	readVector (const std::string &, LinearObjContainer &, int) const

virtual void	writeVector (const std::string &, const LinearObjContainer &, int) const

virtual Teuchos::RCP< LinearObjContainer >	buildLinearObjContainer () const

virtual Teuchos::RCP< LinearObjContainer >	buildPrimitiveLinearObjContainer () const

virtual Teuchos::RCP< LinearObjContainer >	buildGhostedLinearObjContainer () const

virtual Teuchos::RCP< LinearObjContainer >	buildPrimitiveGhostedLinearObjContainer () const

virtual void	globalToGhostContainer (const LinearObjContainer &container, LinearObjContainer &ghostContainer, int) const

virtual void	ghostToGlobalContainer (const LinearObjContainer &ghostContainer, LinearObjContainer &container, int) const

virtual void	adjustForDirichletConditions (const LinearObjContainer &localBCRows, const LinearObjContainer &globalBCRows, LinearObjContainer &ghostedObjs, bool zeroVectorRows=false, bool adjustX=false) const

virtual void	applyDirichletBCs (const LinearObjContainer &counter, LinearObjContainer &result) const

virtual Teuchos::RCP< ReadOnlyVector_GlobalEvaluationData >	buildReadOnlyDomainContainer () const

Teuchos::MpiComm< int >	getComm () const

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildScatter () const
	Use preconstructed scatter evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildGather () const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildGatherTangent () const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildGatherDomain () const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildGatherOrientation () const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildScatterDirichlet () const
	Use preconstructed dirichlet scatter evaluators.

void	initializeContainer (int, LinearObjContainer &loc) const

void	initializeContainer (int mem, BTLOC &loc) const

void	initializeGhostedContainer (int, LinearObjContainer &loc) const

void	initializeGhostedContainer (int mem, BTLOC &loc) const

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > >	getThyraDomainSpace () const
	Get the domain vector space (x and dxdt)

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > >	getThyraRangeSpace () const
	Get the range vector space (f)

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > >	getThyraDomainSpace (int blk) const
	Get the domain vector space (x and dxdt)

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > >	getThyraRangeSpace (int blk) const
	Get the range vector space (f)

Teuchos::RCP< Thyra::VectorBase< ScalarT > >	getThyraDomainVector () const
	Get a domain vector.

Teuchos::RCP< Thyra::VectorBase< ScalarT > >	getThyraRangeVector () const
	Get a range vector.

Teuchos::RCP< Thyra::LinearOpBase< ScalarT > >	getThyraMatrix () const
	Get a Thyra operator.

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > >	getGhostedThyraDomainSpace () const
	Get the domain vector space (x and dxdt)

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > >	getGhostedThyraRangeSpace () const
	Get the range vector space (f)

Teuchos::RCP< Thyra::VectorBase< ScalarT > >	getGhostedThyraDomainVector () const
	Get a domain vector.

Teuchos::RCP< Thyra::VectorBase< ScalarT > >	getGhostedThyraRangeVector () const
	Get a range vector.

Teuchos::RCP< Thyra::BlockedLinearOpBase< ScalarT > >	getGhostedThyraMatrix () const
	Get a Thyra operator.

virtual Teuchos::RCP< const MapType >	getMap (int i) const
	get the map from the matrix

virtual Teuchos::RCP< const MapType >	getGhostedMap (int i) const
	get the ghosted map from the matrix

virtual Teuchos::RCP< const CrsGraphType >	getGraph (int i, int j) const
	get the graph of the crs matrix

virtual Teuchos::RCP< const CrsGraphType >	getGhostedGraph (int i, int j) const
	get the ghosted graph of the crs matrix

virtual Teuchos::RCP< const ImportType >	getGhostedImport (int i) const
	get importer for converting an overalapped object to a "normal" object

virtual Teuchos::RCP< const ExportType >	getGhostedExport (int j) const
	get exporter for converting an overalapped object to a "normal" object

Teuchos::RCP< CrsMatrixType >	getTpetraMatrix (int i, int j) const

Teuchos::RCP< CrsMatrixType >	getGhostedTpetraMatrix (int i, int j) const

Teuchos::RCP< VectorType >	getTpetraDomainVector (int i) const

Teuchos::RCP< VectorType >	getGhostedTpetraDomainVector (int i) const

Teuchos::RCP< VectorType >	getTpetraRangeVector (int i) const

Teuchos::RCP< VectorType >	getGhostedTpetraRangeVector (int i) const

int	getBlockRowCount () const
	how many block rows

int	getBlockColCount () const
	how many block columns

void	addExcludedPair (int rowBlock, int colBlock)
	exclude a block pair from the matrix

void	addExcludedPairs (const std::vector< std::pair< int, int > > &exPairs)
	exclude a vector of pairs from the matrix

virtual void	beginFill (LinearObjContainer &loc) const

virtual void	endFill (LinearObjContainer &loc) const

Teuchos::RCP< const panzer::BlockedDOFManager >	getGlobalIndexer () const

Teuchos::RCP< const panzer::GlobalIndexer >	getDomainGlobalIndexer () const
	Get the domain unique global indexer this factory was created with.

Teuchos::RCP< const panzer::GlobalIndexer >	getRangeGlobalIndexer () const
	Get the range unique global indexer this factory was created with.

Public Member Functions inherited from panzer::LinearObjFactory< Traits >
virtual	~LinearObjFactory ()

template<typename BuilderT >
void	buildGatherScatterEvaluators (const BuilderT &builder)

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildScatter (const Teuchos::ParameterList &pl) const
	Use preconstructed scatter evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildGather (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildGatherTangent (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildGatherDomain (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildGatherOrientation (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildScatterDirichlet (const Teuchos::ParameterList &pl) const
	Use preconstructed dirichlet scatter evaluators.

Public Member Functions inherited from panzer::ThyraObjFactory< double >
virtual	~ThyraObjFactory ()

Protected Member Functions
Teuchos::RCP< const GlobalIndexer >	getGlobalIndexer (int i) const

void	makeRoomForBlocks (std::size_t blockCnt)
	Allocate the space in the std::vector objects so we can fill with appropriate Tpetra data.

void	ghostToGlobalThyraVector (const Teuchos::RCP< const Thyra::VectorBase< ScalarT > > &in, const Teuchos::RCP< Thyra::VectorBase< ScalarT > > &out) const

void	ghostToGlobalThyraMatrix (const Thyra::LinearOpBase< ScalarT > &in, Thyra::LinearOpBase< ScalarT > &out) const

void	globalToGhostThyraVector (const Teuchos::RCP< const Thyra::VectorBase< ScalarT > > &in, const Teuchos::RCP< Thyra::VectorBase< ScalarT > > &out) const

void	adjustForDirichletConditions (const VectorType &local_bcs, const VectorType &global_bcs, const Teuchos::Ptr< VectorType > &f, const Teuchos::Ptr< CrsMatrixType > &A, bool zeroVectorRows) const

void	ghostToGlobalTpetraVector (int i, const VectorType &in, VectorType &out) const

void	ghostToGlobalTpetraMatrix (int blockRow, const CrsMatrixType &in, CrsMatrixType &out) const

void	globalToGhostTpetraVector (int i, const VectorType &in, VectorType &out) const

virtual Teuchos::RCP< const MapType >	buildTpetraMap (int i) const

virtual Teuchos::RCP< const MapType >	buildTpetraGhostedMap (int i) const

virtual Teuchos::RCP< const CrsGraphType >	buildTpetraGraph (int i, int j) const

virtual Teuchos::RCP< const CrsGraphType >	buildTpetraGhostedGraph (int i, int j) const

Protected Attributes
Teuchos::RCP< const GlobalIndexer >	blockProvider_

Teuchos::RCP< const BlockedDOFManager >	blockedDOFManager_

std::vector< Teuchos::RCP< const GlobalIndexer > >	gidProviders_

std::unordered_set< std::pair< int, int >, panzer::pair_hash >	excludedPairs_

Teuchos::RCP< Thyra::ProductVectorSpaceBase< ScalarT > >	rangeSpace_

Teuchos::RCP< Thyra::ProductVectorSpaceBase< ScalarT > >	domainSpace_

Teuchos::RCP< Thyra::ProductVectorSpaceBase< ScalarT > >	ghostedRangeSpace_

Teuchos::RCP< Thyra::ProductVectorSpaceBase< ScalarT > >	ghostedDomainSpace_

Teuchos::RCP< const Teuchos::MpiComm< int > >	comm_

std::vector< Teuchos::RCP< const MapType > >	maps_

std::vector< Teuchos::RCP< const MapType > >	ghostedMaps_

std::unordered_map< std::pair< int, int >, Teuchos::RCP< const CrsGraphType >, panzer::pair_hash >	graphs_

std::unordered_map< std::pair< int, int >, Teuchos::RCP< const CrsGraphType >, panzer::pair_hash >	ghostedGraphs_

std::vector< Teuchos::RCP< const ImportType > >	importers_

std::vector< Teuchos::RCP< const ExportType > >	exporters_

Detailed Description

template<typename Traits, typename ScalarT, typename LocalOrdinalT, typename GlobalOrdinalT, typename NodeT = panzer::TpetraNodeType>
class panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >

Definition at line 49 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

Member Typedef Documentation

◆ BTLOC

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef BlockedTpetraLinearObjContainer<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::BTLOC

Definition at line 52 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ VectorType

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Vector<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::VectorType

Definition at line 53 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ CrsMatrixType

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::CrsMatrix<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::CrsMatrixType

Definition at line 54 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ OperatorType

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Operator<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::OperatorType

Definition at line 55 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ CrsGraphType

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::CrsGraph<LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::CrsGraphType

Definition at line 56 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ MapType

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Map<LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::MapType

Definition at line 57 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ ImportType

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Import<LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ImportType

Definition at line 58 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ ExportType

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Export<LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ExportType

Definition at line 59 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ ThyraVector

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef Thyra::TpetraVector<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ThyraVector

Definition at line 61 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ ThyraLinearOp

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

typedef Thyra::TpetraLinearOp<ScalarT,LocalOrdinalT,GlobalOrdinalT,NodeT> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ThyraLinearOp

Definition at line 62 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

Constructor & Destructor Documentation

◆ BlockedTpetraLinearObjFactory() [1/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::BlockedTpetraLinearObjFactory	(	const Teuchos::RCP< const Teuchos::MpiComm< int > > &	comm,
		const Teuchos::RCP< const BlockedDOFManager > &	gidProvider
	)

Definition at line 43 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ BlockedTpetraLinearObjFactory() [2/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::BlockedTpetraLinearObjFactory	(	const Teuchos::RCP< const Teuchos::MpiComm< int > > &	comm,
		const std::vector< Teuchos::RCP< const panzer::GlobalIndexer > > &	gidProviders
	)

Ctor that takes a vector of DOFManagers instead of the BlockedDOFManager. Plan is to deprecate the BlockedDOFManager, but for now it is ingrained in all gather/scatter operators.

Definition at line 59 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ ~BlockedTpetraLinearObjFactory()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::~BlockedTpetraLinearObjFactory ( )

virtual

Definition at line 68 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

Member Function Documentation

◆ readVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

virtual void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::readVector	(	const std::string &	identifier,
		LinearObjContainer &	loc,
		int	id
	)		const

inlinevirtual

Read in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implements panzer::LinearObjFactory< Traits >.

Definition at line 79 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ writeVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

virtual void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::writeVector	(	const std::string &	identifier,
		const LinearObjContainer &	loc,
		int	id
	)		const

inlinevirtual

Write in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implements panzer::LinearObjFactory< Traits >.

Definition at line 82 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ buildLinearObjContainer()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< LinearObjContainer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildLinearObjContainer ( ) const

virtual

Build a container with all the neccessary linear algebra objects. This is the non-ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 77 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ buildPrimitiveLinearObjContainer()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

virtual Teuchos::RCP< LinearObjContainer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildPrimitiveLinearObjContainer ( ) const

inlinevirtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the non-ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 87 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ buildGhostedLinearObjContainer()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< LinearObjContainer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGhostedLinearObjContainer ( ) const

virtual

Build a container with all the neccessary linear algebra objects. This is the ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 93 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ buildPrimitiveGhostedLinearObjContainer()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

virtual Teuchos::RCP< LinearObjContainer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildPrimitiveGhostedLinearObjContainer ( ) const

inlinevirtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildGhostedLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 92 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ globalToGhostContainer()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::globalToGhostContainer	(	const LinearObjContainer &	container,
		LinearObjContainer &	ghostContainer,
		int	mem
	)		const

virtual

Implements panzer::LinearObjFactory< Traits >.

Definition at line 108 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalContainer()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalContainer	(	const LinearObjContainer &	ghostContainer,
		LinearObjContainer &	container,
		int	mem
	)		const

virtual

Implements panzer::LinearObjFactory< Traits >.

Definition at line 131 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ adjustForDirichletConditions() [1/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::adjustForDirichletConditions	(	const LinearObjContainer &	localBCRows,
		const LinearObjContainer &	globalBCRows,
		LinearObjContainer &	ghostedObjs,
		bool	zeroVectorRows = `false`,
		bool	adjustX = `false`
	)		const

virtual

Adjust the residual vector and Jacobian matrix (if they exist) for applied dirichlet conditions. The adjustment considers if a boundary condition was set globally and locally and based on that result adjust the ghosted matrix and residual vector so that when they are summed across processors they resulting Dirichlet condition is correct.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 154 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ applyDirichletBCs()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::applyDirichletBCs	(	const LinearObjContainer &	counter,
		LinearObjContainer &	result
	)		const

virtual

Adjust a vector by replacing selected rows with the value of the evaluated dirichlet conditions. This is handled through the standard container mechanism.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 304 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ buildReadOnlyDomainContainer()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< ReadOnlyVector_GlobalEvaluationData > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildReadOnlyDomainContainer ( ) const

virtual

Build a GlobalEvaluationDataContainer that handles all domain communication. This is used primarily for gather operations and hides the allocation and usage of the ghosted vector from the user.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 320 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getComm()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::MpiComm< int > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getComm ( ) const

virtual

Acess to the MPI Comm used in constructing this LOF.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 365 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ buildScatter()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildScatter ( ) const

inline

Use preconstructed scatter evaluators.

Definition at line 135 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ buildGather()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGather ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 140 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ buildGatherTangent()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGatherTangent ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 145 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ buildGatherDomain()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGatherDomain ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 150 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ buildGatherOrientation()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildGatherOrientation ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 155 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ buildScatterDirichlet()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildScatterDirichlet ( ) const

inline

Use preconstructed dirichlet scatter evaluators.

Definition at line 160 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ initializeContainer() [1/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::initializeContainer	(	int	mem,
		LinearObjContainer &	loc
	)		const

virtual

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 372 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ initializeContainer() [2/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::initializeContainer	(	int	mem,
		BTLOC &	loc
	)		const

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Definition at line 391 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ initializeGhostedContainer() [1/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::initializeGhostedContainer	(	int	mem,
		LinearObjContainer &	loc
	)		const

virtual

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 380 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ initializeGhostedContainer() [2/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::initializeGhostedContainer	(	int	mem,
		BTLOC &	loc
	)		const

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Definition at line 412 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getThyraDomainSpace() [1/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraDomainSpace ( ) const

virtual

Get the domain vector space (x and dxdt)

Implements panzer::ThyraObjFactory< double >.

Definition at line 474 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getThyraRangeSpace() [1/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraRangeSpace ( ) const

virtual

Get the range vector space (f)

Implements panzer::ThyraObjFactory< double >.

Definition at line 491 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getThyraDomainSpace() [2/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraDomainSpace ( int blk ) const

Get the domain vector space (x and dxdt)

Definition at line 508 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getThyraRangeSpace() [2/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraRangeSpace ( int blk ) const

Get the range vector space (f)

Definition at line 520 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getThyraDomainVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::VectorBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraDomainVector ( ) const

Get a domain vector.

Definition at line 532 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getThyraRangeVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::VectorBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraRangeVector ( ) const

Get a range vector.

Definition at line 550 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getThyraMatrix()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::LinearOpBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getThyraMatrix ( ) const

virtual

Get a Thyra operator.

Implements panzer::ThyraObjFactory< double >.

Definition at line 562 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraDomainSpace()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraDomainSpace ( ) const

Get the domain vector space (x and dxdt)

Definition at line 592 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraRangeSpace()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Thyra::VectorSpaceBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraRangeSpace ( ) const

Get the range vector space (f)

Definition at line 609 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraDomainVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::VectorBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraDomainVector ( ) const

Get a domain vector.

Definition at line 626 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraRangeVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::VectorBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraRangeVector ( ) const

Get a range vector.

Definition at line 638 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraMatrix()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Thyra::BlockedLinearOpBase< ScalarT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedThyraMatrix ( ) const

Get a Thyra operator.

Definition at line 650 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getMap()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Map< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getMap ( int i ) const

virtual

get the map from the matrix

Definition at line 828 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedMap()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Map< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedMap ( int i ) const

virtual

get the ghosted map from the matrix

Definition at line 839 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGraph()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::CrsGraph< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGraph	(	int	i,
		int	j
	)		const

virtual

get the graph of the crs matrix

Definition at line 851 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedGraph()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::CrsGraph< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedGraph	(	int	i,
		int	j
	)		const

virtual

get the ghosted graph of the crs matrix

Definition at line 871 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedImport()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Import< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedImport ( int i ) const

virtual

get importer for converting an overalapped object to a "normal" object

Definition at line 891 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedExport()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Export< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedExport ( int j ) const

virtual

get exporter for converting an overalapped object to a "normal" object

Definition at line 902 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getTpetraMatrix()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::CrsMatrix< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getTpetraMatrix	(	int	i,
		int	j
	)		const

Definition at line 1046 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedTpetraMatrix()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::CrsMatrix< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedTpetraMatrix	(	int	i,
		int	j
	)		const

Definition at line 1061 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getTpetraDomainVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::Vector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getTpetraDomainVector ( int i ) const

Definition at line 1076 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedTpetraDomainVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::Vector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedTpetraDomainVector ( int i ) const

Definition at line 1085 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getTpetraRangeVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::Vector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getTpetraRangeVector ( int i ) const

Definition at line 1094 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGhostedTpetraRangeVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< Tpetra::Vector< ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGhostedTpetraRangeVector ( int i ) const

Definition at line 1103 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getBlockRowCount()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

int panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getBlockRowCount ( ) const

how many block rows

Definition at line 1112 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getBlockColCount()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

int panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getBlockColCount ( ) const

how many block columns

Definition at line 1120 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ addExcludedPair()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::addExcludedPair	(	int	rowBlock,
		int	colBlock
	)

exclude a block pair from the matrix

Definition at line 437 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ addExcludedPairs()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::addExcludedPairs ( const std::vector< std::pair< int, int > > & exPairs )

exclude a vector of pairs from the matrix

Definition at line 444 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ beginFill()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::beginFill ( LinearObjContainer & loc ) const

virtual

Reimplemented from panzer::LinearObjFactory< Traits >.

Definition at line 1127 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ endFill()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::endFill ( LinearObjContainer & loc ) const

virtual

Reimplemented from panzer::LinearObjFactory< Traits >.

Definition at line 1136 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ getGlobalIndexer() [1/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP< const panzer::BlockedDOFManager > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGlobalIndexer ( ) const

inline

Definition at line 277 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ getDomainGlobalIndexer()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP< const panzer::GlobalIndexer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getDomainGlobalIndexer ( ) const

inlinevirtual

Get the domain unique global indexer this factory was created with.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 281 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ getRangeGlobalIndexer()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP< const panzer::GlobalIndexer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getRangeGlobalIndexer ( ) const

inlinevirtual

Get the range unique global indexer this factory was created with.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 285 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ getGlobalIndexer() [2/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const GlobalIndexer > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::getGlobalIndexer ( int i ) const

protected

Definition at line 453 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ makeRoomForBlocks()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::makeRoomForBlocks ( std::size_t blockCnt )

protected

Allocate the space in the std::vector objects so we can fill with appropriate Tpetra data.

Definition at line 460 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalThyraVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalThyraVector	(	const Teuchos::RCP< const Thyra::VectorBase< ScalarT > > &	in,
		const Teuchos::RCP< Thyra::VectorBase< ScalarT > > &	out
	)		const

protected

Definition at line 679 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalThyraMatrix()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalThyraMatrix	(	const Thyra::LinearOpBase< ScalarT > &	in,
		Thyra::LinearOpBase< ScalarT > &	out
	)		const

protected

Definition at line 707 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ globalToGhostThyraVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::globalToGhostThyraVector	(	const Teuchos::RCP< const Thyra::VectorBase< ScalarT > > &	in,
		const Teuchos::RCP< Thyra::VectorBase< ScalarT > > &	out
	)		const

protected

Definition at line 753 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ adjustForDirichletConditions() [2/2]

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::adjustForDirichletConditions	(	const VectorType &	local_bcs,
		const VectorType &	global_bcs,
		const Teuchos::Ptr< VectorType > &	f,
		const Teuchos::Ptr< CrsMatrixType > &	A,
		bool	zeroVectorRows
	)		const

protected

Definition at line 238 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalTpetraVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalTpetraVector	(	int	i,
		const VectorType &	in,
		VectorType &	out
	)		const

protected

Definition at line 784 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalTpetraMatrix()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostToGlobalTpetraMatrix	(	int	blockRow,
		const CrsMatrixType &	in,
		CrsMatrixType &	out
	)		const

protected

Definition at line 796 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ globalToGhostTpetraVector()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

void panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::globalToGhostTpetraVector	(	int	i,
		const VectorType &	in,
		VectorType &	out
	)		const

protected

Definition at line 814 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ buildTpetraMap()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Map< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildTpetraMap ( int i ) const

protectedvirtual

Definition at line 913 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ buildTpetraGhostedMap()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::Map< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildTpetraGhostedMap ( int i ) const

protectedvirtual

Definition at line 927 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ buildTpetraGraph()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::CrsGraph< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildTpetraGraph	(	int	i,
		int	j
	)		const

protectedvirtual

Definition at line 941 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

◆ buildTpetraGhostedGraph()

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT >

Teuchos::RCP< const Tpetra::CrsGraph< LocalOrdinalT, GlobalOrdinalT, NodeT > > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::buildTpetraGhostedGraph	(	int	i,
		int	j
	)		const

protectedvirtual

Definition at line 965 of file Panzer_BlockedTpetraLinearObjFactory_impl.hpp.

Member Data Documentation

◆ blockProvider_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const GlobalIndexer> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::blockProvider_

protected

Definition at line 297 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ blockedDOFManager_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const BlockedDOFManager> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::blockedDOFManager_

protected

Definition at line 298 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ gidProviders_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const GlobalIndexer> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::gidProviders_

protected

Definition at line 299 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ excludedPairs_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

std::unordered_set<std::pair<int,int>,panzer::pair_hash> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::excludedPairs_

protected

Definition at line 302 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ rangeSpace_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<Thyra::ProductVectorSpaceBase<ScalarT> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::rangeSpace_

mutableprotected

Definition at line 312 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ domainSpace_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<Thyra::ProductVectorSpaceBase<ScalarT> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::domainSpace_

mutableprotected

Definition at line 313 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ ghostedRangeSpace_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<Thyra::ProductVectorSpaceBase<ScalarT> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostedRangeSpace_

mutableprotected

Definition at line 315 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ ghostedDomainSpace_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<Thyra::ProductVectorSpaceBase<ScalarT> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostedDomainSpace_

mutableprotected

Definition at line 316 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ comm_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const Teuchos::MpiComm<int> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::comm_

protected

Definition at line 339 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ maps_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const MapType> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::maps_

mutableprotected

Definition at line 340 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ ghostedMaps_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const MapType> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostedMaps_

mutableprotected

Definition at line 341 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ graphs_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

std::unordered_map<std::pair<int,int>,Teuchos::RCP<const CrsGraphType>,panzer::pair_hash> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::graphs_

mutableprotected

Definition at line 342 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ ghostedGraphs_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

std::unordered_map<std::pair<int,int>,Teuchos::RCP<const CrsGraphType>,panzer::pair_hash> panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::ghostedGraphs_

mutableprotected

Definition at line 343 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ importers_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const ImportType> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::importers_

mutableprotected

Definition at line 345 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

◆ exporters_

template<typename Traits , typename ScalarT , typename LocalOrdinalT , typename GlobalOrdinalT , typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const ExportType> > panzer::BlockedTpetraLinearObjFactory< Traits, ScalarT, LocalOrdinalT, GlobalOrdinalT, NodeT >::exporters_

mutableprotected

Definition at line 346 of file Panzer_BlockedTpetraLinearObjFactory.hpp.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ BTLOC

◆ VectorType

◆ CrsMatrixType

◆ OperatorType

◆ CrsGraphType

◆ MapType

◆ ImportType

◆ ExportType

◆ ThyraVector

◆ ThyraLinearOp

Constructor & Destructor Documentation

◆ BlockedTpetraLinearObjFactory() [1/2]

◆ BlockedTpetraLinearObjFactory() [2/2]

◆ ~BlockedTpetraLinearObjFactory()

Member Function Documentation

◆ readVector()

◆ writeVector()

◆ buildLinearObjContainer()

◆ buildPrimitiveLinearObjContainer()

◆ buildGhostedLinearObjContainer()

◆ buildPrimitiveGhostedLinearObjContainer()

◆ globalToGhostContainer()

◆ ghostToGlobalContainer()

◆ adjustForDirichletConditions() [1/2]

◆ applyDirichletBCs()

◆ buildReadOnlyDomainContainer()

◆ getComm()

◆ buildScatter()

◆ buildGather()

◆ buildGatherTangent()

◆ buildGatherDomain()

◆ buildGatherOrientation()

◆ buildScatterDirichlet()

◆ initializeContainer() [1/2]

◆ initializeContainer() [2/2]

◆ initializeGhostedContainer() [1/2]

◆ initializeGhostedContainer() [2/2]

◆ getThyraDomainSpace() [1/2]

◆ getThyraRangeSpace() [1/2]

◆ getThyraDomainSpace() [2/2]

◆ getThyraRangeSpace() [2/2]

◆ getThyraDomainVector()

◆ getThyraRangeVector()

◆ getThyraMatrix()

◆ getGhostedThyraDomainSpace()

◆ getGhostedThyraRangeSpace()

◆ getGhostedThyraDomainVector()

◆ getGhostedThyraRangeVector()

◆ getGhostedThyraMatrix()

◆ getMap()

◆ getGhostedMap()

◆ getGraph()

◆ getGhostedGraph()

◆ getGhostedImport()

◆ getGhostedExport()

◆ getTpetraMatrix()

◆ getGhostedTpetraMatrix()

◆ getTpetraDomainVector()

◆ getGhostedTpetraDomainVector()

◆ getTpetraRangeVector()

◆ getGhostedTpetraRangeVector()

◆ getBlockRowCount()

◆ getBlockColCount()

◆ addExcludedPair()

◆ addExcludedPairs()

◆ beginFill()

◆ endFill()

◆ getGlobalIndexer() [1/2]

◆ getDomainGlobalIndexer()

◆ getRangeGlobalIndexer()

◆ getGlobalIndexer() [2/2]

◆ makeRoomForBlocks()

◆ ghostToGlobalThyraVector()

◆ ghostToGlobalThyraMatrix()
