#include <Panzer_BlockedEpetraLinearObjFactory.hpp>

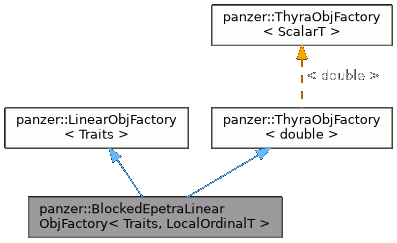

Inheritance diagram for panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >:

[legend]

Classes
class	DOFManagerContainer

Public Member Functions
	BlockedEpetraLinearObjFactory (const Teuchos::RCP< const Teuchos::MpiComm< int > > &comm, const Teuchos::RCP< const GlobalIndexer > &gidProvider, bool useDiscreteAdjoint=false)

	BlockedEpetraLinearObjFactory (const Teuchos::RCP< const Teuchos::MpiComm< int > > &comm, const Teuchos::RCP< const GlobalIndexer > &gidProvider, const Teuchos::RCP< const GlobalIndexer > &colGidProvider, bool useDiscreteAdjoint=false)

virtual	~BlockedEpetraLinearObjFactory ()

virtual void	readVector (const std::string &identifier, LinearObjContainer &loc, int id) const

virtual void	writeVector (const std::string &identifier, const LinearObjContainer &loc, int id) const

virtual Teuchos::RCP< LinearObjContainer >	buildLinearObjContainer () const

virtual Teuchos::RCP< LinearObjContainer >	buildPrimitiveLinearObjContainer () const

virtual Teuchos::RCP< LinearObjContainer >	buildGhostedLinearObjContainer () const

virtual Teuchos::RCP< LinearObjContainer >	buildPrimitiveGhostedLinearObjContainer () const

virtual void	globalToGhostContainer (const LinearObjContainer &container, LinearObjContainer &ghostContainer, int) const

virtual void	ghostToGlobalContainer (const LinearObjContainer &ghostContainer, LinearObjContainer &container, int) const

virtual void	adjustForDirichletConditions (const LinearObjContainer &localBCRows, const LinearObjContainer &globalBCRows, LinearObjContainer &ghostedObjs, bool zeroVectorRows=false, bool adjustX=false) const

virtual void	applyDirichletBCs (const LinearObjContainer &counter, LinearObjContainer &result) const

virtual Teuchos::RCP< ReadOnlyVector_GlobalEvaluationData >	buildReadOnlyDomainContainer () const

virtual Teuchos::RCP< WriteVector_GlobalEvaluationData >	buildWriteDomainContainer () const

virtual Teuchos::MpiComm< int >	getComm () const

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildScatter () const
	Use preconstructed scatter evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildGather () const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildGatherTangent () const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildGatherDomain () const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildGatherOrientation () const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< panzer::CloneableEvaluator >	buildScatterDirichlet () const
	Use preconstructed dirichlet scatter evaluators.

void	initializeContainer (int, LinearObjContainer &loc) const

void	initializeGhostedContainer (int, LinearObjContainer &loc) const

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getThyraDomainSpace () const
	Get the domain vector space (x and dxdt)

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getThyraRangeSpace () const
	Get the range vector space (f)

Teuchos::RCP< Thyra::VectorBase< double > >	getThyraDomainVector () const
	Get a domain vector.

Teuchos::RCP< Thyra::VectorBase< double > >	getThyraRangeVector () const
	Get a range vector.

Teuchos::RCP< Thyra::LinearOpBase< double > >	getThyraMatrix () const
	Get a Thyra operator.

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getGhostedThyraDomainSpace () const
	Get the domain vector space (x and dxdt)

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getGhostedThyraDomainSpace2 () const
	Get or create the ghosted `Thyra` domain space.

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getGhostedThyraRangeSpace () const
	Get the range vector space (f)

Teuchos::RCP< Thyra::VectorBase< double > >	getGhostedThyraDomainVector () const
	Get a domain vector.

Teuchos::RCP< Thyra::VectorBase< double > >	getGhostedThyraRangeVector () const
	Get a range vector.

Teuchos::RCP< Thyra::LinearOpBase< double > >	getGhostedThyraMatrix () const
	Get a Thyra operator.

virtual const Teuchos::RCP< Epetra_Map >	getMap (int i) const
	get the map from the matrix

virtual const Teuchos::RCP< Epetra_Map >	getColMap (int i) const
	get the map from the matrix

virtual const Teuchos::RCP< Epetra_Map >	getGhostedMap (int i) const
	get the ghosted map from the matrix

virtual const Teuchos::RCP< Epetra_Map >	getGhostedMap2 (int i) const
	Get or create the `i`-th ghosted map.

virtual const Teuchos::RCP< Epetra_Map >	getGhostedColMap (int i) const
	get the ghosted map from the matrix

virtual const Teuchos::RCP< Epetra_Map >	getGhostedColMap2 (int i) const
	Get or create the `i`-th ghosted column map.

virtual const Teuchos::RCP< Epetra_CrsGraph >	getGraph (int i, int j) const
	get the graph of the crs matrix

virtual const Teuchos::RCP< Epetra_CrsGraph >	getGhostedGraph (int i, int j) const
	get the ghosted graph of the crs matrix

virtual const Teuchos::RCP< Epetra_Import >	getGhostedImport (int i) const
	get importer for converting an overalapped object to a "normal" object

virtual const Teuchos::RCP< Epetra_Import >	getGhostedImport2 (int i) const
	Get or create the `i`-th ghosted importer corresponding to the `i`-th ghosted map.

virtual const Teuchos::RCP< Epetra_Import >	getGhostedColImport (int i) const
	get importer for converting an overalapped object to a "normal" object

virtual const Teuchos::RCP< Epetra_Import >	getGhostedColImport2 (int i) const
	Get or create the `i`-th ghosted column importer corresponding to the `i`-th ghosted column map.

virtual const Teuchos::RCP< Epetra_Export >	getGhostedExport (int j) const
	get exporter for converting an overalapped object to a "normal" object

virtual const Teuchos::RCP< Epetra_Export >	getGhostedExport2 (int i) const
	Get or create the `i`-th ghosted exporter corresponding to the `i`-th ghosted map.

virtual const Teuchos::RCP< Epetra_Export >	getGhostedColExport (int j) const
	get exporter for converting an overalapped object to a "normal" object

virtual const Teuchos::RCP< Epetra_Export >	getGhostedColExport2 (int i) const
	Get or create the `i`-th ghosted column exporter corresponding to the `i`-th ghosted column map.

virtual const Teuchos::RCP< const Epetra_Comm >	getEpetraComm () const
	get exporter for converting an overalapped object to a "normal" object

Teuchos::RCP< Epetra_CrsMatrix >	getEpetraMatrix (int i, int j) const

Teuchos::RCP< Epetra_CrsMatrix >	getGhostedEpetraMatrix (int i, int j) const

int	getBlockRowCount () const
	how many block rows

int	getBlockColCount () const
	how many block columns

Teuchos::RCP< const panzer::BlockedDOFManager >	getGlobalIndexer () const

Teuchos::RCP< const panzer::GlobalIndexer >	getRangeGlobalIndexer () const
	Get the range global indexer object associated with this factory.

Teuchos::RCP< const panzer::GlobalIndexer >	getDomainGlobalIndexer () const
	Get the domain global indexer object associated with this factory.

const std::vector< Teuchos::RCP< const GlobalIndexer > > &	getRangeGlobalIndexers () const
	Get global indexers associated with the blocks.

const std::vector< Teuchos::RCP< const GlobalIndexer > > &	getDomainGlobalIndexers () const
	Get global indexers associated with the blocks.

void	addExcludedPair (int rowBlock, int colBlock)
	exclude a block pair from the matrix

void	addExcludedPairs (const std::vector< std::pair< int, int > > &exPairs)
	exclude a vector of pairs from the matrix

Public Member Functions inherited from panzer::LinearObjFactory< Traits >
virtual	~LinearObjFactory ()

template<typename BuilderT >
void	buildGatherScatterEvaluators (const BuilderT &builder)

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildScatter (const Teuchos::ParameterList &pl) const
	Use preconstructed scatter evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildGather (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildGatherTangent (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildGatherDomain (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildGatherOrientation (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators.

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator< Traits > >	buildScatterDirichlet (const Teuchos::ParameterList &pl) const
	Use preconstructed dirichlet scatter evaluators.

virtual void	beginFill (LinearObjContainer &) const

virtual void	endFill (LinearObjContainer &) const

Public Member Functions inherited from panzer::ThyraObjFactory< double >
virtual	~ThyraObjFactory ()

Protected Member Functions
void	initializeContainer_internal (int mem, ThyraObjContainer< double > &loc) const

void	initializeGhostedContainer_internal (int mem, ThyraObjContainer< double > &loc) const

Teuchos::RCP< const GlobalIndexer >	getGlobalIndexer (int i) const

Teuchos::RCP< const GlobalIndexer >	getColGlobalIndexer (int i) const

void	makeRoomForBlocks (std::size_t blockCnt, std::size_t colBlockCnt=0)
	Allocate the space in the std::vector objects so we can fill with appropriate Epetra data.

void	ghostToGlobalThyraVector (const Teuchos::RCP< const Thyra::VectorBase< double > > &in, const Teuchos::RCP< Thyra::VectorBase< double > > &out, bool col) const

void	ghostToGlobalThyraMatrix (const Thyra::LinearOpBase< double > &in, Thyra::LinearOpBase< double > &out) const

void	globalToGhostThyraVector (const Teuchos::RCP< const Thyra::VectorBase< double > > &in, const Teuchos::RCP< Thyra::VectorBase< double > > &out, bool col) const

void	adjustForDirichletConditions (const Epetra_Vector &local_bcs, const Epetra_Vector &global_bcs, const Teuchos::Ptr< Epetra_Vector > &f, const Teuchos::Ptr< Epetra_CrsMatrix > &A, bool zeroVectorRows) const

void	ghostToGlobalEpetraVector (int i, const Epetra_Vector &in, Epetra_Vector &out, bool col) const

void	globalToGhostEpetraVector (int i, const Epetra_Vector &in, Epetra_Vector &out, bool col) const

void	ghostToGlobalEpetraMatrix (int blockRow, const Epetra_CrsMatrix &in, Epetra_CrsMatrix &out) const

virtual const Teuchos::RCP< Epetra_Map >	buildMap (int i) const
	Build the `i`-th owned map from the owned indices of the `i`-th global indexer.

virtual const Teuchos::RCP< Epetra_Map >	buildGhostedMap (int i) const
	Build the `i`-th ghosted map from the owned and ghosted indices of the `i`-th global indexer.

virtual const Teuchos::RCP< Epetra_Map >	buildGhostedMap2 (int i) const
	Build the `i`-th ghosted map from the ghosted indices of the `i`-th global indexer.

virtual const Teuchos::RCP< Epetra_Map >	buildColMap (int i) const
	Build the `i`-th owned column map from the owned indices of the `i`-th (column) global indexer.

virtual const Teuchos::RCP< Epetra_Map >	buildColGhostedMap (int i) const
	Build the `i`-th ghosted column map from the owned and ghosted indices of the `i`-th (column) global indexer.

virtual const Teuchos::RCP< Epetra_Map >	buildColGhostedMap2 (int i) const
	Build the `i`-th ghosted column map from the ghosted indices of the `i`-th (column) global indexer.

virtual const Teuchos::RCP< Epetra_CrsGraph >	buildGraph (int i, int j) const

virtual const Teuchos::RCP< Epetra_CrsGraph >	buildGhostedGraph (int i, int j, bool optimizeStorage) const

virtual const Teuchos::RCP< Epetra_CrsGraph >	buildFilteredGhostedGraph (int i, int j) const

Protected Attributes
Teuchos::RCP< const DOFManagerContainer >	rowDOFManagerContainer_

Teuchos::RCP< const DOFManagerContainer >	colDOFManagerContainer_

bool	useColGidProviders_

std::unordered_set< std::pair< int, int >, panzer::pair_hash >	excludedPairs_

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	rangeSpace_

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	domainSpace_

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	ghostedRangeSpace_

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	ghostedDomainSpace_

Teuchos::RCP< const Epetra_Comm >	eComm_

Teuchos::RCP< const Teuchos::OpaqueWrapper< MPI_Comm > >	rawMpiComm_

Teuchos::RCP< Teuchos::MpiComm< int > >	tComm_

std::vector< Teuchos::RCP< Epetra_Map > >	maps_
	The list of owned maps corresponding to the owned indices of the global indexers.

std::vector< Teuchos::RCP< Epetra_Map > >	ghostedMaps_
	The list of ghosted maps corresponding to the owned and ghosted indices of the global indexers.

std::vector< Teuchos::RCP< Epetra_Map > >	ghostedMaps2_
	The list of ghosted maps corresponding to the ghosted indices of the global indexers.

std::vector< Teuchos::RCP< Epetra_Import > >	importers_
	The list of ghosted importers corresponding to `ghostedMaps_`.

std::vector< Teuchos::RCP< Epetra_Import > >	importers2_
	The list of ghosted importers corresponding to `ghostedMaps2_`.

std::vector< Teuchos::RCP< Epetra_Export > >	exporters_

std::vector< Teuchos::RCP< Epetra_Map > >	colMaps_
	The list of owned column maps corresponding to the owned indices of the (column) global indexers.

std::vector< Teuchos::RCP< Epetra_Map > >	colGhostedMaps_
	The list of ghosted column maps corresponding to the owned and ghosted indices of the (column) global indexers.

std::vector< Teuchos::RCP< Epetra_Map > >	colGhostedMaps2_
	The list of ghosted column maps corresponding to the ghosted indices of the (column) global indexers.

std::vector< Teuchos::RCP< Epetra_Import > >	colImporters_
	The list of ghosted importers corresponding to `colGhostedMaps_`.

std::vector< Teuchos::RCP< Epetra_Import > >	colImporters2_
	The list of ghosted importers corresponding to `colGhostedMaps2_`.

std::vector< Teuchos::RCP< Epetra_Export > >	colExporters_

std::unordered_map< std::pair< int, int >, Teuchos::RCP< Epetra_CrsGraph >, panzer::pair_hash >	graphs_

std::unordered_map< std::pair< int, int >, Teuchos::RCP< Epetra_CrsGraph >, panzer::pair_hash >	ghostedGraphs_

bool	useDiscreteAdjoint_

Detailed Description

template<typename Traits, typename LocalOrdinalT>
class panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >

Definition at line 54 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

Constructor & Destructor Documentation

◆ BlockedEpetraLinearObjFactory() [1/2]

template<typename Traits , typename LocalOrdinalT >

panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::BlockedEpetraLinearObjFactory	(	const Teuchos::RCP< const Teuchos::MpiComm< int > > &	comm,
		const Teuchos::RCP< const GlobalIndexer > &	gidProvider,
		bool	useDiscreteAdjoint = `false`
	)

Definition at line 53 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ BlockedEpetraLinearObjFactory() [2/2]

template<typename Traits , typename LocalOrdinalT >

panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::BlockedEpetraLinearObjFactory	(	const Teuchos::RCP< const Teuchos::MpiComm< int > > &	comm,
		const Teuchos::RCP< const GlobalIndexer > &	gidProvider,
		const Teuchos::RCP< const GlobalIndexer > &	colGidProvider,
		bool	useDiscreteAdjoint = `false`
	)

Definition at line 76 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ ~BlockedEpetraLinearObjFactory()

template<typename Traits , typename LocalOrdinalT >

panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::~BlockedEpetraLinearObjFactory ( )

virtual

Definition at line 102 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

Member Function Documentation

◆ readVector()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::readVector	(	const std::string &	identifier,
		LinearObjContainer &	loc,
		int	id
	)		const

virtual

Read in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implements panzer::LinearObjFactory< Traits >.

Definition at line 110 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ writeVector()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::writeVector	(	const std::string &	identifier,
		const LinearObjContainer &	loc,
		int	id
	)		const

virtual

Write in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implements panzer::LinearObjFactory< Traits >.

Definition at line 160 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildLinearObjContainer()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< LinearObjContainer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildLinearObjContainer ( ) const

virtual

Build a container with all the neccessary linear algebra objects. This is the non-ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 205 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildPrimitiveLinearObjContainer()

template<typename Traits , typename LocalOrdinalT >

virtual Teuchos::RCP< LinearObjContainer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildPrimitiveLinearObjContainer ( ) const

inlinevirtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the non-ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 77 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ buildGhostedLinearObjContainer()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< LinearObjContainer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGhostedLinearObjContainer ( ) const

virtual

Build a container with all the neccessary linear algebra objects. This is the ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 226 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildPrimitiveGhostedLinearObjContainer()

template<typename Traits , typename LocalOrdinalT >

virtual Teuchos::RCP< LinearObjContainer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildPrimitiveGhostedLinearObjContainer ( ) const

inlinevirtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildGhostedLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 82 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ globalToGhostContainer()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::globalToGhostContainer	(	const LinearObjContainer &	container,
		LinearObjContainer &	ghostContainer,
		int	mem
	)		const

virtual

Implements panzer::LinearObjFactory< Traits >.

Definition at line 247 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalContainer()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalContainer	(	const LinearObjContainer &	ghostContainer,
		LinearObjContainer &	container,
		int	mem
	)		const

virtual

Implements panzer::LinearObjFactory< Traits >.

Definition at line 289 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ adjustForDirichletConditions() [1/2]

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::adjustForDirichletConditions	(	const LinearObjContainer &	localBCRows,
		const LinearObjContainer &	globalBCRows,
		LinearObjContainer &	ghostedObjs,
		bool	zeroVectorRows = `false`,
		bool	adjustX = `false`
	)		const

virtual

Adjust the residual vector and Jacobian matrix (if they exist) for applied dirichlet conditions. The adjustment considers if a boundary condition was set globally and locally and based on that result adjust the ghosted matrix and residual vector so that when they are summed across processors they resulting Dirichlet condition is correct.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 331 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ applyDirichletBCs()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::applyDirichletBCs	(	const LinearObjContainer &	counter,
		LinearObjContainer &	result
	)		const

virtual

Adjust a vector by replacing selected rows with the value of the evaluated dirichlet conditions. This is handled through the standard container mechanism.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 468 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildReadOnlyDomainContainer()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< ReadOnlyVector_GlobalEvaluationData > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildReadOnlyDomainContainer ( ) const

virtual

Build a GlobalEvaluationDataContainer that handles all domain communication. This is used primarily for gather operations and hides the allocation and usage of the ghosted vector from the user.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 512 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildWriteDomainContainer()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< WriteVector_GlobalEvaluationData > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildWriteDomainContainer ( ) const

virtual

Build a GlobalEvaluationDataContainer that handles all domain communication. This is used primarily for gather operations and hides the allocation and usage of the ghosted vector from the user.

Definition at line 554 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getComm()

template<typename Traits , typename LocalOrdinalT >

Teuchos::MpiComm< int > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getComm ( ) const

virtual

Acess to the MPI Comm used in constructing this LOF.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 590 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildScatter()

template<typename Traits , typename LocalOrdinalT >

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildScatter ( ) const

inline

Use preconstructed scatter evaluators.

Definition at line 123 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ buildGather()

template<typename Traits , typename LocalOrdinalT >

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGather ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 138 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ buildGatherTangent()

template<typename Traits , typename LocalOrdinalT >

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGatherTangent ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 148 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ buildGatherDomain()

template<typename Traits , typename LocalOrdinalT >

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGatherDomain ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 158 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ buildGatherOrientation()

template<typename Traits , typename LocalOrdinalT >

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGatherOrientation ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 167 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ buildScatterDirichlet()

template<typename Traits , typename LocalOrdinalT >

template<typename EvalT >

Teuchos::RCP< panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildScatterDirichlet ( ) const

inline

Use preconstructed dirichlet scatter evaluators.

Definition at line 172 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ initializeContainer()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::initializeContainer	(	int	mem,
		LinearObjContainer &	loc
	)		const

virtual

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 597 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ initializeGhostedContainer()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::initializeGhostedContainer	(	int	mem,
		LinearObjContainer &	loc
	)		const

virtual

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 607 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getThyraDomainSpace()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraDomainSpace ( ) const

virtual

Get the domain vector space (x and dxdt)

Implements panzer::ThyraObjFactory< double >.

Definition at line 745 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getThyraRangeSpace()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraRangeSpace ( ) const

virtual

Get the range vector space (f)

Implements panzer::ThyraObjFactory< double >.

Definition at line 768 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getThyraDomainVector()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::VectorBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraDomainVector ( ) const

Get a domain vector.

Definition at line 791 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getThyraRangeVector()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::VectorBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraRangeVector ( ) const

Get a range vector.

Definition at line 802 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getThyraMatrix()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::LinearOpBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraMatrix ( ) const

virtual

Get a Thyra operator.

Implements panzer::ThyraObjFactory< double >.

Definition at line 813 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraDomainSpace()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraDomainSpace ( ) const

Get the domain vector space (x and dxdt)

Definition at line 855 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraDomainSpace2()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraDomainSpace2 ( ) const

Get or create the ghosted Thyra domain space.

Get the vector space corresponding to the ghosted domain. If it does not yet exist, create it from the ghosted column map(s).

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Returns: The vector space corresponding to the ghosted domain.

Definition at line 890 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraRangeSpace()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraRangeSpace ( ) const

Get the range vector space (f)

Definition at line 919 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraDomainVector()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::VectorBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraDomainVector ( ) const

Get a domain vector.

Definition at line 942 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraRangeVector()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::VectorBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraRangeVector ( ) const

Get a range vector.

Definition at line 953 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedThyraMatrix()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::LinearOpBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraMatrix ( ) const

Get a Thyra operator.

Definition at line 964 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getMap()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getMap ( int i ) const

virtual

get the map from the matrix

Definition at line 1164 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getColMap()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getColMap ( int i ) const

virtual

get the map from the matrix

Definition at line 1175 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedMap()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedMap ( int i ) const

virtual

get the ghosted map from the matrix

Definition at line 1194 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedMap2()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedMap2 ( int i ) const

virtual

Get or create the i-th ghosted map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted maps.

Returns: The i-th ghosted map.

Definition at line 1210 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedColMap()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColMap ( int i ) const

virtual

get the ghosted map from the matrix

Definition at line 1226 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedColMap2()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColMap2 ( int i ) const

virtual

Get or create the i-th ghosted column map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted column maps.

Returns: The i-th ghosted column map.

Definition at line 1244 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGraph()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGraph	(	int	i,
		int	j
	)		const

virtual

get the graph of the crs matrix

Definition at line 1257 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedGraph()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedGraph	(	int	i,
		int	j
	)		const

virtual

get the ghosted graph of the crs matrix

Definition at line 1276 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedImport()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Import > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedImport ( int i ) const

virtual

get importer for converting an overalapped object to a "normal" object

Definition at line 1301 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedImport2()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Import > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedImport2 ( int i ) const

virtual

Get or create the i-th ghosted importer corresponding to the i-th ghosted map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted importers.

Returns: The i-th ghosted importer.

Definition at line 1318 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedColImport()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Import > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColImport ( int i ) const

virtual

get importer for converting an overalapped object to a "normal" object

Definition at line 1335 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedColImport2()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Import > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColImport2 ( int i ) const

virtual

Get or create the i-th ghosted column importer corresponding to the i-th ghosted column map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted column importers.

Returns: The i-th ghosted column importer.

Definition at line 1355 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedExport()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Export > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedExport ( int j ) const

virtual

get exporter for converting an overalapped object to a "normal" object

Definition at line 1375 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedExport2()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Export > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedExport2 ( int i ) const

virtual

Get or create the i-th ghosted exporter corresponding to the i-th ghosted map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted exporters.

Returns: The i-th ghosted exporter.

Definition at line 1392 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedColExport()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Export > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColExport ( int j ) const

virtual

get exporter for converting an overalapped object to a "normal" object

Definition at line 1409 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedColExport2()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Export > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColExport2 ( int i ) const

virtual

Get or create the i-th ghosted column exporter corresponding to the i-th ghosted column map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted column exporters.

Returns: The i-th ghosted column exporter.

Definition at line 1429 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getEpetraComm()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< const Epetra_Comm > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getEpetraComm ( ) const

virtual

get exporter for converting an overalapped object to a "normal" object

Definition at line 1710 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getEpetraMatrix()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Epetra_CrsMatrix > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getEpetraMatrix	(	int	i,
		int	j
	)		const

Definition at line 1690 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGhostedEpetraMatrix()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Epetra_CrsMatrix > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedEpetraMatrix	(	int	i,
		int	j
	)		const

Definition at line 1700 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getBlockRowCount()

template<typename Traits , typename LocalOrdinalT >

int panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getBlockRowCount ( ) const

how many block rows

Definition at line 1717 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getBlockColCount()

template<typename Traits , typename LocalOrdinalT >

int panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getBlockColCount ( ) const

how many block columns

Definition at line 1724 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGlobalIndexer() [1/2]

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const panzer::BlockedDOFManager > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGlobalIndexer ( ) const

inline

Definition at line 378 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ getRangeGlobalIndexer()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const panzer::GlobalIndexer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getRangeGlobalIndexer ( ) const

inlinevirtual

Get the range global indexer object associated with this factory.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 381 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ getDomainGlobalIndexer()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const panzer::GlobalIndexer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getDomainGlobalIndexer ( ) const

inlinevirtual

Get the domain global indexer object associated with this factory.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 384 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ getRangeGlobalIndexers()

template<typename Traits , typename LocalOrdinalT >

const std::vector< Teuchos::RCP< const GlobalIndexer > > & panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getRangeGlobalIndexers ( ) const

inline

Get global indexers associated with the blocks.

Definition at line 388 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ getDomainGlobalIndexers()

template<typename Traits , typename LocalOrdinalT >

const std::vector< Teuchos::RCP< const GlobalIndexer > > & panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getDomainGlobalIndexers ( ) const

inline

Get global indexers associated with the blocks.

Definition at line 392 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ addExcludedPair()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::addExcludedPair	(	int	rowBlock,
		int	colBlock
	)

exclude a block pair from the matrix

Definition at line 684 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ addExcludedPairs()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::addExcludedPairs ( const std::vector< std::pair< int, int > > & exPairs )

exclude a vector of pairs from the matrix

Definition at line 691 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ initializeContainer_internal()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::initializeContainer_internal	(	int	mem,
		ThyraObjContainer< double > &	loc
	)		const

protected

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Definition at line 642 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ initializeGhostedContainer_internal()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::initializeGhostedContainer_internal	(	int	mem,
		ThyraObjContainer< double > &	loc
	)		const

protected

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Definition at line 663 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getGlobalIndexer() [2/2]

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const GlobalIndexer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGlobalIndexer ( int i ) const

protected

Definition at line 699 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ getColGlobalIndexer()

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const GlobalIndexer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getColGlobalIndexer ( int i ) const

protected

Definition at line 706 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ makeRoomForBlocks()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::makeRoomForBlocks	(	std::size_t	blockCnt,
		std::size_t	colBlockCnt = `0`
	)

protected

Allocate the space in the std::vector objects so we can fill with appropriate Epetra data.

Definition at line 719 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalThyraVector()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalThyraVector	(	const Teuchos::RCP< const Thyra::VectorBase< double > > &	in,
		const Teuchos::RCP< Thyra::VectorBase< double > > &	out,
		bool	col
	)		const

protected

Definition at line 1000 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalThyraMatrix()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalThyraMatrix	(	const Thyra::LinearOpBase< double > &	in,
		Thyra::LinearOpBase< double > &	out
	)		const

protected

Definition at line 1037 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ globalToGhostThyraVector()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::globalToGhostThyraVector	(	const Teuchos::RCP< const Thyra::VectorBase< double > > &	in,
		const Teuchos::RCP< Thyra::VectorBase< double > > &	out,
		bool	col
	)		const

protected

Definition at line 1083 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ adjustForDirichletConditions() [2/2]

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::adjustForDirichletConditions	(	const Epetra_Vector &	local_bcs,
		const Epetra_Vector &	global_bcs,
		const Teuchos::Ptr< Epetra_Vector > &	f,
		const Teuchos::Ptr< Epetra_CrsMatrix > &	A,
		bool	zeroVectorRows
	)		const

protected

Definition at line 419 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalEpetraVector()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalEpetraVector	(	int	i,
		const Epetra_Vector &	in,
		Epetra_Vector &	out,
		bool	col
	)		const

protected

Definition at line 1124 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ globalToGhostEpetraVector()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::globalToGhostEpetraVector	(	int	i,
		const Epetra_Vector &	in,
		Epetra_Vector &	out,
		bool	col
	)		const

protected

Definition at line 1150 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ ghostToGlobalEpetraMatrix()

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalEpetraMatrix	(	int	blockRow,
		const Epetra_CrsMatrix &	in,
		Epetra_CrsMatrix &	out
	)		const

protected

Definition at line 1137 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildMap()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildMap ( int i ) const

protectedvirtual

Build the i-th owned map from the owned indices of the i-th global indexer.

Parameters

[in] i The index into the list of global indexers.

Returns: The i-th owned map.

Definition at line 1443 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildGhostedMap()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGhostedMap ( int i ) const

protectedvirtual

Build the i-th ghosted map from the owned and ghosted indices of the i-th global indexer.

Parameters

[in] i The index into the list of global indexers.

Returns: The i-th owned and ghosted map.

Definition at line 1476 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildGhostedMap2()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGhostedMap2 ( int i ) const

protectedvirtual

Build the i-th ghosted map from the ghosted indices of the i-th global indexer.

Parameters

[in] i The index into the list of global indexers.

Returns: The i-th ghosted map.

Definition at line 1494 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildColMap()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildColMap ( int i ) const

protectedvirtual

Build the i-th owned column map from the owned indices of the i-th (column) global indexer.

Parameters

[in] i The index into the list of (column) global indexers.

Returns: The i-th owned column map.

Definition at line 1455 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildColGhostedMap()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildColGhostedMap ( int i ) const

protectedvirtual

Build the i-th ghosted column map from the owned and ghosted indices of the i-th (column) global indexer.

Parameters

[in] i The index into the list of (column) global indexers.

Returns: The i-th owned and ghosted column map.

Definition at line 1512 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildColGhostedMap2()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildColGhostedMap2 ( int i ) const

protectedvirtual

Build the i-th ghosted column map from the ghosted indices of the i-th (column) global indexer.

Parameters

[in] i The index into the list of (column) global indexers.

Returns: The i-th ghosted column map.

Definition at line 1532 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildGraph()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGraph	(	int	i,
		int	j
	)		const

protectedvirtual

Definition at line 1547 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildGhostedGraph()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGhostedGraph	(	int	i,
		int	j,
		bool	optimizeStorage
	)		const

protectedvirtual

Definition at line 1577 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

◆ buildFilteredGhostedGraph()

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildFilteredGhostedGraph	(	int	i,
		int	j
	)		const

protectedvirtual

Definition at line 1641 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

Member Data Documentation

◆ rowDOFManagerContainer_

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP<const DOFManagerContainer> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::rowDOFManagerContainer_

protected

Definition at line 504 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ colDOFManagerContainer_

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP<const DOFManagerContainer> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colDOFManagerContainer_

protected

Definition at line 505 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ useColGidProviders_

template<typename Traits , typename LocalOrdinalT >

bool panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::useColGidProviders_

protected

Definition at line 507 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ excludedPairs_

template<typename Traits , typename LocalOrdinalT >

std::unordered_set<std::pair<int,int>,panzer::pair_hash> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::excludedPairs_

protected

Definition at line 510 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ rangeSpace_

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP<const Thyra::VectorSpaceBase<double> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::rangeSpace_

mutableprotected

Definition at line 520 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ domainSpace_

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP<const Thyra::VectorSpaceBase<double> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::domainSpace_

mutableprotected

Definition at line 521 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ ghostedRangeSpace_

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP<const Thyra::VectorSpaceBase<double> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedRangeSpace_

mutableprotected

Definition at line 523 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ ghostedDomainSpace_

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP<const Thyra::VectorSpaceBase<double> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedDomainSpace_

mutableprotected

Definition at line 524 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ eComm_

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP<const Epetra_Comm> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::eComm_

protected

Definition at line 620 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ rawMpiComm_

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP<const Teuchos::OpaqueWrapper<MPI_Comm> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::rawMpiComm_

protected

Definition at line 621 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ tComm_

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP<Teuchos::MpiComm<int> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::tComm_

protected

Definition at line 622 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ maps_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::maps_

mutableprotected

The list of owned maps corresponding to the owned indices of the global indexers.

Definition at line 628 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ ghostedMaps_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedMaps_

mutableprotected

The list of ghosted maps corresponding to the owned and ghosted indices of the global indexers.

Definition at line 634 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ ghostedMaps2_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedMaps2_

mutableprotected

The list of ghosted maps corresponding to the ghosted indices of the global indexers.

Definition at line 640 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ importers_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Import> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::importers_

mutableprotected

The list of ghosted importers corresponding to ghostedMaps_.

Definition at line 645 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ importers2_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Import> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::importers2_

mutableprotected

The list of ghosted importers corresponding to ghostedMaps2_.

Definition at line 650 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ exporters_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Export> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::exporters_

mutableprotected

Definition at line 652 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ colMaps_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colMaps_

mutableprotected

The list of owned column maps corresponding to the owned indices of the (column) global indexers.

Definition at line 658 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ colGhostedMaps_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colGhostedMaps_

mutableprotected

The list of ghosted column maps corresponding to the owned and ghosted indices of the (column) global indexers.

Definition at line 664 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ colGhostedMaps2_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colGhostedMaps2_

mutableprotected

The list of ghosted column maps corresponding to the ghosted indices of the (column) global indexers.

Definition at line 670 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ colImporters_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Import> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colImporters_

mutableprotected

The list of ghosted importers corresponding to colGhostedMaps_.

Definition at line 675 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ colImporters2_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Import> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colImporters2_

mutableprotected

The list of ghosted importers corresponding to colGhostedMaps2_.

Definition at line 681 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ colExporters_

template<typename Traits , typename LocalOrdinalT >

std::vector<Teuchos::RCP<Epetra_Export> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colExporters_

mutableprotected

Definition at line 683 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ graphs_

template<typename Traits , typename LocalOrdinalT >

std::unordered_map<std::pair<int,int>,Teuchos::RCP<Epetra_CrsGraph>,panzer::pair_hash> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::graphs_

mutableprotected

Definition at line 685 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ ghostedGraphs_

template<typename Traits , typename LocalOrdinalT >

std::unordered_map<std::pair<int,int>,Teuchos::RCP<Epetra_CrsGraph>,panzer::pair_hash> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedGraphs_

mutableprotected

Definition at line 686 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

◆ useDiscreteAdjoint_

template<typename Traits , typename LocalOrdinalT >

bool panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::useDiscreteAdjoint_

protected

Definition at line 688 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ BlockedEpetraLinearObjFactory() [1/2]

◆ BlockedEpetraLinearObjFactory() [2/2]

◆ ~BlockedEpetraLinearObjFactory()

Member Function Documentation

◆ readVector()

◆ writeVector()

◆ buildLinearObjContainer()

◆ buildPrimitiveLinearObjContainer()

◆ buildGhostedLinearObjContainer()

◆ buildPrimitiveGhostedLinearObjContainer()

◆ globalToGhostContainer()

◆ ghostToGlobalContainer()

◆ adjustForDirichletConditions() [1/2]

◆ applyDirichletBCs()

◆ buildReadOnlyDomainContainer()

◆ buildWriteDomainContainer()

◆ getComm()

◆ buildScatter()

◆ buildGather()

◆ buildGatherTangent()

◆ buildGatherDomain()

◆ buildGatherOrientation()

◆ buildScatterDirichlet()

◆ initializeContainer()

◆ initializeGhostedContainer()

◆ getThyraDomainSpace()

◆ getThyraRangeSpace()

◆ getThyraDomainVector()

◆ getThyraRangeVector()

◆ getThyraMatrix()

◆ getGhostedThyraDomainSpace()

◆ getGhostedThyraDomainSpace2()

◆ getGhostedThyraRangeSpace()

◆ getGhostedThyraDomainVector()

◆ getGhostedThyraRangeVector()

◆ getGhostedThyraMatrix()

◆ getMap()

◆ getColMap()

◆ getGhostedMap()

◆ getGhostedMap2()

◆ getGhostedColMap()

◆ getGhostedColMap2()

◆ getGraph()

◆ getGhostedGraph()

◆ getGhostedImport()

◆ getGhostedImport2()

◆ getGhostedColImport()

◆ getGhostedColImport2()

◆ getGhostedExport()

◆ getGhostedExport2()

◆ getGhostedColExport()

◆ getGhostedColExport2()

◆ getEpetraComm()

◆ getEpetraMatrix()

◆ getGhostedEpetraMatrix()

◆ getBlockRowCount()

◆ getBlockColCount()

◆ getGlobalIndexer() [1/2]

◆ getRangeGlobalIndexer()

◆ getDomainGlobalIndexer()

◆ getRangeGlobalIndexers()

◆ getDomainGlobalIndexers()

◆ addExcludedPair()

◆ addExcludedPairs()

◆ initializeContainer_internal()

◆ initializeGhostedContainer_internal()

◆ getGlobalIndexer() [2/2]

◆ getColGlobalIndexer()

◆ makeRoomForBlocks()

◆ ghostToGlobalThyraVector()

◆ ghostToGlobalThyraMatrix()

◆ globalToGhostThyraVector()

◆ adjustForDirichletConditions() [2/2]

◆ ghostToGlobalEpetraVector()
