panzer::BlockedEpetraLinearObjContainer Class Reference

#include <Panzer_BlockedEpetraLinearObjContainer.hpp>

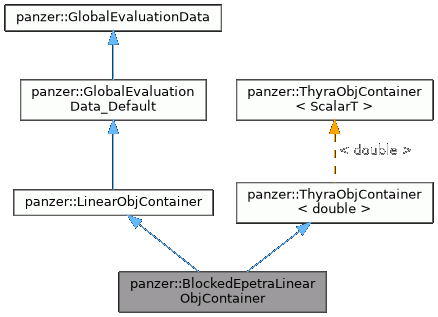

Inheritance diagram for panzer::BlockedEpetraLinearObjContainer:

Public Types
typedef Thyra::VectorBase< double >	VectorType
typedef Thyra::LinearOpBase< double >	CrsMatrixType
Public Types inherited from panzer::LinearObjContainer
enum	Members { X =0x1 , DxDt =0x2 , F =0x4 , Mat =0x8 }

Public Member Functions
bool	checkCompatibility () const
	Make sure row and column spaces match up.
virtual void	clear ()
void	initializeMatrix (double value)
	Put a particular scalar in the matrix.
void	setMapsForBlocks (const std::vector< Teuchos::RCP< const Epetra_Map > > &blockMaps)
Teuchos::RCP< const Epetra_Map >	getMapForBlock (std::size_t i) const
void	set_x (const Teuchos::RCP< VectorType > &in)
Teuchos::RCP< VectorType >	get_x () const
void	set_dxdt (const Teuchos::RCP< VectorType > &in)
Teuchos::RCP< VectorType >	get_dxdt () const
void	set_f (const Teuchos::RCP< VectorType > &in)
Teuchos::RCP< VectorType >	get_f () const
void	set_A (const Teuchos::RCP< CrsMatrixType > &in)
Teuchos::RCP< CrsMatrixType >	get_A () const
virtual void	initialize ()
void	set_x_th (const Teuchos::RCP< VectorType > &in)
Teuchos::RCP< VectorType >	get_x_th () const
void	set_dxdt_th (const Teuchos::RCP< VectorType > &in)
Teuchos::RCP< VectorType >	get_dxdt_th () const
void	set_f_th (const Teuchos::RCP< VectorType > &in)
Teuchos::RCP< VectorType >	get_f_th () const
void	set_A_th (const Teuchos::RCP< CrsMatrixType > &in)
Teuchos::RCP< CrsMatrixType >	get_A_th () const
Public Member Functions inherited from panzer::LinearObjContainer
virtual	~LinearObjContainer ()
Public Member Functions inherited from panzer::GlobalEvaluationData_Default
	GlobalEvaluationData_Default ()
	GlobalEvaluationData_Default (const GlobalEvaluationData_Default &s)
virtual void	ghostToGlobal (int)
virtual void	globalToGhost (int)
virtual void	initializeData ()
void	setRequiresDirichletAdjustment (bool b)
bool	requiresDirichletAdjustment () const
Public Member Functions inherited from panzer::GlobalEvaluationData
virtual	~GlobalEvaluationData ()=0
virtual void	print (std::ostream &os) const
	Diagnostic function for determinning what's in this object.
Public Member Functions inherited from panzer::ThyraObjContainer< double >
virtual	~ThyraObjContainer ()
void	clear ()

Private Attributes
Teuchos::RCP< VectorType >	x
Teuchos::RCP< VectorType >	dxdt
Teuchos::RCP< VectorType >	f
Teuchos::RCP< CrsMatrixType >	A
std::vector< Teuchos::RCP< const Epetra_Map > >	blockMaps_

Detailed Description

Linear object container for Block operators, this always assumes the matrix is square.

Definition at line 32 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

Member Typedef Documentation

VectorType

typedef Thyra::VectorBase<double> panzer::BlockedEpetraLinearObjContainer::VectorType

Definition at line 35 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

CrsMatrixType

typedef Thyra::LinearOpBase<double> panzer::BlockedEpetraLinearObjContainer::CrsMatrixType

Definition at line 36 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

Member Function Documentation

checkCompatibility()

bool panzer::BlockedEpetraLinearObjContainer::checkCompatibility

(

)

const

Make sure row and column spaces match up.

Definition at line 23 of file Panzer_BlockedEpetraLinearObjContainer.cpp.

clear()

void panzer::BlockedEpetraLinearObjContainer::clear ( )

virtual

Definition at line 122 of file Panzer_BlockedEpetraLinearObjContainer.cpp.

initializeMatrix()

void panzer::BlockedEpetraLinearObjContainer::initializeMatrix ( double  value )

virtual

Put a particular scalar in the matrix.

Implements panzer::ThyraObjContainer< double >.

Definition at line 94 of file Panzer_BlockedEpetraLinearObjContainer.cpp.

setMapsForBlocks()

void panzer::BlockedEpetraLinearObjContainer::setMapsForBlocks ( const std::vector< Teuchos::RCP< const Epetra_Map > > &  blockMaps )

inline

Definition at line 46 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

getMapForBlock()

Teuchos::RCP< const Epetra_Map > panzer::BlockedEpetraLinearObjContainer::getMapForBlock ( std::size_t  i ) const

inline

Definition at line 49 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

set_x()

void panzer::BlockedEpetraLinearObjContainer::set_x ( const Teuchos::RCP< VectorType > &  in )

inline

Definition at line 52 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

get_x()

Teuchos::RCP< VectorType > panzer::BlockedEpetraLinearObjContainer::get_x ( ) const

inline

Definition at line 53 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

set_dxdt()

void panzer::BlockedEpetraLinearObjContainer::set_dxdt ( const Teuchos::RCP< VectorType > &  in )

inline

Definition at line 55 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

get_dxdt()

Teuchos::RCP< VectorType > panzer::BlockedEpetraLinearObjContainer::get_dxdt ( ) const

inline

Definition at line 56 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

set_f()

void panzer::BlockedEpetraLinearObjContainer::set_f ( const Teuchos::RCP< VectorType > &  in )

inline

Definition at line 58 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

get_f()

Teuchos::RCP< VectorType > panzer::BlockedEpetraLinearObjContainer::get_f ( ) const

inline

Definition at line 59 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

set_A()

void panzer::BlockedEpetraLinearObjContainer::set_A ( const Teuchos::RCP< CrsMatrixType > &  in )

inline

Definition at line 61 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

get_A()

Teuchos::RCP< CrsMatrixType > panzer::BlockedEpetraLinearObjContainer::get_A ( ) const

inline

Definition at line 62 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

initialize()

void panzer::BlockedEpetraLinearObjContainer::initialize ( )

virtual

Implements panzer::LinearObjContainer.

Definition at line 63 of file Panzer_BlockedEpetraLinearObjContainer.cpp.

set_x_th()

void panzer::BlockedEpetraLinearObjContainer::set_x_th ( const Teuchos::RCP< VectorType > &  in )

inlinevirtual

Implements panzer::ThyraObjContainer< double >.

Definition at line 69 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

get_x_th()

Teuchos::RCP< VectorType > panzer::BlockedEpetraLinearObjContainer::get_x_th ( ) const

inlinevirtual

Implements panzer::ThyraObjContainer< double >.

Definition at line 70 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

set_dxdt_th()

void panzer::BlockedEpetraLinearObjContainer::set_dxdt_th ( const Teuchos::RCP< VectorType > &  in )

inlinevirtual

Implements panzer::ThyraObjContainer< double >.

Definition at line 72 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

get_dxdt_th()

Teuchos::RCP< VectorType > panzer::BlockedEpetraLinearObjContainer::get_dxdt_th ( ) const

inlinevirtual

Implements panzer::ThyraObjContainer< double >.

Definition at line 73 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

set_f_th()

void panzer::BlockedEpetraLinearObjContainer::set_f_th ( const Teuchos::RCP< VectorType > &  in )

inlinevirtual

Implements panzer::ThyraObjContainer< double >.

Definition at line 75 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

get_f_th()

Teuchos::RCP< VectorType > panzer::BlockedEpetraLinearObjContainer::get_f_th ( ) const

inlinevirtual

Implements panzer::ThyraObjContainer< double >.

Definition at line 76 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

set_A_th()

void panzer::BlockedEpetraLinearObjContainer::set_A_th ( const Teuchos::RCP< CrsMatrixType > &  in )

inlinevirtual

Implements panzer::ThyraObjContainer< double >.

Definition at line 78 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

get_A_th()

Teuchos::RCP< CrsMatrixType > panzer::BlockedEpetraLinearObjContainer::get_A_th ( ) const

inlinevirtual

Implements panzer::ThyraObjContainer< double >.

Definition at line 79 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

Member Data Documentation

x

Teuchos::RCP<VectorType> panzer::BlockedEpetraLinearObjContainer::x

private

Definition at line 82 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

dxdt

Teuchos::RCP<VectorType> panzer::BlockedEpetraLinearObjContainer::dxdt

private

Definition at line 82 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

f

Teuchos::RCP<VectorType> panzer::BlockedEpetraLinearObjContainer::f

private

Definition at line 82 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

A

Teuchos::RCP<CrsMatrixType> panzer::BlockedEpetraLinearObjContainer::A

private

Definition at line 83 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

blockMaps_

std::vector<Teuchos::RCP<const Epetra_Map> > panzer::BlockedEpetraLinearObjContainer::blockMaps_

private

Definition at line 85 of file Panzer_BlockedEpetraLinearObjContainer.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_BlockedEpetraLinearObjContainer.hpp
• Panzer_BlockedEpetraLinearObjContainer.cpp
