Concrete implementation of a Thyra::LinearOpBase object that approximates a Jacobian operator based on the Jacobian-Free Newton-Krylov method (see Knoll and Keyes Journal of Computational Physics 193 (2004) 357-397 for details). More...

#include <NOX_Thyra_MatrixFreeJacobianOperator.hpp>

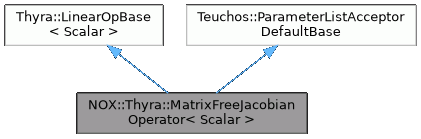

Inheritance diagram for NOX::Thyra::MatrixFreeJacobianOperator< Scalar >:

[legend]

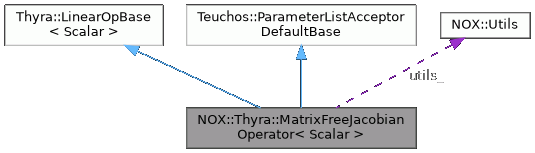

Collaboration diagram for NOX::Thyra::MatrixFreeJacobianOperator< Scalar >:

[legend]

Public Types
enum	E_DifferenceType { Forward =0 , Centered =1 }
	Define types for use of the perturbation parameter $\delta$ .

enum	E_PerturbationType { SalingerLOCA =0 , KelleySalingerPawlowski =1 , KnollKeyes =2 , UserDefined =3 }
	Defines the algorithm for computing . More...

enum	E_BaseEvaluationType { RawThyra , NoxGroup }
	Defined where to get the base objects for the solution, , and the residual, , and the perturbed residual evaluation from. In many cases the base values have been precomputed and can just be used to eliminate redundant residual evaluations. More...

Public Member Functions
	MatrixFreeJacobianOperator (Teuchos::ParameterList &printParams)

Setup the base evaluation sources
void	setBaseEvaluationToRawThyra (const Teuchos::RCP< const ::Thyra::VectorBase< Scalar > > &x_base, const Teuchos::RCP< const ::Thyra::VectorBase< Scalar > > &f_base, const Teuchos::RCP< ::Thyra::ModelEvaluator< Scalar > > model)

void	setBaseEvaluationToNOXGroup (const Teuchos::RCP< const NOX::Abstract::Group > &base_group)

void	setBaseInArgs (const Teuchos::RCP< ::Thyra::ModelEvaluatorBase::InArgs< Scalar > > &base_in_args)

Derived from Teuchos::ParameterListAcceptor
void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &paramList)

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const

Derived from Thyra::LinearOpBase
bool	setup_called_
	true if the algorithm has been setup using the setPArameterList() method

Teuchos::RCP< const ::Thyra::ModelEvaluator< Scalar > >	model_
	User provided interface function.

NOX::Utils	utils_
	Printing utilities.

Teuchos::RCP< Teuchos::ParameterList >	valid_params_
	A list of valid parameters.

E_DifferenceType	difference_type_

E_PerturbationType	perturbation_type_

E_BaseEvaluationType	base_evaluation_type_

Scalar	lambda_
	Scale factor for eta calculation.

Scalar	delta_
	Perturbation value to use in the directional derivative.

Scalar	user_defined_delta_
	Perturbation value to use in the directional derivative.

Teuchos::RCP< const ::Thyra::VectorBase< Scalar > >	x_base_

Teuchos::RCP< const ::Thyra::VectorBase< Scalar > >	f_base_

Teuchos::RCP< ::Thyra::VectorBase< Scalar > >	x_perturb_

Teuchos::RCP< ::Thyra::VectorBase< Scalar > >	f_perturb_

Teuchos::RCP< ::Thyra::VectorBase< Scalar > >	f2_perturb_

Teuchos::RCP< const NOX::Thyra::Group >	base_group_

Teuchos::RCP< ::Thyra::ModelEvaluatorBase::InArgs< Scalar > >	in_args_

Teuchos::RCP< ::Thyra::ModelEvaluatorBase::OutArgs< Scalar > >	out_args_

Teuchos::RCP< const ::Thyra::VectorSpaceBase< Scalar > >	range () const

Teuchos::RCP< const ::Thyra::VectorSpaceBase< Scalar > >	domain () const

Teuchos::RCP< const ::Thyra::LinearOpBase< Scalar > >	clone () const

bool	opSupportedImpl (::Thyra::EOpTransp M_trans) const

void	applyImpl (const ::Thyra::EOpTransp M_trans, const ::Thyra::MultiVectorBase< Scalar > &y, const Teuchos::Ptr< ::Thyra::MultiVectorBase< Scalar > > &u, const Scalar alpha, const Scalar beta) const

void	setLambda (double lambda)
	Change the value of $\lambda$ in the perturbation calculation.

Scalar	getLambda () const
	Change the value of $\lambda$ in the perturbation calculation.

void	setUserDefinedDelta (double delta)
	Change the value of $\delta$ in the perturbation calculation.

Scalar	getUserDefinedDelta () const
	Returns the user defined delta, $\delta$ , used for the perturbation.

Scalar	getDelta () const
	Returns the last used value of delta $\lambda$ in the perturbation calculation.

Detailed Description

template<typename Scalar>
class NOX::Thyra::MatrixFreeJacobianOperator< Scalar >

Concrete implementation of a Thyra::LinearOpBase object that approximates a Jacobian operator based on the Jacobian-Free Newton-Krylov method (see Knoll and Keyes Journal of Computational Physics 193 (2004) 357-397 for details).

This operator approximates the Jacobian action on a vector using rediual evaluations. It is used by Newton-Krylov solvers since these methods only require the matrix-vector product in the linear solve iteration sequence. This product can approximated by directional derivatives:

Forward (1st order accurate):

$Jy \approx \frac{F(x + \delta y) - F(x)}{\delta}$

Central (2nd order accurate):

$Jy \approx \frac{F(x + \delta y) - F(x - \delta y)}{\delta}$

where is the Jacobian, is the vector that the Jacobian is to be applied to, is the solution vector, is the residual evaluation at ,and $\delta$ is a scalar perturbation calculated by a variety of formulas (see MatrixFreeJacobianOperator::E_PerturbationType for references).

NOTE: The base evaluation and its corresponding base solution is assumed to be supplied from an exterior source and that is up to date wrt . Otherwise this algorithm would be inefficient due to extra base evaluations for every Jacobian-vector product. A call must be made to either setBaseEvaluationToRawThyra() or setBaseEvaluationToNOXGroup() to set up the base objects. If a NOX Group is used, the evaluation will be ensured to be correct because of the mechanics for isF(). In the case of raw objects, the user must take care to keep the base values up-to-date.

Member Enumeration Documentation

◆ E_BaseEvaluationType

template<typename Scalar >

enum NOX::Thyra::MatrixFreeJacobianOperator::E_BaseEvaluationType

Defined where to get the base objects for the solution, , and the residual, , and the perturbed residual evaluation from. In many cases the base values have been precomputed and can just be used to eliminate redundant residual evaluations.

Enumerator
RawThyra	User defines thyra objects for solution vector, x, residual vector, f, and residual evaluations.
NoxGroup	Use the nox group registered with this object.

◆ E_PerturbationType

template<typename Scalar >

enum NOX::Thyra::MatrixFreeJacobianOperator::E_PerturbationType

Defines the algorithm for computing .

Enumerator
SalingerLOCA	Use the analogous algorithm by Salinger in LOCA v1.0 manual SAND2002-0396 p. 28 eqn. 2.43.
KelleySalingerPawlowski	Use algorithm developed for NOX by Kelley, Salinger and Pawlowski in 2001.
KnollKeyes	Knoll and Keyes in JCP 193 (2004) 357-397.
UserDefined	Use a constant value defined by the user.

The documentation for this class was generated from the following files:

NOX_Thyra_MatrixFreeJacobianOperator.hpp
NOX_Thyra_MatrixFreeJacobianOperator_impl.hpp
