Public Member Functions | List of all members
LOCA::Epetra::TransposeLinearSystem::AbstractStrategy Class Referenceabstract

A pure virtual interface for solving the transpose of a linear system. More...

#include <LOCA_Epetra_TransposeLinearSystem_AbstractStrategy.H>

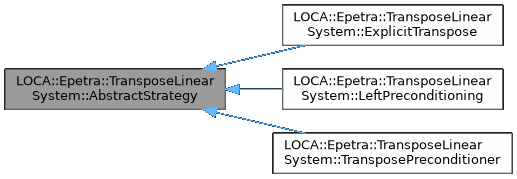

Inheritance diagram for LOCA::Epetra::TransposeLinearSystem::AbstractStrategy:
Inheritance graph
[legend]

Public Member Functions

 AbstractStrategy ()
 Constructor.

virtual ~AbstractStrategy ()
 Destructor.

virtual bool applyJacobianTransposeInverse (Teuchos::ParameterList &params, const NOX::Epetra::Vector &input, NOX::Epetra::Vector &result)=0
 Applies the inverse of the Jacobian matrix transpose to the given input vector and puts the answer in result.

virtual bool createJacobianTranspose ()=0
 Evaluates the Jacobian-transpose based on the solution vector x.

virtual bool createTransposePreconditioner (const NOX::Epetra::Vector &x, Teuchos::ParameterList &p)=0
 Explicitly constructs a preconditioner based on the solution vector x and the parameter list p.

virtual Teuchos::RCP< Epetra_Operator > getJacobianTransposeOperator ()=0
 Get Jacobian-transpose operator.

virtual Teuchos::RCP< Epetra_Operator > getTransposePreconditioner ()=0
 Get transpose-preconditioner.

virtual void setJacobianTransposeOperator (const Teuchos::RCP< Epetra_Operator > &new_jac_trans)=0
 Set Jacobian-transpose operator.

virtual void setTransposePreconditioner (const Teuchos::RCP< Epetra_Operator > &new_prec_trans)=0
 Set transpose-preconditioner.


Detailed Description

A pure virtual interface for solving the transpose of a linear system.

Member Function Documentation

◆ applyJacobianTransposeInverse()

virtual bool LOCA::Epetra::TransposeLinearSystem::AbstractStrategy::applyJacobianTransposeInverse ( Teuchos::ParameterList &  params,
const NOX::Epetra::Vector &  input,
NOX::Epetra::Vector &  result
)
pure virtual

Applies the inverse of the Jacobian matrix transpose to the given input vector and puts the answer in result.

Computes

\[ v = J^{-T} u, \]

where $J$ is the Jacobian, $u$ is the input vector, and $v$ is the result vector.

The parameter list contains the linear solver options.

Implemented in LOCA::Epetra::TransposeLinearSystem::ExplicitTranspose, LOCA::Epetra::TransposeLinearSystem::LeftPreconditioning, and LOCA::Epetra::TransposeLinearSystem::TransposePreconditioner.

◆ createJacobianTranspose()

virtual bool LOCA::Epetra::TransposeLinearSystem::AbstractStrategy::createJacobianTranspose ( )
pure virtual

Evaluates the Jacobian-transpose based on the solution vector x.

Note: For flexibility, this method does not compute the original Jacobian matrix. It uses whatever is currently stored in the linear system.

Implemented in LOCA::Epetra::TransposeLinearSystem::ExplicitTranspose, LOCA::Epetra::TransposeLinearSystem::LeftPreconditioning, and LOCA::Epetra::TransposeLinearSystem::TransposePreconditioner.

◆ createTransposePreconditioner()

virtual bool LOCA::Epetra::TransposeLinearSystem::AbstractStrategy::createTransposePreconditioner ( const NOX::Epetra::Vector &  x,
Teuchos::ParameterList &  p
)
pure virtual

Explicitly constructs a preconditioner based on the solution vector x and the parameter list p.

Note: x is only needed for user-supplied preconditioners. When using a built-in preconditioner (e.g., Ifpack), x will note be used.

Implemented in LOCA::Epetra::TransposeLinearSystem::ExplicitTranspose, LOCA::Epetra::TransposeLinearSystem::LeftPreconditioning, and LOCA::Epetra::TransposeLinearSystem::TransposePreconditioner.

◆ getJacobianTransposeOperator()

virtual Teuchos::RCP< Epetra_Operator > LOCA::Epetra::TransposeLinearSystem::AbstractStrategy::getJacobianTransposeOperator ( )
pure virtual

Get Jacobian-transpose operator.

Implemented in LOCA::Epetra::TransposeLinearSystem::ExplicitTranspose, LOCA::Epetra::TransposeLinearSystem::LeftPreconditioning, and LOCA::Epetra::TransposeLinearSystem::TransposePreconditioner.

◆ getTransposePreconditioner()

virtual Teuchos::RCP< Epetra_Operator > LOCA::Epetra::TransposeLinearSystem::AbstractStrategy::getTransposePreconditioner ( )
pure virtual

Get transpose-preconditioner.

Implemented in LOCA::Epetra::TransposeLinearSystem::ExplicitTranspose, LOCA::Epetra::TransposeLinearSystem::LeftPreconditioning, and LOCA::Epetra::TransposeLinearSystem::TransposePreconditioner.

◆ setJacobianTransposeOperator()

virtual void LOCA::Epetra::TransposeLinearSystem::AbstractStrategy::setJacobianTransposeOperator ( const Teuchos::RCP< Epetra_Operator > &  new_jac_trans)
pure virtual

Set Jacobian-transpose operator.

Implemented in LOCA::Epetra::TransposeLinearSystem::ExplicitTranspose, LOCA::Epetra::TransposeLinearSystem::LeftPreconditioning, and LOCA::Epetra::TransposeLinearSystem::TransposePreconditioner.

◆ setTransposePreconditioner()

virtual void LOCA::Epetra::TransposeLinearSystem::AbstractStrategy::setTransposePreconditioner ( const Teuchos::RCP< Epetra_Operator > &  new_prec_trans)
pure virtual

Set transpose-preconditioner.

Implemented in LOCA::Epetra::TransposeLinearSystem::ExplicitTranspose, LOCA::Epetra::TransposeLinearSystem::LeftPreconditioning, and LOCA::Epetra::TransposeLinearSystem::TransposePreconditioner.

The documentation for this class was generated from the following file:
