LOCA::Epetra::LowRankUpdateOp Class Reference

An Epetra operator for implementing the operator . More...

#include <LOCA_Epetra_LowRankUpdateOp.H>

Inheritance diagram for LOCA::Epetra::LowRankUpdateOp:

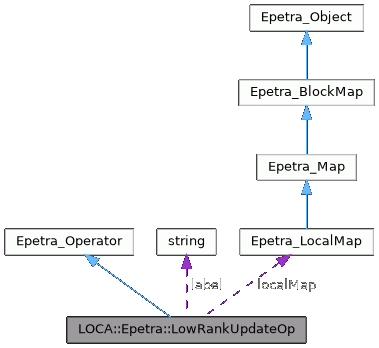

Collaboration diagram for LOCA::Epetra::LowRankUpdateOp:

Public Member Functions
	LowRankUpdateOp (const Teuchos::RCP< LOCA::GlobalData > &global_data, const Teuchos::RCP< Epetra_Operator > &jacOperator, const Teuchos::RCP< const Epetra_MultiVector > &U_multiVec, const Teuchos::RCP< const Epetra_MultiVector > &V_multiVec, bool setup_for_solve)
	Constructor.
virtual	~LowRankUpdateOp ()
	Destructor.
virtual int	SetUseTranspose (bool UseTranspose)
	Set to true if the transpose of the operator is requested.
virtual int	Apply (const Epetra_MultiVector &Input, Epetra_MultiVector &Result) const
	Returns the result of a Epetra_Operator applied to a Epetra_MultiVector Input in Result as described above.
virtual int	ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	This method does nothing.
virtual double	NormInf () const
	Returns an approximate infinity norm of the operator matrix.
virtual const char *	Label () const
	Returns a character std::string describing the operator.
virtual bool	UseTranspose () const
	Returns the current UseTranspose setting. Always returns false.
virtual bool	HasNormInf () const
	Returns true if the this object can provide an approximate Inf-norm, false otherwise.
virtual const Epetra_Comm &	Comm () const
	Returns a reference to the Epetra_Comm communicator associated with this operator.
virtual const Epetra_Map &	OperatorDomainMap () const
	Returns the Epetra_Map object associated with the domain of this matrix operator.
virtual const Epetra_Map &	OperatorRangeMap () const
	Returns the Epetra_Map object associated with the range of this matrix operator.

Protected Attributes
Teuchos::RCP< LOCA::GlobalData >	globalData
	Global data object.
std::string	label
	Label for operator.
Epetra_LocalMap	localMap
	Local map for generating temporary matrices.
Teuchos::RCP< Epetra_Operator >	J
	Stores operator representing J.
Teuchos::RCP< const Epetra_MultiVector >	U
	Stores multivector representing U.
Teuchos::RCP< const Epetra_MultiVector >	V
	Stores multivector representing V.
bool	useTranspose
	Flag indicating whether to use the transpose.
Teuchos::RCP< Epetra_MultiVector >	tmpMat
	Temporary matrix.
Teuchos::RCP< Epetra_MultiVector >	JinvU
	Stores J^{-1}*U.
Teuchos::RCP< Epetra_MultiVector >	lu
	Stores LU factorization of I + V^T*J^{-1}*U.
std::vector< int >	ipiv
	Stores pivots for LU factorization.
Teuchos::LAPACK< int, double >	lapack
	Lapack wrappers.

Detailed Description

An Epetra operator for implementing the operator .

This class implements the Epetra_Operator interface for where is an Epetra_Operator and and are Epetra_MultiVectors.

Constructor & Destructor Documentation

LowRankUpdateOp()

LOCA::Epetra::LowRankUpdateOp::LowRankUpdateOp	(	const Teuchos::RCP< LOCA::GlobalData > &	global_data,
		const Teuchos::RCP< Epetra_Operator > &	jacOperator,
		const Teuchos::RCP< const Epetra_MultiVector > &	U_multiVec,
		const Teuchos::RCP< const Epetra_MultiVector > &	V_multiVec,
		bool	setup_for_solve
	)

Constructor.

Parameters

global_data	[in] The global data object
jacOperator	[in] Jacobian operator J
U_multiVec	[in] Multivector representing U
V_multiVec	[in] Multivector representing V

References ipiv, J, JinvU, lapack, localMap, lu, U, and V.

Member Function Documentation

Apply()

int LOCA::Epetra::LowRankUpdateOp::Apply ( const Epetra_MultiVector &  Input, Epetra_MultiVector &  Result  ) const

virtual

Returns the result of a Epetra_Operator applied to a Epetra_MultiVector Input in Result as described above.

Implements Epetra_Operator.

References Epetra_MultiVector::Multiply(), and Epetra_MultiVector::NumVectors().

ApplyInverse()

int LOCA::Epetra::LowRankUpdateOp::ApplyInverse ( const Epetra_MultiVector &  X, Epetra_MultiVector &  Y  ) const

virtual

This method does nothing.

Implements Epetra_Operator.

References Epetra_MultiVector::Multiply(), and Epetra_MultiVector::NumVectors().

Comm()

const Epetra_Comm & LOCA::Epetra::LowRankUpdateOp::Comm ( ) const

virtual

Returns a reference to the Epetra_Comm communicator associated with this operator.

Implements Epetra_Operator.

HasNormInf()

bool LOCA::Epetra::LowRankUpdateOp::HasNormInf ( ) const

virtual

Returns true if the this object can provide an approximate Inf-norm, false otherwise.

Implements Epetra_Operator.

Label()

const char * LOCA::Epetra::LowRankUpdateOp::Label ( ) const

virtual

Returns a character std::string describing the operator.

Implements Epetra_Operator.

NormInf()

double LOCA::Epetra::LowRankUpdateOp::NormInf ( ) const

virtual

Returns an approximate infinity norm of the operator matrix.

This is defined only if NormInf() of the underlying operator is defined and is given by .

Implements Epetra_Operator.

Reimplemented in LOCA::Epetra::LowRankUpdateRowMatrix.

OperatorDomainMap()

const Epetra_Map & LOCA::Epetra::LowRankUpdateOp::OperatorDomainMap ( ) const

virtual

Returns the Epetra_Map object associated with the domain of this matrix operator.

Implements Epetra_Operator.

OperatorRangeMap()

const Epetra_Map & LOCA::Epetra::LowRankUpdateOp::OperatorRangeMap ( ) const

virtual

Returns the Epetra_Map object associated with the range of this matrix operator.

Implements Epetra_Operator.

SetUseTranspose()

int LOCA::Epetra::LowRankUpdateOp::SetUseTranspose ( bool  UseTranspose )

virtual

Set to true if the transpose of the operator is requested.

Implements Epetra_Operator.

UseTranspose()

bool LOCA::Epetra::LowRankUpdateOp::UseTranspose ( ) const

virtual

Returns the current UseTranspose setting. Always returns false.

Implements Epetra_Operator.

---

The documentation for this class was generated from the following files:

• LOCA_Epetra_LowRankUpdateOp.H
• LOCA_Epetra_LowRankUpdateOp.C
