An abstract base class that defines interface for bases that are tensor products of simpler bases. More...

#include <Intrepid_TensorBasis.hpp>

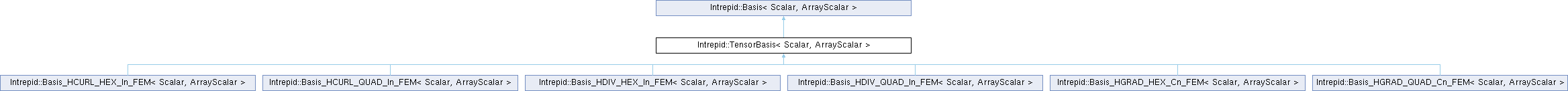

Inheritance diagram for Intrepid::TensorBasis< Scalar, ArrayScalar >:

Public Member Functions
Array< Array< RCP< Basis< Scalar, ArrayScalar > > > > &	getBases ()

virtual	~TensorBasis ()
	Destructor.

Public Member Functions inherited from Intrepid::Basis< Scalar, ArrayScalar >
virtual	~Basis ()
	Destructor.

virtual void	getValues (ArrayScalar &outputValues, const ArrayScalar &inputPoints, const EOperator operatorType) const =0
	Evaluation of a FEM basis on a reference cell.

virtual void	getValues (ArrayScalar &outputValues, const ArrayScalar &inputPoints, const ArrayScalar &cellVertices, const EOperator operatorType=OPERATOR_VALUE) const =0
	Evaluation of an FVD basis evaluation on a physical cell.

virtual int	getCardinality () const
	Returns cardinality of the basis.

virtual int	getDegree () const
	Returns the degree of the basis.

virtual const shards::CellTopology	getBaseCellTopology () const
	Returns the base cell topology for which the basis is defined. See Shards documentation http://trilinos.sandia.gov/packages/shards for definition of base cell topology.

virtual EBasis	getBasisType () const
	Returns the basis type.

virtual ECoordinates	getCoordinateSystem () const
	Returns the type of coordinate system for which the basis is defined.

virtual int	getDofOrdinal (const int subcDim, const int subcOrd, const int subcDofOrd)
	DoF tag to ordinal lookup.

virtual const std::vector< std::vector< std::vector< int > > > &	getDofOrdinalData ()
	DoF tag to ordinal data structure.

virtual const std::vector< int > &	getDofTag (const int dofOrd)
	DoF ordinal to DoF tag lookup.

virtual const std::vector< std::vector< int > > &	getAllDofTags ()
	Retrieves all DoF tags.

Protected Member Functions
void	setBases (Array< Array< RCP< Basis< Scalar, ArrayScalar > > > > &bases)

Protected Attributes
Array< Array< RCP< Basis< Scalar, ArrayScalar > > > >	bases_

Protected Attributes inherited from Intrepid::Basis< Scalar, ArrayScalar >
int	basisCardinality_
	Cardinality of the basis, i.e., the number of basis functions/degrees-of-freedom.

int	basisDegree_
	Degree of the largest complete polynomial space that can be represented by the basis.

shards::CellTopology	basisCellTopology_
	Base topology of the cells for which the basis is defined. See the Shards package http://trilinos.sandia.gov/packages/shards for definition of base cell topology.

EBasis	basisType_
	Type of the basis.

ECoordinates	basisCoordinates_
	The coordinate system for which the basis is defined.

bool	basisTagsAreSet_
	"true" if tagToOrdinal_ and ordinalToTag_ have been initialized

std::vector< std::vector< int > >	ordinalToTag_
	DoF ordinal to tag lookup table.

std::vector< std::vector< std::vector< int > > >	tagToOrdinal_
	DoF tag to ordinal lookup table.

Detailed Description

template<class Scalar, class ArrayScalar>
class Intrepid::TensorBasis< Scalar, ArrayScalar >

An abstract base class that defines interface for bases that are tensor products of simpler bases.

Definition at line 67 of file Intrepid_TensorBasis.hpp.

Constructor & Destructor Documentation

◆ ~TensorBasis()

template<class Scalar , class ArrayScalar >

virtual Intrepid::TensorBasis< Scalar, ArrayScalar >::~TensorBasis ( )

inlinevirtual

Destructor.

Definition at line 94 of file Intrepid_TensorBasis.hpp.

Member Function Documentation

◆ getBases()

template<class Scalar , class ArrayScalar >

Array< Array< RCP< Basis< Scalar, ArrayScalar > > > > & Intrepid::TensorBasis< Scalar, ArrayScalar >::getBases ( )

inline

Definition at line 89 of file Intrepid_TensorBasis.hpp.

◆ setBases()

template<class Scalar , class ArrayScalar >

void Intrepid::TensorBasis< Scalar, ArrayScalar >::setBases ( Array< Array< RCP< Basis< Scalar, ArrayScalar > > > > & bases )

inlineprotected

Definition at line 75 of file Intrepid_TensorBasis.hpp.

Member Data Documentation

◆ bases_

template<class Scalar , class ArrayScalar >

Array< Array< RCP< Basis< Scalar , ArrayScalar > > > > Intrepid::TensorBasis< Scalar, ArrayScalar >::bases_

protected

Definition at line 73 of file Intrepid_TensorBasis.hpp.

The documentation for this class was generated from the following file:

/home/runner/work/trilinos.github.io/trilinos.github.io/Trilinos/packages/intrepid/src/Discretization/Basis/Intrepid_TensorBasis.hpp
