Belos::DenseSolver< ScalarType, DM > Class Template Reference

#include <BelosDenseSolver.hpp>

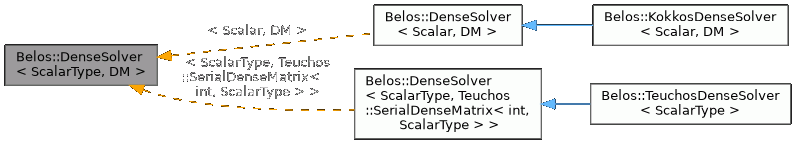

Inheritance diagram for Belos::DenseSolver< ScalarType, DM >:

Public Member Functions
Constructor/Destructor Methods
	DenseSolver ()
	Default constructor; matrix should be set using setMatrix(), LHS and RHS set with setVectors().
virtual	~DenseSolver ()
	SerialDenseSolver destructor.
Set Methods
virtual int	setMatrix (const Teuchos::RCP< DM > &A)
	Sets the pointers for coefficient matrix.
virtual int	setVectors (const Teuchos::RCP< DM > &X, const Teuchos::RCP< DM > &B)
	Sets the pointers for left and right hand side vector(s).
Strategy Modifying Methods
void	setSPD (bool flag)
void	factorWithEquilibration (bool flag)
	Causes equilibration to be called just before the matrix factorization as part of the call to factor.
void	solveWithTransposeFlag (Teuchos::ETransp trans)
	All subsequent function calls will work with the transpose-type set by this method (Teuchos::NO_TRANS, Teuchos::TRANS, and Teuchos::CONJ_TRANS).

Factor/Solve Methods
bool	spd_
bool	equilibrate_
Teuchos::ETransp	TRANS_
bool	newMatrix_
Teuchos::RCP< DM >	A_
Teuchos::RCP< DM >	X_
Teuchos::RCP< DM >	B_
virtual int	factor ()=0
	Computes the in-place LU factorization of the matrix.
virtual int	solve ()=0
	Computes the solution X to AX = B for the this matrix and the B provided.

Detailed Description

template<class ScalarType, class DM>
class Belos::DenseSolver< ScalarType, DM >

Definition at line 23 of file BelosDenseSolver.hpp.

Constructor & Destructor Documentation

DenseSolver()

template<class ScalarType, class DM>

Belos::DenseSolver< ScalarType, DM >::DenseSolver ( )

inline

Default constructor; matrix should be set using setMatrix(), LHS and RHS set with setVectors().

Definition at line 30 of file BelosDenseSolver.hpp.

~DenseSolver()

template<class ScalarType, class DM>

virtual Belos::DenseSolver< ScalarType, DM >::~DenseSolver ( )

inlinevirtual

SerialDenseSolver destructor.

Definition at line 38 of file BelosDenseSolver.hpp.

Member Function Documentation

setMatrix()

template<class ScalarType, class DM>

virtual int Belos::DenseSolver< ScalarType, DM >::setMatrix ( const Teuchos::RCP< DM > & A )

inlinevirtual

Sets the pointers for coefficient matrix.

Definition at line 45 of file BelosDenseSolver.hpp.

setVectors()

template<class ScalarType, class DM>

virtual int Belos::DenseSolver< ScalarType, DM >::setVectors ( const Teuchos::RCP< DM > & X, const Teuchos::RCP< DM > & B )

inlinevirtual

Sets the pointers for left and right hand side vector(s).

Row dimension of X must match column dimension of matrix A, row dimension of B must match row dimension of A. X and B must have the same dimensions.

Definition at line 51 of file BelosDenseSolver.hpp.

setSPD()

template<class ScalarType, class DM>

void Belos::DenseSolver< ScalarType, DM >::setSPD ( bool flag )

inline

Set if dense matrix is symmetric positive definite

Note

This method must be called before the factorization is performed, otherwise it will have no effect.

Definition at line 59 of file BelosDenseSolver.hpp.

factorWithEquilibration()

template<class ScalarType, class DM>

void Belos::DenseSolver< ScalarType, DM >::factorWithEquilibration ( bool flag )

inline

Causes equilibration to be called just before the matrix factorization as part of the call to factor.

Note

This method must be called before the factorization is performed, otherwise it will have no effect.

Definition at line 64 of file BelosDenseSolver.hpp.

solveWithTransposeFlag()

template<class ScalarType, class DM>

void Belos::DenseSolver< ScalarType, DM >::solveWithTransposeFlag ( Teuchos::ETransp trans )

inline

All subsequent function calls will work with the transpose-type set by this method (Teuchos::NO_TRANS, Teuchos::TRANS, and Teuchos::CONJ_TRANS).

Note

This interface will set correct transpose flag for matrix, including complex-valued linear systems.

Definition at line 69 of file BelosDenseSolver.hpp.

factor()

template<class ScalarType, class DM>

virtual int Belos::DenseSolver< ScalarType, DM >::factor ( )

pure virtual

Computes the in-place LU factorization of the matrix.

Returns

Integer error code, set to 0 if successful.

Implemented in Belos::KokkosDenseSolver< Scalar, DM >, and Belos::TeuchosDenseSolver< ScalarType >.

solve()

template<class ScalarType, class DM>

virtual int Belos::DenseSolver< ScalarType, DM >::solve ( )

pure virtual

Computes the solution X to AX = B for the this matrix and the B provided.

Returns

Integer error code, set to 0 if successful.

Implemented in Belos::KokkosDenseSolver< Scalar, DM >, and Belos::TeuchosDenseSolver< ScalarType >.

Member Data Documentation

spd_

template<class ScalarType, class DM>

bool Belos::DenseSolver< ScalarType, DM >::spd_

protected

Definition at line 90 of file BelosDenseSolver.hpp.

equilibrate_

template<class ScalarType, class DM>

bool Belos::DenseSolver< ScalarType, DM >::equilibrate_

protected

Definition at line 90 of file BelosDenseSolver.hpp.

TRANS_

template<class ScalarType, class DM>

Teuchos::ETransp Belos::DenseSolver< ScalarType, DM >::TRANS_

protected

Definition at line 91 of file BelosDenseSolver.hpp.

newMatrix_

template<class ScalarType, class DM>

bool Belos::DenseSolver< ScalarType, DM >::newMatrix_

protected

Definition at line 93 of file BelosDenseSolver.hpp.

A_

template<class ScalarType, class DM>

Teuchos::RCP<DM> Belos::DenseSolver< ScalarType, DM >::A_

protected

Definition at line 94 of file BelosDenseSolver.hpp.

X_

template<class ScalarType, class DM>

Teuchos::RCP<DM> Belos::DenseSolver< ScalarType, DM >::X_

protected

Definition at line 94 of file BelosDenseSolver.hpp.

B_

template<class ScalarType, class DM>

Teuchos::RCP<DM> Belos::DenseSolver< ScalarType, DM >::B_

protected

Definition at line 94 of file BelosDenseSolver.hpp.

---

The documentation for this class was generated from the following file:

• BelosDenseSolver.hpp
