Example: Discretize Poisson's equation with Dirichlet boundary conditions on a hexahedral mesh using nodal (Hgrad) elements. The system is assembled into Tpetra data structures, and optionally solved. More...

#include "Teuchos_oblackholestream.hpp"
#include "Teuchos_GlobalMPISession.hpp"
#include "Teuchos_TimeMonitor.hpp"
#include "Teuchos_XMLParameterListHelpers.hpp"
#include "Teuchos_StandardCatchMacros.hpp"
#include "Tpetra_Core.hpp"
#include "TrilinosCouplings_config.h"
#include "TrilinosCouplings_TpetraIntrepidHybridPoisson3DExample.hpp"
#include "TrilinosCouplings_IntrepidPoissonExampleHelpers.hpp"
#include <MatrixMarket_Tpetra.hpp>

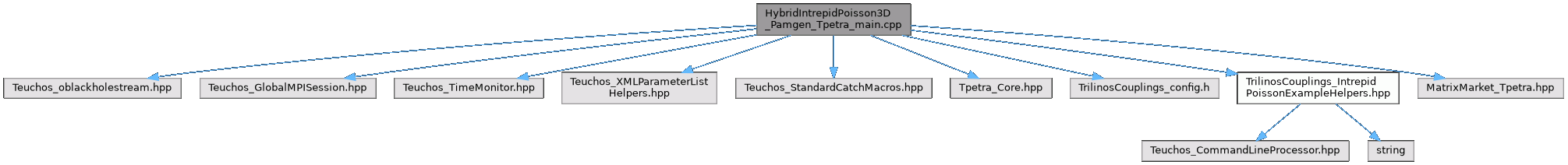

Include dependency graph for HybridIntrepidPoisson3D_Pamgen_Tpetra_main.cpp:

Functions
int	main (int argc, char *argv[])

Detailed Description

Example: Discretize Poisson's equation with Dirichlet boundary conditions on a hexahedral mesh using nodal (Hgrad) elements. The system is assembled into Tpetra data structures, and optionally solved.

This example uses the following Trilinos packages:

Pamgen to generate a Hexahedral mesh.
Sacado to form the source term from user-specified manufactured solution.
Intrepid to build the discretization matrix and right-hand side.
Tpetra to handle the global sparse matrix and dense vector.

 Poisson system:

        div A grad u = f in Omega
                   u = g on Gamma

  where
         A is a material tensor (typically symmetric positive definite)
         f is a given source term

 Corresponding discrete linear system for nodal coefficients(x):

             Kx = b

        K - HGrad stiffness matrix
        b - right hand side vector

Author: Created by P. Bochev, D. Ridzal, K. Peterson, D. Hensinger, C. Siefert. Converted to Tpetra by I. Kalashnikova (ikala.nosp@m.sh@s.nosp@m.andia.nosp@m..gov). Modified by Mark Hoemmen (mhoem.nosp@m.me@s.nosp@m.andia.nosp@m..gov) and a bunch of other people.

Remarks: Use the "--help" command-line argument for usage info.; Example driver has an option to use an input file (XML serialization of a Teuchos::ParameterList) containing a Pamgen mesh description. A version, Poisson.xml, is included in the same directory as this driver. If not included, this program will use a default mesh description.; The exact solution (u) and material tensor (A) are set in the functions "exactSolution" and "materialTensor" and may be modified by the user. We compute the source term f from u using Sacado automatic differentiation, so that u really is the exact solution. The current implementation of exactSolution() has notes to guide your choice of solution. For example, you might want to pick a solution in the finite element space, so that the discrete solution is exact if the solution of the linear system is exact (modulo rounding error when constructing the linear system).
